Gallery

Fire-Resistant and Explosion-Proof Modular Cleanrooms

Fire-resistant cleanroom shown with FM 4910-listed transparent CPVC wall panels

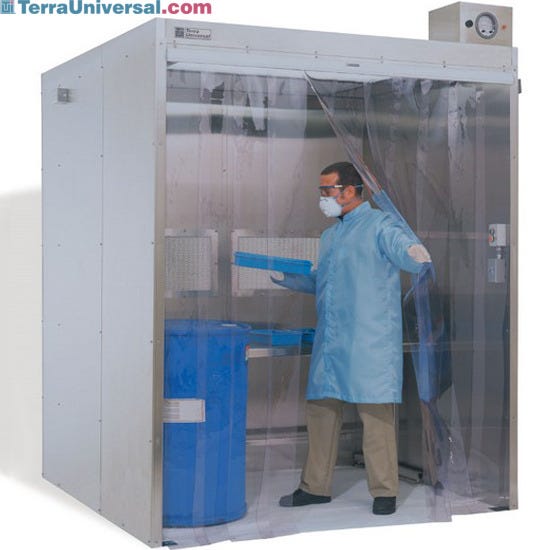

Powder Control Rooms

• Dust-free filling/dispensing
• Filtered exhausts
• Horizontal exhaust designs
• Vertical exhaust designs
• Flexible transparent panels
• Modular steel frame
• ISO 5 - 8

Horizontal Flow Cleanrooms

Stream filtered air directly on critical processes
• Wall-mounted FFUs
• Soft & hardwall designs
• Steel modular frame
• ISO 7 - 8
• Pre-fabricated components

Humidity-Controlled Drying Room

Equipped with a heating and dehumidifying system to ensure stored contents are dried and kept clean. Useful for EV battery assembly, adhesive curing, PC board drying, and filter assembly.

Attachable to Existing Cleanrooms

Drying rooms can be customized to share walls with cleanrooms for workflow efficiency and contamination control. Speak with a Terra product specialist for more info.

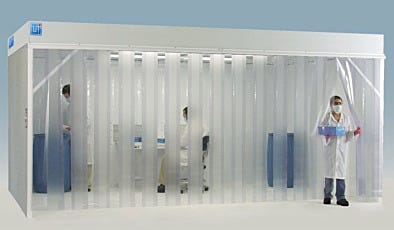

Powder Containment Modular Cleanroom Booth

Double-wall, powder-coated steel Containment Room uses closed-loop, recirculating HEPA filtration to capture particles (order filter modules separately).

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

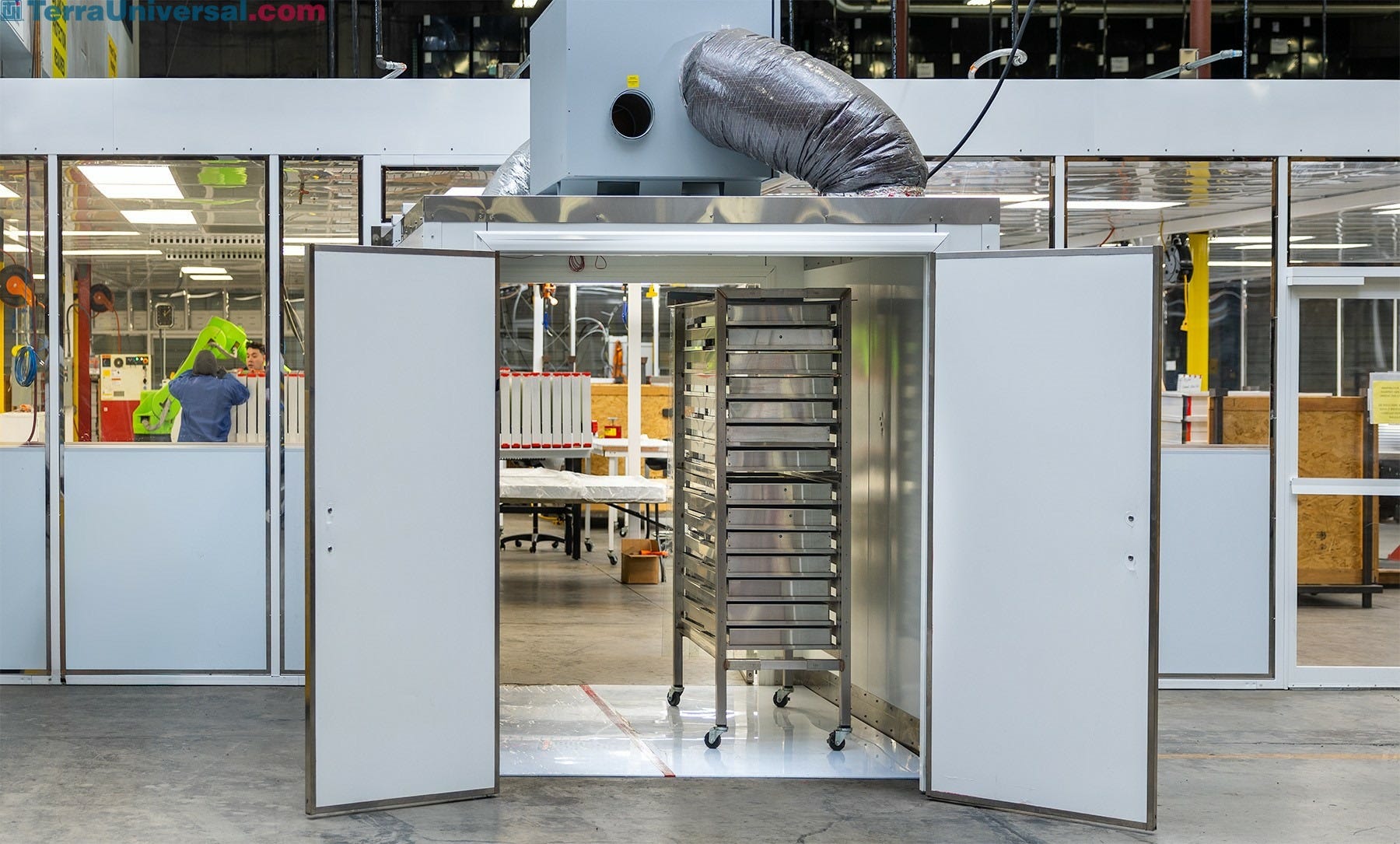

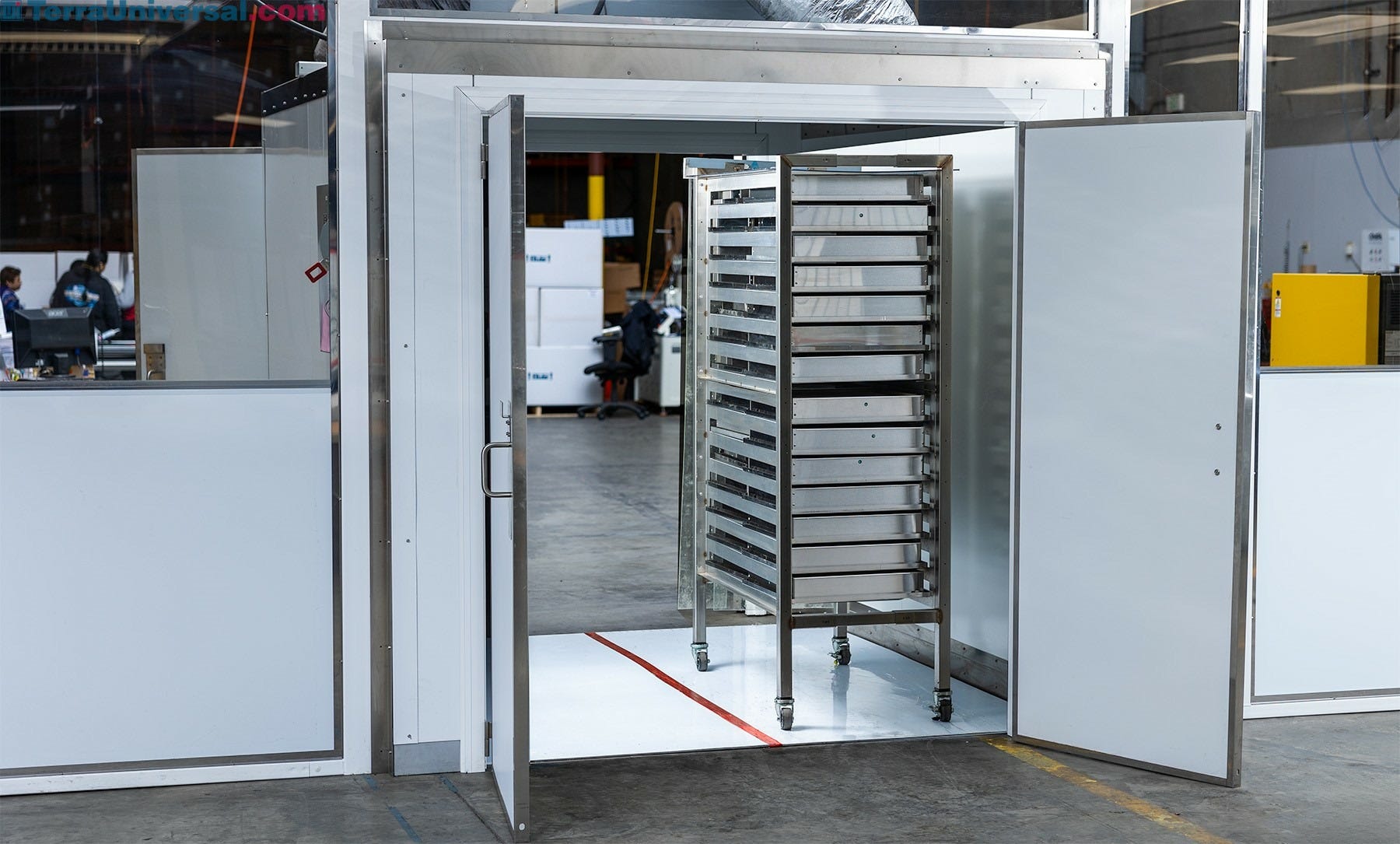

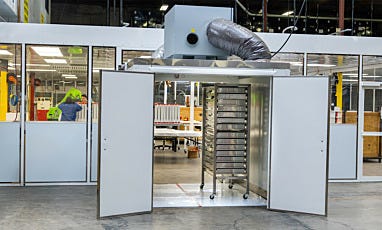

Humidity-Controlled Drying Room for Cleanrooms

Drying rooms can be connected to cleanrooms or other larger rooms for easy access to dried or hot goods.

Made for Curing or Drying

Drying rooms are equipped with a desiccant heater to effectively dry or cure in EV battery assembly, PC board assembly, or filter assembly.

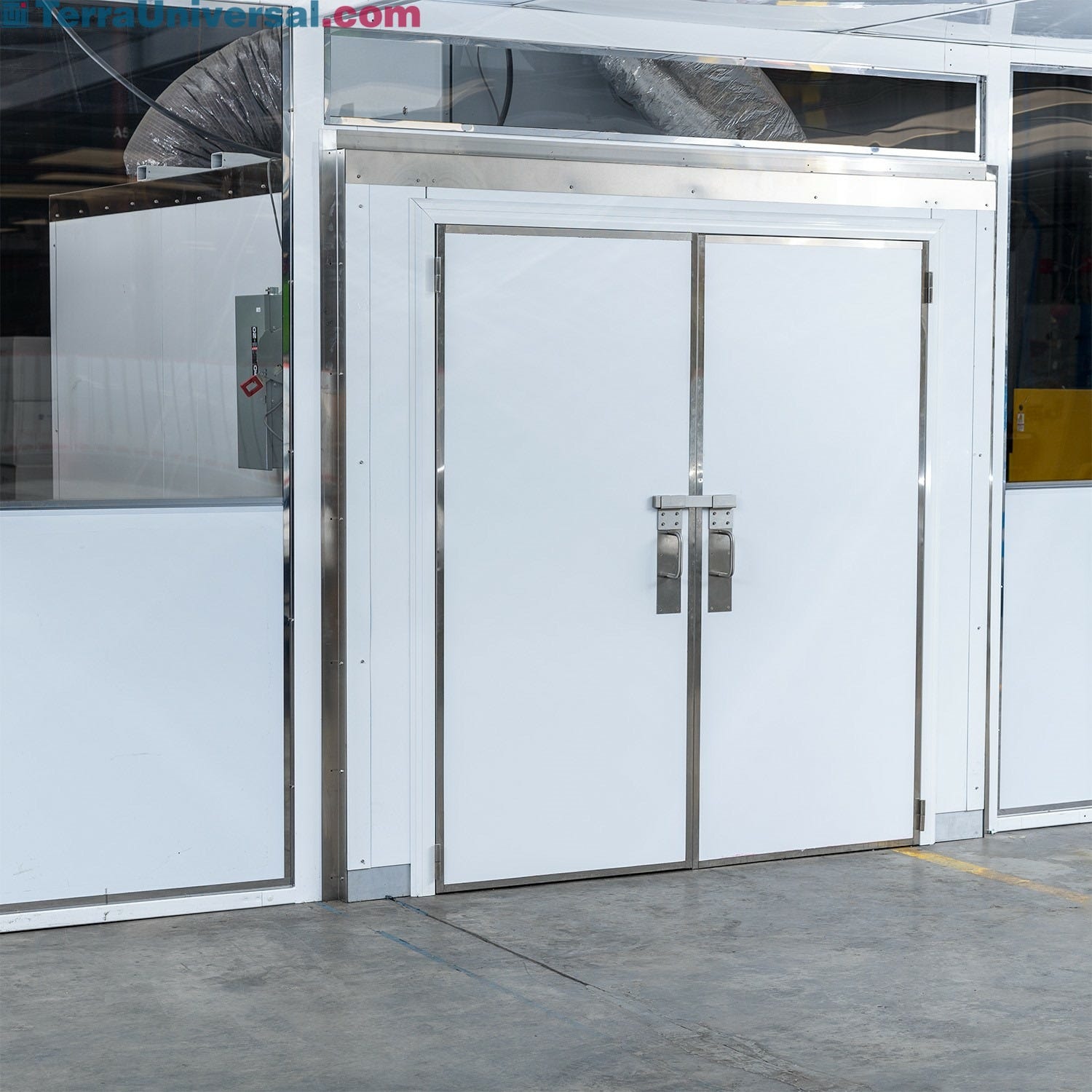

Dual-Access Doors

Doors are built on both sides of the drying room for easy access from either inside a cleanroom or from outside of a cleanroom. Supplies or other items can be moved in and out freely.

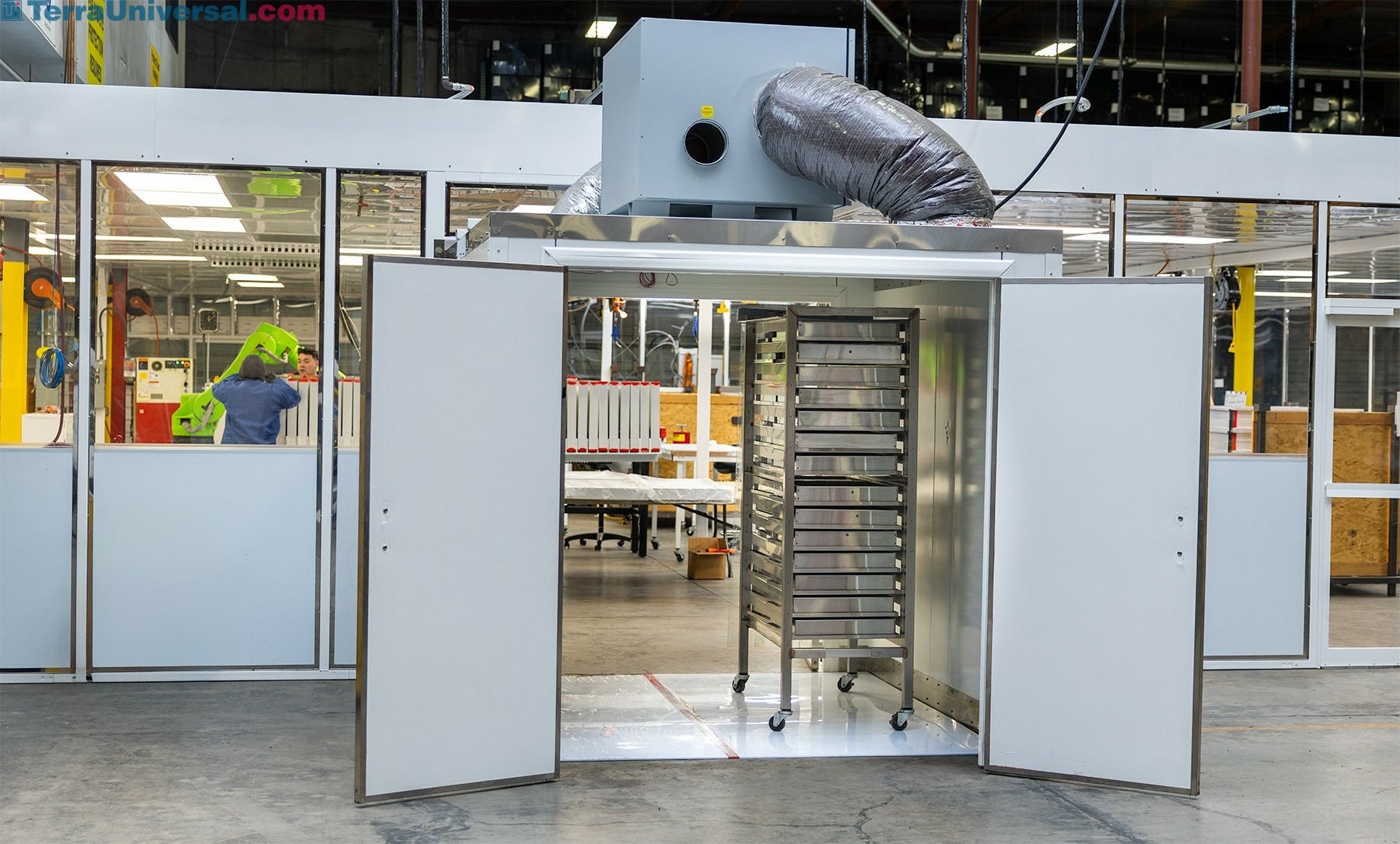

Dual Side Access

Dual access provides flexibility in storing equipment, components, or other goods in the drying room

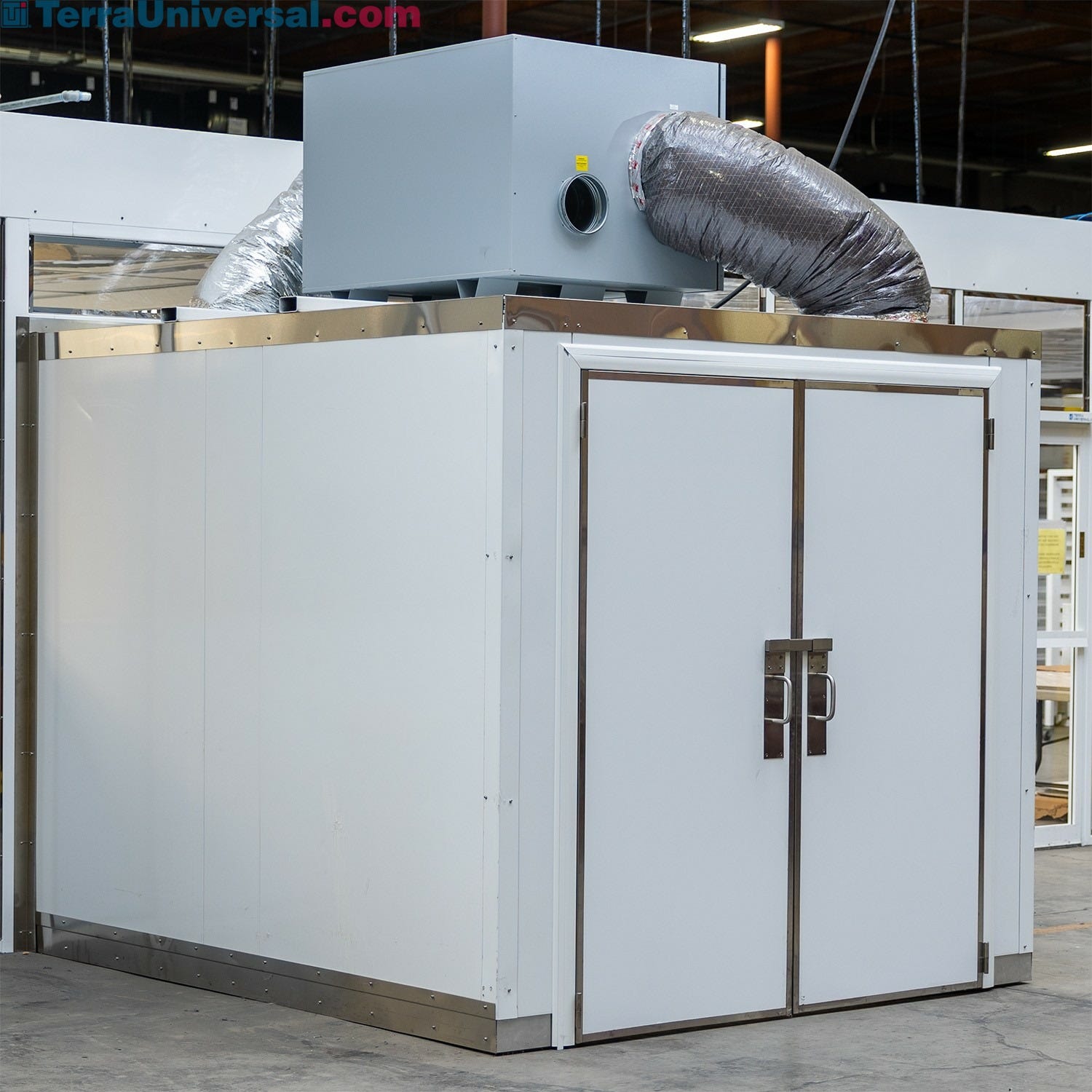

Desiccant Dehumidifier Used for Drying Room

Desiccant dehumidifier sits on top, and supplies hot, dry air to the room that is capable of maintaining a temperature of 90 °F (32 °C). Its drying capacity is 22 lbs/hr when conditions are at 68 °F (20 °C).

Power Distribution Module (PDM) for Smart® Tier System

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Smart® Control Panels. The UL-listed high-voltage power distribution system ensures the highest safety and quality.

Power Distribution Module (PDM) for Smart® Tier System

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Smart® Control Panels. The UL-listed high-voltage power distribution system ensures the highest safety and quality.

BioSafe® Smart® Control Panel with 7" Tier 3 Console

Terra’s Tier 3 cleanroom control panel intelligently monitors and controls clean room and facility environments. Monitor differential pressure, temperature, and/or RH. The Tier 3 console supports cleanroom monitoring for up to 12 rooms and control of up to 120 FFUs. The plug-and-play design is field configurable to match your facility layout and needs.

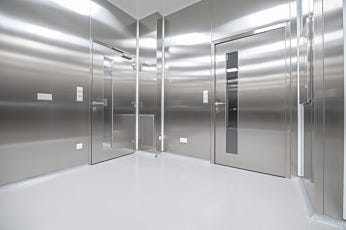

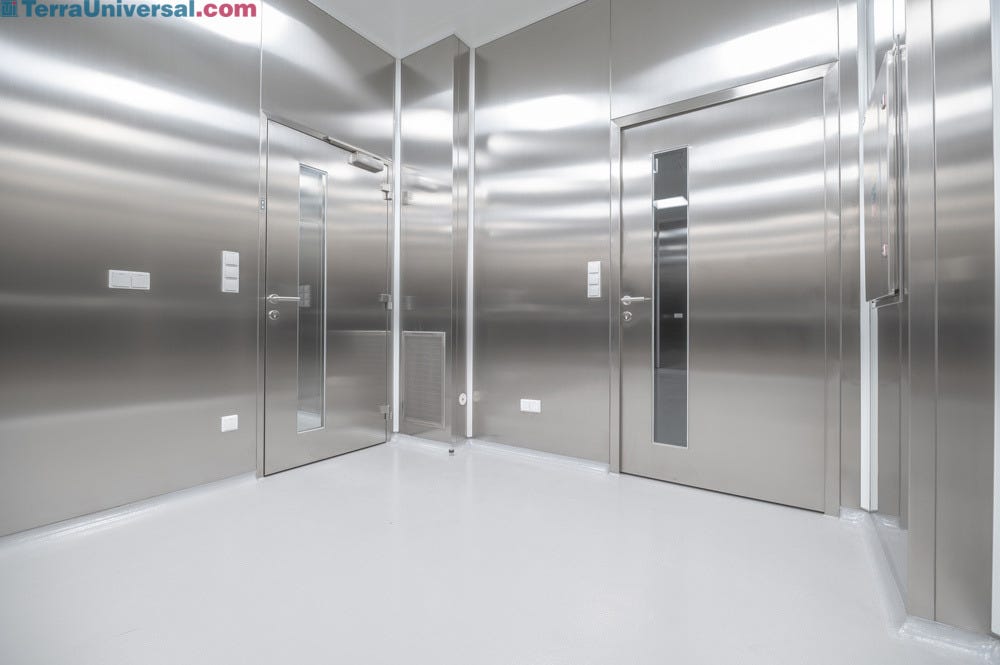

Stainless Steel Modular Cleanroom | Sterile and Durable Design

Create a sterile and durable controlled environment with a stainless steel modular cleanroom. The seamless construction and integrated doors provide a smooth, easy-to-clean surface, minimizing contamination risks. Ideal for pharmaceutical production, GMP facilities, and other applications requiring strict hygiene.

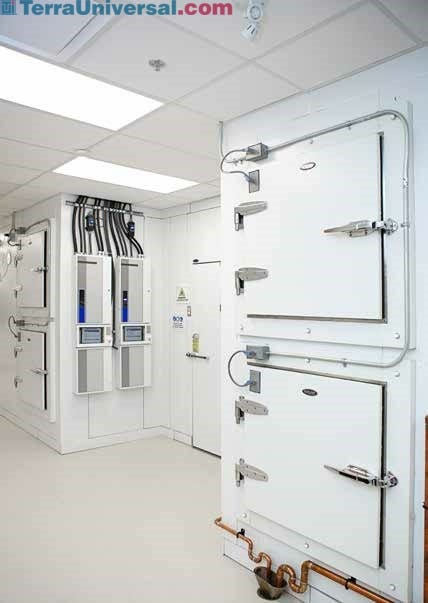

Cleanroom with Integrated Freezer Units and Control Systems

This cleanroom demonstrates the integration of freezer units within a modular cleanroom environment. The advanced control systems provide precise temperature management and monitoring, ensuring optimal conditions for temperature-sensitive materials and processes.

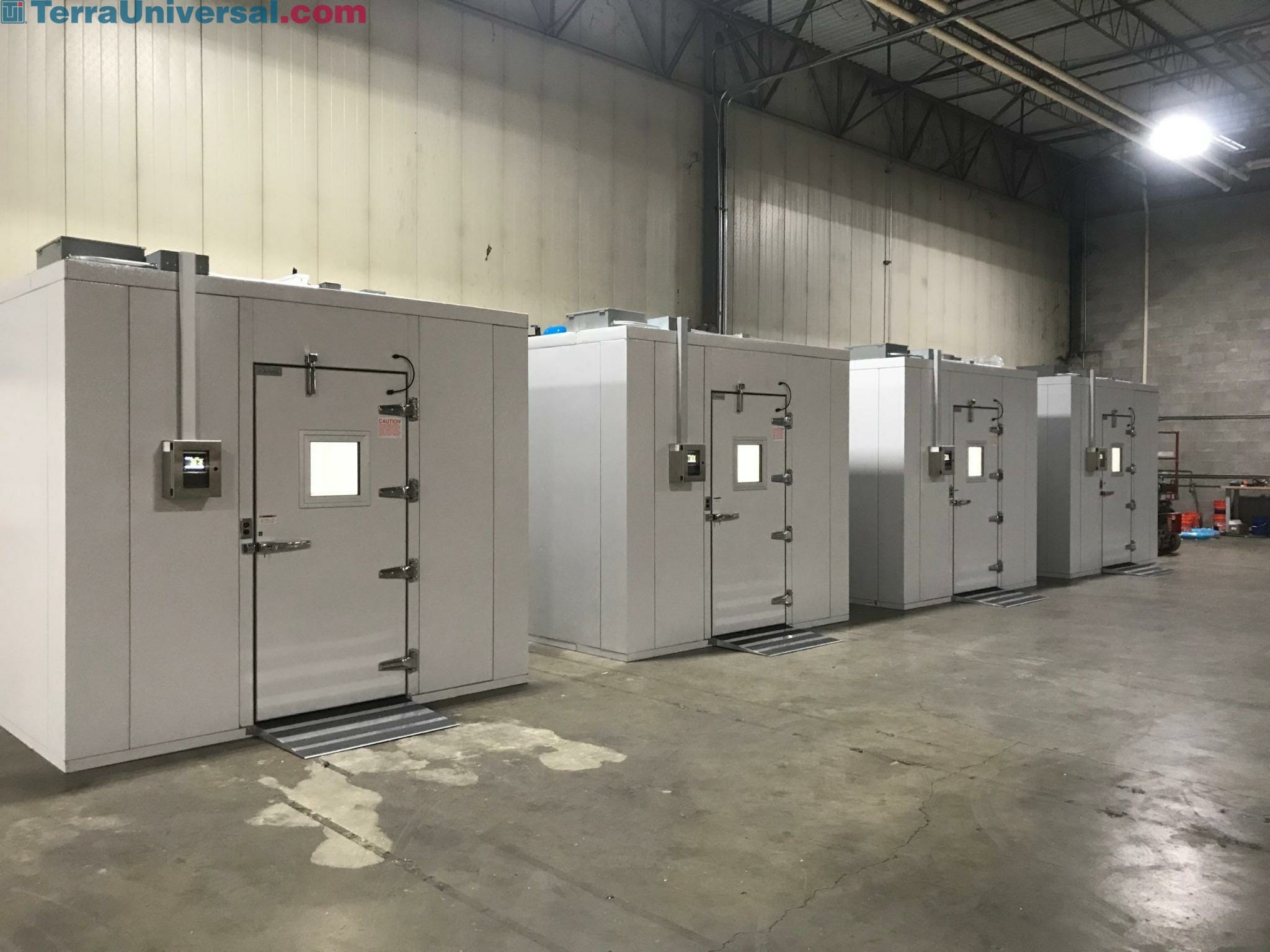

Temperature Controlled Modular Cleanrooms | Custom Design & Build

Create a custom temperature-controlled environment with modular cleanrooms. These units offer precise temperature control, customizable sizes, and flexible configurations to meet your specific needs. Ideal for research facilities, temperature-sensitive manufacturing, pharmaceutical production, and more. Contact us for a free consultation.

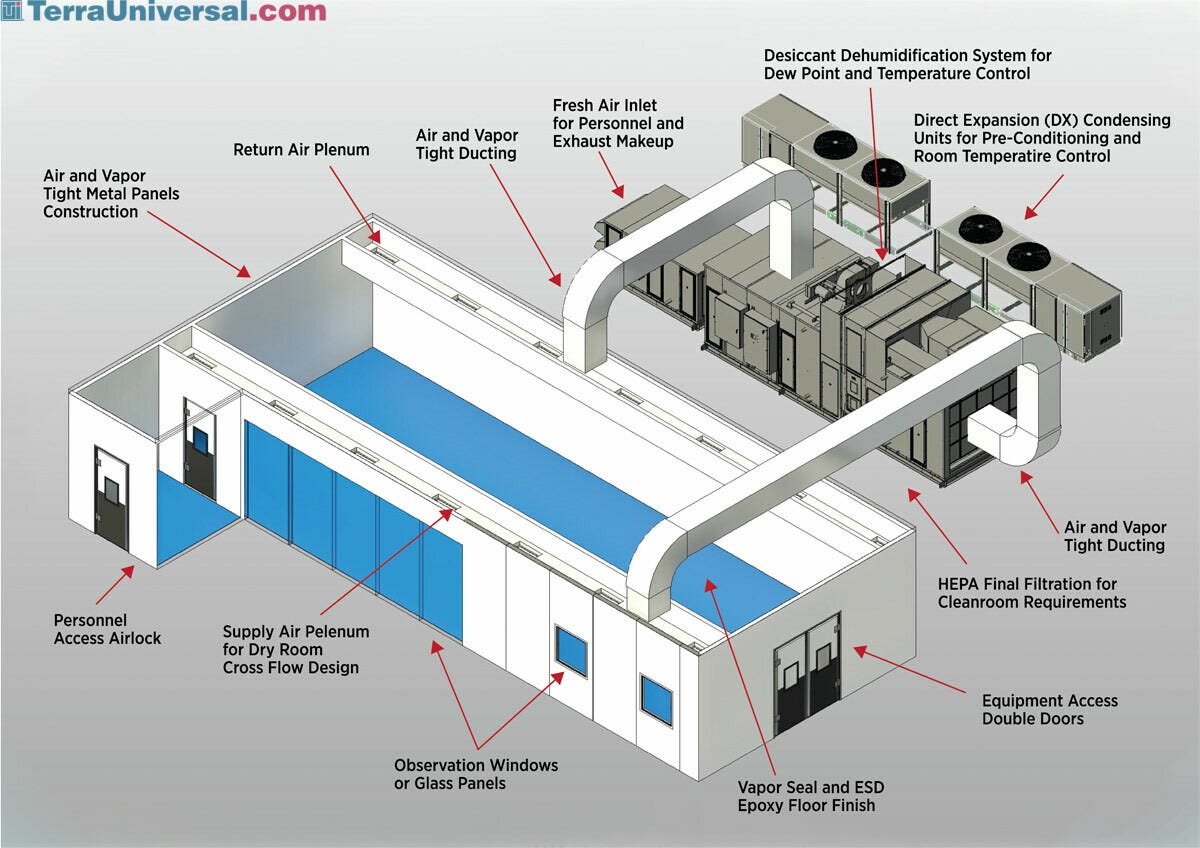

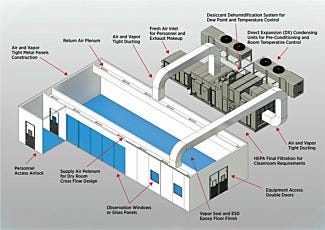

Modular Cleanroom Design | HVAC and Airflow Diagram

This diagram illustrates the design and components of a temperature-controlled modular cleanroom. It highlights the air handling units, HEPA filtration, ducting, airlocks, and other key features that ensure precise environmental control for critical applications.

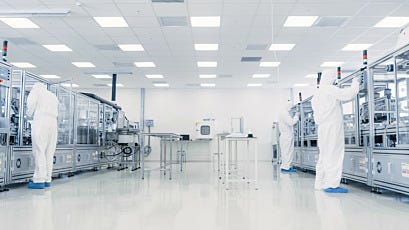

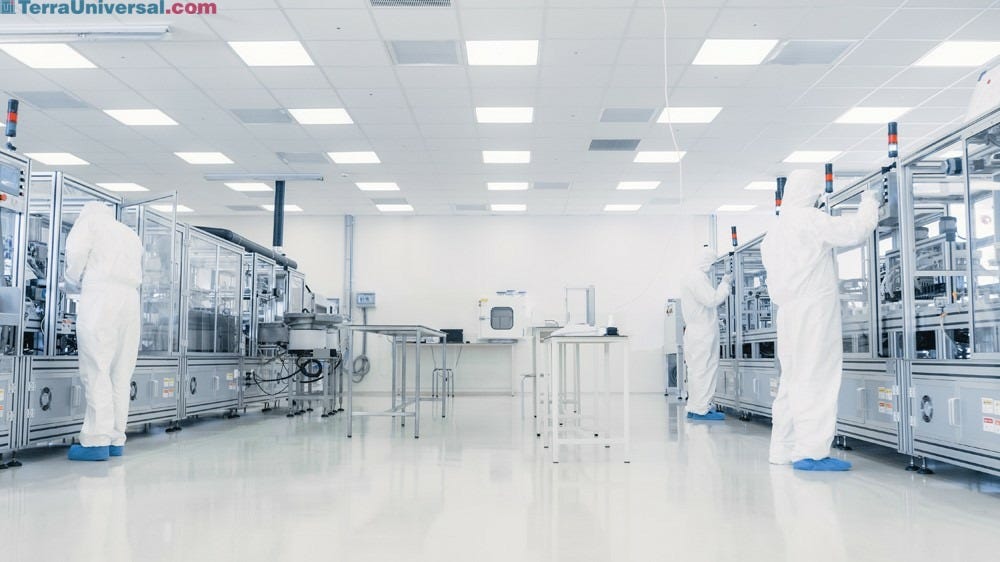

Cleanroom for Pharmaceutical and Semiconductor Manufacturing

This cleanroom is designed for pharmaceutical and semiconductor manufacturing, featuring personnel in protective suits operating specialized equipment. The modular design allows for customization to meet specific industry requirements for cleanliness, temperature, and humidity control.

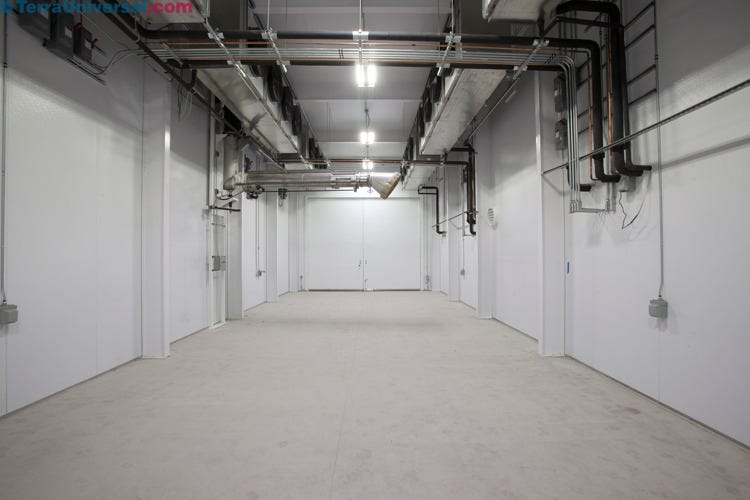

Large Modular Cleanroom | Customizable Interior and HVAC Systems

Create a large-scale controlled environment with a modular cleanroom. This image showcases a spacious interior with customizable HVAC systems, utilities, and finishes. Design your ideal cleanroom to meet your specific requirements for airflow, temperature, humidity, and cleanliness.

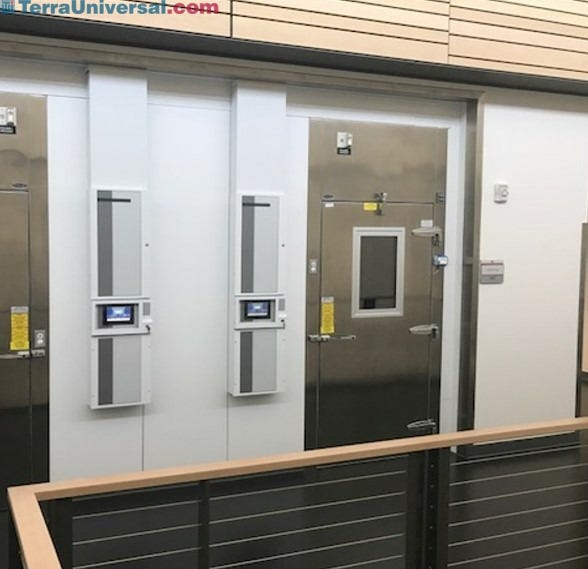

Modular Freezer Room with Digital Controls | Precise Temperature Monitoring

Maintain precise temperatures with a modular freezer room equipped with advanced digital controls. This system allows for accurate temperature monitoring, control, and data logging, ensuring the integrity of sensitive materials. Ideal for pharmaceutical storage, biological sample preservation, and other critical applications.

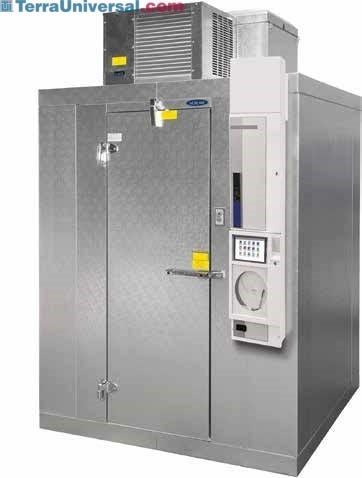

Modular Walk-In Freezer | Temperature-Controlled Cold Storage

Preserve temperature-sensitive materials with a modular walk-in freezer. This unit offers precise temperature control, easy installation, and a range of sizes to fit your needs. Ideal for storing pharmaceuticals, biological samples, and other temperature-sensitive items.

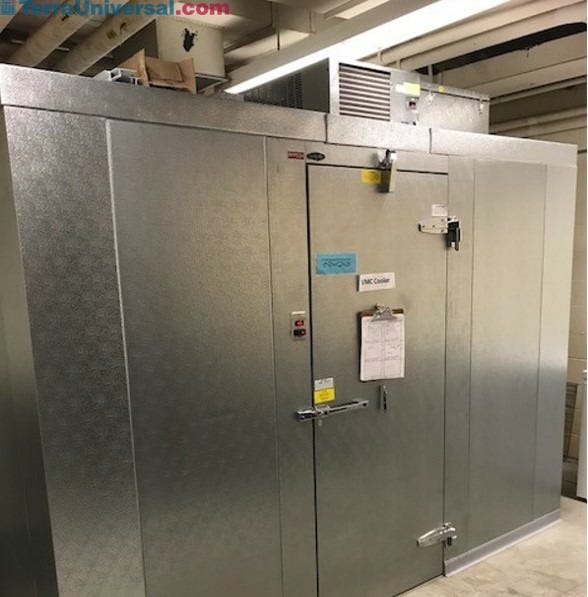

Walk-In Cooler | Temperature-Controlled Storage Solutions

Maintain optimal storage temperatures with a walk-in cooler. This modular unit provides a temperature-controlled environment for a variety of applications. Easy to install and expand, it's a flexible solution for your cold storage needs.

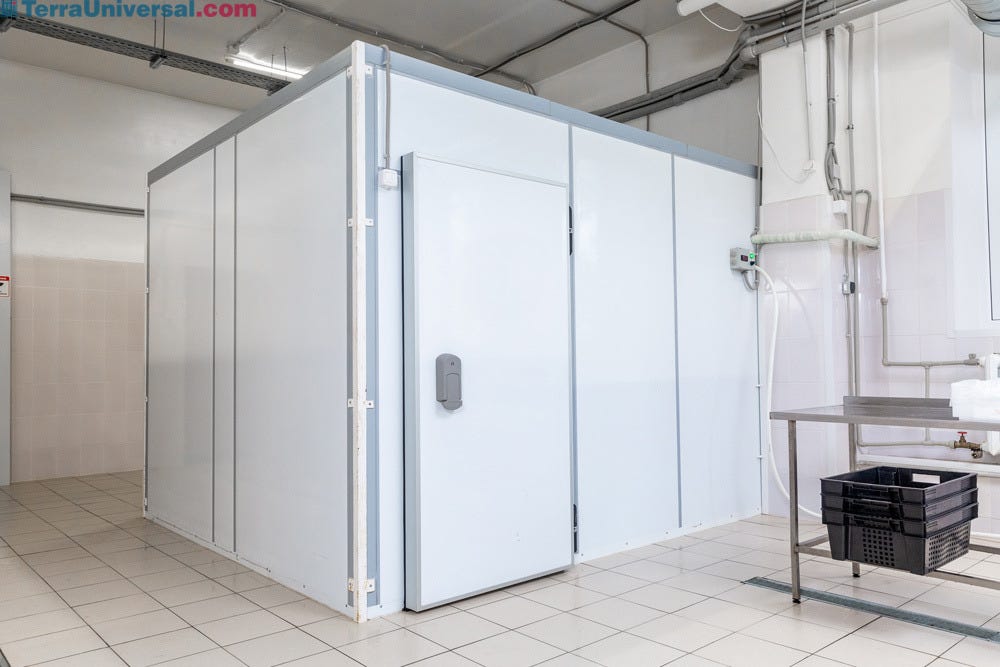

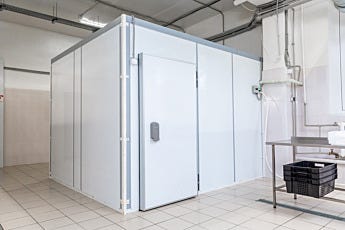

Temperature Controlled Modular Cleanroom | Precise Environmental Control

Create a controlled environment with a modular cleanroom. This unit offers precise temperature and humidity control, ensuring optimal conditions for sensitive processes. Ideal for pharmaceutical production, laboratory research, and manufacturing applications requiring strict environmental control.

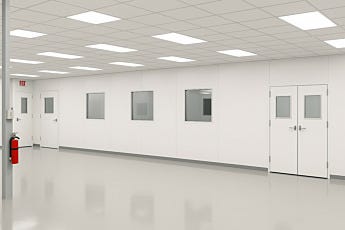

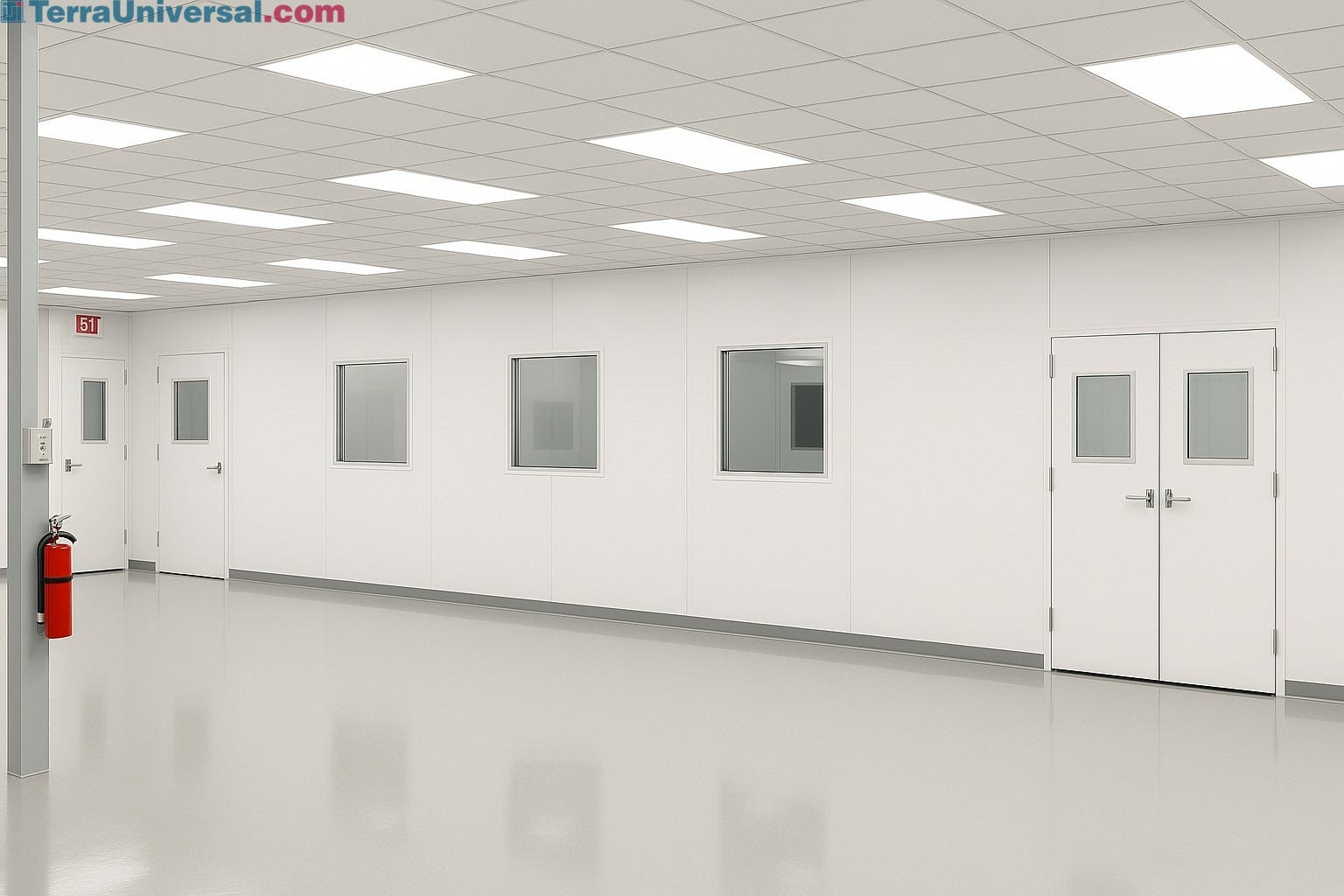

Custom-built modular Walk-In Temperature Chambers by Scientific Climate Systems

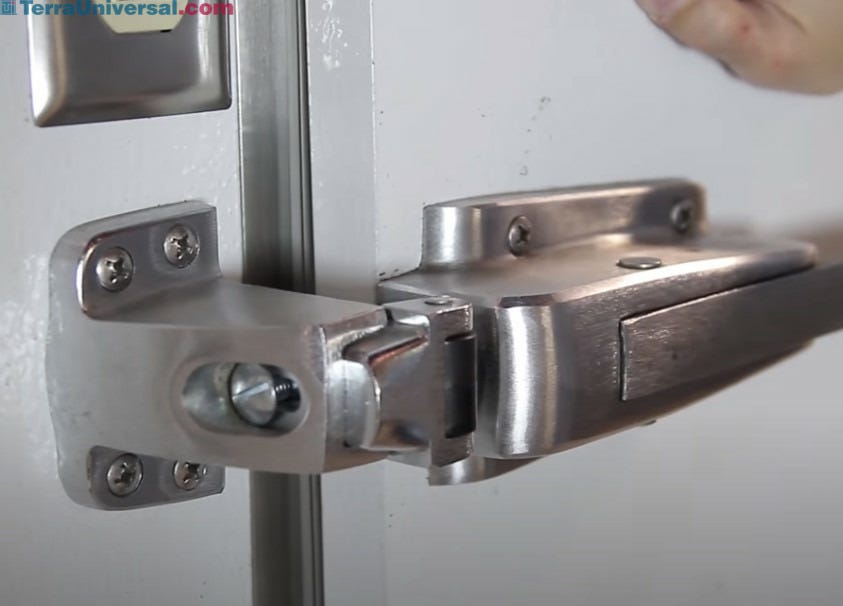

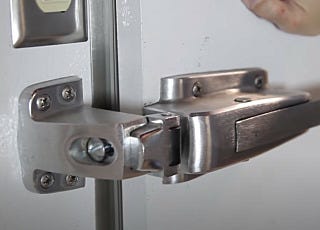

Airlock

Designed with an air tight vapor seal to prevent moisture infiltration

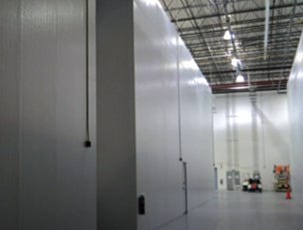

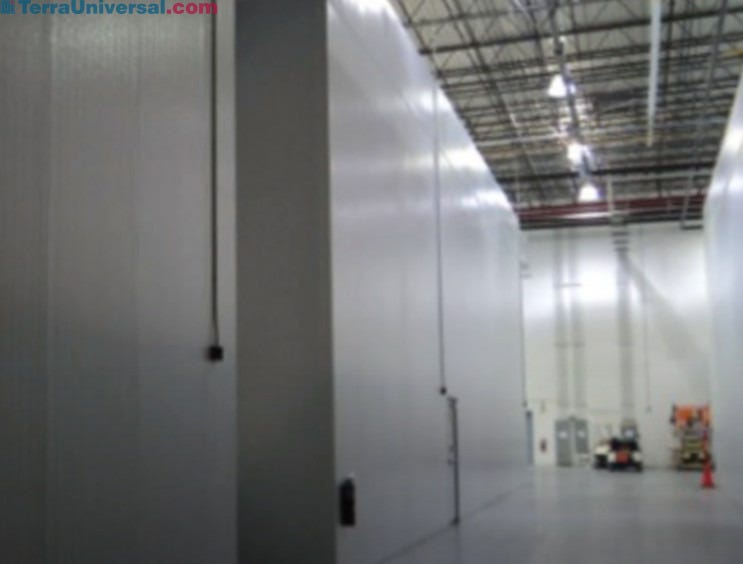

Modular Design

Scientific Climate Systems builds modular custom low humidity dry rooms that can easily be relocated or expanded

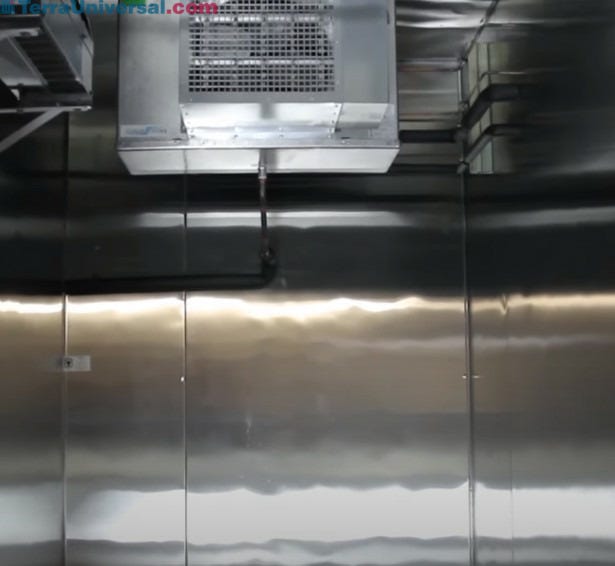

Fire Retardant Construction

Focus on safety with explosion-proof motors and fire-rated construction of dry room

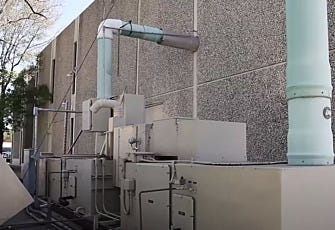

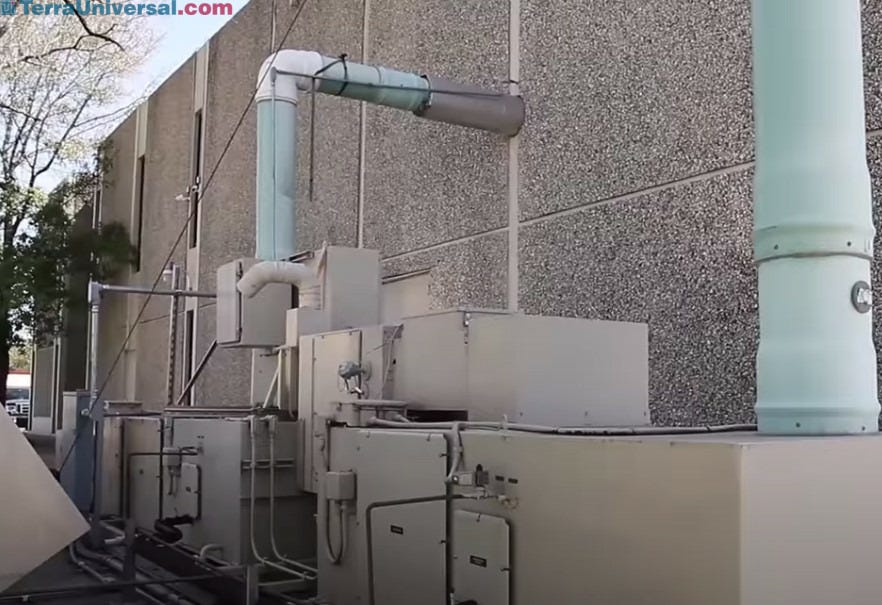

Dehumidification and Mechanical Equipment Installation

A Scientific Climate System engineer provides recommendations to help you determine the best placement of your dry room dehumidification and mechanical equipment
