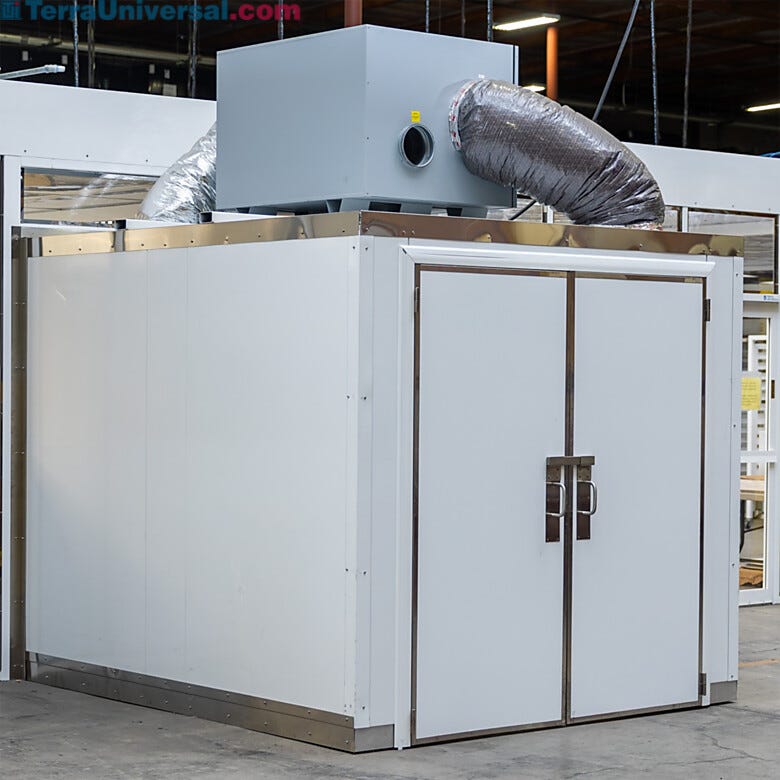

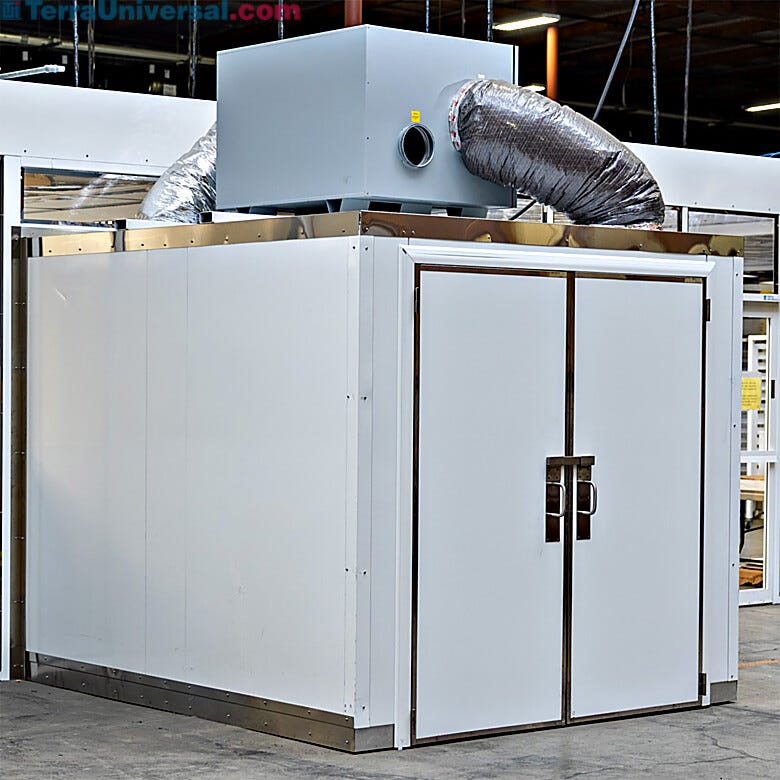

Doors are built on both sides of the drying room for easy access | 6606-32 displayed
Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Special Application Cleanrooms,Specialty Pass-Through Chambers,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC,Cleanroom HVAC
Product Group:
6606-PP-05
6606-PP-05

Humidity-Controlled Drying Rooms

Manufactured By: Terra Universal
  • Dehumidification system supplies the room with hot, dry air that is capable of maintaining a temperature of 90 °F (32 °C) and a drying capacity of 22 lbs/hr at ideal conditions of 68 °F (20 °C) at 60% RH
  • Suited for EV battery assembly, adhesive curing, PC board drying, or filter assembly
  • 3.5" PLC touchscreen allows control for drying levels, meters for allotted dehumidifying time, and alarm functions
  • Included filters clean the air prior to entering the unit and will extend the use of the rotor
  • Hot, dry air can reach a maximum temperature of +248 °F (120 °C), but changes in atmospheric pressure can affect the temperature of emitted air
Read more
New Product - Highlighted Features
  • Humidity-controlled room
  • Best for drying or curing
  • cGMP and GLP compliant
ULus Logo ISO 6 Icon
Manufactured By: Terra Universal
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Cleanroom Client List
Select Product
Width

Sort Order:

Unit of Measure:
Temperature Range

Sort Order:

Unit of Measure:
Depth

Sort Order:

Unit of Measure:
Height

Sort Order:

Unit of Measure:
Process Air Flow

Sort Order:

Unit of Measure:
Door Type

Sort Order:

Unit of Measure:
Certified ISO Grade Design

Sort Order:
Drying/Humidifying Capacity

Sort Order:

Unit of Measure:

 Terra Part #Price Ships in
72" 90 °F to +248 °F 112" 89" 824 CFM Single-Swing ISO 6 22 lb/hr 6606-33 $38,699 20-30 Days2
94.8" 90 °F to +248 °F 112" 89" 824 CFM Double-Swing ISO 6 22 lb/hr 6606-32 $50,308 20-30 Days3
Width
Temperature Range
Depth
Height
Process Air Flow
Door Type
Certified ISO Grade Design
Drying/Humidifying Capacity
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
CONFIGURE & ADD TO CART
− +
− +
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
− +
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Free shipping in contiguous USA
Some ship in:
Usually Ships in:
Back to product group
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Similar Products
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Dehumidification system supplies the room with hot, dry air that is capable of maintaining a temperature of 90 °F (32 °C) and a drying capacity of 22 lbs/hr at ideal conditions of 68 °F (20 °C) at 60% RH
  • Suited for EV battery assembly, adhesive curing, PC board drying, or filter assembly
  • 3.5" PLC touchscreen allows control for drying levels, meters for allotted dehumidifying time, and alarm functions
  • Included filters clean the air prior to entering the unit and will extend the use of the rotor
  • Hot, dry air can reach a maximum temperature of +248 °F (120 °C), but changes in atmospheric pressure can affect the temperature of emitted air
  • Remote Operator is a downloadable software for the PLC to enable a PC to view and work with a remote controller's HMI panel.
  • Desiccant dryer system does not have to be mounted on the roof of the room; it can be set to the side for easier access to the PLC touchscreen.
  • If desired, the desiccant dryer system can be mounted on the roof of the room, but will require the purchase of a separate humidistat to control the unit.
  • Product Dimensions that are shown are of the drying room only.
  • Does not have windows, but can be added as a customization if necessary.
  • Doors are located both in the front and back for dual side access.
  • uPVC wall system option will not absorb moisture or humidity and is easily cleanable.
  • Wall panels utilize joint connectors to maintain a flush finish; all gaps are filled by an FDA-grade sealant to ensure a leak-tight system without cavities where microbes colonize.
  • Walls feature a plenum space to house utility and filling lines, providing the end user with convenient access to gas, vacuum and water connections along with duplex outlets, control panels, and phone jacks.
  • Wall panels and walkable ceiling tested by UL to ASTM E72 for structural performance including load-bearing capacity and deflection resistance.
  • Design compliant with ISO-14644, cGMP, GLP, ASTM and IEST requirements.
  • Compliant with Grade B, C, D, cGMP / EU build outs.
  • For applications that require additional heat, an additional heater may be purchased.
  • Features hard ceilings composed of robust, rugged components capable of handling daily spray-down cycles or VHP sterilization.
  • For replacement parts or customized rooms, contact a Terra product specialist via email, chat, or call at 714-578-6100
  • Specifications of DA 800N Desiccant Dryer
  • Nominal process air volume: 824 CFM
  • Nominal regeneration air volume: 235 CFM
  • Ext. compression — process air: 0.8 (in H2O)
  • Ext. compression — regeneration air: 1.2 (in H2O)
  • Regeneration heater power:13 kW
  • Process air connection diameter in (mm): 15.7 (400)
  • Dry air connection diameter in (mm): 12.4 (315)
  • Humid/regeneration air connection diameter in (mm): 7.9 (200)
  • Sound pressure dB: 63
  • Admissible temperature: -30 to +104 °F (-1 to 40 °C)
  • Admissible humidity:  0 to 100 %RH (non-condensing)

Show more
