Select Product

Window Material

Material

Mounting Position

Inside Width

Inside Depth

Inside Height

Terra Part #PriceShips in
SD-PVC 304 Stainless Steel Standard Floor 36" 36" 48" 2636-14D-2 55351 $13,83610-15 Days2
SD-PVC 304 Stainless Steel Standard Floor 36" 36" 36" 2636-13D-2 55347 $12,82310-15 Days3
SD-PVC 304 Stainless Steel Standard Floor 24" 24" 36" 2636-12D-2 55343 $9,82931-41 Days4
SD-PVC 304 Stainless Steel Standard Floor 32" 48" 42" 2636-15D-2 70853 $21,3831-3 Days5
Stocked
SD-PVC 304 Stainless Steel Standard Wall 36" 36" 48" 2636-11D-2 55124 $12,17010-15 Days6
SD-PVC 304 Stainless Steel Standard Wall 36" 36" 24" 2636-08D-2 55120 $8,8215-9 Days7
SD-PVC 304 Stainless Steel Standard Wall 36" 36" 36" 2636-10D-2 55123 $11,1901-3 Days8
Stocked
SD-PVC 304 Stainless Steel Standard Wall 36" 24" 36" 2636-10C-86561-EX001 53541 $7,704.....9
Clearance
SD-PVC 304 Stainless Steel Standard Wall 18" 18" 16" 2636-03D-2 55085 $6,2461-3 Days10
Stocked
304 Stainless Steel 18" 18" 24" 2636-04D 55086 $6,5480-2 Days11
Clearance
Stocked
SD-PVC 304 Stainless Steel Standard Wall 18" 18" 24" 2636-04D-2 55087 $6,6231-3 Days12
Stocked
SD-PVC 304 Stainless Steel Standard Wall 12" 12" 12" 2636-01D-2 55115 $5,1861-3 Days13
Stocked
SD-PVC 304 Stainless Steel Standard Wall 12" 12" 24" 2636-02D-2 55116 $5,6551-3 Days14
Stocked
SD-PVC 304 Stainless Steel Standard Wall 24" 24" 16" 2636-05D-2 55117 $7,2251-3 Days15
Stocked
SD-PVC 304 Stainless Steel Standard Wall 24" 24" 24" 2636-06D-2 55118 $7,9171-3 Days16
Stocked
SD-PVC 304 Stainless Steel Standard Wall 24" 36" 24" 2636-07D-2 55119 $8,2671-3 Days17
Stocked
SD-PVC 304 Stainless Steel Standard Wall 24" 24" 36" 2636-09D-2 55121 $8,26710-15 Days18
SD-PVC 304 Stainless Steel Standard Wall 24" 24" 48" 2636-16D-2 55122 $8,93910-15 Days19
SD-PVC 304 Stainless Steel Standard Wall 18" 18" 18" 2636-18D-2 62167 $6,4981-3 Days20
Stocked
SD-PVC 304 Stainless Steel Standard Wall 30" 30" 30" 2636-19D-2 62171 $8,7941-3 Days21
Stocked
Window Material
Material
Mounting Position
Inside Width
Inside Depth
Inside Height
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Fully welded cleanroom passthrough without crevices, ideal for medical/pharmaceutical applications

• Continuous welds are suitable for moderate sterilization protocols

• Automatic door interlock allows only one door to open at a time to prevent cross-contamination

• Doors are leak-rated by UL for tight seal to maintain cleanroom air pressure gradients

• Stainless steel framed doors, latches, and hinges extend service life of passthrough chamber

• Cleanroom pass throughs reduce foot traffic, improve cleanliness, safety, productivity, and much more.

CHAMBER DESIGN:

Corrosion resistant all-304 stainless steel surfaces resists most harsh chemicals and alcohol-based cleaning agents, won’t produce contaminants during sterilization.

Seamless welds eliminate hard-to-clean cracks and crevices where contaminants can collect.

• Floor-mounted design includes removable ramps to support transfer of carts and heavy equipment between controlled spaces.

DOOR DESIGN:

• Access doors with 304 stainless steel reinforced frames extend passthrough chamber's service life and provide a tight seal.

Santoprene® “e”-shape non-outgassing rubber gasket firmly compresses to eliminate leaks. The one-piece resilient rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.

• Heavy-duty stainless steel lift latches included to minimize scratching, corrosion and contamination resulting over time that can occur with chrome-plated latches.

• Chemical-resistant, static-dissipative PVC windows prevent static-clinging of particulates.

• Order replacement door(s) to avoid critical operation delays should a door be damaged and require immediate replacement.

INCLUDES:

• (1) Automatic mechanical interlock

• Mounting brackets; Standard bracket mounting is 2" (51mm) from the front on the cleanroom side - specify other desired location

Marks & Listings: CE, UL, ULC

CleanSeam™ Stainless Steel Pass-Through Chambers

Standard Features

  • A Continuous seam
    Continuous seams create smooth, easy-clean interiors
  • B LiftLatches
    Lifting latches eliminate hinge strain for long service life
  • C Automatic interlock
    Reliable automatic mechanical interlock prevents cross contamination
  • D Wall-mount
    Wall-mount and floor-mount designs available in many sizes
  • E One-piece gasket
    One-piece, heat-formed gaskets will not creep, deform or outgas

Not Shown: Static-dissipative PVC windows - Static-dissipative PVC windows

Not Shown: Range of options - Options include HEPA air showers, CleanTops, UV sterilization, foot-operated doors

CleanSeam™ Pass-Through Chambers

  • Cleanroom Pass-Through Chamber Video Overview Cleanroom Pass-Through Features and Selection Guide
  • CleanSeam™ Cleanroom Pass-Through Chamber CleanSeam™ Pass-Through Chambers
  • Double stacked stainless steel cleanroom pass-thru chambers Double Stacked Stainless Steel CleanSeam Pass-Thru Chambers
  • Stainless Steel Cleanroom Pass-Through with Cart Ramps Floor-Mount CleanSeam™ Pass-Through, 36''W x 36''D x 48''H, with Cart Ramps
  • Cleanroom Pass-Through Chamber with Door Open CleanSeam™ Pass-Through Chamber, 18"W x 18"D x 18"H

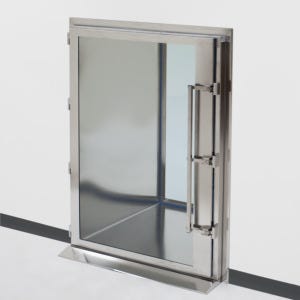

  • Stainless Steel Floor-Mount Pass-Through Chamber, 24''W x 24''D x 36''H, with Cart Ramp Floor-Mount CleanSeam™ Pass-Through, 24''W x 24''D x 36''H, with Cart Ramp
Cleanroom Pass-Through Chamber Video Overview
CleanSeam™ Cleanroom Pass-Through Chamber
Double stacked stainless steel cleanroom pass-thru chambers
Stainless Steel Cleanroom Pass-Through with Cart Ramps

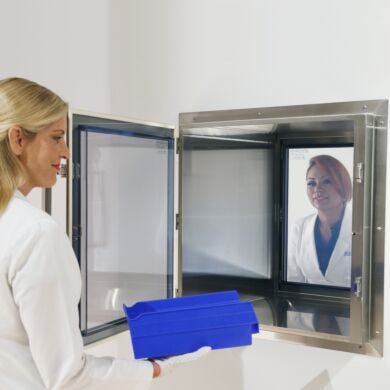

Cleanroom Pass-Through Chamber with Door Open
Stainless Steel Floor-Mount Pass-Through Chamber, 24''W x 24''D x 36''H, with Cart Ramp

Features & Benefits

Features and Benefits

Cut-Out DImensions

CleanSeam Pass-Through Chamber

Don't risk operational delays or cleanroom shutdown because of a damaged door!
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add “-RH” (for right-side hinge) or “-LH” (for left-side hinge) to the part number of the chamber.

Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”
Wall Cut-Out = W (nominal) +2” x H (nominal) + 1.5”
Mounting Illustration with Door Swing Direction

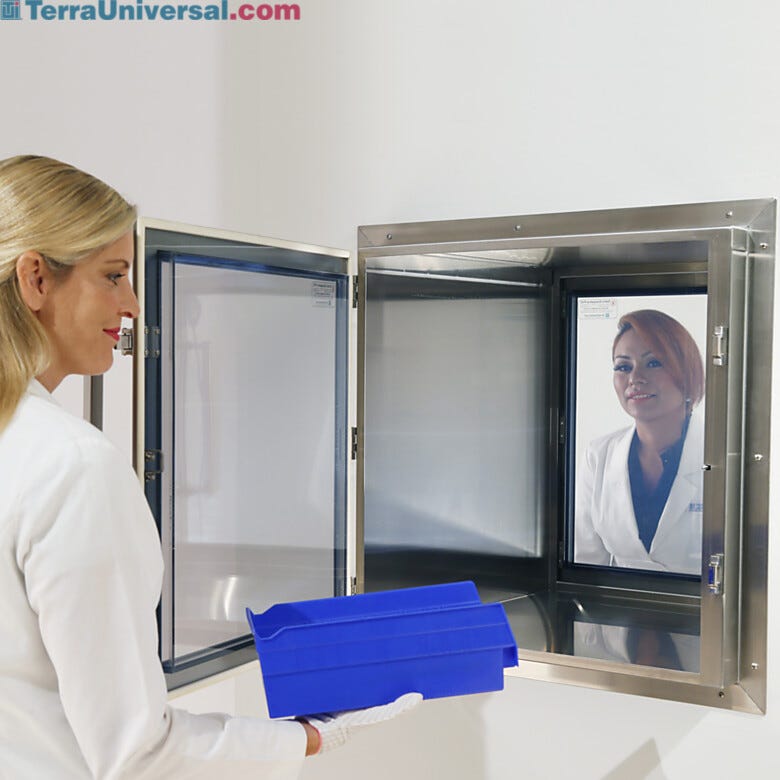

Continuous-Seam Welds Eliminate Particle Traps!

CleanSeam™ Pass-Throughs feature fully welded, seamless interiors, to eliminate hard-to-clean cracks and crevices that can harbor contaminants. The continuous-seam welds are ground smooth to simplify cleaning and sterilization.

Pass-Through Chamber Interlock

Terra’s automatic mechanical interlock prevents cross-contamination by allowing one door to be open at a time. Encased in stainless steel, the mechanism is rated for millions of operations, more than enough to last the lifetime of the pass-through.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Stainless Steel Reinforced Doors and Handles

Doors on professional-grade pass-through chambers are reinforced with stainless steel frames, which lend rigidity, improve the seal, and extend the service life of the doors.

One Piece Elastomer Gasket

The white, “e”-shaped gasket provides a flexible seal that will not creep or deform over time. The gasket is made of a non-outgassing, thermoplastic elastomer that is resistant to harsh chemicals and extreme temperatures.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Passthrough Ventilation Exhaust Ducts
    Adding a duct flange to the top of the passthrough allows the chamber to be ventilated by a remote blower. The ULPA-filtered inlet, housed in a perforated stainless steel cage, provides the necessary make-up air without contaminating the chamber.
  • CleanTop™
    The CleanTop™ is designed for installations that require the chamber to be centered in the wall. The 30° sloping top on the cleanroom-side minimizes particle accumulation and accommodates laminar downward airflow.
  • Replacement Pass-Through Doors to Avoid Costly Down-Time
    Avoid costly disruptions and down time - keep a replacement door on hand! Doors attach in munites and can prevent a costly shut-down if the original is damaged. To order, add "-LH" (left-side hinge) or "-RH" (right-side hinge) to the pass-through part number.
  • Grounding Terminals
    Grounding terminals are ideal for the most static-sensitive applications (must be ordered with chamber; cannot be retrofitted).
  • Mounting System for Tempered Glass Wall Panels
    This unique mounting system allows installation of pass-through chambers on Terra Universal's modular cleanrooms with tempered glass wall panels.
  • Support Brackets for Pass-Through Chambers
    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
  • Passthrough Chamber Door Stop
    This stainless steel door stop limits the arc of the pass-through door's swing to 90°, preventing damage to wall, door latch and other components. Door stops can be adjusted to allow other angles.
