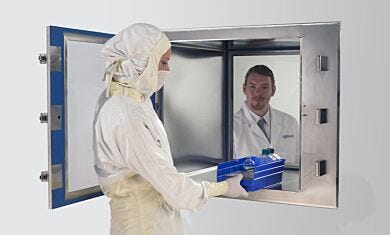

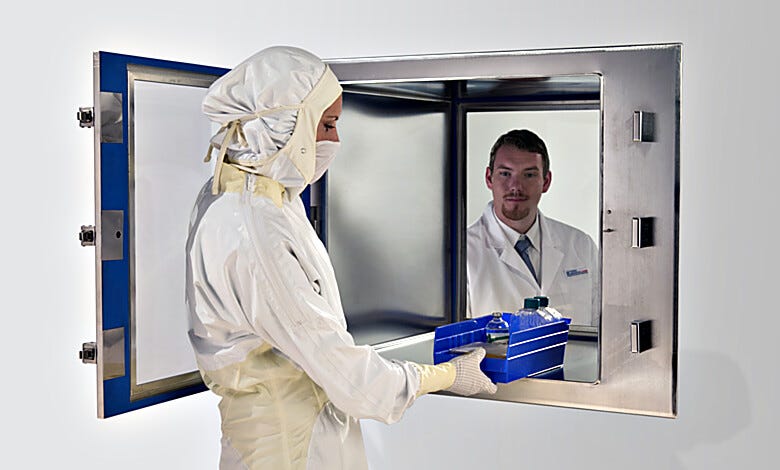

• Doors can be removed and autoclaved for complete sterilization
• Unique door design uses a potted polyurethane seal that is autoclavable and easy to wipe down
• Extruded edge around the chamber opening presses into the blue polyurethane, forming a tight seal
• Optimal for sterile facilities and microbiological research labs
• Flush-mounting design minimizes horizontal surfaces in the cleanroom where contaminants can collect
• Double-wall construction hides the interlock mechanism for a clean obstruction-free chamber interior
• 316 stainless steel construction for enhanced corrosion-resistance and cleanliness
Pass-through chambers reduce cleanroom foot traffic, the single largest source of particulate contamination and a significant operational expense. Instead of garbing up and carrying an object into the cleanroom, you simply transfer it through the pass-through chamber.
Interlocked pass-throughs prevent cross-contamination of adjoining spaces during this transfer by ensuring that only one door at a time can open. Various interlock designs enhance cleanliness and reliability.
Electronic Smart Pass-Throughs introduce many other optional capabilities: access control and logging, HEPA air showers to remove particles from samples, sample presence sensing, refrigeration and more (see information on Smart Desiccators under Terra’s Electronic Pass-Through section).
Terra’s ValuLine and General Use Pass-Throughs use retaining brackets to hold the chamber to the wall. The bracket on the clean side is welded to the chamber. The one on the opposing side slides onto the chamber and fastens to the wood or metal framing that surrounds the wall cut-out.
Terra’s CleanMount® Pass-Throughs employ a unique clamping system that requires no penetrations in the cleanroom walls and mounts in just a few minutes. As long as the wall cut-out is finished and sealed, you can quickly install or remove the pass-through without a costly cleanroom shutdown and re-validation.
To perform maintenance without contaminating a classified space, you first seal off the “dirty side” with plastic sheeting to maintain the positive-pressure differential. Loosening two lag bolts lets you lift the pass-through out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
Terra offer designs for both requirements. The CleanMount® system mounts flush against the cleanroom wall to eliminate particle accumulation and simplify cleaning. Flush-mount chambers protrude into the “dirty” side room and can be braced, if needed; Terra provides supports for this purpose. Alternatively, chambers can be specified for center-mounting in nearly any wall thickness. Electronic pass-throughs can even be specified with access doors on adjacent corner walls.
All CleanMount pass-throughs include an isolated interlock and smooth, coved corners for smooth internal surfaces that are easy to clean and sterilize. Doors feature a lift-off design for easy removal and cleaning, and 304 or 316L stainless steel surfaces stand up to common cleaning agents, including IPA. Terra’s ergonomic LiftLatches operate without metal-on-metal scraping inside the chamber, a common source of contaminants with rotary-style latches.
For the most demanding sanitary applications, specify a BioSafe® Pass-through, which adds an elastomeric door seal to the removable doors, making them autoclavable. All chambers can be electropolished upon request.
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add "-RH" (for right-side hinge) or "-LH" (for left-side hinge) to the part number of the chamber.
Terra offers several shelf and tray options for transferring and organizing small parts, including BioSafe® removable rack and tray systems and slide-out shelving.
For transfer of carts, bulk material containers and other large equipment, Terra Standard Sizes up to 72”W x 84”H. Customer may customize dimensions as needed.
Terra offers several pass-through configurations with doors that bear the UL-10B label for 90-minute fire exposure, suitable for a 2-hour fire wall rating. Models are available with and without viewing windows, in chamber sizes up to 33”W x 36”D x 45”H.
HEPA air showers remove particles from sample surfaces before they enter the cleanroom. Ventilation units are also available to duct fumes that might be present in a sample, allowing the pass-through to act as a drying system.
For biological applications, a UV-C lamp with safety circuit kills or neutralizes microbes, including viruses and mold spores, before sample transfer into a sterile lab.
