Gallery

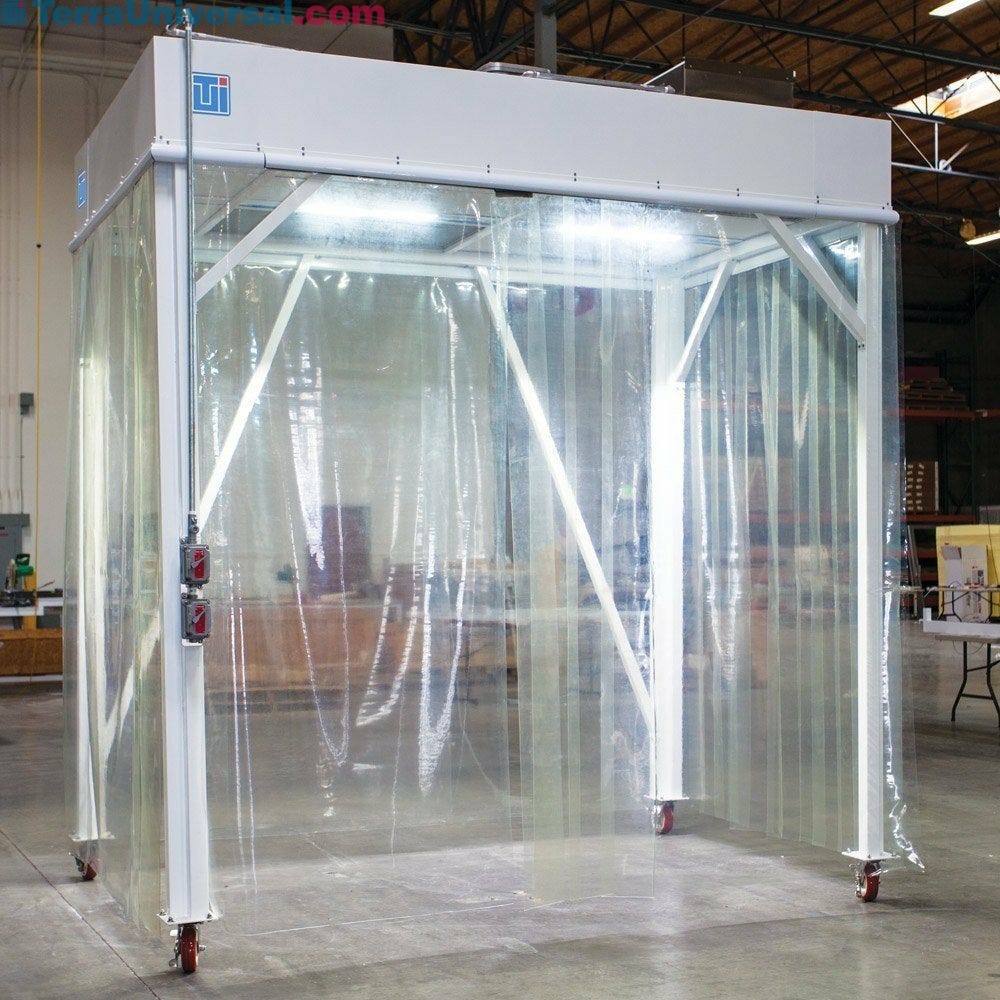

Explosion-Proof Softwall Modular Cleanroom

Explosion-Proof Softwall Cleanroom: fan/filter units, lights and power system are UL-listed for hazardous locations (optional casters and cross-bracing).

ISO 8 Softwall Modular Cleanroom

Softwall Modular Cleanroom, 8' x 8', with static-dissipative vinyl panels and a strip shield entry.

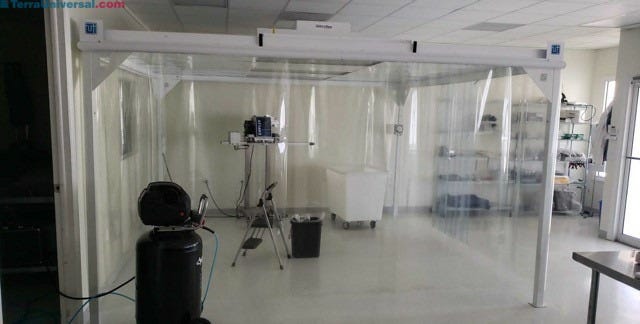

Iso 8 ValuLine™ Modular Softwall Cleanroom for R&D

Modular ISO 8 softwall cleanroom features lightweight anti-static clear vinyl strip curtains with rigid powder-coated steel frame. Ceiling grid easily accommodates additional FFUs to reach desired ISO rating.

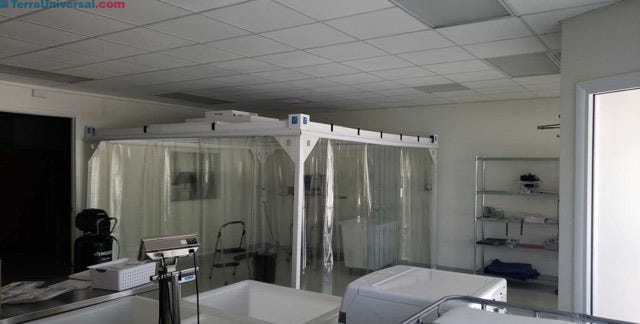

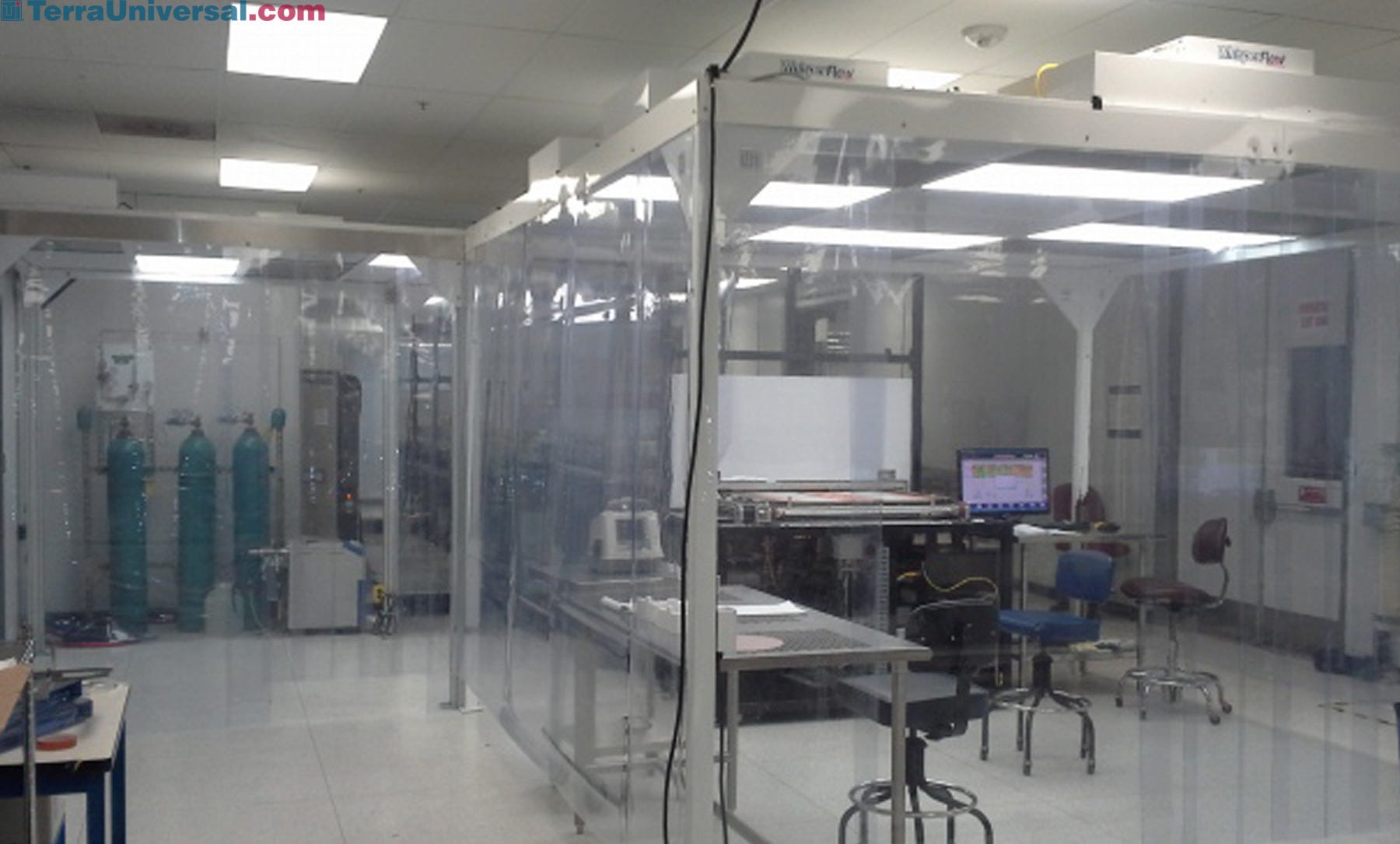

Modular Softwall Cleanroom for Physics Research

Modular softwall cleanroom features lightweight anti-static clear vinyl strip curtains with rigid powder-coated steel frame. Starting at ISO 5, ceiling panels easily accommodate additional FFUs to reach more stringent ISO ratings for physics testing.

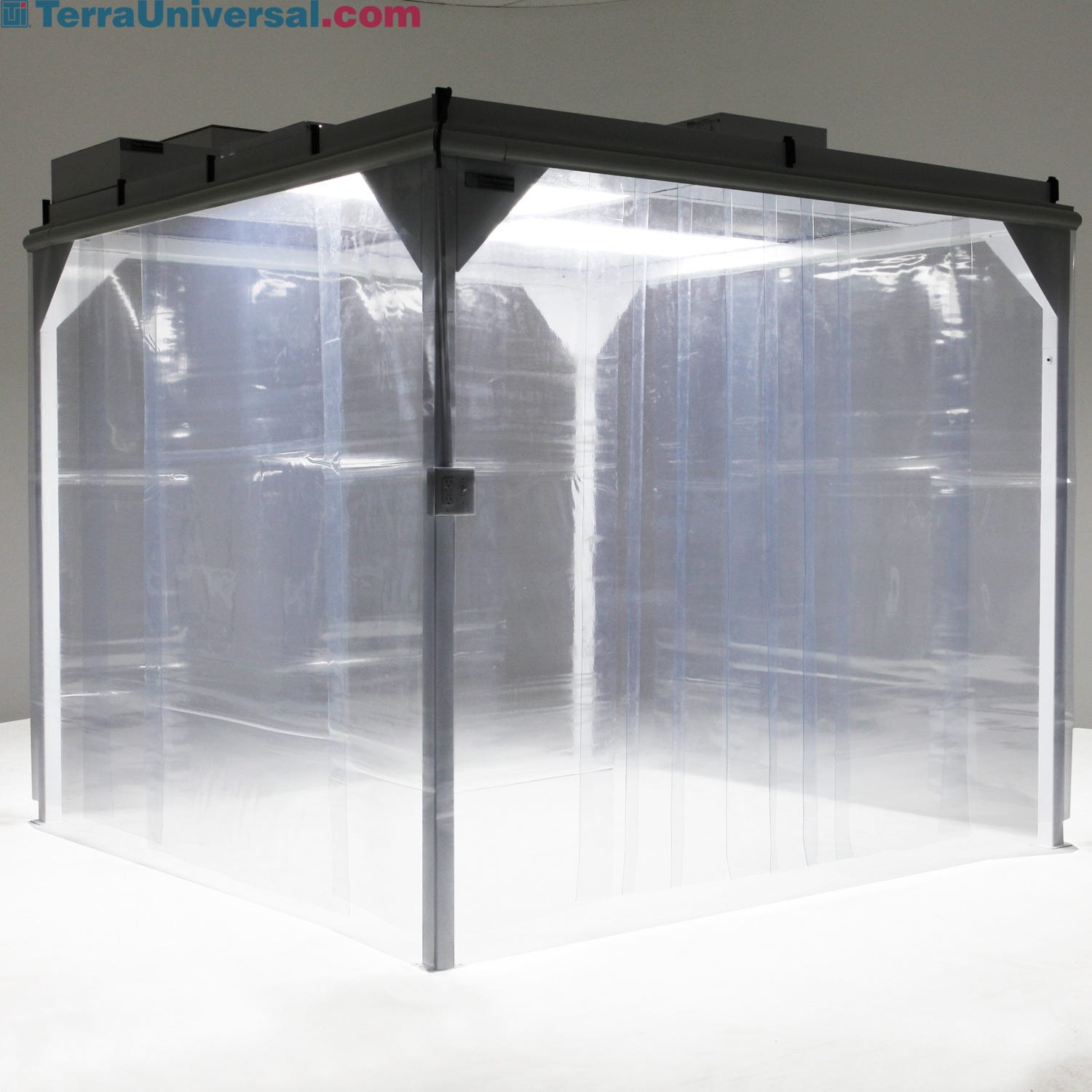

Easy Install, Rigid Structure

Stocked for fast delivery, the sturdy frame of the ValuLine Softwall Cleanroom can be quickly installed and easily relocated.

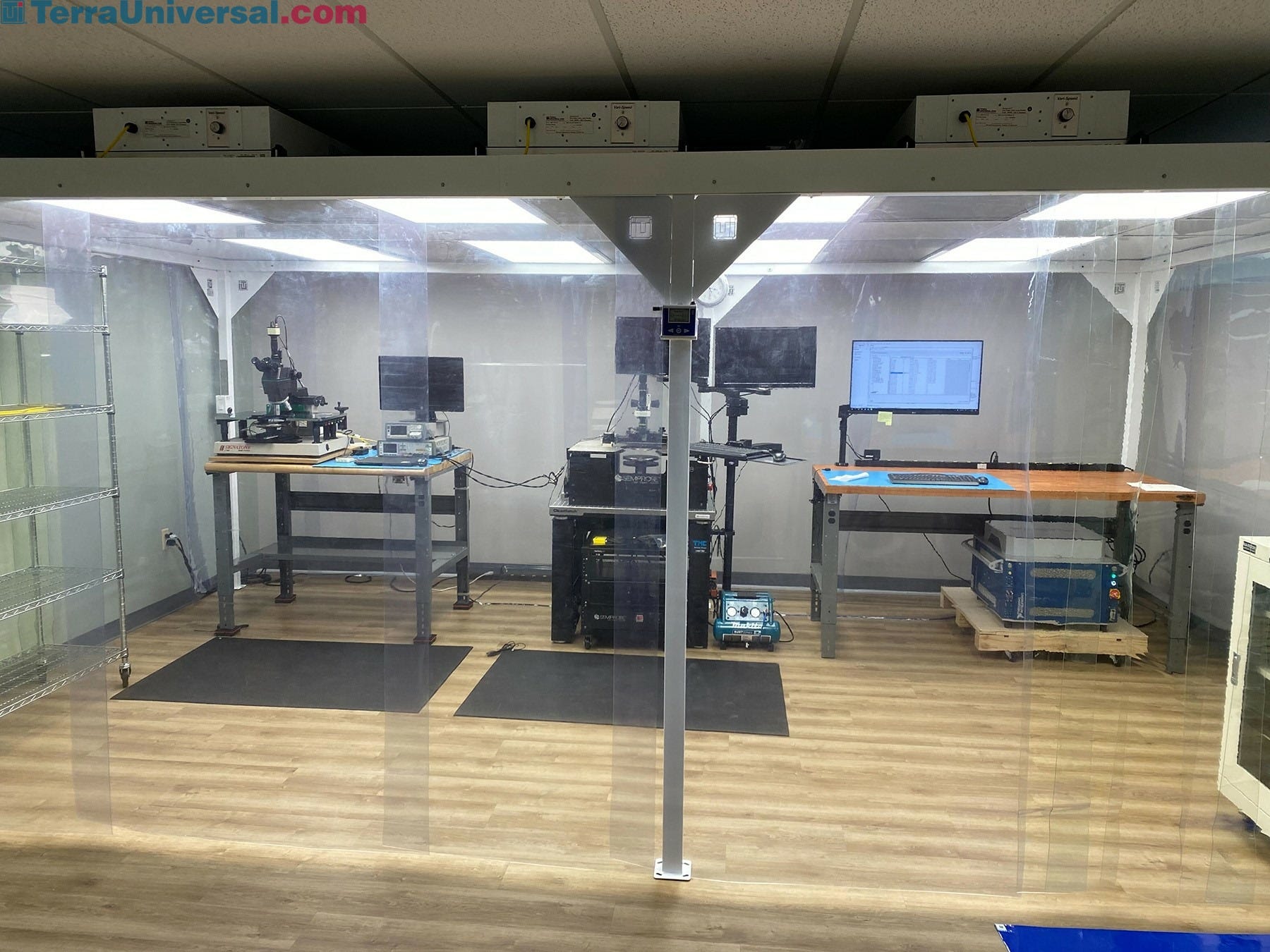

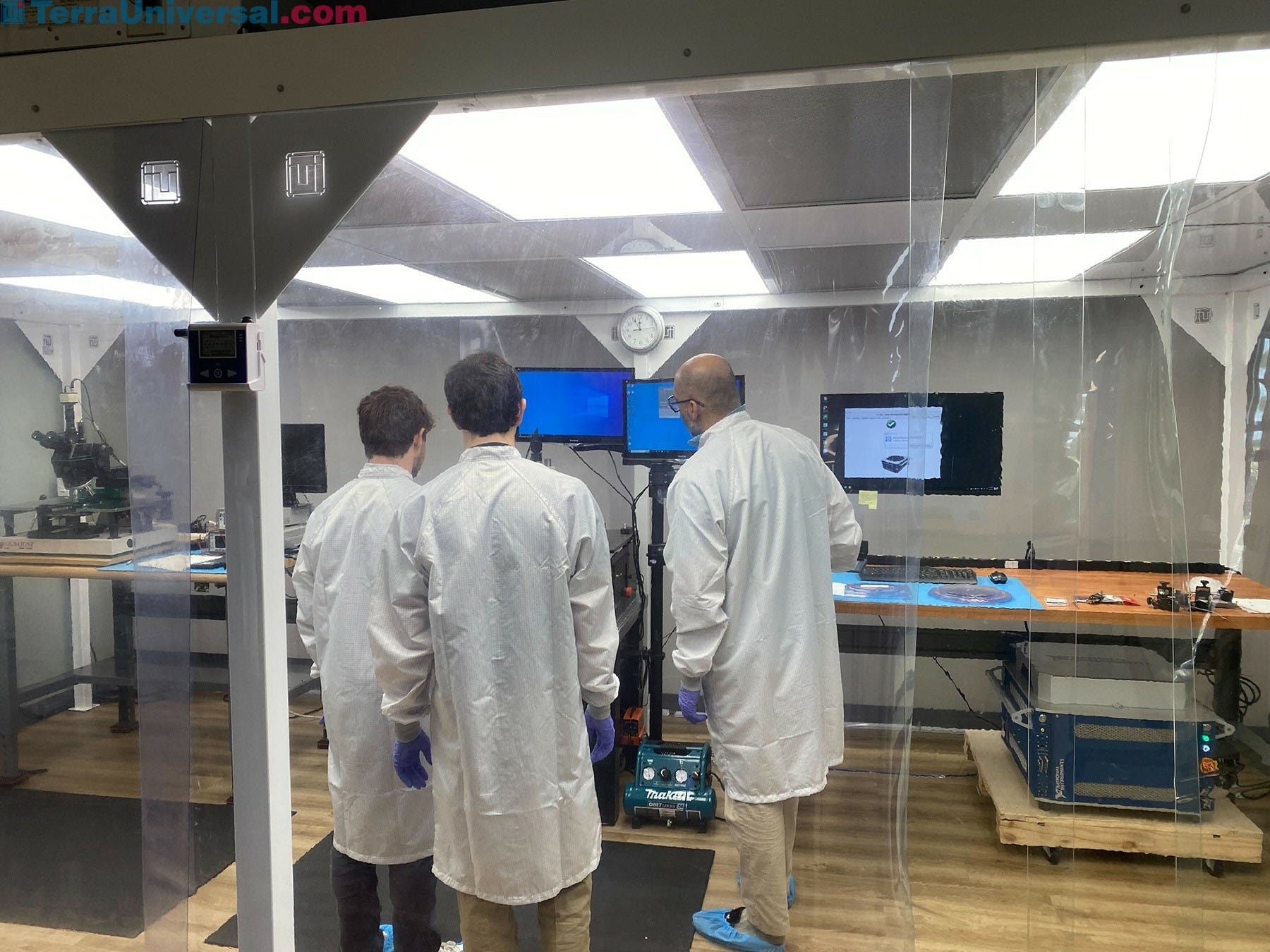

Softwall ValuLine Cleanroom used for Manufacturing Microphones

This softwall ValuLine cleanroom is used for manufacturing microphones. Anti-static vinyl strip curtains and HEPA-filtered coverage maintain positive internal pressure.

Ref 58088.JPG

Softwall ValuLine Cleanroom used for Manufacturing Microphones

This softwall ValuLine cleanroom is used for manufacturing microphones. Anti-static vinyl strip curtains and HEPA-filtered coverage maintain positive internal pressure.

Cleanroom

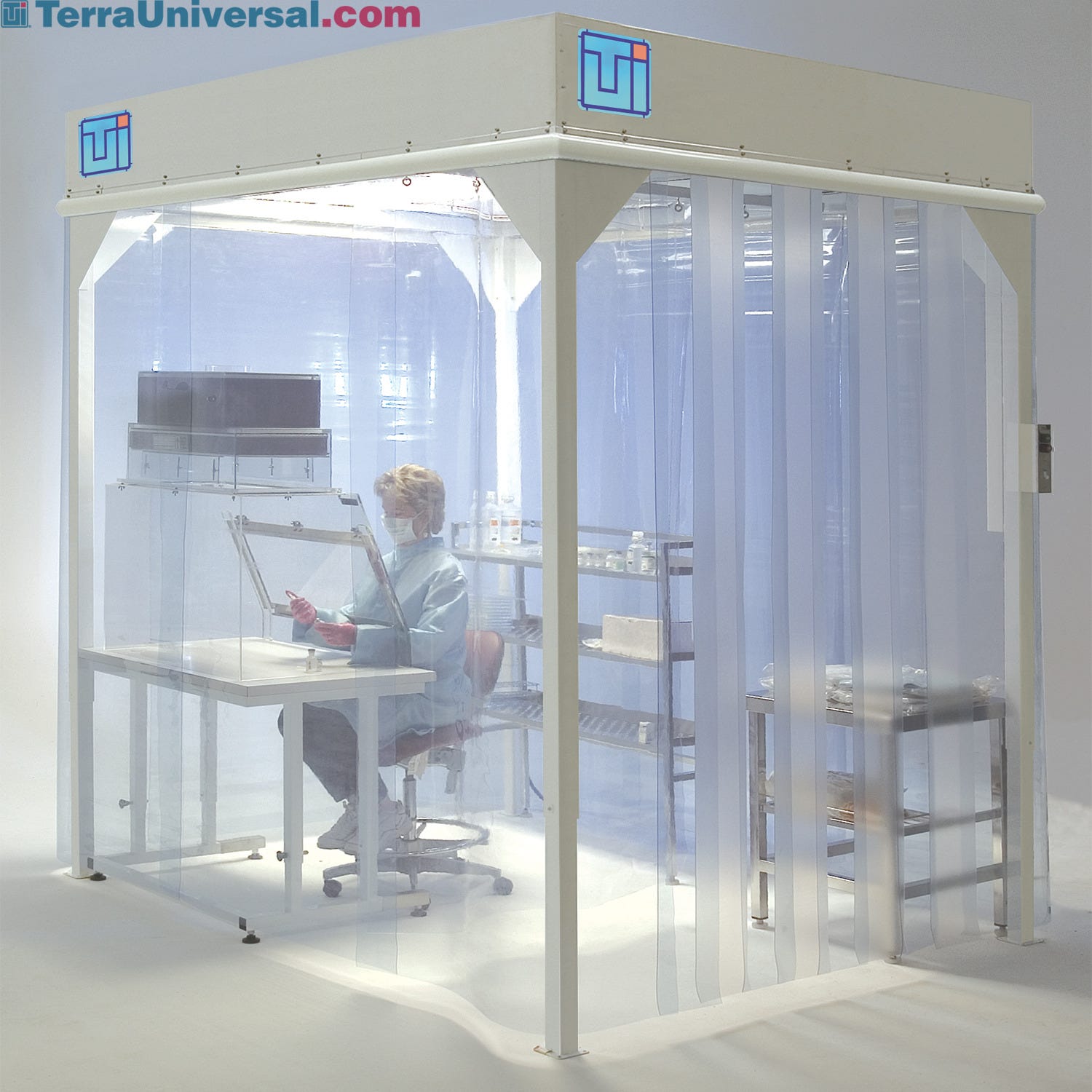

Stocked Pre-Fabricated Cleanroom Components

Since each pre-engineered cleanroom component is tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.

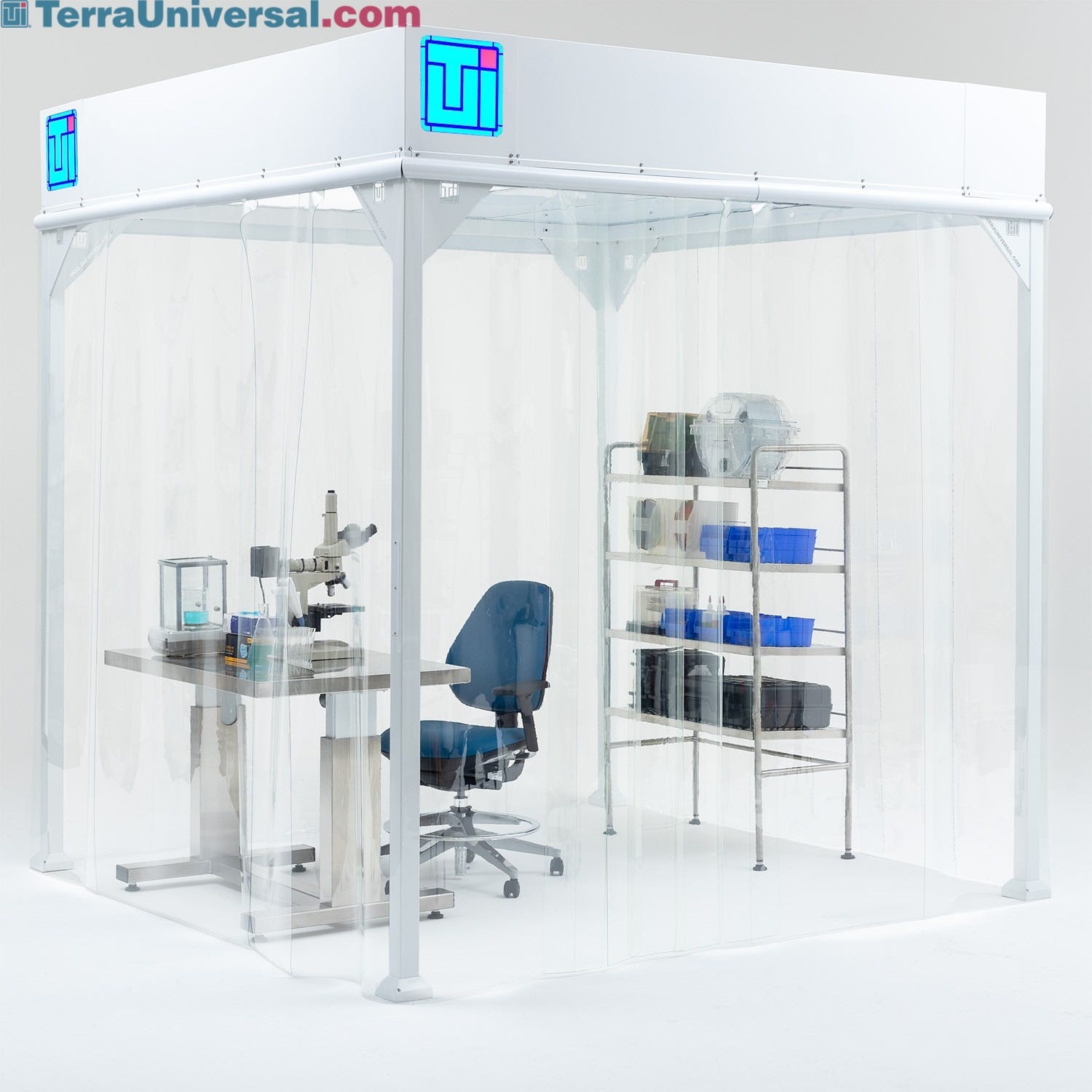

ValuLine Pre-Configured Softwall Modular Cleanrooms

Multiple pre-configured ValuLine softwall modular cleanrooms installed inside a lab. This economical design is stocked and available to ship in several standard sizes.

Explosion-Proof Cleanrooms

• Soft & hardwall designs
• Class 1, Division 2 rated
• Sealed electrical systems
• Modular steel frame
• ISO 5 – 8

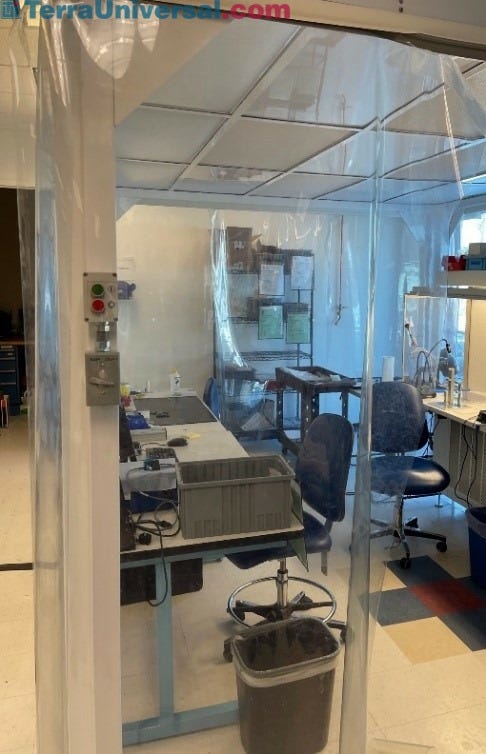

ISO 5/Class 100 ValuLine™ Softwall Cleanroom for Studying Anti-Microbial Coatings

This ISO 5/Class 100 ValuLine™ softwall cleanroom is used to study anti-microbial coatings. 40 mil anti-static PVC curtain panels dissipate static charge. Powder-coated steel frame and ceiling grid provides a rigid, free-standing structure.

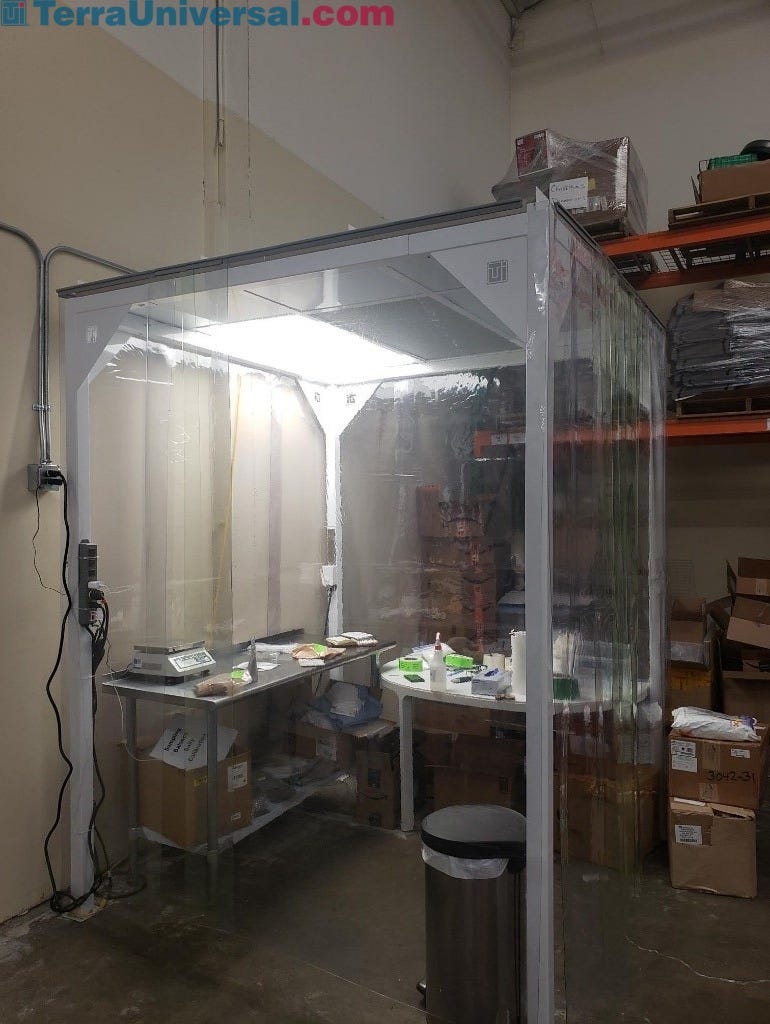

Class 10,000 ValuLine Softwall Cleanroom for Packaging Herbal Extracts

This Class 10,000 ValuLine softwall cleanroom is used to package herbal extracts. 40 mil static-dissipative PVC panels dissipate electric charge to prevent static cling of dust particles. Powder-coated steel frame provides a rigid, free-standing structure.

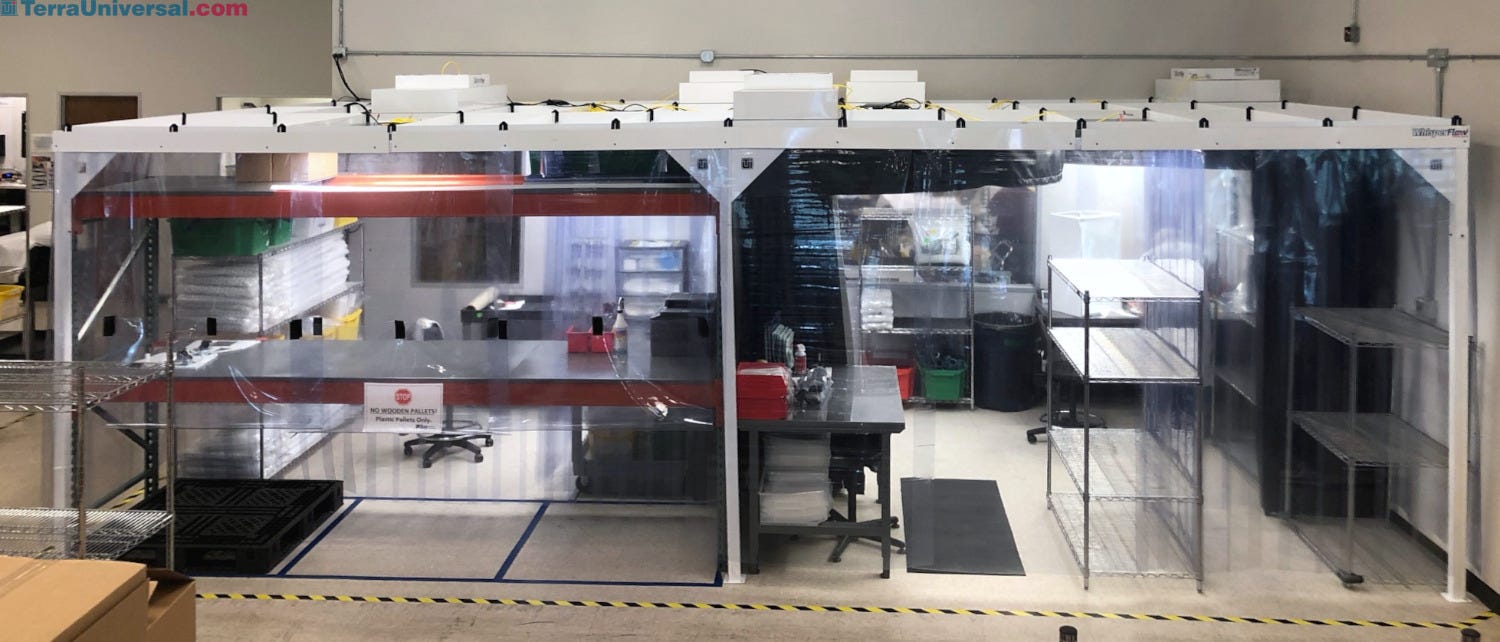

Extended ValuLine™ Softwall Cleanroom for Assembling Semiconductor Components

ValuLine™ softwall cleanrooms come in extended sizes to accommodate greater storage requirements and longer assembly lines. Semiconductor components are being assembled here in a positive-pressure, class 100/ISO 5 clean-air environment.

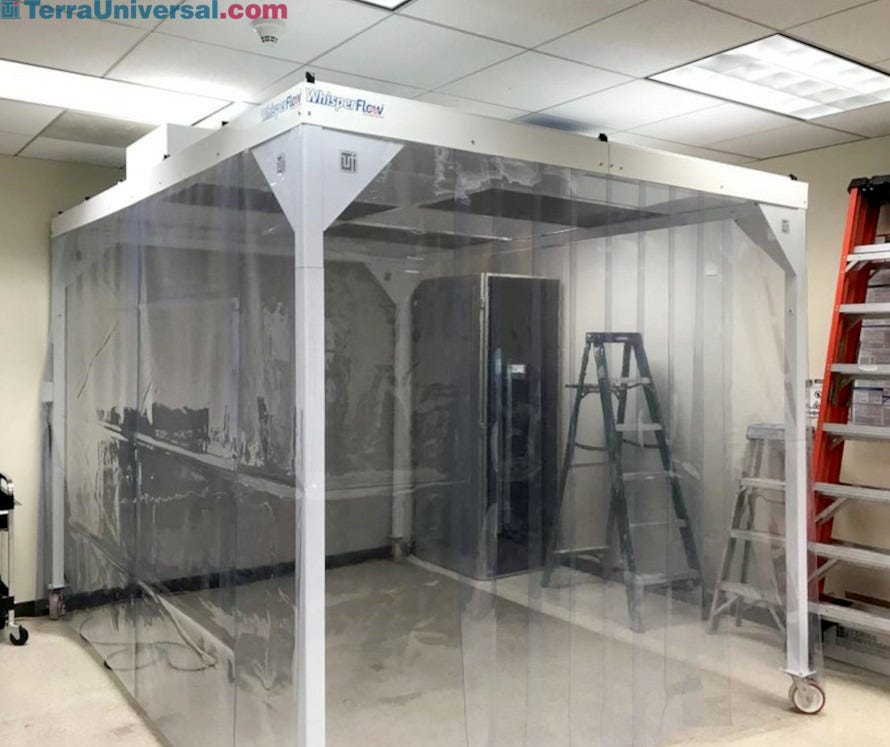

ValuLine™ Pre-Configured Softwall Cleanroom for Testing Image Sensors

A pre-configured ValuLine™ softwall cleanroom is an easy way to create a controlled environment space in the workplace. Maintain a low-moisture, static-free area for electronics work, such as testing, cleaning and storing imaging sensors.

Valuline Softwall Cleanroom used for Urodynamic Monitoring Medical Device

This Valuline softwall cleanroom is used for urodynamic monitoring medical device. Powder-coated steel frames provide durable and robust build for longevity. Anti-static clear vinyl panel material allows for visibility outside of cleanroom.

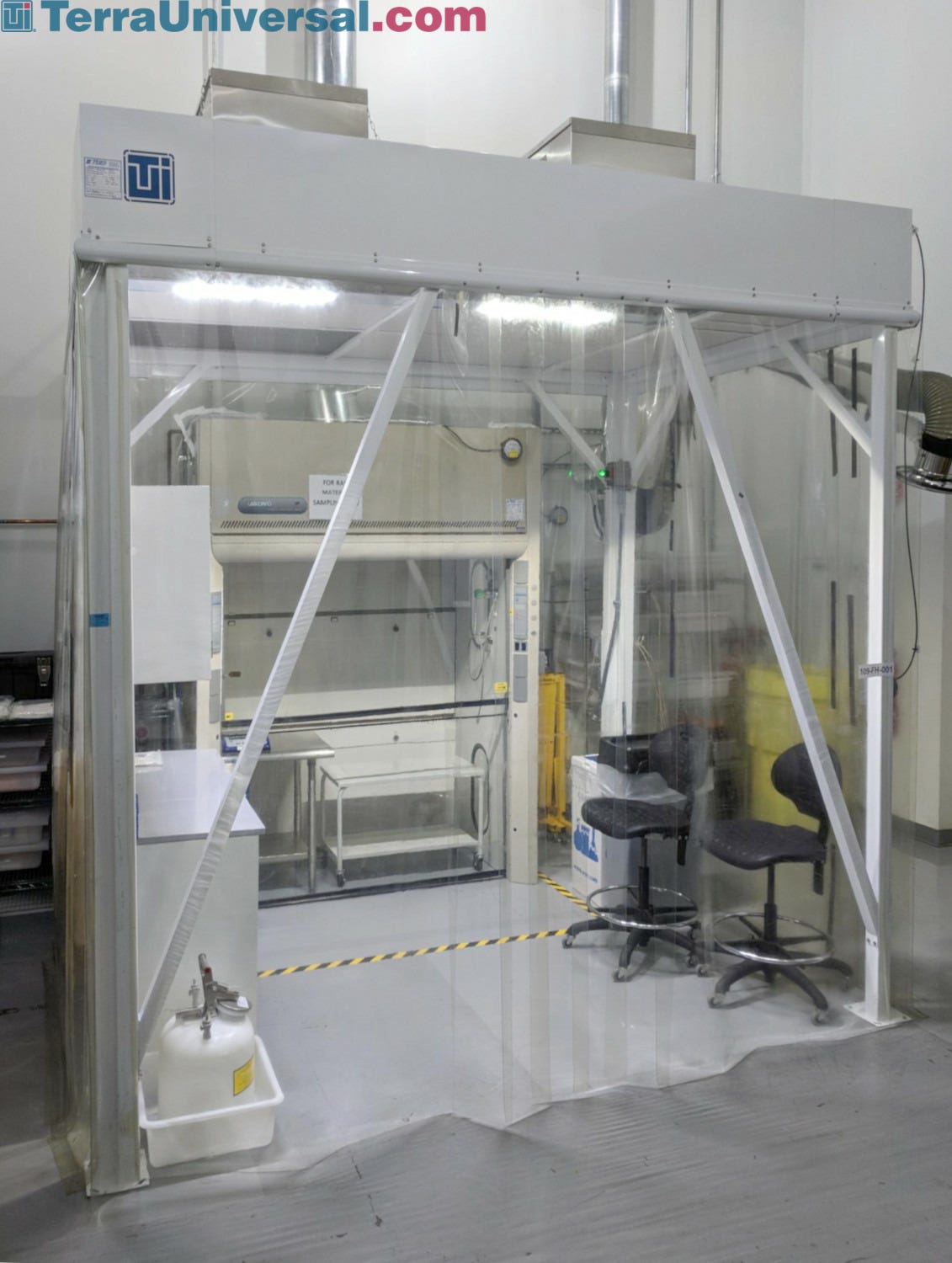

Softwall Steel-Frame Cleanroom for Testing Incoming Raw Materials

A softwall cleanroom is ideal for creating a positive-pressure controlled environment when only a small space is needed. This free-standing cleanroom is customized to be used to sample and test incoming batches of raw material for quality before processing.

Curtain Panel; Clear Polysim Panel, 40 mil, 10'H

ValuLine™ Pre-Configured Softwall Cleanroom for PCB Printing

Processes involving tight tolerance electronics require a degree of environmental control to produce optimal products. An economical and easy-to-install ValuLine™ softwall cleanroom will reduce dust which can impact the efficient printing of PCBs.

ValuLine Softwall Cleanroom used for Textile Manufacturing

This ValuLine softwall cleanroom is used for textile manufacturing. It is composed of two 12ft x 24ft units. The modular design is easily adaptable to unique floor plans. From small enclosures to multi-suite facilities.

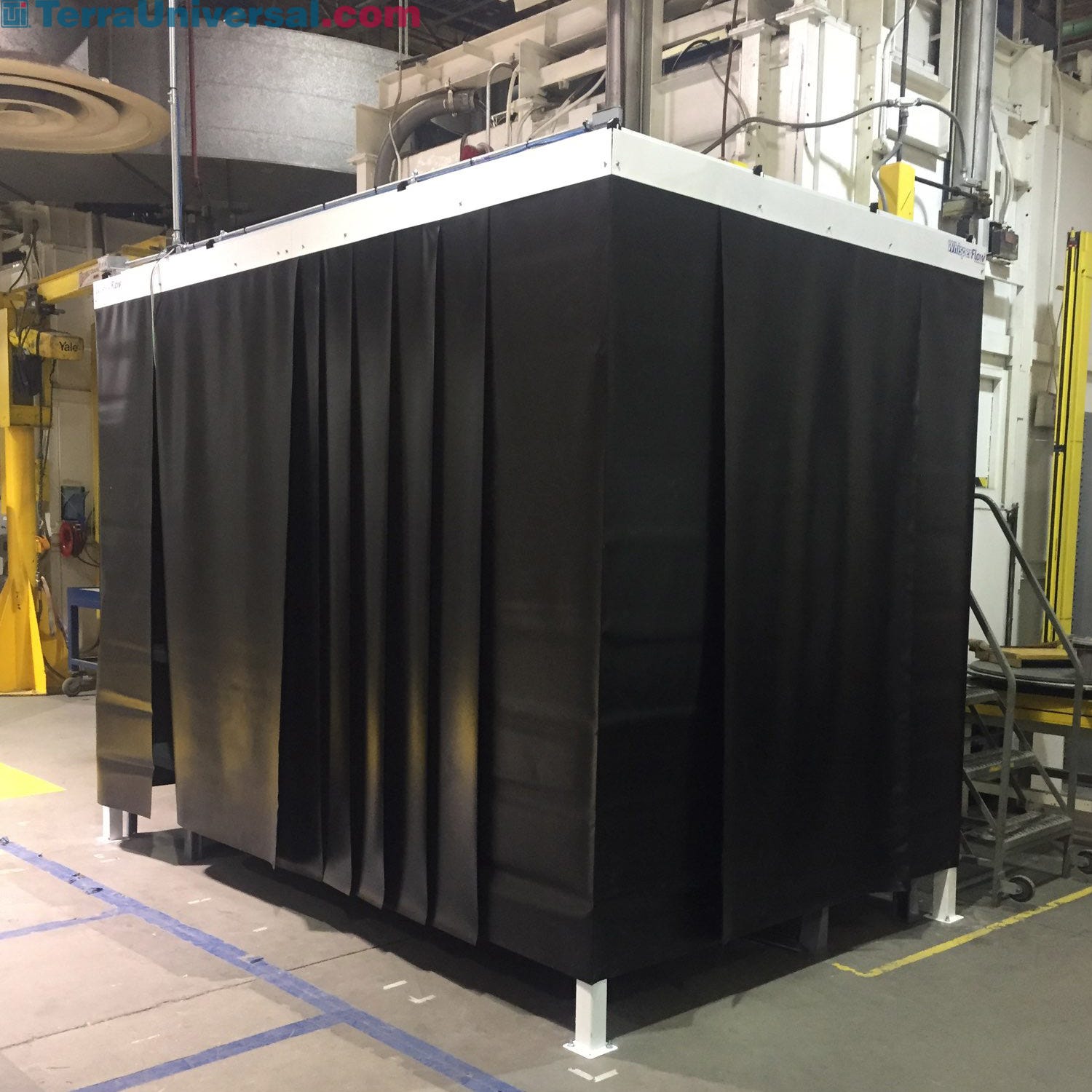

Class 100 Softwall Cleanroom for Industrial Radiography Non-Destructive Testing (NDT)

Class 100 ValuLine™ softwall cleanroom with opaque black curtains, used for industrial radiography non-destructive testing (NDT) specialized engineered metals.

Class 100 Portable Knock-Down CleanBooth for Assembly of Agricultural Robotics

This Class 100 portable cleanroom booth is used to assemble robotics for agricultural applications. The ceiling is entirely covered by HEPA fan/filter units for class 100 ultra-low particle work area. Anti-static PVC softwall panels reduce the risk of ESD-related damage to vital electrical components.

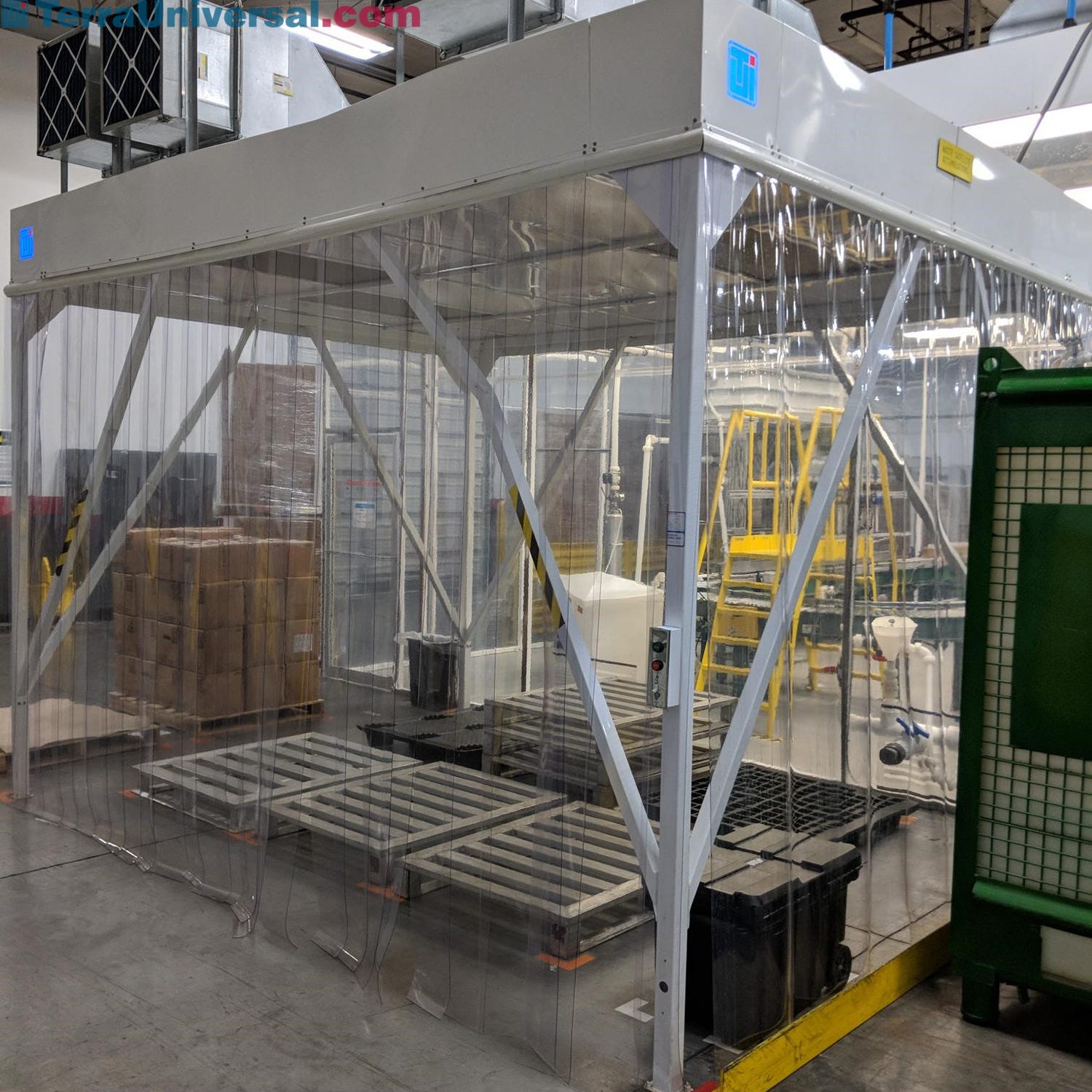

Class 10,000 Modular Softwall Cleanroom for Unpackaging with Pallets

This Class 10,000 softwall cleanroom has vinyl strip curtains on the front and side to allow quick transfer of contamination-sensitive palletized materials. The 12'H ceiling provides extra clearance for large stacks of mateiral.

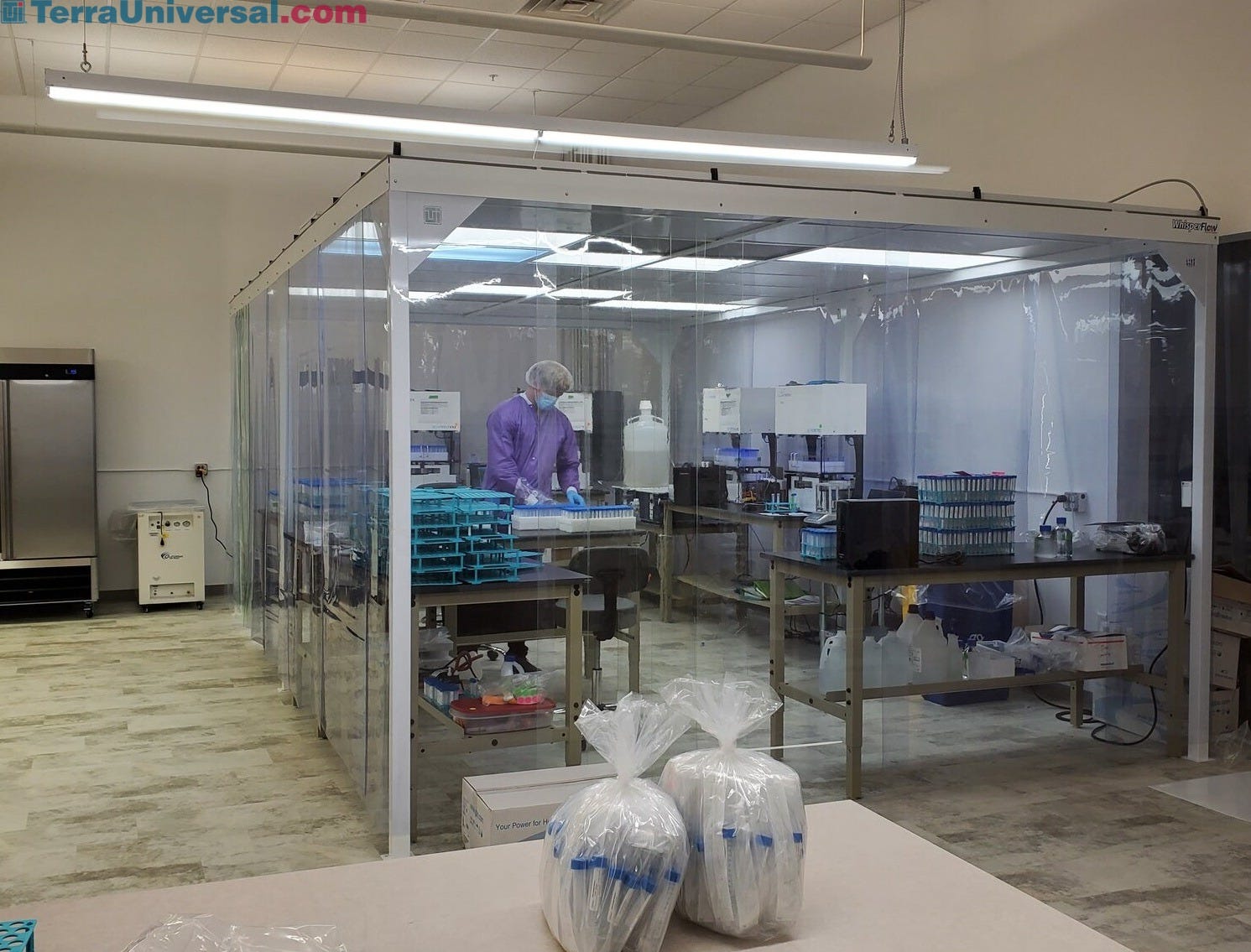

Class 100 ValuLine Softwall Cleanroom for Processing Cotton Swab Specimens

Make use of a large, quick set-up class 100 softwall cleanroom for operations such as manufacturing specimen swabs. The laminar flow FFU system produces a positive pressure environment to reduce the risk of contamination.

Close-Up View of Flat Roof Truss Installed to 12’H Hardwall Cleanroom Frame, With Ceiling Joists Installed

Terra’s flat roof truss eliminates the need for load-bearing support posts inside modular cleanrooms greater than 20'L x 20'W. The connector (pink) attaches the cleanroom ceiling grid to the overhanging beam (cyan) mounted outside the cleanroom. This allows for a completely unobstructed interior floor plan.
