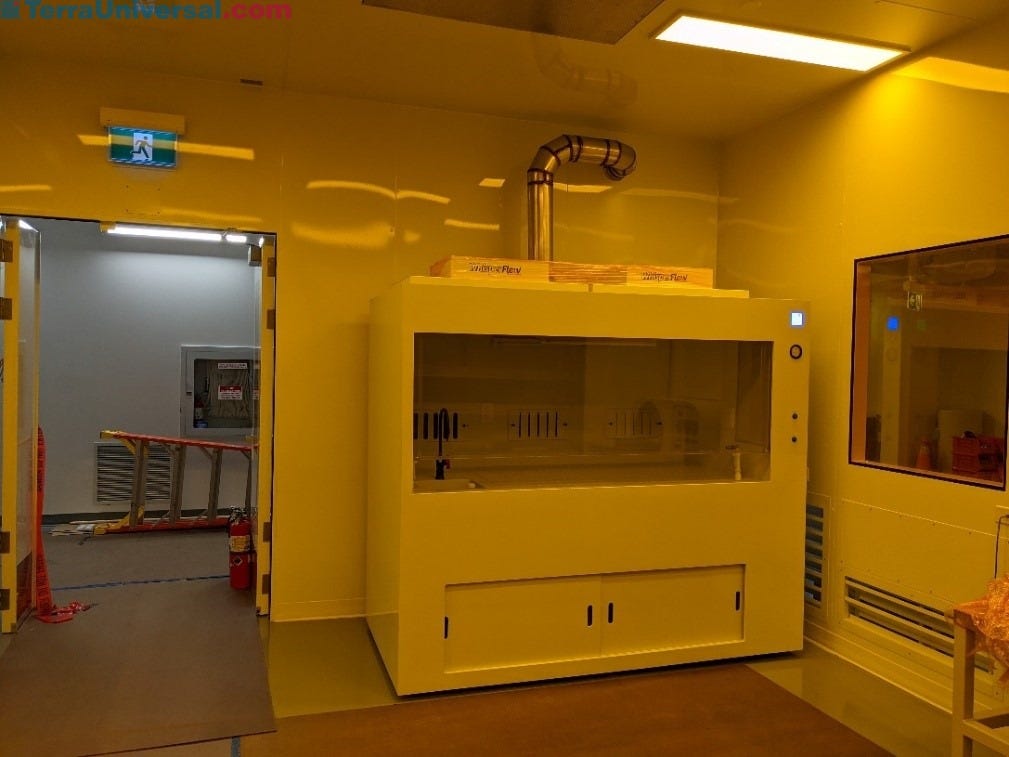

Polypropylene Wet Cleaning Station for RCA Cleaning
SKU: 7018-00
Polypropylene Wet Cleaning Station for RCA Cleaning

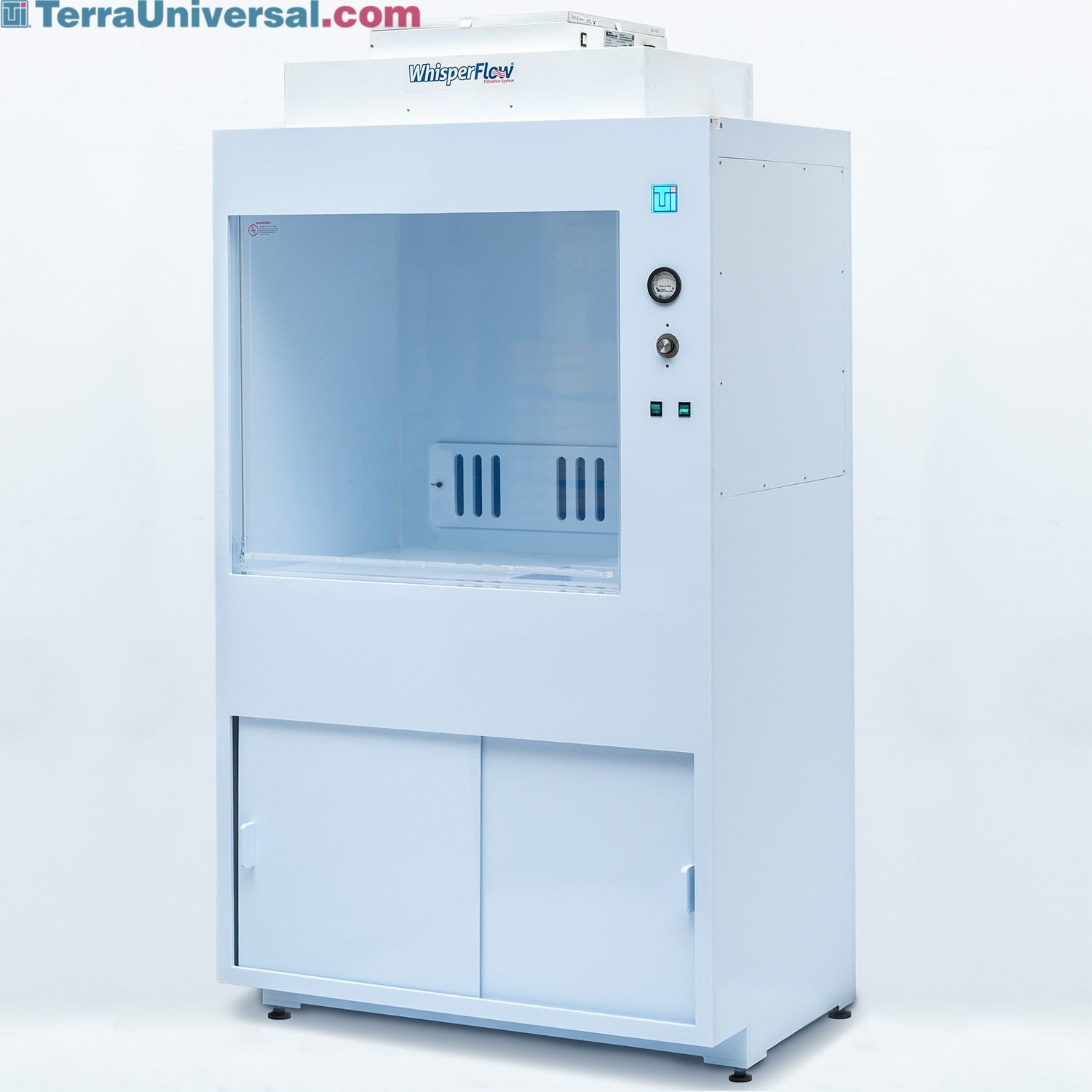

This polypropylene wet cleaning station is used for RCA cleaning. The system is configured for single-pass HEPA filtration, with FFUs mounted on top and exhaust ducted through vents at the back of the work station.

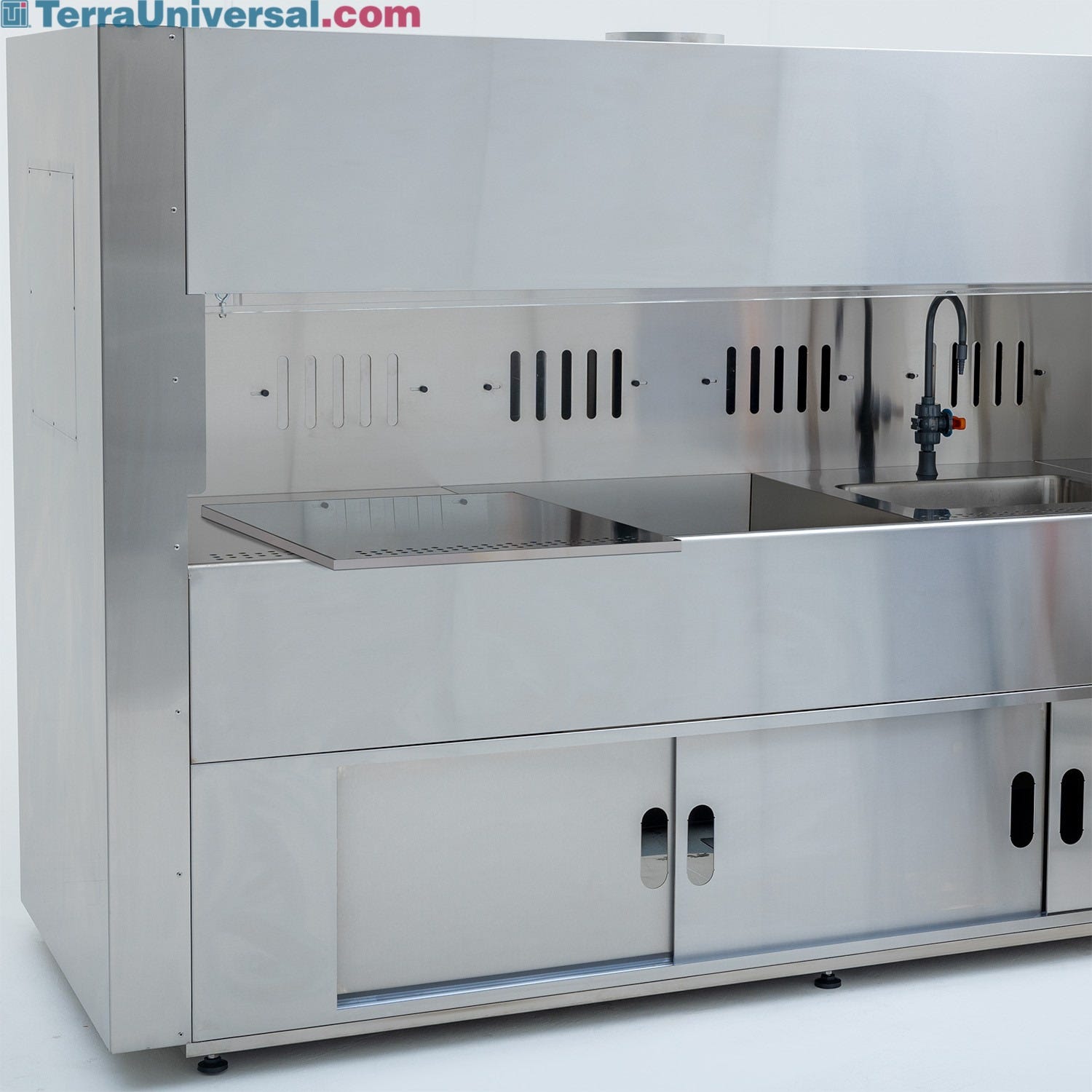

Removable Deck Simplifies Cleaning and Maintenance
SKU: 7018-00
Removable Deck Simplifies Cleaning and Maintenance
The removable perforated polypropylene decks safely guide liquids to the bottom drain and prevent parts from falling into the sink. Adjustable vents are also located underneath to improve laminar airflow and ventilation of fumes.

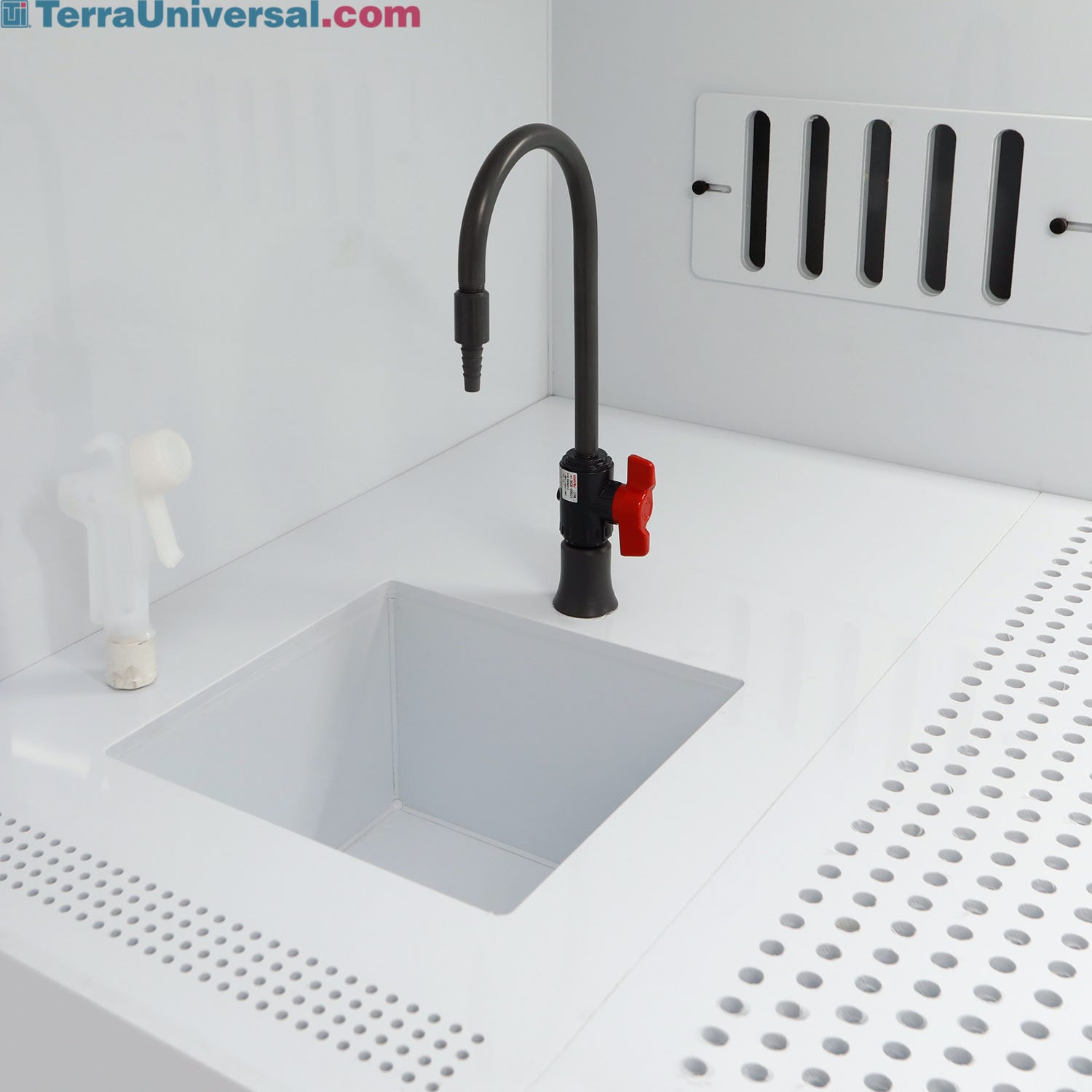

Self-contained Wet Cleaning Stations provide the perfect turnkey solution for a wide range of cleaning requirements. Add sinks, gooseneck faucets and spray guns for nitrogen and deionized water to accommodate unique needs of your workflow.

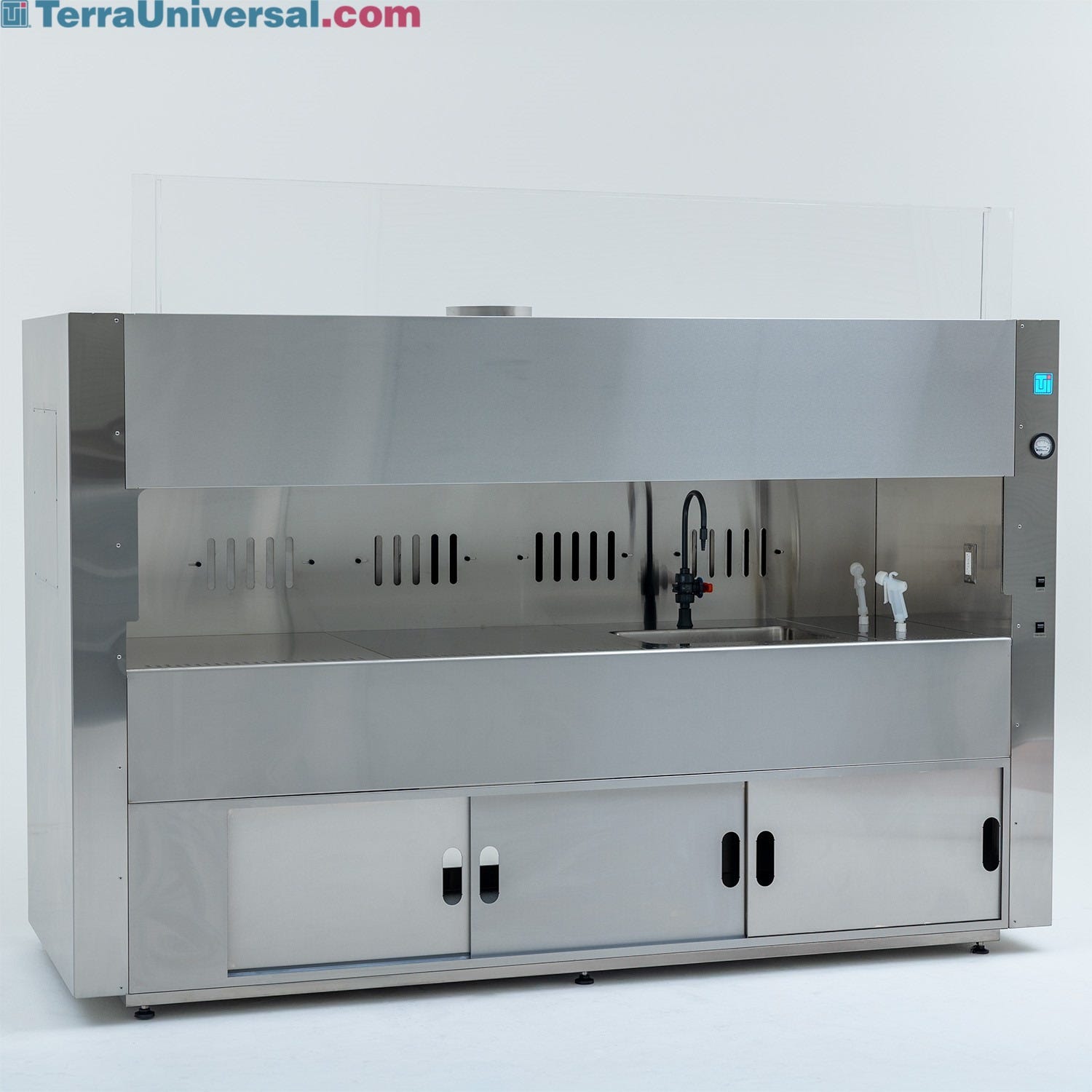

The static-dissipative PVC sliding shield is counter-weighted to easily slide and hold in any position. The sash protects workers from contact with chemical fumes and helps control laminar air flow.

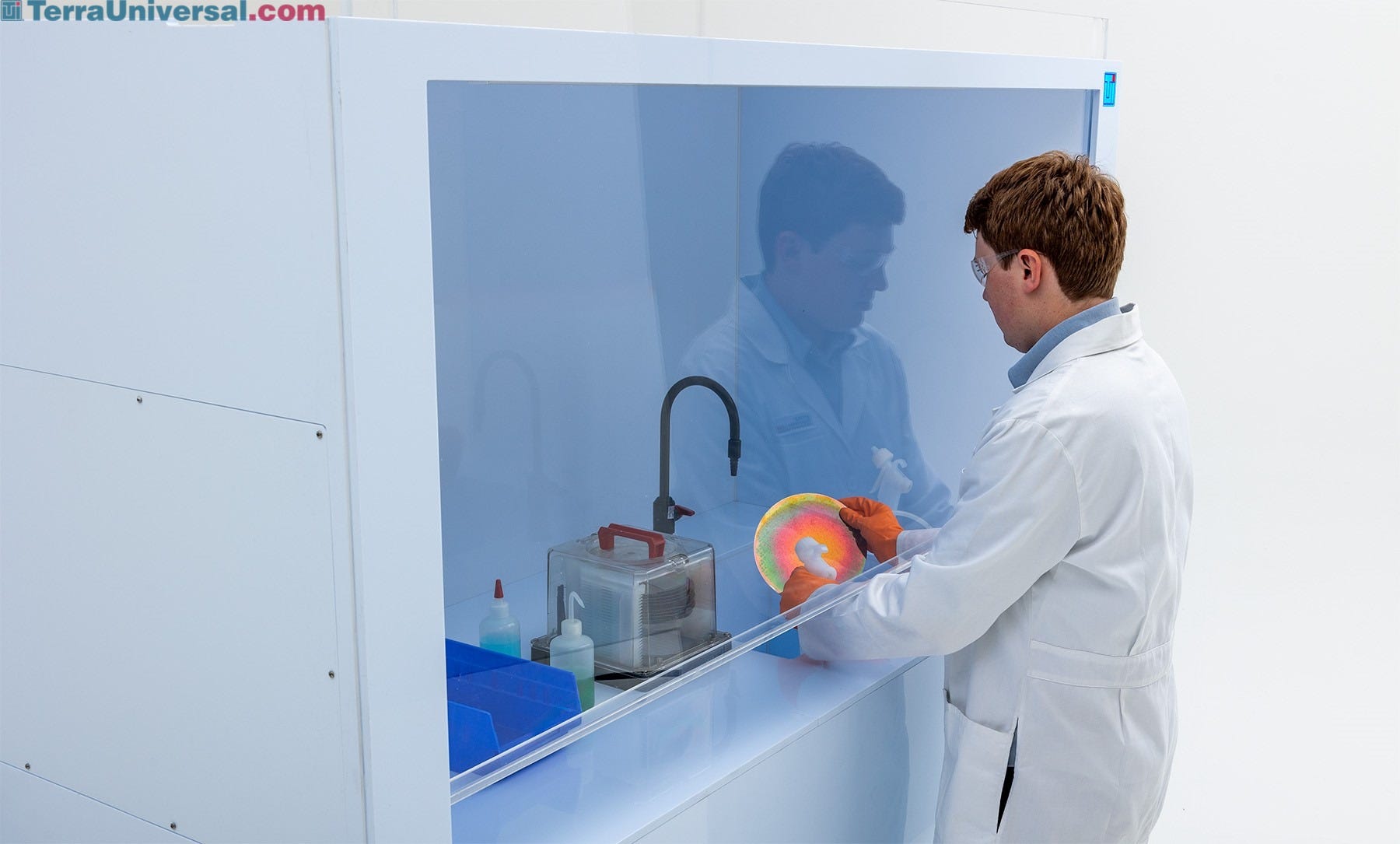

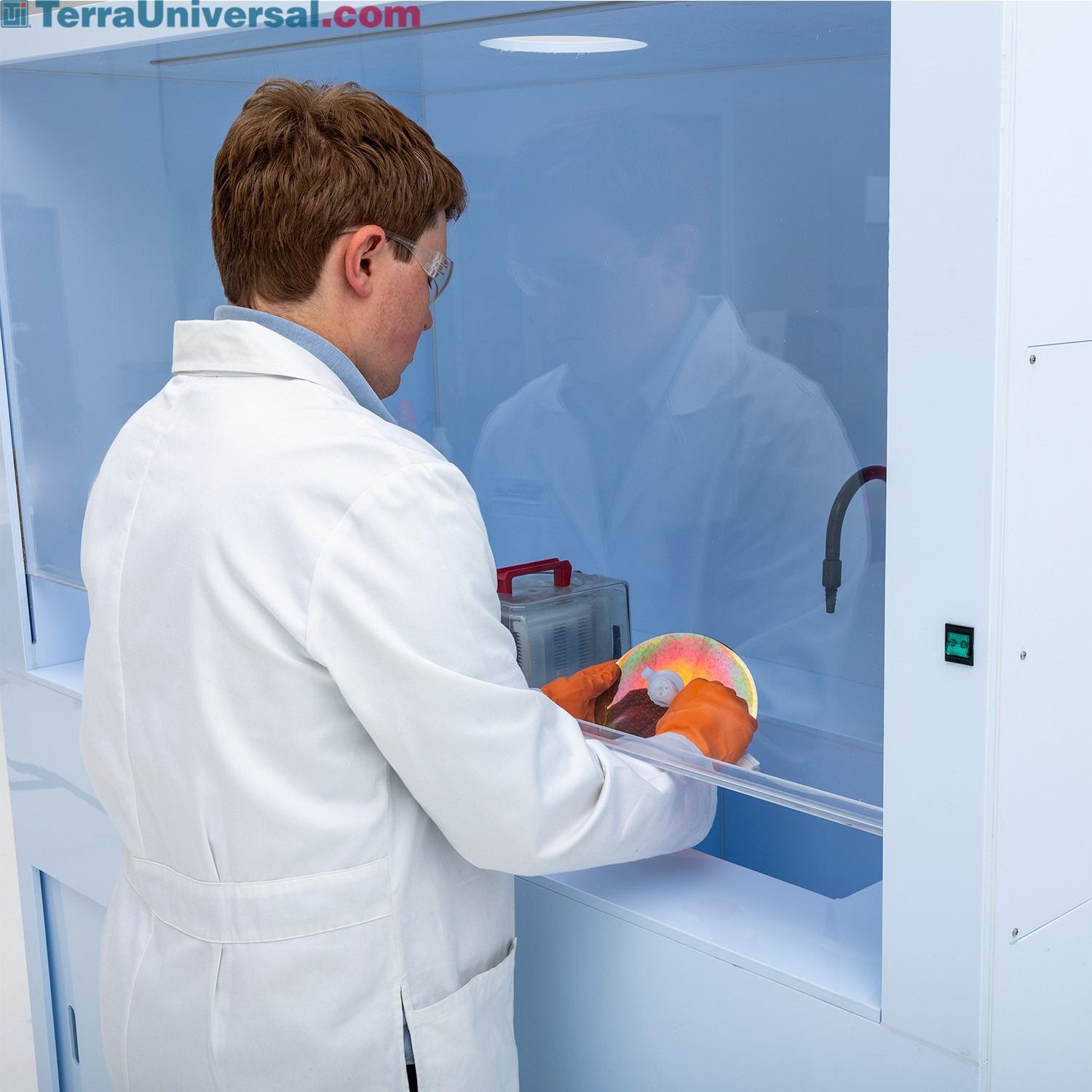

Ideal for RCA Silicon Wafer Cleaning, Wet Etching and Rinsing
SKU: 7018-00
Ideal for RCA Silicon Wafer Cleaning, Wet Etching and Rinsing
Polypropylene wet stations are ideal for removing organic residue and films from silicon wafers. HEPA fan filter units mounted on top supply Class 100 ultra-low particulate airflow. Vents along the back wall help maintain laminar airflow to prevent contamination and draw away potent fumes to the exhaust duct.
This Solvent Spray Booth allows footpedal activation of solvent cleaning fluid; includes explosion-proof lighting, exhaust duct, sprinkers and split sink with dual collection reservoirs.
The fully automated wafer processing bench offers greater control over chemical formulations, a smaller margin for error and efficiency with walk-away operation.
Wet processing work stations are designed with white polypropylene for working with acids and bases and stainless steel for processes involving solvents.
Standard models include a reinforced cabinet of the specified size and material, a sliding access shield, and a fluorescent illuminator; modular desk allows positioning of tanks and sinks to suit your process.

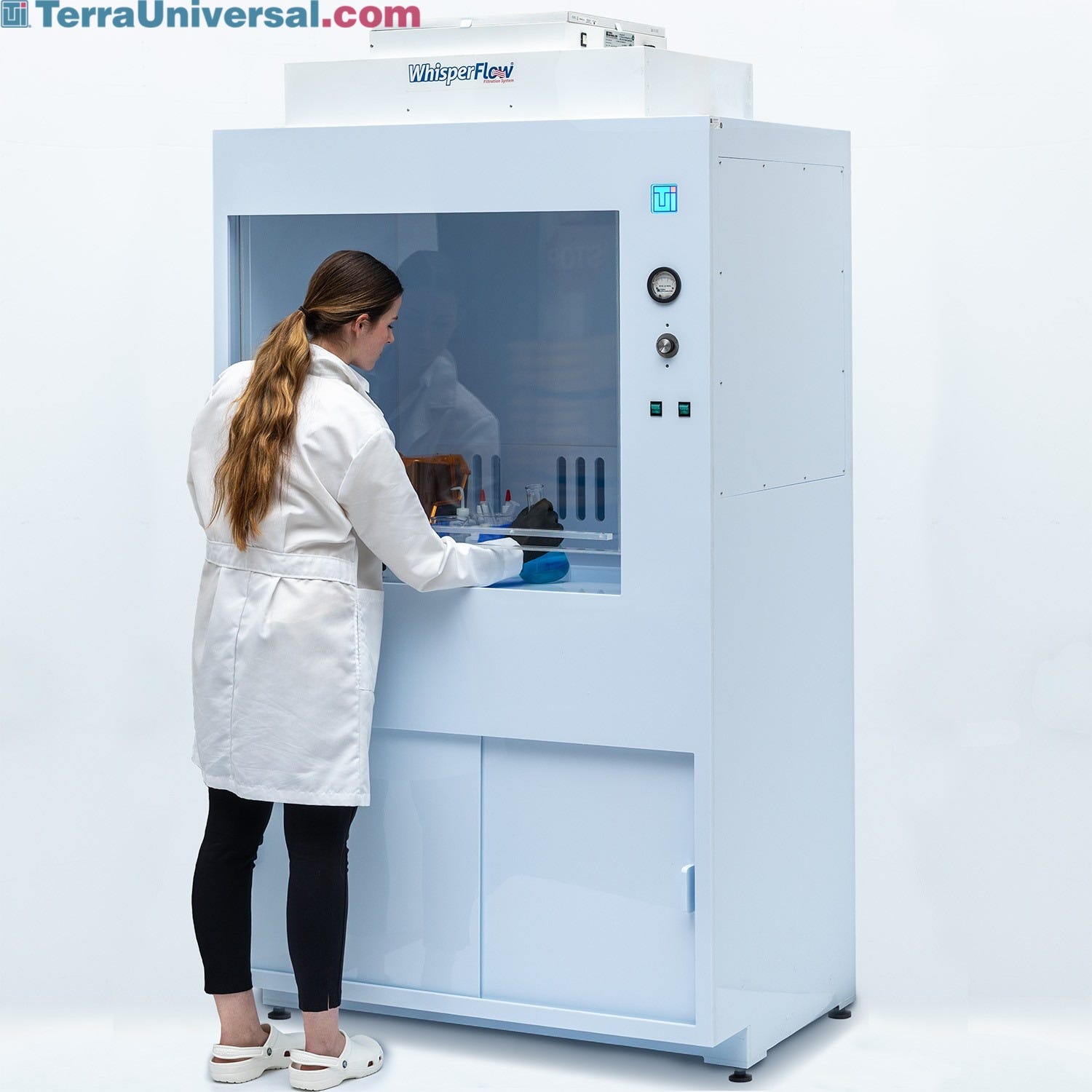

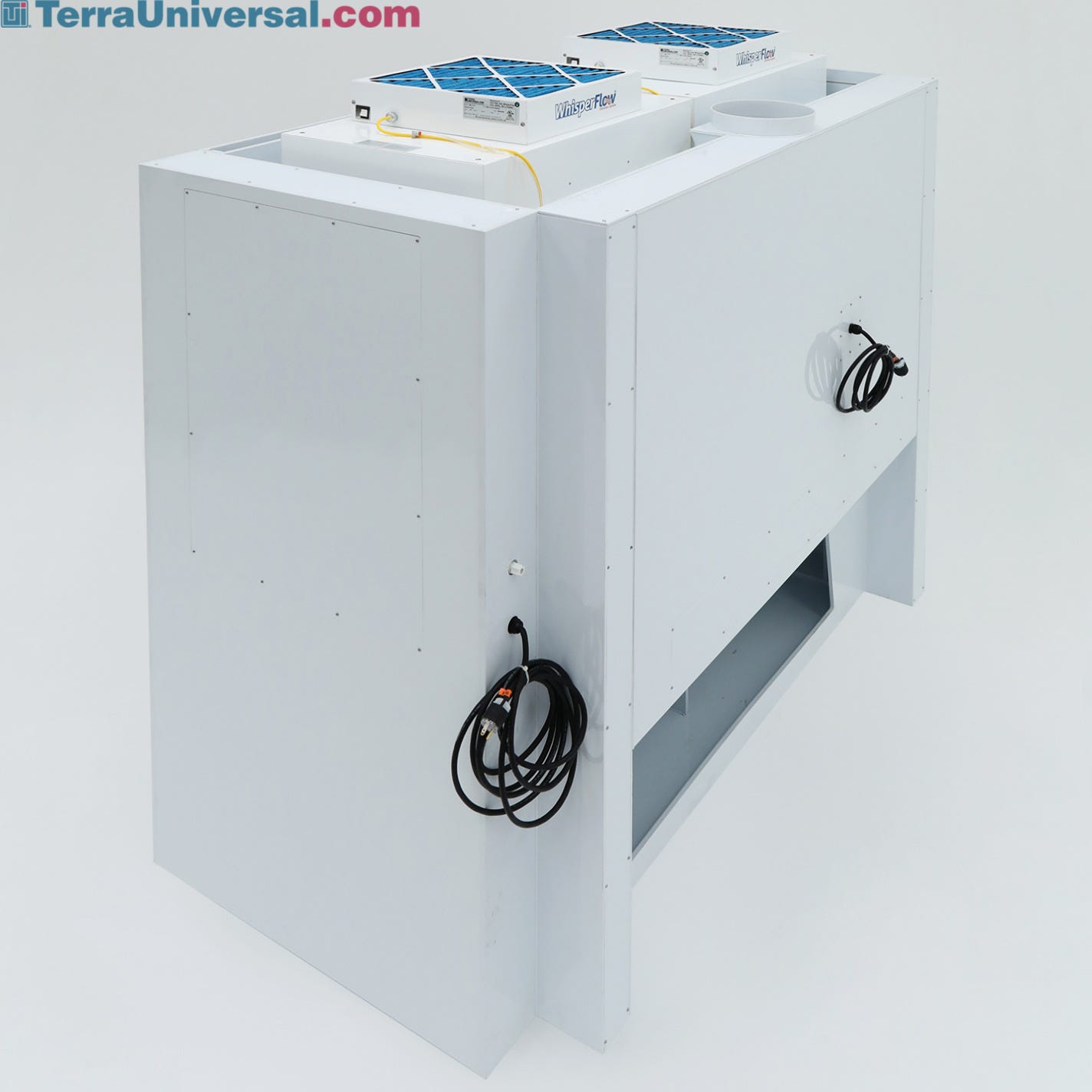

Terra's integrated wet processing station features HEPA FFUs mounted on top to create a ISO 5 Class 100 vertical laminar flow work zone. The rear plenum connects to exhaust duct to safely ventilate fumes outside the room.

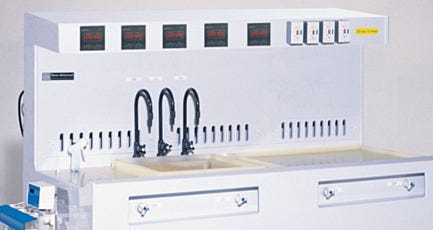

Modular designs allow tanks and bath locations to suit your process. Shown: wafer processing bench with programmable quartz baths and rinsers (controls mounted above or below desk to suit protocol).
Many chemical delivery and treatment systems available. The Chemical Delivery System shown automates chemical collection, storage and delivery in wafer etching, silicon chip plating, cleaning, and circuit board or solar system component processing.

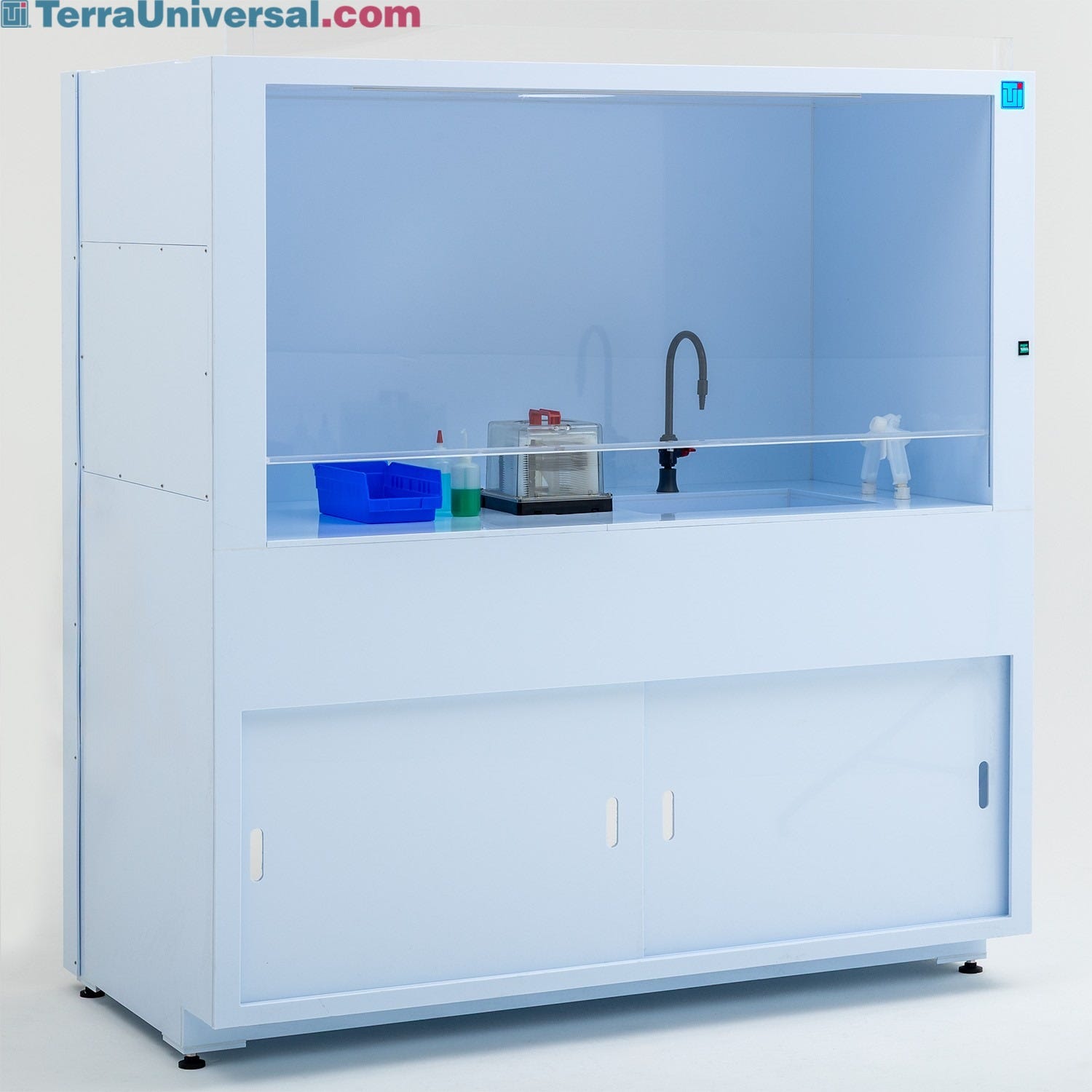

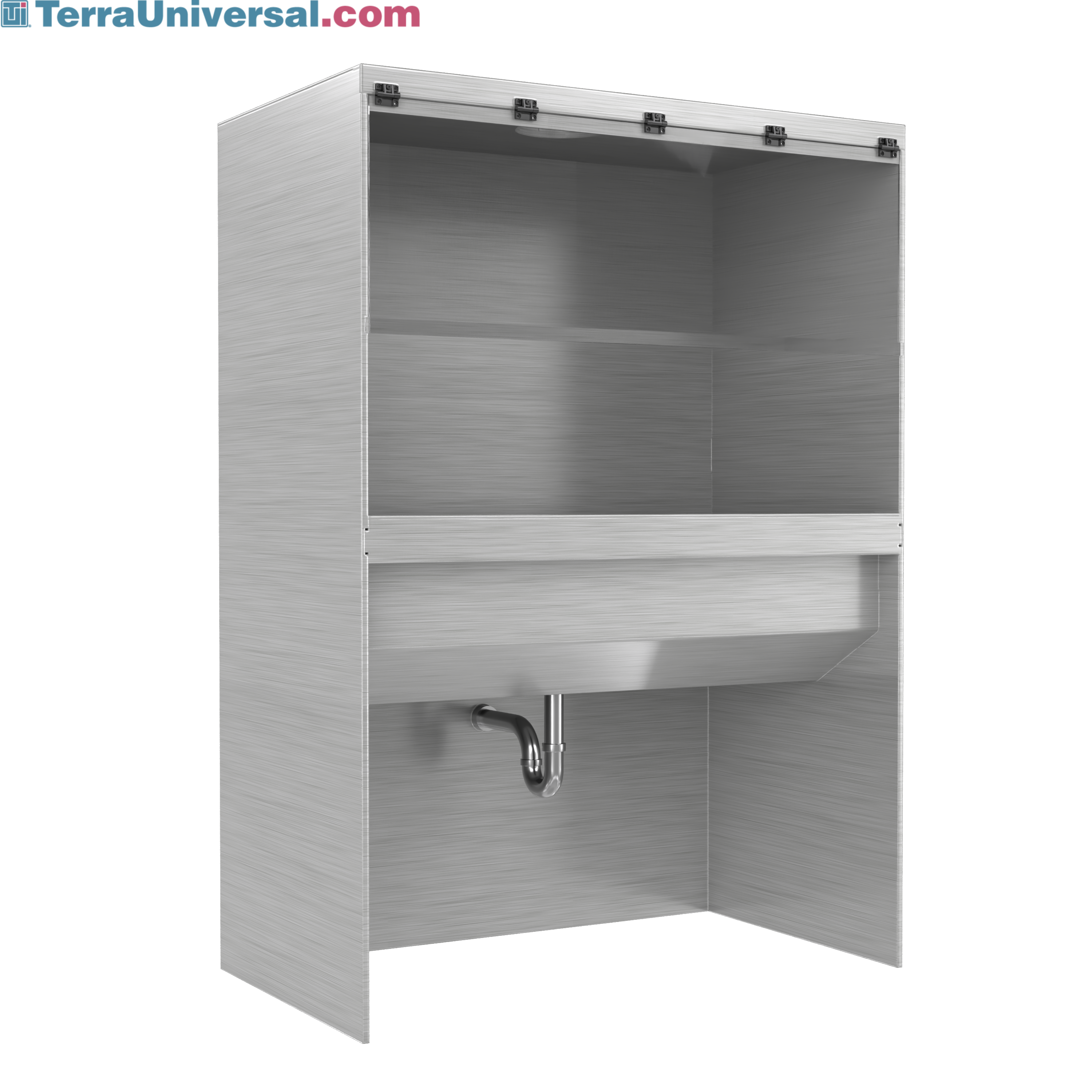

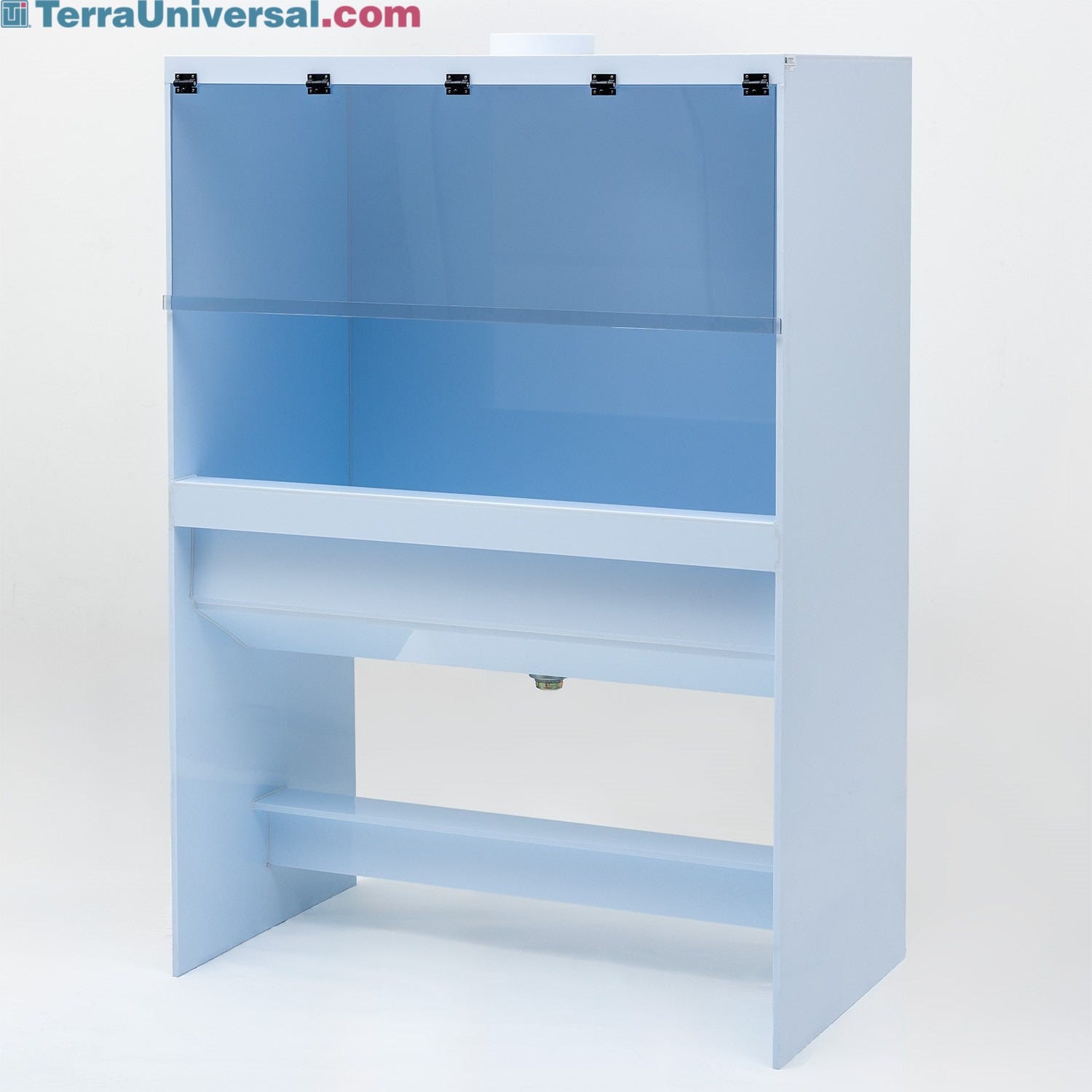

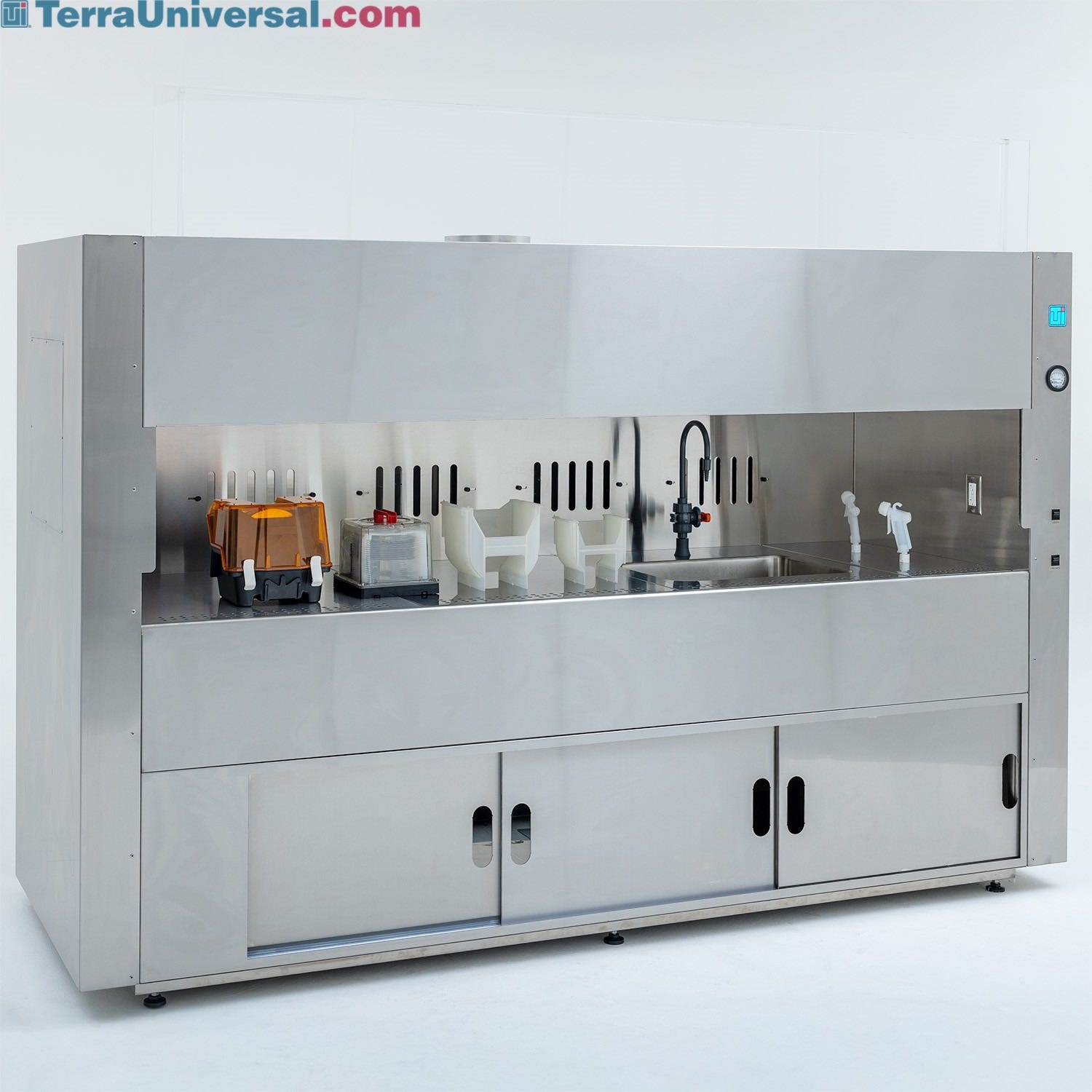

Wet Cleaning Cabinets in Polypropylene or Stainless Steel
SKU: 7018-00
Wet Cleaning Cabinets in Polypropylene or Stainless Steel
Wet cleaning cabinets integrate processing components in a self-contained system. Shown: acid-resistant polypropylene station with LED light, sinks, gooseneck, spray guns, HEPA filtration, exhaust duct and backpressure gauge.
Use Terra's QuickQuote form to specify your processing requirements; Modular wet station designs adapt to specific processing requirements (shown: custom Manual Wafer Processing Bench).
