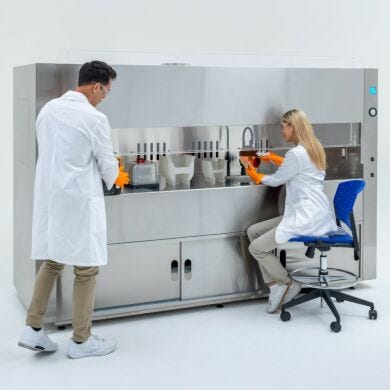

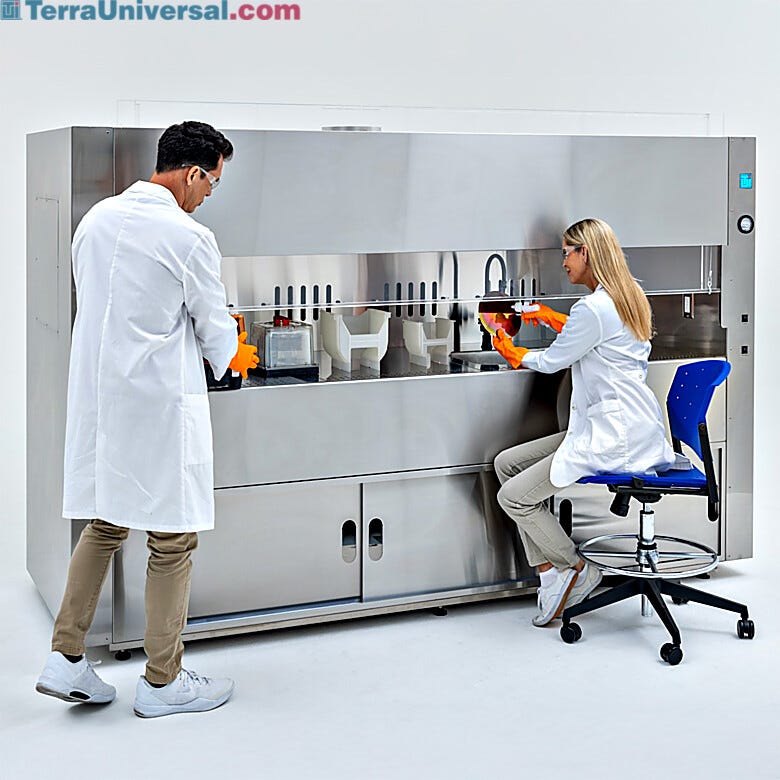

Stainless steel wet processing station, 9ft wide, with slide-up SD-PVC shield; sash is counter-weighted to easily slide and hold in any position | 7018-03 displayed
Wet Stations,Hoods for Wet Processing,Hoods for Wet Processing
Product Group:
7018-PP-03
7018-PP-03

Integrated Wet Cleaning Stations

Manufactured By: Terra Universal
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Fully customizable to your specific workflow and airflow needs
  • Integrated fan filter units provide laminar flow for up to ISO 4 air cleanliness to protect samples from contamination
  • Bi-directional exhaust system through wall and work surface safely removes hazardous fumes
  • Polypropylene stations are ideal for acid and caustic chemistries, stainless steel design available for solvents and flammables
  • Complete explosion-proof configuration available for hazardous environments

• Available Certified ISO Grade Designs: ISO 7, ISO 8

• Certified ISO Grade Design: ISO 7

• Unit of Measure: of 1

Read more
cULus Logo ISO 7 Icon
Manufactured By: Terra Universal
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Material

Sort Order:
Type

Sort Order:
Work Area Width

Sort Order:
Work Area Depth

Sort Order:
Certified ISO Grade Design

Sort Order:
ISO Rated Air Cleanliness

Sort Order:

 Terra Part #Price Ships in
304 Stainless Steel Cleaning Station 72" 24" ISO 5 ISO 5 7018-01 $45,187 25-35 Days2
304 Stainless Steel Cleaning Station 96" 24" ISO 5 ISO 5 7018-03 $54,398 25-35 Days3
Polypropylene Cleaning Station 72" 24" ISO 6 ISO 5 7018-00 $34,760 25-35 Days4
Polypropylene Cleaning Station 96" 24" ISO 6 ISO 5 7018-02 $41,323 25-35 Days5
Material
Type
Work Area Width
Work Area Depth
Certified ISO Grade Design
ISO Rated Air Cleanliness
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
CONFIGURE & ADD TO CART
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Free shipping in contiguous USA
Some ship in:
Usually Ships in:
Back to product group
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Fully customizable to your specific workflow and airflow needs
  • Integrated fan filter units provide laminar flow for up to ISO 4 air cleanliness to protect samples from contamination
  • Bi-directional exhaust system through wall and work surface safely removes hazardous fumes
  • Polypropylene stations are ideal for acid and caustic chemistries, stainless steel design available for solvents and flammables
  • Complete explosion-proof configuration available for hazardous environments
  • Exhaust ducted through a standard 10" diameter flange
  • Raised lip surrounds the work area to prevent floor spills
  • Select optional accessories for your cleaning processes: Sinks, Spray Guns ,Carboys
  • On/off push buttons control the light and optional filter unit and a backpressure gauge monitors the exhaust flow

• Available Certified ISO Grade Designs: ISO 7, ISO 8

• Certified ISO Grade Design: ISO 7

• Unit of Measure: of 1

Show more
Features & Benefits

Features & Benefits

Learn More: Wet Processing Materials
Print Copy Copied

Process Control, Safety, and Consistency

Polypropylene

  • Economical plastic with broad chemical compatibility
  • Ideal for wet processing station panels
  • Loses some chemical resistance at high temperatures
  • Suitable for HF and KOH processes

Quartz

  • The preferred material for ultra-pure applications
  • Provides greater uniformity in heat transfer than plastic baths—ideal for very tight temperature control
  • Suitable for most chemicals (but not HF acid)
  • Hard surfaces won’t scuff, stain, or absorb impurities

PVDF (polyvinyldilene fluoride)

  • Broader range of chemical resistance than polypropylene
  • Suitable for high process temperatures
  • Ideal for HF and BOE processes at high temperatures

PTFE (Teflon®)

  • Resistant to an extremely wide range of chemicals
  • Perfect for KOH and HF acid (which etch quartz)
  • Softer than quartz, so care must be taken to avoid scuffing, staining

Terra’s comprehensive range of constant-temperature baths, etching baths, dump risers, and other processing equipment is ideally suited for the high-purity requirements of the semiconductor industry. Microprocessor controls ensure the integrity of your operations.

The chart below indicates the baths best suited for common semiconductor operations. Once you select the equipment that meets your requirements, a Terra process engineer will help configure a turnkey solution.

Product Application Chart

Commercial or Generic Name Process Chemical Composition Concentration Typical Temperature Recommended Product
Aqua Regia Gold Etchant Hydrochloric Acid (HCl)
Nitric Acid (HNO3)		 75%
25%		 90° C Series
Buffered Oxide
Etch (BOE)		 Etch SiO2 Ammonium Fluoride (NH4F) Aqueous
Hydrofluoric Acid (HF) Aqueous		 40% 15-40°C
Ambient		 A Series
RCe Series
CP8 Etch Nitric Acid (HNO3)
Hydrofluoric Acid (HF)		   Ambient A Series
Etch (Indium)
Molybdenum Platinum
Nichrome		 Etch Hydrochloric Acid (HCl) Aqueous
Nitric Acid (HNO3) 		37-38%
70-71% 		  QA Series
Metal Etch Etch A,
AlSi Al Si Cu		 Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)		 85-87% 30-60°C QA Series
Nitride Etch Etch Phosphoric Acid (H3PO4)
DI Water (H20)		 85-87%
15-13%		 150-185°C Nb Series
Organic Stripper Resist Removal PRS-1000
S-43
Lozolin
No Phenol-922		 Full strength Room Temperature
120°C		 Nb Series
Oxide Resist Strip SiO2 Resist Stripping Sulfuric Acid (H2SO4)
Ammonium Persulfate (NH4S2O2)		 95-96% QA Series
Phenolic Stripper Resist Removal J100
Bermar 712D
R-10		   95-100°C C Series
Resist Series (Metalized) Resist Removal Chromic Sulfuric Acid (CrO3+H2SO4)     A Series
R.C.A. Clean Pre-Diffusion Cleans
Quartzware		 Step 1: Water
Hydrogen Peroxide (H2O2)
Ammonium Fuoride (NH4CH)
Step 2: DI Water (H2O)
Hydrogen Peroxide (H2O2)
Hydrochloric Acid (HCL)		 40% 75-85°C Qa Series
Silicon Etch Etch Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
HydroFuoric Acid (HF)		   Ambient A Series
Sirtl Etch Etch Chromium Trioxide (CrO3)
DI Water (H20)
Hydrofluoric Acid (HF)		   Ambient A Series
Slope Etch Etch Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)		   55°C Qa Series
Standard Resist Strip (do not use w/aluminum) SiO2 Resist Strip Sulfuric Acid (H2SO4)
Hydrogen Peroxide (H2O2)		 95-96% 110-140°C Qa Series
2:1 Etch Etch DI Water (H2O)
Hydrofuoric Acid (HF)		   Ambient A Series
Wafer Rinsing Rinsing DI Water (H2O) 100% Ambient DR-Series

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

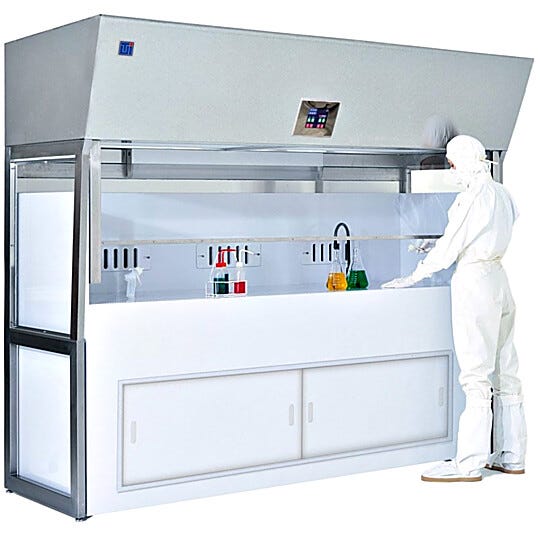

Polypropylene Wet Cleaning Station

Standard models include a reinforced cabinet of the specified size and material, a sliding access shield, and a fluorescent illuminator; modular desk allows positioning of tanks and sinks to suit your process.

Ideal for RCA Silicon Wafer Cleaning, Wet Etching and Rinsing

Polypropylene wet stations are ideal for removing organic residue and films from silicon wafers. HEPA fan filter units mounted on top supply Class 100 ultra-low particulate airflow. Vents along the back wall help maintain laminar airflow to prevent contamination and draw away potent fumes to the exhaust duct.

Customize to Suit Your Needs

Self-contained Wet Cleaning Stations provide the perfect turnkey solution for a wide range of cleaning requirements. Add sinks, gooseneck faucets and spray guns for nitrogen and deionized water to accommodate unique needs of your workflow.

Removable Deck Simplifies Cleaning and Maintenance

The removable perforated polypropylene decks safely guide liquids to the bottom drain and prevent parts from falling into the sink. Adjustable vents are also located underneath to improve laminar airflow and ventilation of fumes.

Exhaust Duct Connection For Safe Fume Extraction

Polypropylene wet etching and cleaning stations are equipped with an exhaust duct to safely carry fumes away from workers.

Adjustable Transparent Sash

The PVC sliding shield protects workers from contact with chemical fumes. Variable positioning helps control laminar air speeds.

Bottom Storage

Spacious storage area under the work surface holds reserve chemicals or carboys. Access doors easily slide open or closed.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Network of International Reps

Terra employs an international network of more than 20 local sales reps trained to provide comprehensive service on Terra's complete catalog of products
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Wet Processing and Cleaning Sinks

    Sinks for Every Chemical Process

    Many sink sizes and materials, including polypropylene (shown), PVDF and stainless steel, offer broad chemical resistance and easy cleaning; carboys collect run-off for easy disposal.
  • Vacuum quick connector installed to polypropylene wet cleaning station

    Vacuum Quick Connector – No Tools Required to Connect and Disconnect

    Convenient quick connectors couple by pushing stem into body until it click. Decouples by pulling body sleeve away.
  • N2 and DI Water Spray Guns

    N2 and DI Water Spray Guns

    Handy spray guns provide a ready sources of nitrogen or deionized water installed in locations to suit your process requirements (shown: DI water spray gun installed on cleaning station).
Products similar to this one
Other products you may find relevant
  1. Stainless steel safety shower rinses off any chemical, acid, or other contaminants | 1532-62 displayed
    Group of 5 products
    Enclosed Laboratory Safety Shower From
    As low as $4,010
    Some ship in 1 - 3 days

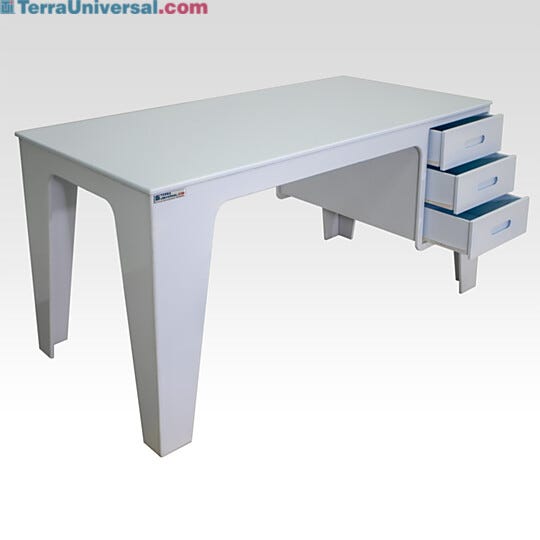

  2. All-polypropylene white work table with 3 integrated left-side drawers | 7018-41 displayed
