Product Details
Product Details
Wafer Box Desiccators
Standard Features
- A Grounding TerminalsStandard on static-dissipative PVC chambers to prevent electro-static discharge (ESD)
- B Plenum ChamberLocated in rear of cabinet, plenum ensures uniform flow of nitrogen gas to all chambers; minimizes moisture migration
- C Grounded Door LatchPrevents ESD damage to stored parts (standard on static-dissipative PVC cabinets)
- D Stainless Steel HingesNon-contaminating hinges contribute to a long service life under heavy use
- E Automatic RB® ValvePrevents overpressure; acts as a check valve (one included per chamber)
- F Stainless Steel-Framed Doors with One-Piece Gasket"e"-profile gasket mechanically attached to stainless steel reinforcement frame to prevent outgassing adhesives; one-piece design won’t slough or separate
Optional Features
- 1 Dual Purge™ SystemProvides a variable flow of nitrogen purge gas: high to recover set point, low to conserve nitrogen
- 2 NitroWatch® RH ControllerMonitors internal humidity; activates a high-flow purge when RH climbs above set point
- 3 Door Sensor SwitchesActivate high-flow purge when a door opens to recover RH set point
- 4 Stand with Nylon Leveling FeetPowder-coated or 304 stainless steel; 4” or 12” high; casters available

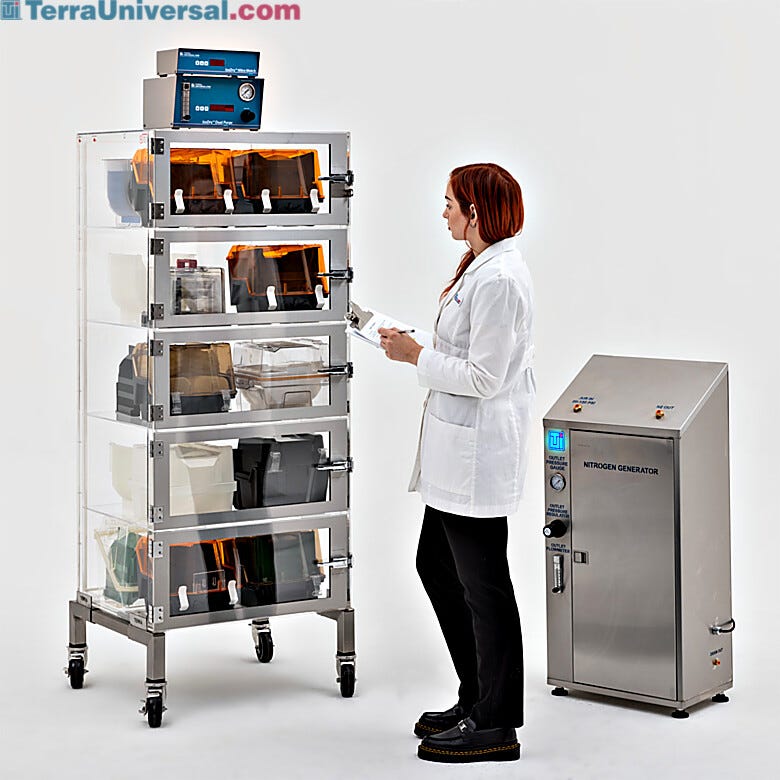

Note Shown: Flowmeter included for manual regulation of flow rate (choose Dual Purge/NitroWatch systems for automated control); Nitrogen generator provides un uninterrupted supply of nitrogen up to 99% pure to eliminate reliance on bulky canisters
Wafer Storage Desiccators
Maximum Drying Power in a Nitrogen Desiccator Cabinet- Universal Base Stands Offer Excellent Versatility
- Universal Stand Adjusts to Fit a Wide Range of Equipment
- Desiccators: Features and Design overview
- Leveling your Desiccator
- Installing Terra's ValuLine® Desiccator Smart® Controller
Maximum Drying Power in a Nitrogen Desiccator Cabinet In this video we experiment and demonstrates the rapid drying power of the Terra's desiccator cabinet and nitrogen generator.
23981
Universal Base Stands Offer Excellent Versatility
Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Universal adjustable base stands support and stabilize various equipment sizes Universal Base Stands Offer Excellent Versatility Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
23982
Universal Stand Adjusts to Fit a Wide Range of Equipment
Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Terra's Universal stands easily adjust to fit a wide range of equipment Universal Stand Adjusts to Fit a Wide Range of Equipment Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Desiccators: Features and Design overview Terra's nitrogen-purged desiccator cabinets meet dry storage requirements as low as 1% relative humidity. Standardization simplifies component upgrade, retrofit and replacement. Terra's Smart controllers allow setpoint control and even multiplexed purging for the most critical humidity requirements.
Leveling your Desiccator Learn how to properly level your plastic or stainless steel desiccator cabinet, as well as instructions to align the doors.
How-To: Install Terra's ValuLine® Smart® Controller Installing Terra's ValuLine® Desiccator Smart® Controller How to upgrade your standard ValuLine® ES Desiccator with an upgraded Smart® Humidity Module in only a few minutes. This Smart® add-on transforms your manual gas control desiccator into an automatic purge control system.
Features & Benefits
Features and Benefits
Acrylic Wafer Box Desiccator Cabinet
Wafer Desiccators are designed specifically for standard lot boxes used for 200 mm and 300 mm wafers. Advanced construction features include plenum chamber, 304 stainless steel door frames, LiftLatches™, and one-piece front sealing panel
Optimal Space Efficiency
Wafer Desiccator Cabinets are designed specifically for standard 200 mm and 300 mm wafer lot boxes used in semiconductor operations; select dissipative PVC for static safety.
Automatic Relief/Bleed Valve
Terra's Automatic Relief/Bleed (RB) Valve opens up at 0.01 PSI, relieving overpressure that could damage desiccators; also works as a check valve to prevent influx of outside air.
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Reinforced Doors with Non-adhesive Gaskets
Stainless steel door frames extend desiccator life; one-piece fused gaskets are non-outgassing, will not creep or sag
Built-in Plenum Distributes Dry Gas to Each Chamber
Manual flowmeter or automated system controls nitrogen flow rates to maintain RH across entire cabinet. Built-in plenum distributes dry gas to each chamber.
Durable Embedded Static-Dissipative Layers
Terra's SDPVC features bonded dissipative layers that resist abrasion. SDPVC desiccators retain their surface resistivity of 106 - 108 ohms/square indefinitely (unlike spray-on coatings that can wear off after a few years), protecting your materials against ESD damage. Further, the control of static charges eliminates particle attractions, helping maintain clean surfaces.
Doors - The First Failure Point of a Desiccator Cabinet
Terra’s stainless steel door frames eliminate the need for internal reinforcements, which create particle surfaces and compromise cleaning. Unlike other doors with glue-on anti-bow pieces, Terra’s doors use no adhesives. This eliminates particle traps, sources of outgassing—and extends the strength and service life of the desiccator.
Desiccator Plenum Chamber For Uniform Gas Distribution
Multi-chamber desiccator cabinets include a perforated plenum to minimize back fill, ensure uniform gas distribution to all chambers and increase cabinet strength
Highest Standards For Desiccators and Electronic Components
Terra’s desiccator cabinets and RH control systems are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.
Long-Term Customers
Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Comprehensive Product Portfolio
Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation
Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks with heavy equipment on the workspace, such as this Smart® Desiccator Cabinet connected to a Nitrogen Generator.
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Rapid Drying of Hygroscopic Material
Terra's gas-purged desiccators utilize a rapid flow of inert nitrogen to quickly dry hygroscopic samples and components
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Universal Base Stands Offer Excellent Versatility
Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.-
Universal Stand Adjusts to Fit a Wide Range of Equipment
Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers. Humidity and Temperature Data Logger
Records storage conditions inside a Desiccator chamber-adjustable logging interval (hours to months), USB port for easy data download in several formats.-
3-inch Diameter Caster Set
Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes. Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.Universal Adjustable Base Stands for Desiccator Cabinets and Cleanroom Equipment
Stainless steel or powder-coated steel base stands easily adjust to fit cabinets, desiccators and cleanroom equipment of any size or shape. Stands raises equipment to ergonomic height to ease disinfection and sample monitoring. BioSafe design suitable for any cleanroom or lab environment.Desiccator Cabinet Ionizing Module
Ionizing modules are available for desiccator cabinets, glove boxes and other enclosures to ensure static-safe storage and processing (shown: ionizing unit on 2-chamber desiccator)Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.-
Data Logging with 113,000 Readings at User Defined Intervals
Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new. -
Plug & Play Data Logging
Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
