Select Product

Voltage

Material

Work Area Width

Terra Part #PriceShips in
120 V 304 Stainless Steel 23" 36" 2001-04 10241 $25,195.....2
120 V 304 Stainless Steel 23" 48" 2001-05 10242 $28,749.....3
120 V 304 Stainless Steel 23" 60" 2001-06 10243 $35,451.....4
120 V 304 Stainless Steel 23" 84" 2001-07 10244 $37,835.....5
120 V Polypropylene 23" 36" 2000-16 10145 $10,826.....6
120 V Polypropylene 23" 48" 2000-17 10147 $12,395.....7
120 V Polypropylene 23" 60" 2000-18 10149 $15,622.....8
120 V Polypropylene 23" 84" 2000-19 10151 $18,773.....9
Voltage
Material
Work Area Depth
Work Area Width
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

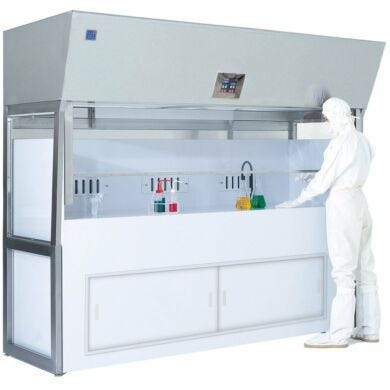

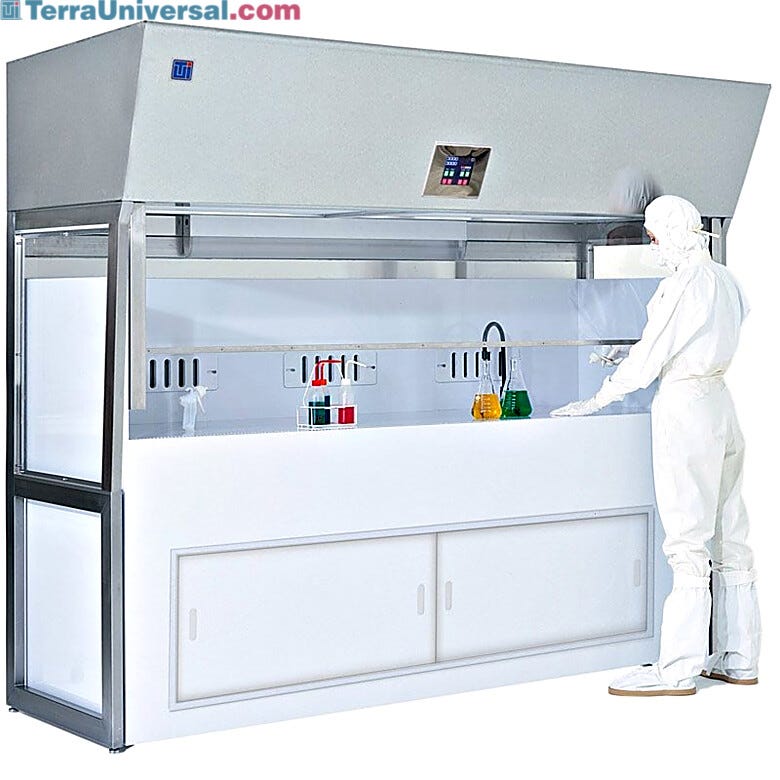

Product Details

• Allows HEPA-filtered processing and exhaust ventilation

• Fits beneath Terra's Vertical Laminar Flow Hood (with stand)

• Bi-directional exhaust system safely removes hazardous fumes

• Economical turnkey solutions for a wide range of cleaning requirements

• A full line of optional accessories: Sinks, Gooseneck Faucet, Spray Guns, Carboys

Features & Benefits

Features & Benefits

Wet Processing: Which Material is Best?
Process Control, Safety, and Consistency
Polypropylene
  • Economical plastic with broad chemical compatibility
  • Ideal for wet processing station panels
  • Loses some chemical resistance at high temperatures
  • Suitable for HF and KOH processes
Quartz
  • The preferred material for ultra-pure applications
  • Provides greater uniformity in heat transfer than plastic baths—ideal for very tight temperature control
  • Suitable for most chemicals (but not HF acid)
  • Hard surfaces won’t scuff, stain, or absorb impurities
PVDF (polyvinyldilene fluoride)
  • Broader range of chemical resistance than polypropylene
  • Suitable for high process temperatures
  • Ideal for HF and BOE processes at high temperatures
PTFE (Teflon®)
  • Resistant to an extremely wide range of chemicals
  • Perfect for KOH and HF acid (which etch quartz)
  • Softer than quartz, so care must be taken to avoid scuffing, staining

Terra’s comprehensive range of constant-temperature baths, etching baths, dump risers, and other processing equipment is ideally suited for the high-purity requirements of the semiconductor industry. Microprocessor controls ensure the integrity of your operations.

The chart below indicates the baths best suited for common semiconductor operations. Once you select the equipment that meets your requirements, a Terra process engineer will help configure a turnkey solution.

Product Application Chart
Commercial or Generic Name Process Chemical Composition Concentration Typical Temperature Recommended Product
Aqua Regia Gold Etchant Hydrochloric Acid (HCl)
Nitric Acid (HNO3)
75%
25%
90° C Series
Buffered Oxide
Etch (BOE)
Etch SiO2 Ammonium Fluoride (NH4F) Aqueous
Hydrofluoric Acid (HF) Aqueous
40% 15-40°C
Ambient
A Series
RCe Series
CP8 Etch Nitric Acid (HNO3)
Hydrofluoric Acid (HF)
  Ambient A Series
Etch (Indium)
Molybdenum Platinum
Nichrome
Etch Hydrochloric Acid (HCl) Aqueous
Nitric Acid (HNO3)
37-38%
70-71%
  QA Series
Metal Etch Etch A,
AlSi Al Si Cu
Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
85-87% 30-60°C QA Series
Nitride Etch Etch Phosphoric Acid (H3PO4)
DI Water (H20)
85-87%
15-13%
150-185°C Nb Series
Organic Stripper Resist Removal PRS-1000
S-43
Lozolin
No Phenol-922
Full strength Room Temperature
120°C
Nb Series
Oxide Resist Strip SiO2 Resist Stripping Sulfuric Acid (H2SO4)
Ammonium Persulfate (NH4S2O2)
95-96% QA Series
Phenolic Stripper Resist Removal J100
Bermar 712D
R-10
  95-100°C C Series
Resist Series (Metalized) Resist Removal Chromic Sulfuric Acid (CrO3+H2SO4)     A Series
R.C.A. Clean Pre-Diffusion Cleans
Quartzware
Step 1: Water
Hydrogen Peroxide (H2O2)
Ammonium Fuoride (NH4CH)
Step 2: DI Water (H2O)
Hydrogen Peroxide (H2O2)
Hydrochloric Acid (HCL)
40% 75-85°C Qa Series
Silicon Etch Etch Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
HydroFuoric Acid (HF)
  Ambient A Series
Sirtl Etch Etch Chromium Trioxide (CrO3)
DI Water (H20)
Hydrofluoric Acid (HF)
  Ambient A Series
Slope Etch Etch Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
  55°C Qa Series
Standard Resist Strip (do not use w/aluminum) SiO2 Resist Strip Sulfuric Acid (H2SO4)
Hydrogen Peroxide (H2O2)
95-96% 110-140°C Qa Series
2:1 Etch Etch DI Water (H2O)
Hydrofuoric Acid (HF)
  Ambient A Series
Wafer Rinsing Rinsing DI Water (H2O) 100% Ambient DR-Series
Particle Trapping Test

N2 and DI Water Spray Guns

Handy spray guns provide a ready sources of nitrogen or deionized water installed in locations to suit your process requirements (shown: DI water spray gun installed on cleaning station).

Gooseneck Faucet

Angled to dispense water in a focused stream, this faucet is made of chemical-resistant PVC

Adjustable Rear Baffles

Adjust air flow direction, speed and volume by changing position of the easy-to-reach baffle plates at the rear of the station countertop.

Airflow in Wet Processing

The standard bench is designed for operation with Terra’s Vertical Laminar Flow Station and features exhaust controls mounted at the rear of the processing area. The Vertical Laminar Flow Station provides a continuous flow of filtered air to the work area.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Industry-Leading Product Quality

At Terra, we strive to produce the highest quality products for our customers. Our product quality is enabled by high-grade manufacturing equipment, over 45 years of engineering expertise, and our commitment to continuously improve.
