Terra Part # 9104-00A
$982
Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

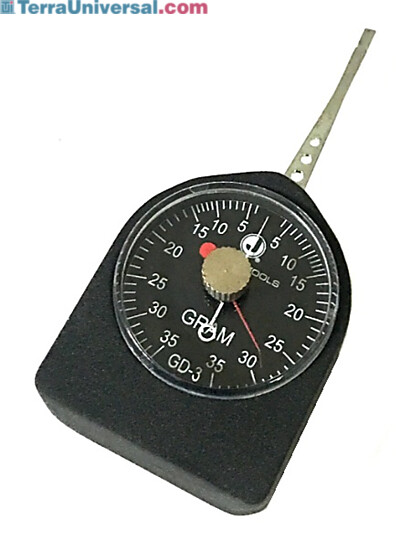

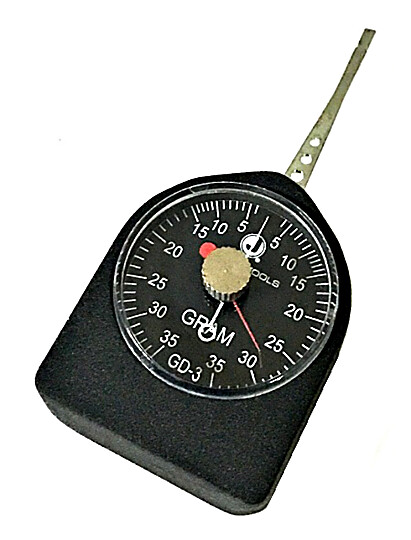

• Includes: one tester and one gauge (4-35 gram) with hook

• Performs destructive and nondestructive tests in conformance with MIL-STD 883C

• Delivers low cost one line test capability

Electrical Specifications: None

Dimensions, Product: 6" W x 9" D x 4" H

Weight, Product: 3 lb

Dimensions, Shipping: 8.5" W x 12" D x 6.88" H

Weight, Shipping: 4 lb

Package Type: Box

Unit of Measure: EA

Buy Accessories

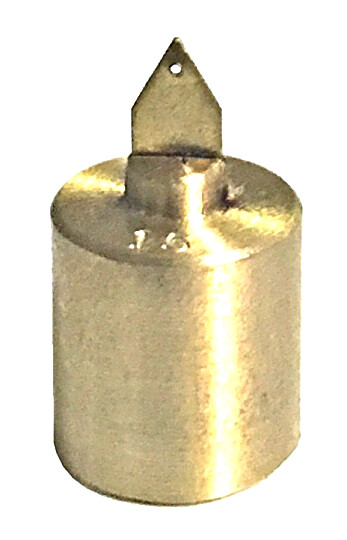

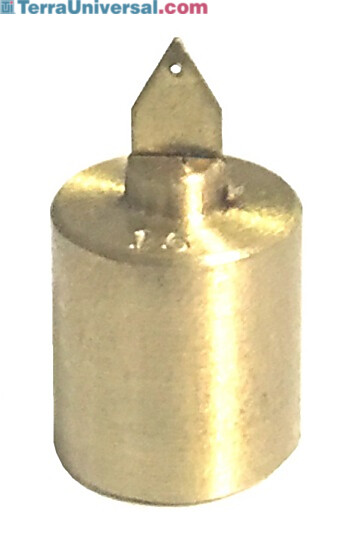

  1. 15-gram calibration weight (shown on the far right). | 9101-07 displayed
    Usually Ships in 1 - 3 days

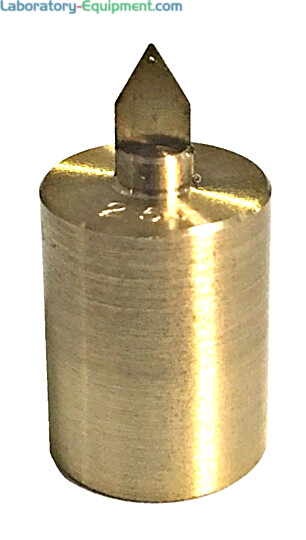

  2. 25-gram calibration weight (shown with other weights). | 9101-08 displayed
    Usually Ships in 1 - 3 days
  3.  | 9101-11 displayed
    Usually Ships in 1 - 3 days

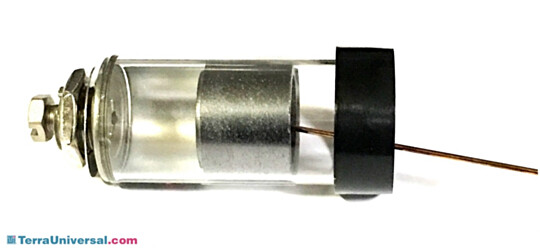

  4. Replacement Dash Pot
    Usually Ships in 1 - 3 days

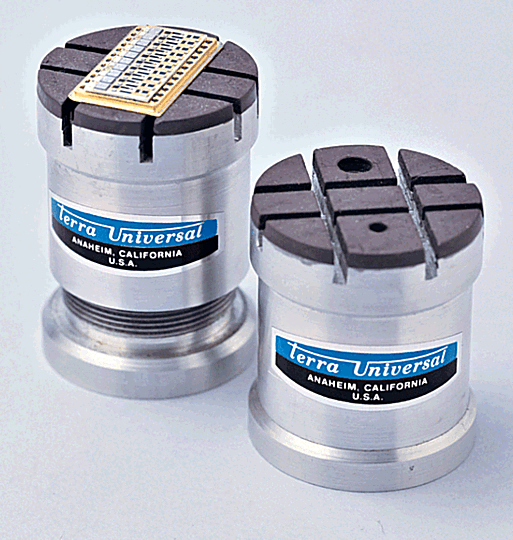

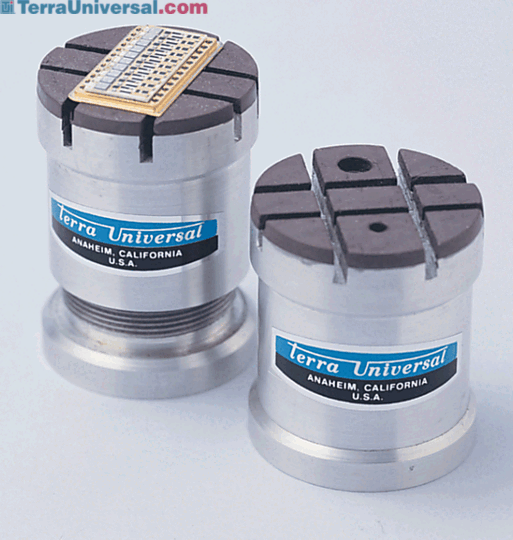

  5. Magnetic chuck holds the sample in place during testing | 9101-60 displayed
    Usually Ships in 1 - 3 days

Features and Benefits

Portable Wire-Bond Strength Tester

Portable Wire-Bond Strength Tester: Easy to Operate!

The test sample is first positioned on the accessory chuck, which adjusts to fit various packages. The Wire-Bond Strength Tester is designed for use with most standard wire bond chucks; the magnetic accessory chuck is suitable for most applications. Next, you position the pull hook under the wire to be tested with the aid of a microscope (not included; integrated Wire-Bond Strength Tester Inspection Station also available). To conduct nondestructive tests, you simply adjust the stop-screw (which limits the movement of the swing-bracket) until the gauge shows the desired pull force. Because the wire-loop heights of finished bonds are within close tolerances, this limited force testing can be performed with sufficient accuracy to ensure that wire bonds are good.
