Terra Part # 7906-26A
$4,161
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

Oil Free: Yes

Maximum Pumping Speed: 173 L/min @ 60Hz

Ultimate Pressure: 8 mbar

• Maximum Vacuum: 29.7 inHg

• Motor Power, watts (HP): 370/440 (0.5/0.6)

• Uses 1/4" tubing

Electrical Specifications: 120 V, 440 W, 1 Ph, 60 Hz

Weight, Product: 72.3 lb

Weight, Shipping: 88.2 lb

Dimensions, Shipping: 23.6" W x 15.8" D x 16.1" H

Unit of Measure: EA

Features and Benefits

Oil-Free (Dry) Pumps

More Information

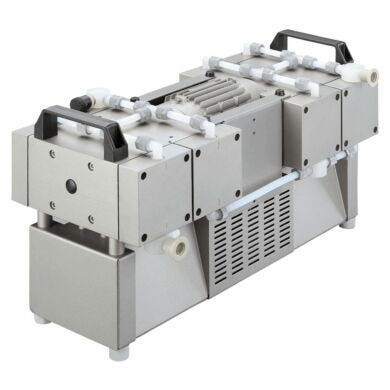

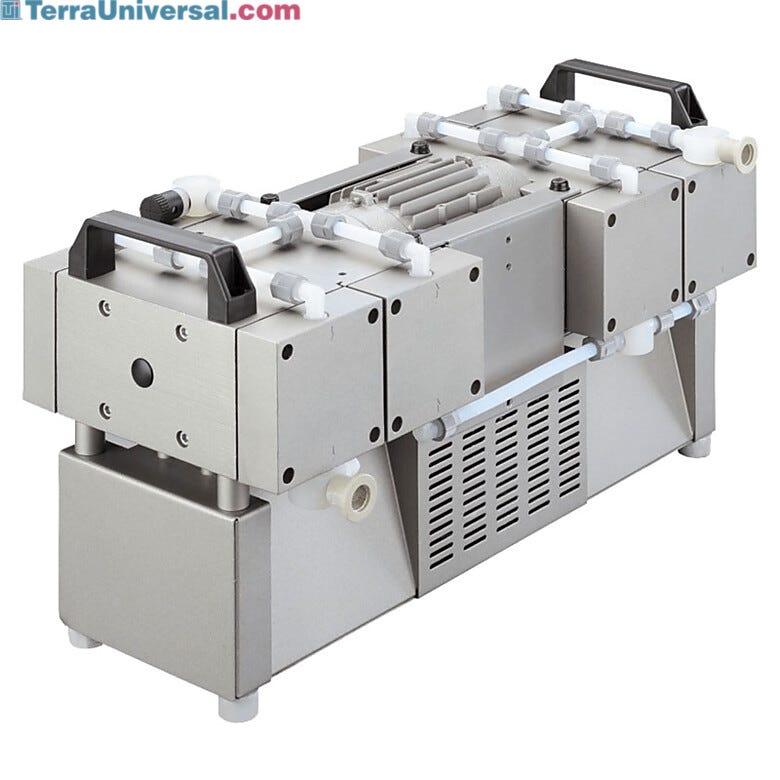

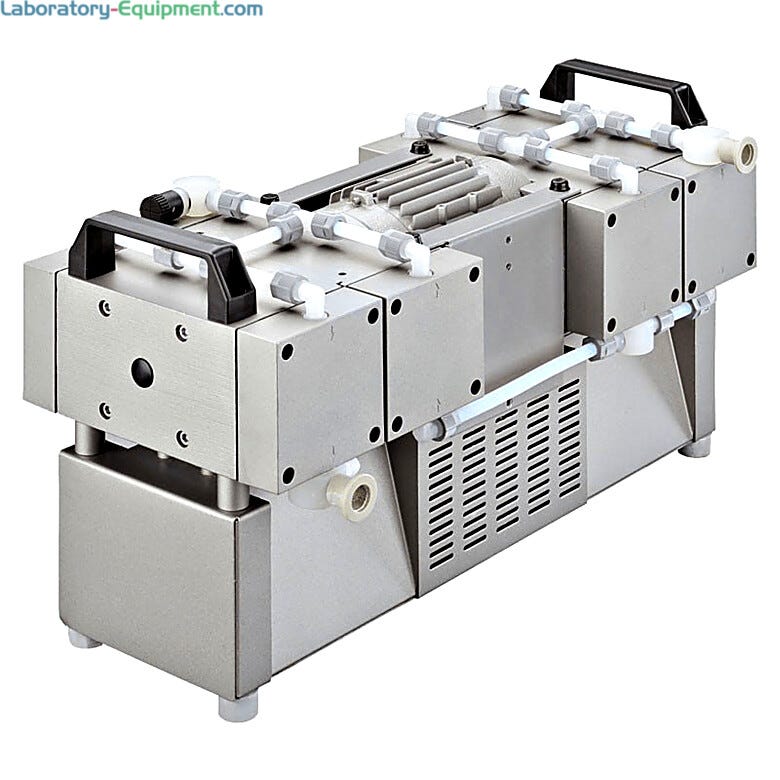

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
  • Two-stage pumps for quicker and more efficient vacuum pump-down
  • ON/OFF Switch and internal protective thermal switch for the motor
  • Vibration isolating feet
  • High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
  • Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
  • Continuous oil-free pumping
  • Non-Corrosive
  • Vacuum to 9Torr (29.6” Hg)
  • As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
  • Features Advanced Vapor Management (AVM) for adjustable vacuum control
  • Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
  • Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
  • Used for filtration, drying and degassing
  • Standard and chemically resistant models
  • Low vibration and noise with twin head design
  • Plug and play wide-range power adaptor
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
  • Ultimate vacuum is <45 mbar
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
  • Great for aspirating liquids
  • 115/230V wide-range motor
Diaphragm Pumps
  • Available in standard and chemically resistant versions
  • Compact, practical solution for vacuum range 1000 to 1 mbar
Model MP901Z MP1801Z
Numbers of heads/stages4/28/2
Free Air Displacement CFM (l/min.) @ 60Hz4.42 (125)7.84 (222)
Free Air Displacementm3/h (l/min.) @ 50Hz6.8 (113)12 (201)
Ultimate Pressure, Torr (mbar)8 (6)8(6)
Maximum Vacuum, in.Hg29.729.7
Motor Power, watts (HP)370 (0.5)370/440 (0.5/0.6)
Model2562B-01
Free Air Displacement CFM (l/min.) @ 60Hz2.3 (65)
Free Air Displacement m3/h (l/min.) @ 50Hz3.4 (57)
Ultimate Pressure, Torr (mbar)9 (12)
Maximum Vacuum, in.Hg29.6
Motor Horsepower, watts1/3 (250)
Intake/Exhaust thread NPT1/4
Model2034B-01
Free Air Displacement CFM (l/min.) @ 60Hz0.9(25)
Free Air Displacement m3/h (l/min.) @ 50Hz1.25(21)
Ultimate Pressure, Torr (mbar)9 (12)
Maximum Vacuum, in.Hg29.6
Adjustable Vac./Gas BallastYes
Motor Power, watts (HP)1/5 (150)
Intake/Exhaust thread NPT1/4
ModelMP 060 EMPR 060 EMP 104EMPC 104E
Final Vacuum, mbar<60<60<45<45
Flow Rate, l/min101015-1615-16
Head MaterialAluminumPPSAluminumPTFE Compound
Diaphragm MaterialPTFEPTFEPTFEPTFE
Valve MaterialPEEKPEEKPEEKPEEK
Connections6-8 mm6-8 mm8mm8mm
Noise Level, dBA<42<42<45<45
ModelMP101ZMP301ZpMP201TMP601Tp
Ultimate Pressure, mbar<8<8<2<2
Pumping Speed 50/60 Hz16.7/18.3 L/min38.3/41.7 L/min33.4/36.7 L/min75.0/81.7 L/min
Motor Power60W180W90W370W
ModelMPC101ZMPC301ZpMPC201TMPC601Tp
Ultimate Pressure, mbar<8<8<2<2
Pumping Speed 50/60 Hz16.7/18.3 L/min38.3/41.7 L/min33.4/36.7 L/min75.0/81.7 L/min
Motor Power60W180W90W370W
