Hardwall Modular Cleanroom Features and Benefits
Pre-Fabricated ValuLine Hardwall Cleanroom
Pre-engineered ValuLine Cleanrooms cut costs without compromising performance; available in ISO 7 and ISO 8 compliant designs, with acrylic or static-dissipative PVC wall panels
Adjustable Exhaust Vents
Adjustable IsoVents help control internal pressure to meet ISO regulations and maintain cascading pressure differentials.
In Stock Pre-Fabricated Cleanroom Components
Since each pre-fabricated cleanroom component is tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.
Optional Raised Flooring
Raised flooring is ideal for cleanroom classifications below ISO 5 to optimize vertical laminar fow.
Interchangeable Panels for Quick Install
Wall panels are mounted by clean and attractive mirror-finished stainless steel L-brackets that clamp the panel in place, creating a showcase cleanroom and allowing panel change-out in minutes, with no special tools.
Multi-Suite Hardwall Modular Cleanroom
Economical modular construction is ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels. Rigid steel frame supports sections up to 30 feet wide without internal support columns or ceiling suspension cables.
Insulated Hardwall Cleanroom includes rigid foam insulation sealed between dual polypropylene panels to provide better temperature stability in temperature-controlled operations.
Custom Work is Standard!
Modular designs allow versatile configurations tailored to your requirements. Terra's design and fabrication capabilities accommodate unique facility challenges.
Cleanroom Power Distribution Diagram

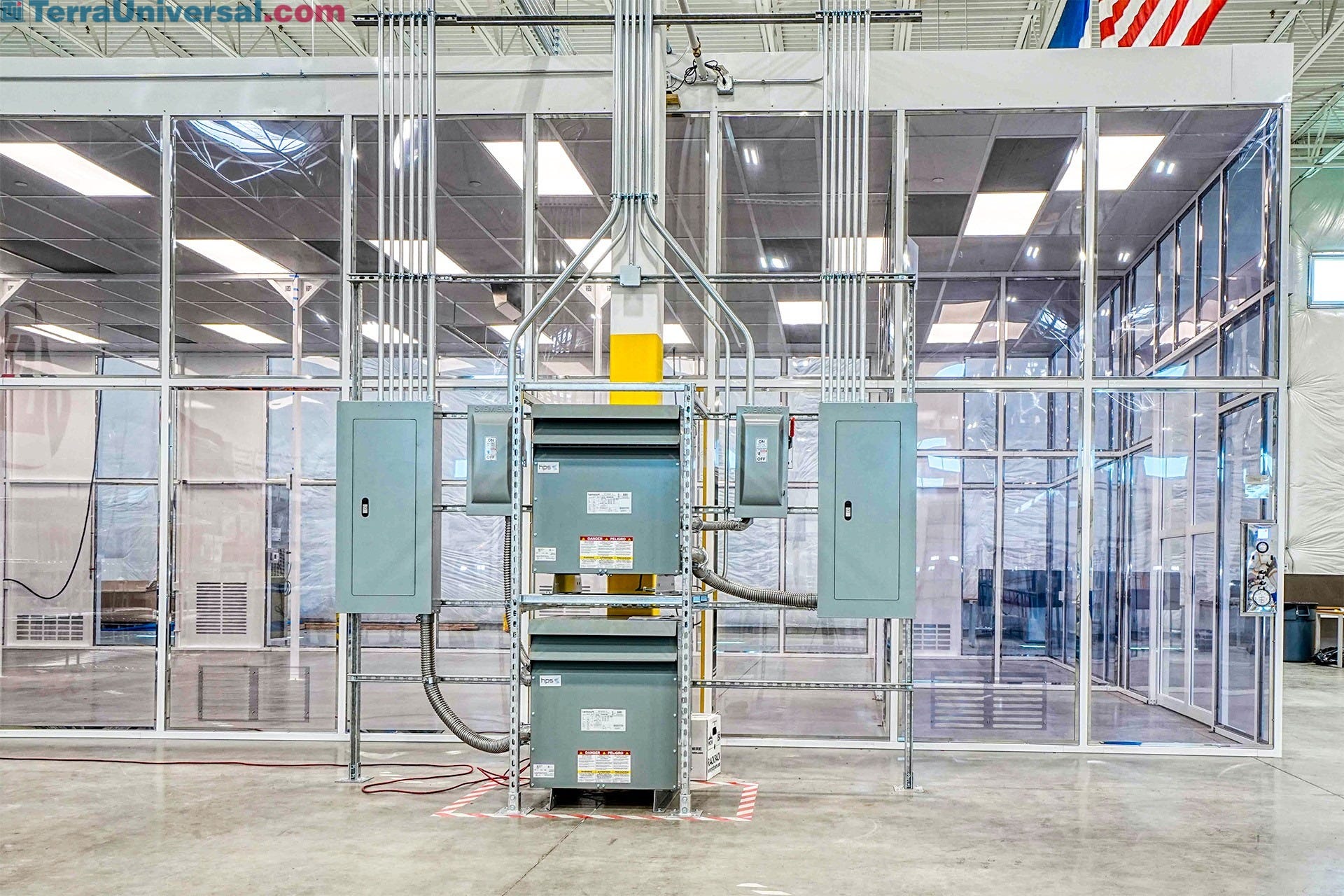

Terra’s Power Distribution Modules (PDM's) drastically simplify connection of FFUs, lights, and control panels. They also allow room for growth. FFUs and lights use quick-connect fittings so they can be added at any time to existing PDMs, without the need for an electrician or hard-wiring.
Seismic Safe Cleanroom Design
Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.
Cleanroom Air Conditioning Module
Cleanroom AC modules, available in several capacities with deumidification capability, ensure comfort and productivity of garbed cleanroom personnel.
Pre-Designed Hardwall Cleanrooms
Cleanroom ISO Class Chart Custom 3-Room Suite for Optical Assembly Custom 3-Room Suite for Optical Assembly Custom 3-Room Suite for Optical Assembly Custom 3-Wall Cleanroom for Medical Device Manufacturing Custom 3-Wall Cleanroom for Medical Device Manufacturing Custom 3-Wall Cleanroom for Medical Device Manufacturing On-Site Hardwall Cleanroom Installation Terra Universal IQ-OQ Process Static Dissipative Sheet Benefits Extra Tall Class 1,000 Modular Cleanroom for Electronics Assembly Free Standing Multi-Suite Modular Hardwall Cleanroom Extra Tall Multi-Suite Modular Cleanroom for Electronics Assembly Large Multi-Suite Modular Hardwall Cleanroom for Precision Coil Manufacturing ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels Hardwall Modular Cleanroom – Multi-Room Configuration Hardwall Modular Cleanroom – Polycarbonate Wall Panels Modular Hardwall Cleanroom Fire-Resistant Hardwall Cleanroom Insulated ISO-Rated Hardwall Modular Cleanroom Horizontal Hardwall Cleanroom Polypropylene Panels Hardwall Modular Cleanroom Modular Cleanroom with A/C and RH Control Modular Production Control Room Thermal Vacuum Chamber Enclosure Insulated Hardwall Cleanroom Mezzanine Cleanroom
Terra's cleanroom designs meet the entire range of ISO 14644-1 standards Cleanroom ISO Class Chart Terra's cleanroom designs meet the entire range of ISO 14644-1 standards

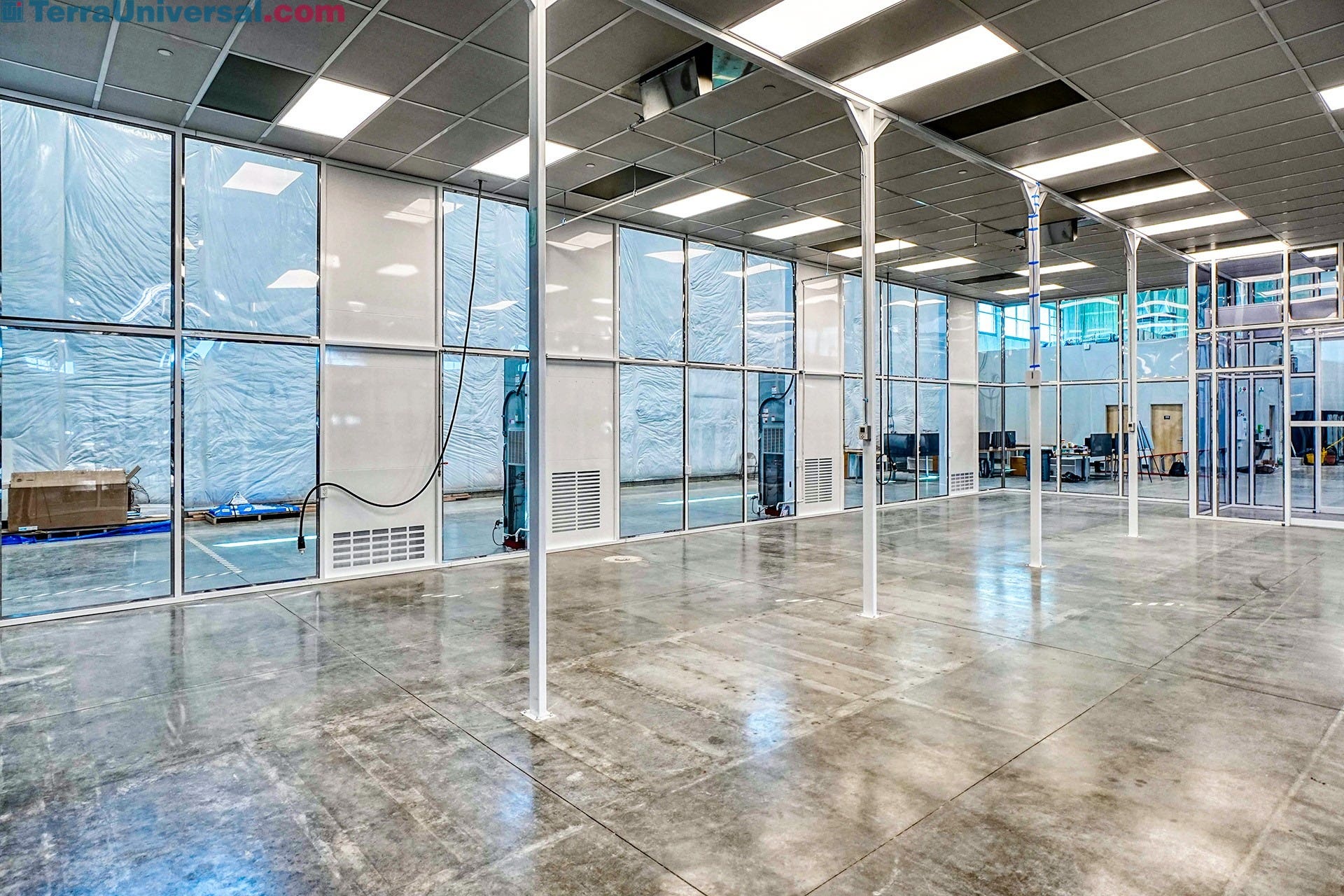

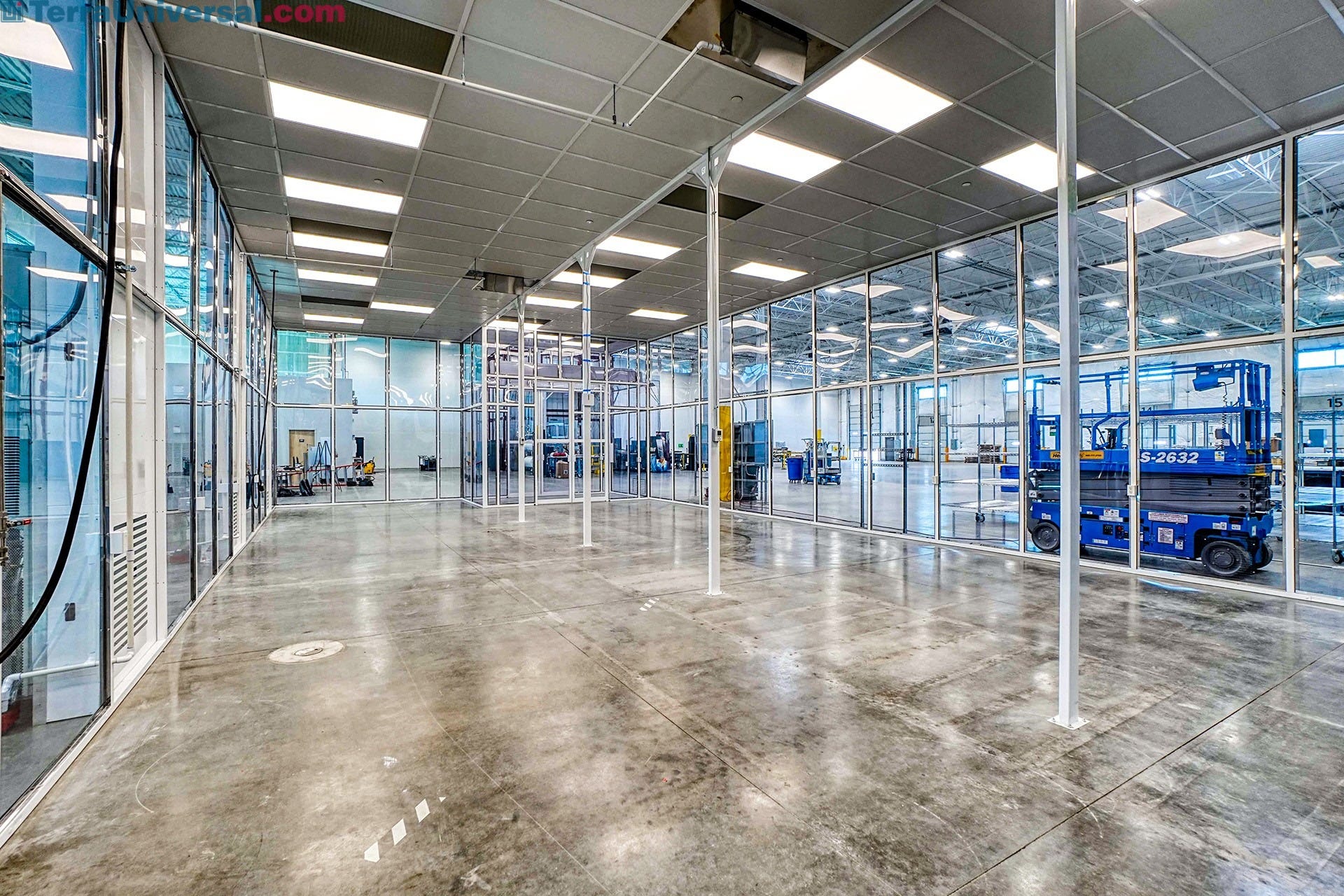

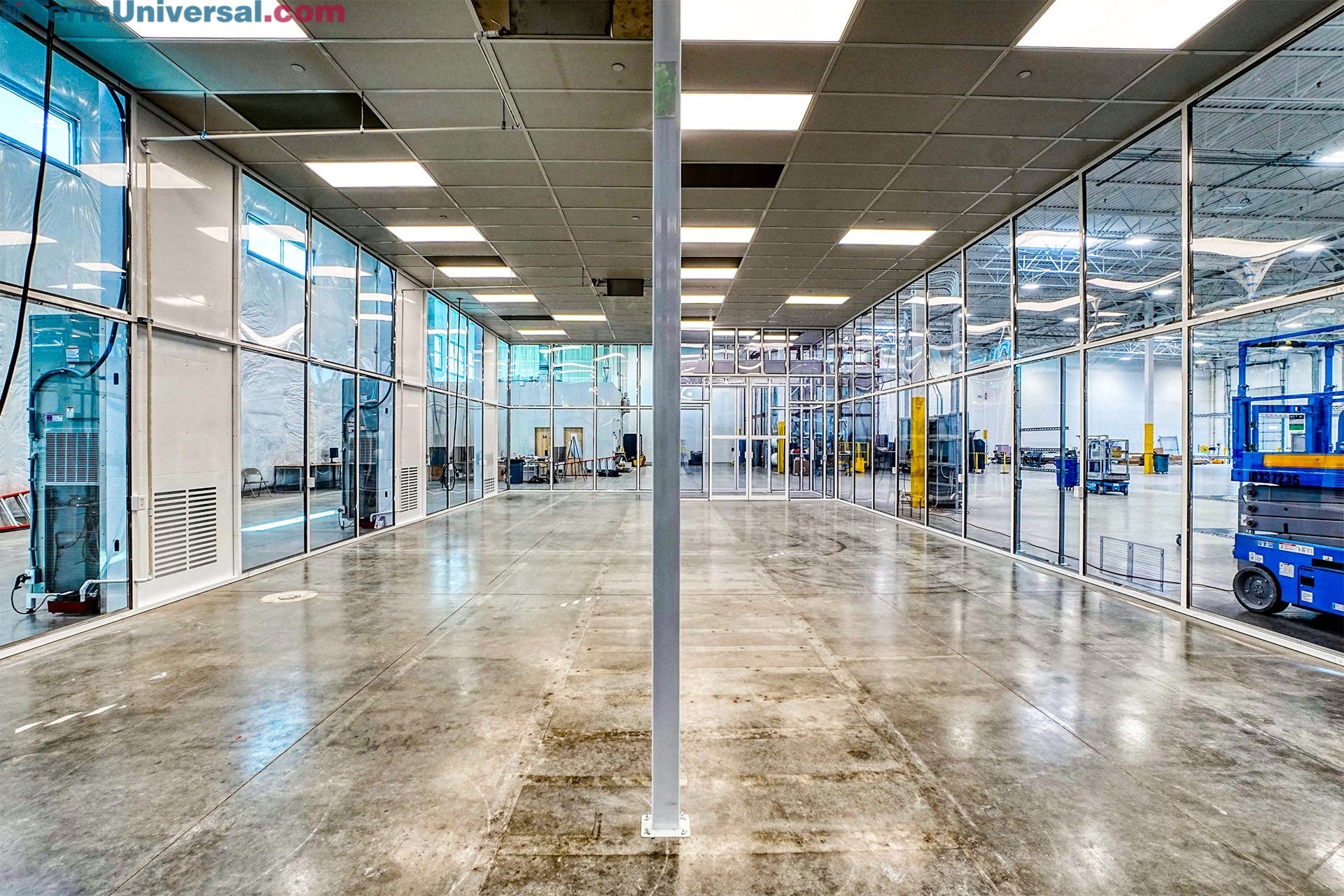

Terra's cleanroom ceiling grid design can support wide spans, allowing for large open spaces in critical production areas. | 6600-73A displayed Custom 3-Room Suite for Optical Assembly

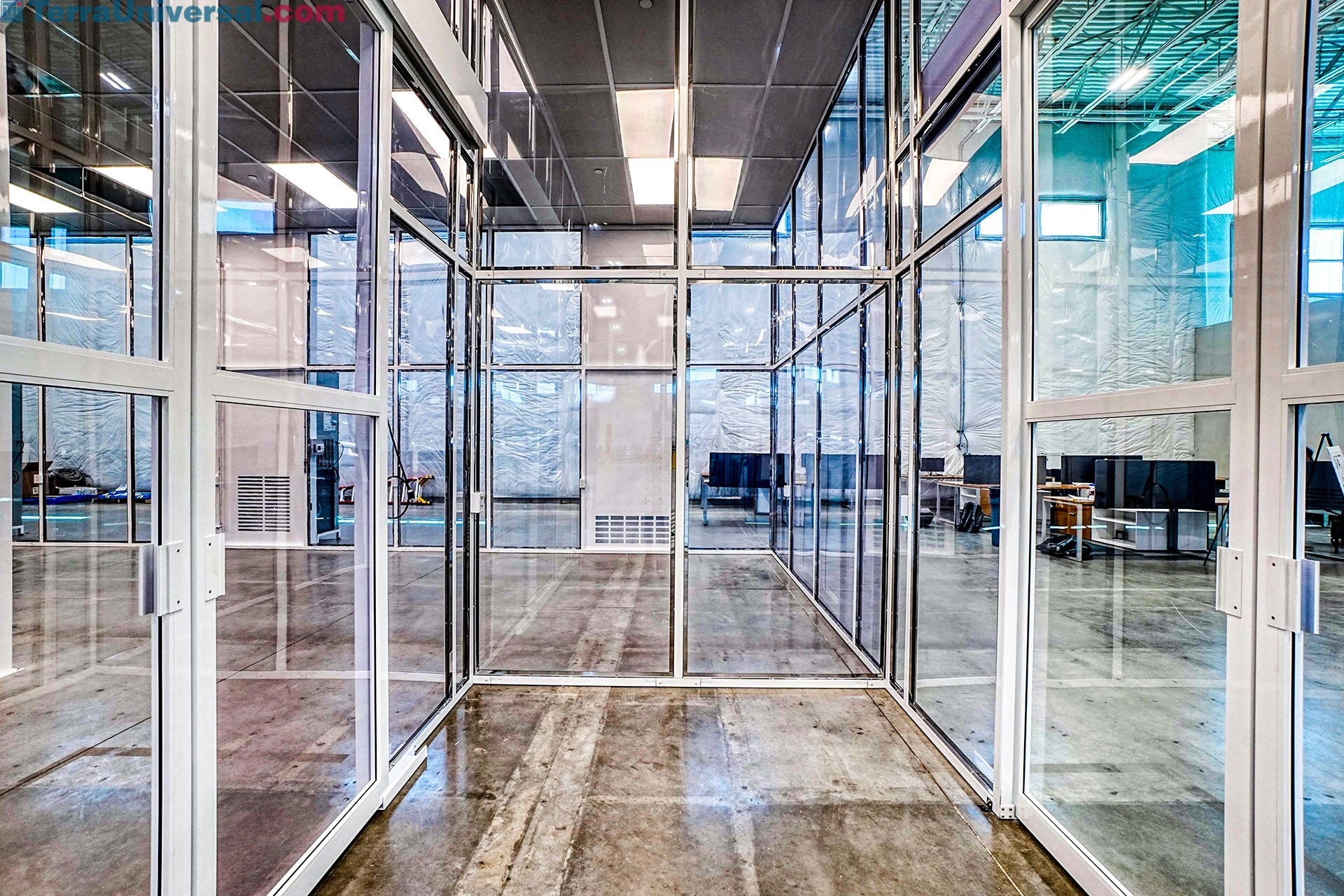

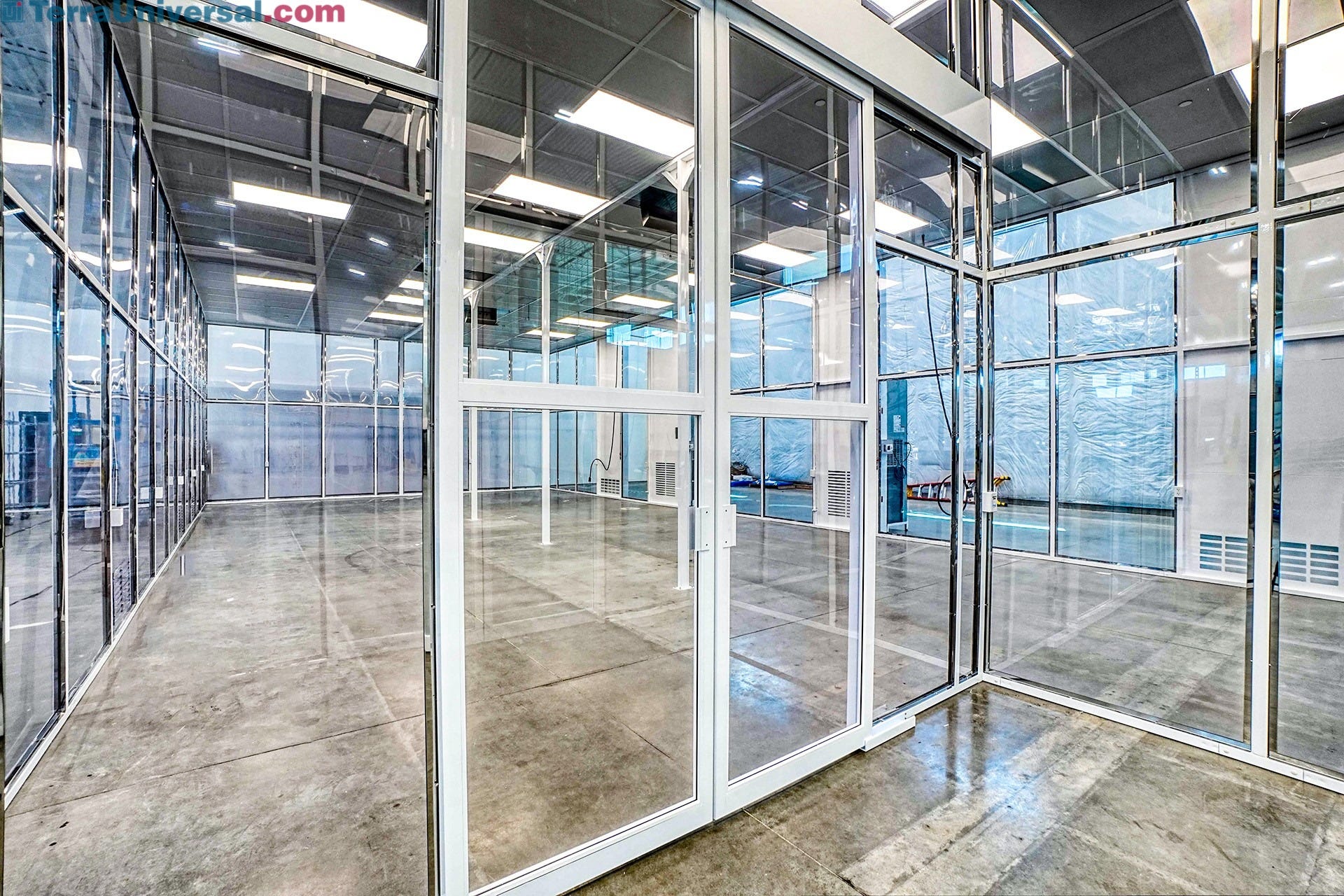

This cleanroom suite included an ISO 7 gowning room and two ISO 6 cleanrooms for processing sensitive components. | 6600-73A displayed Custom 3-Room Suite for Optical Assembly
The 8'-high walls (9'-3" including the top trim) leave just enough space for the fan filter units to operate under the drop ceiling. | 6600-73A displayed Custom 3-Room Suite for Optical Assembly

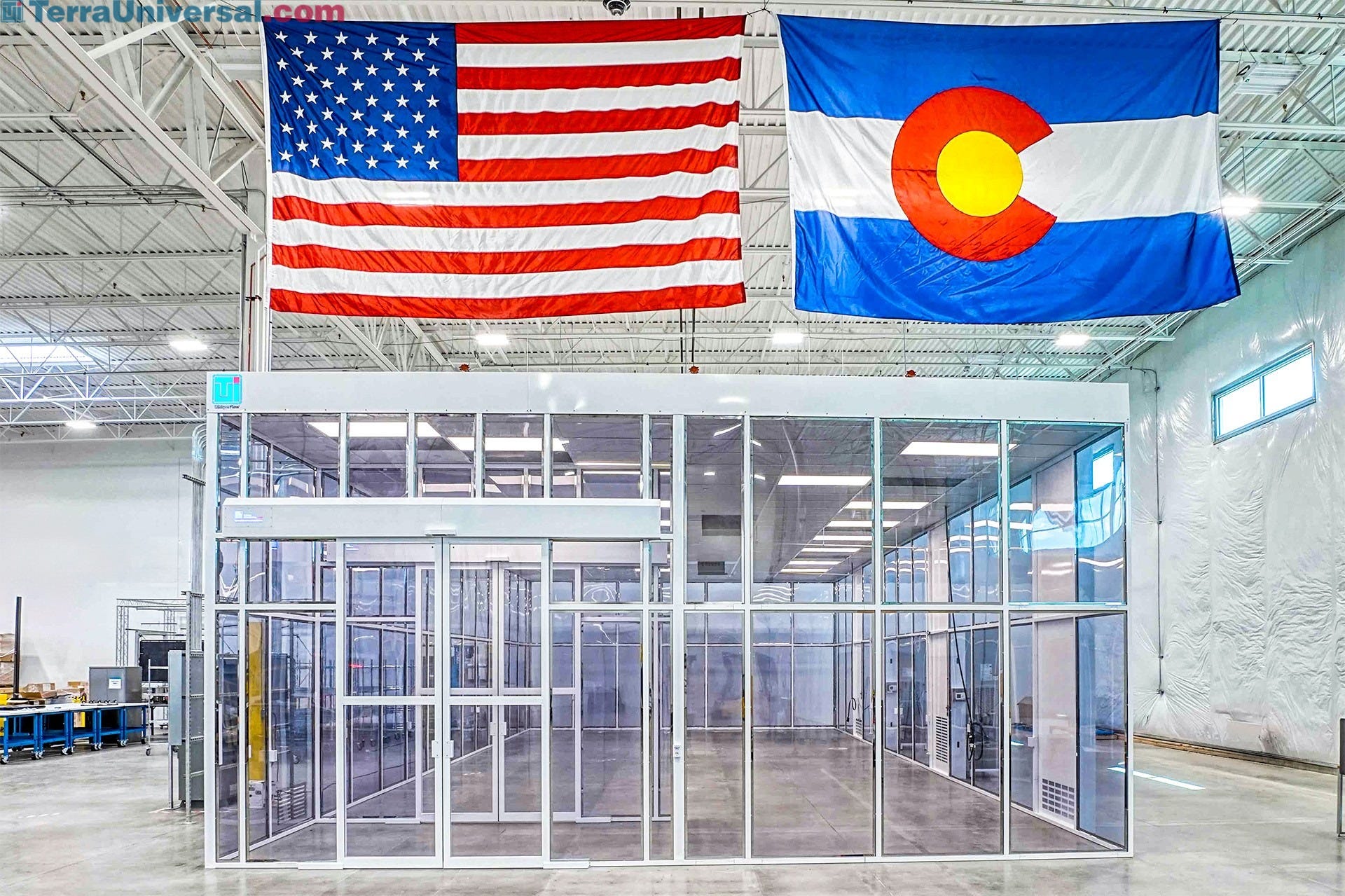

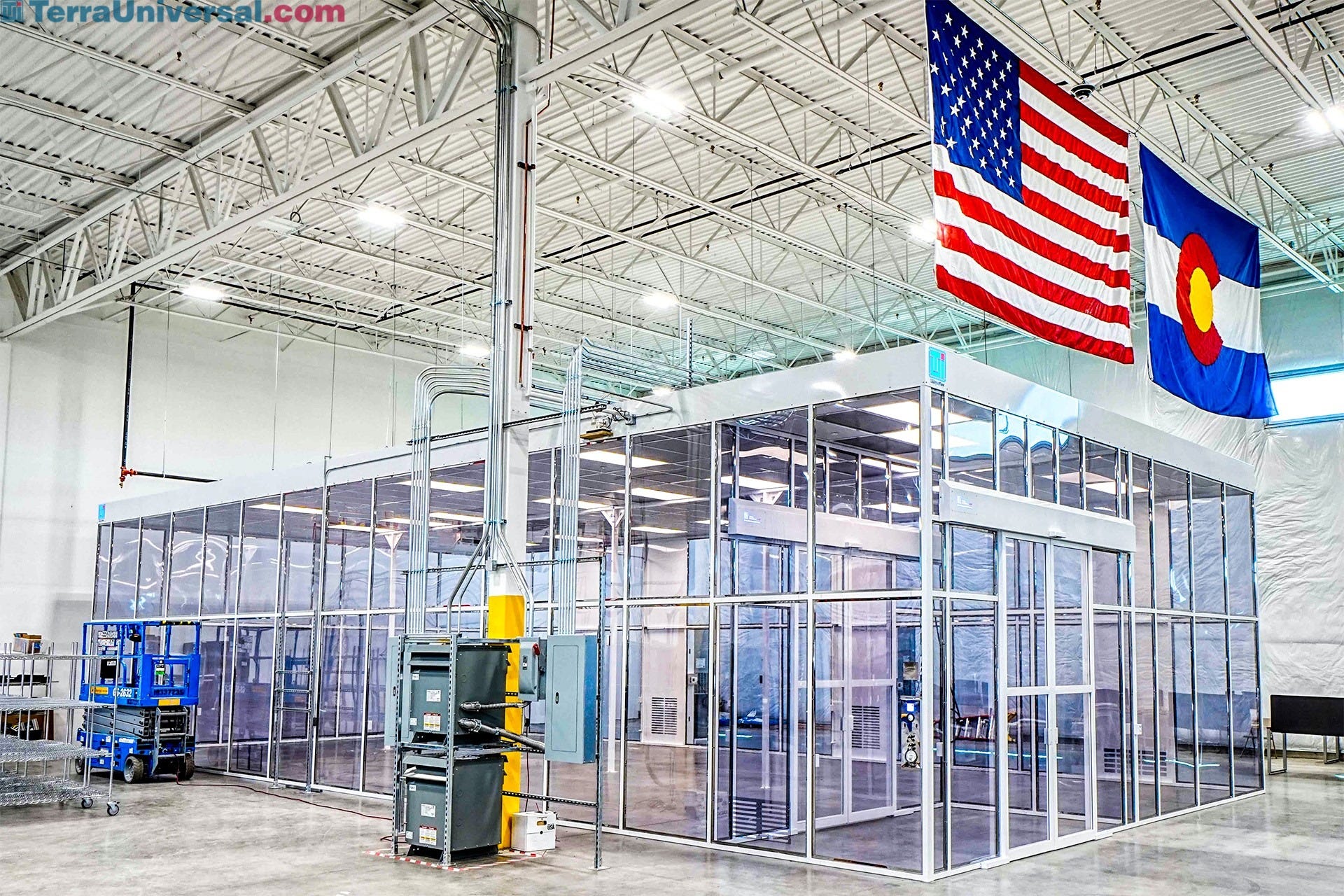

This custom 3-sided hardwall cleanroom was designed to be anchored to an existing wall in the facility. | 6600-73A displayed Custom 3-Wall Cleanroom for Medical Device Manufacturing

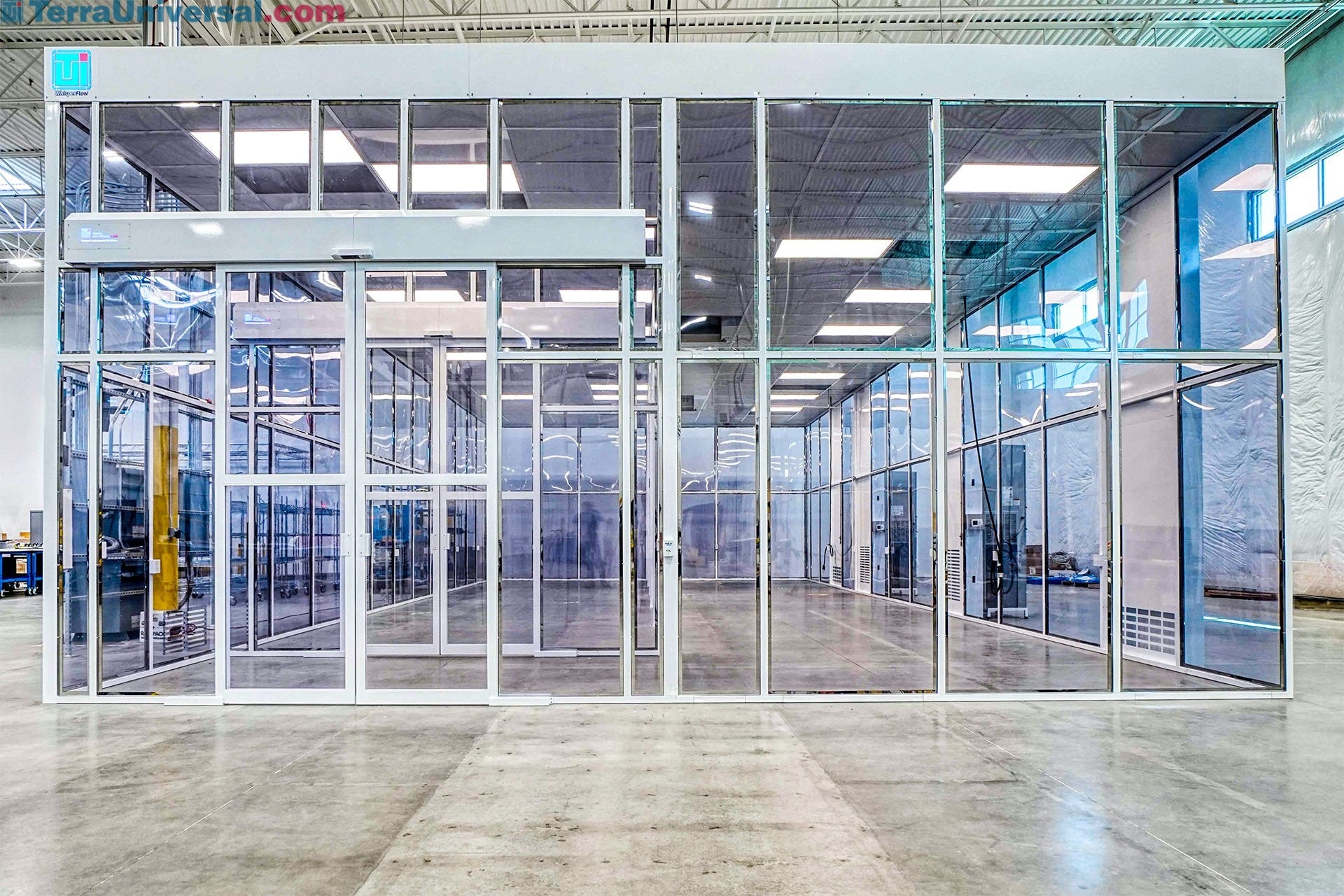

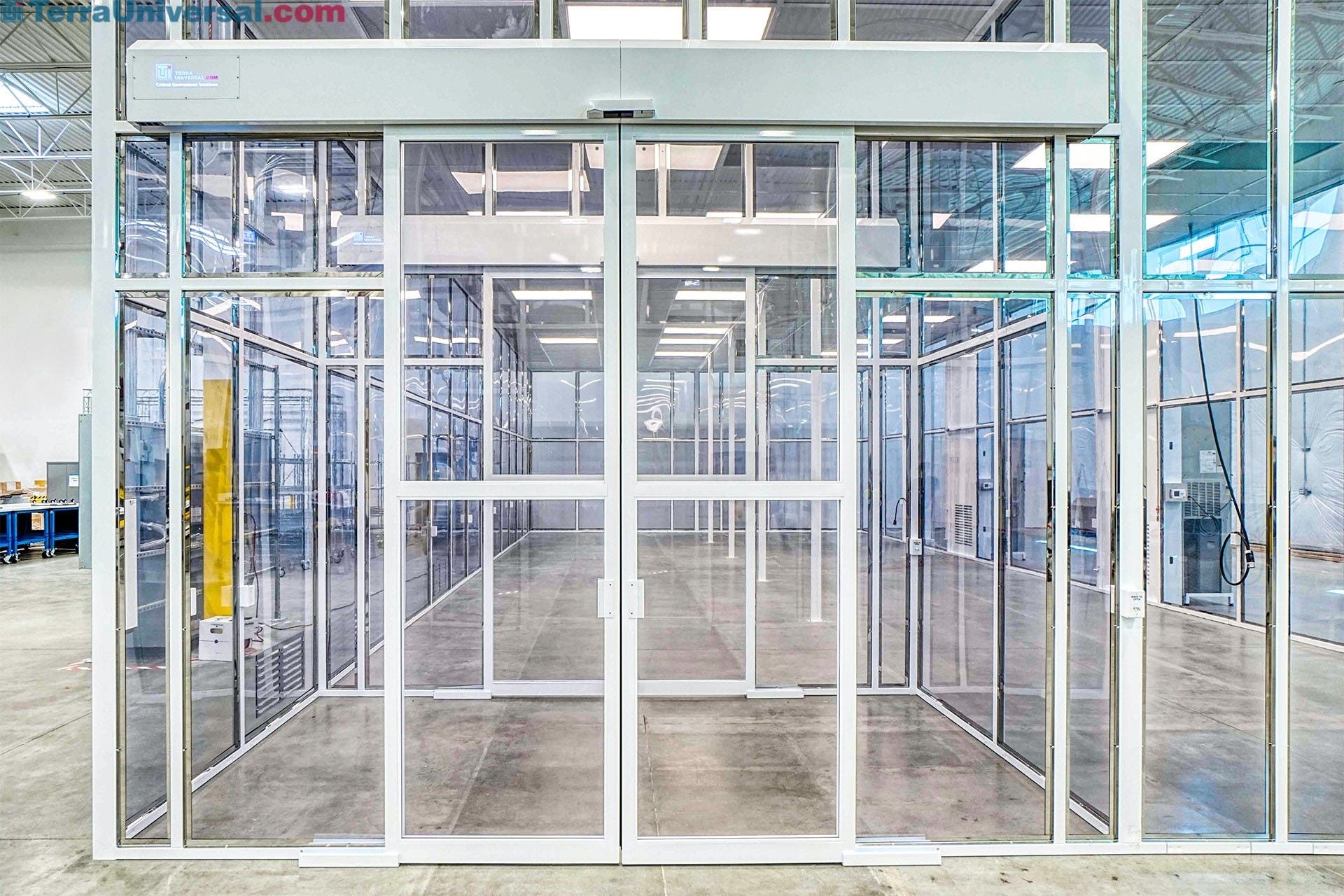

The sliding doors make entry and exit a smoother experience, especially when rolling carts through the doorway. | 6600-73A displayed Custom 3-Wall Cleanroom for Medical Device Manufacturing
White polypropylene lower panels provide some privacy while allowing natural light through the static-dissipative PVC upper panels. | 6600-73A displayed Custom 3-Wall Cleanroom for Medical Device Manufacturing
Design, manufacture and assembly of 5000 square-foot modular cleanroom On-Site Hardwall Cleanroom Installation Video showing installation of a 5000-square-foot hardwall modular cleanroom at a customer site. The room is factory designed, manufactured and tested, then shipped overseas to install.
This video describes the IQ/OQ process for Equipment and Cleanrooms Terra Universal IQ-OQ Process This video describes the IQ/OQ process for Equipment and Cleanrooms
The benefits of using static dissipative sheets in a short video Static Dissipative Sheet Benefits Don't turn your clean enclosure into a particle magnet, how static dissipative sheets can prevent this.
Modular hardwall cleanroom, Extra-tall multi-suite design, Class 1,000 with recirculating air returns, 17’ high | 6600-64A displayed Extra Tall Class 1,000 Modular Cleanroom for Electronics Assembly This extra-tall modular cleanroom features cascading cleanliness classifications for each room ranging from Class 100,000 to Class 1,000. The vertical air returns mounted outside the room recirculate air to improve efficiency and lower operating costs.
Free-standing modular hardwall cleanroom, multi-suite floorplan, rigid powder-coated steel frame construction, 17’ high | 6600-68A displayed Free Standing Multi-Suite Modular Hardwall Cleanroom Large modular cleanrooms of this size have many benefits: flexibility for reorientation or expansion, lower cost, and more construction material choices (most brick-and-mortar rooms are composed of dry wall).
Modular hardwall cleanroom with multi-suite floorplan, 17’ high, for high-precision coil manufacturing and electronics assembly | 6600-68A displayed Extra Tall Multi-Suite Modular Cleanroom for Electronics Assembly Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.
Large multi-suite modular hardwall cleanroom; spacious floorplan with modesty wall panel design (opaque polypropylene and transparent polycarbonate, both chemic | 6600-68A displayed Large Multi-Suite Modular Hardwall Cleanroom for Precision Coil Manufacturing Terra’s modular cleanroom design is ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels. The rigid free-standing steel frame allows for tall, spacious interiors to move and position large equipment within the cleanroom.
Hardwall modular cleanrooms, shown with 10'-high economical acrylic wall panels, meet ISO 5 - 8 requirements ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels Hardwall modular cleanrooms come in several application-specific materials, including these 10'-high economical acrylic wall panels mounted on a powder-coated steel frame.
Multi-room configurations with automated FFU controls automate compliance with ISO standards for cascading pressure gradients Hardwall Modular Cleanroom – Multi-Room Configuration Multi-room configurations with automated FFU controls automate compliance with ISO standards for cascading pressure gradients and particle counts.
Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom Hardwall Modular Cleanroom – Polycarbonate Wall Panels Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom; multi-suite configuration shown with polycarbonate panels.
ISO 7 multi-suite modular hardwall cleanroom with acrylic clear/opaque panels and air conditioning module. Modular Hardwall Cleanroom Hardwall modular cleanrooms provide an economical enclosure for ISO 5 - 8 requirements in semiconductor, medical, pharmaceutical, and other critical manufacturing processes.
Fire-resistant modular cleanroom with polypropylene wall panels Fire-Resistant Hardwall Cleanroom Modular Cleanroom with fire-resistant construction; available with steel or FM 4910 white polypropylene or clear CPVC panels. Explosion-proof HEPA fan/filter units and lights available.
Insulated ISO-Rated Hardwall Cleanroom with polypropylene panels | 6601-19 displayed Insulated ISO-Rated Hardwall Modular Cleanroom Insulated Hardwall Cleanroom with polypropylene panels reduces energy costs and increases temperature stability.
Horizontal Hardwall Cleanrooms meet cleanliness standards to ISO 5 | 6604-12 displayed Horizontal Hardwall Cleanroom Polypropylene Panels Horizontal Hardwall Cleanrooms meet cleanliness standards to ISO 5; ideal for height-restricted facilities (shown without front panel).
Terra’s modular cleanrooms accommodate tight space restrictions | 6600-64A displayed Hardwall Modular Cleanroom Terra’s modular cleanrooms are configured for tight spaces and accommodate posts, overhead obstructions and other floor plan restrictions.
Modular cleanroom used in pharmaceutical outsource manufacturing Modular Cleanroom with A/C and RH Control Multi-suite modular cleanroom in pharmaceutical outsource manufacturing facility, using existing air conditioning and RH controls.
This enclosure serves as the shop leader’s office on the production floor, offering reduced noise and climate control Modular Production Control Room This enclosure serves as the shop leader’s office on the production floor, offering reduced noise and climate control.
Static-dissipative PVC clean room modified to accommodate a thermal vacuum chamber Thermal Vacuum Chamber Enclosure Static-dissipative PVC hardwall clean room modified to accommodate utility drops and clearance requirements of a thermal vacuum chamber used to test micro-satellites.
Rigid foam insulation is sandwiched between two polypropylene panels to provide better temperature stability when used with climate control systems | 6601-19 displayed Insulated Hardwall Cleanroom Rigid foam insulation is sandwiched between two polypropylene panels to provide better temperature stability when used with climate control systems.
When floor space is limited, a lightweight modular cleanroom can be installed on top of an existing structure inside the facility (stairs not included) Mezzanine Cleanroom When floor space is limited, a lightweight modular cleanroom can be installed on top of an existing structure inside the facility (stairs not included).
