Softwall Modular Cleanrooms

62 products meet your criteria.

per page
  1. Stocked

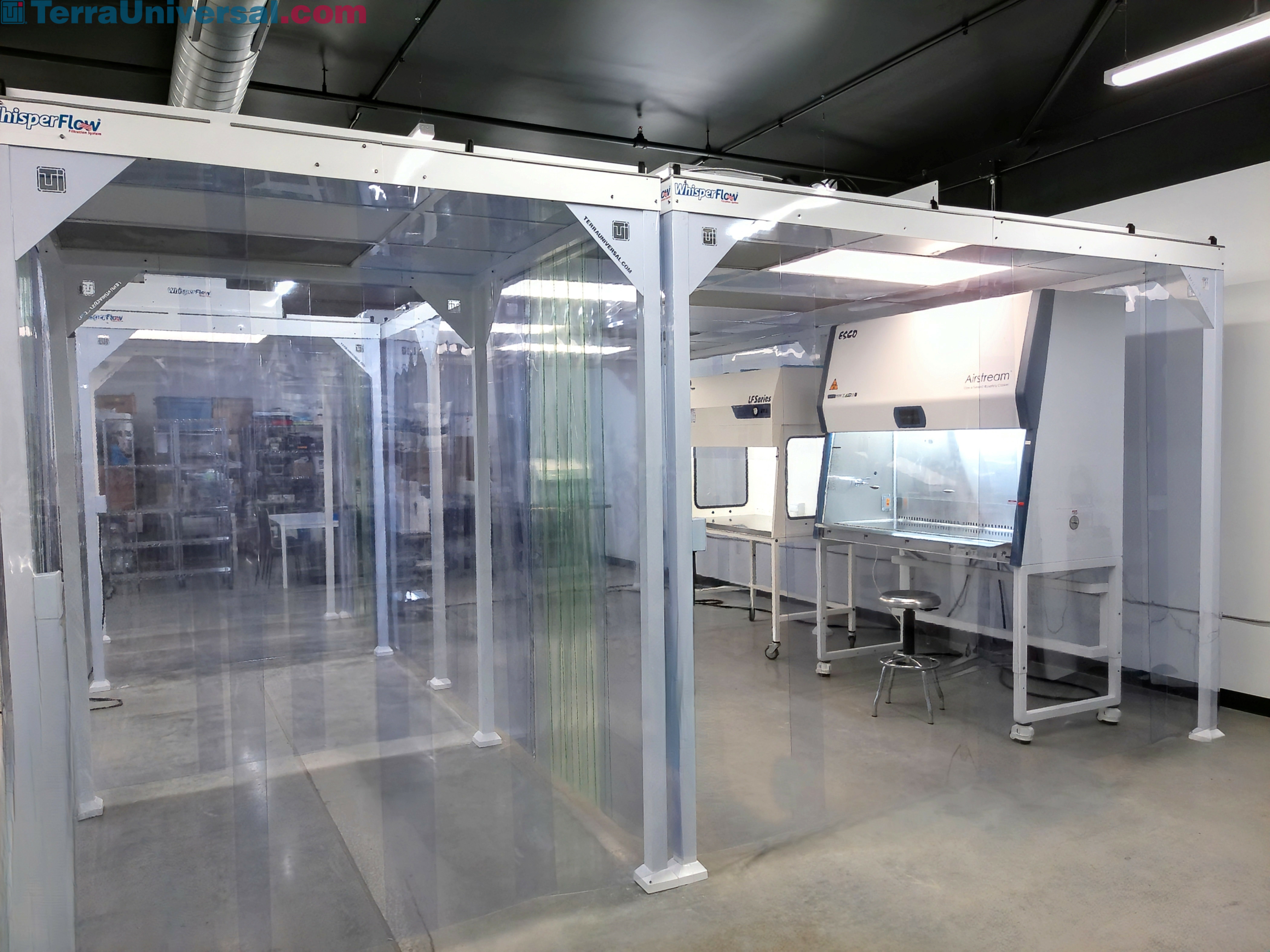

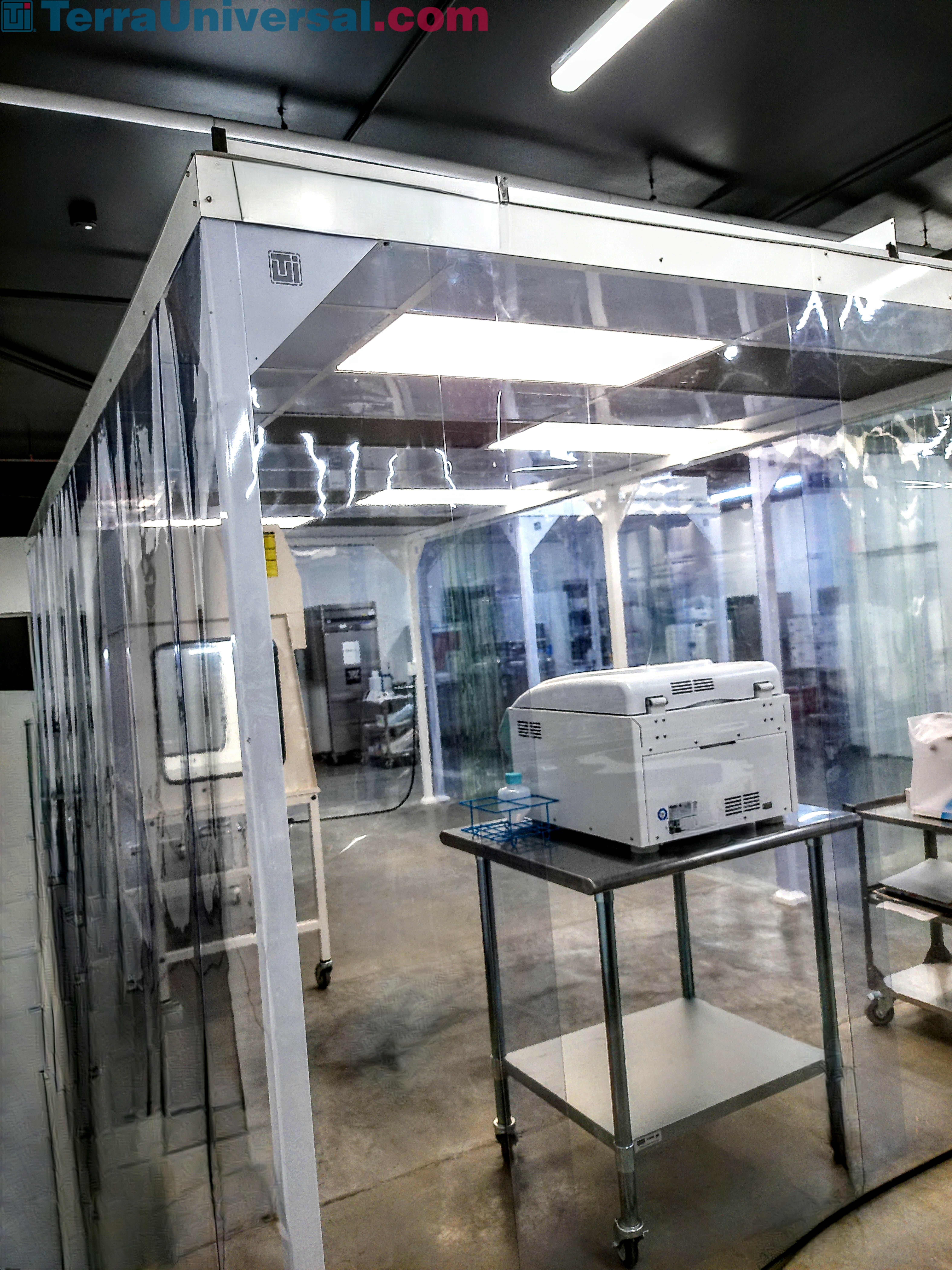

    ValuLine™ Pre-Fabricated Softwall Modular Cleanrooms
    From
    As low as $3,780
    Some ship in 1 - 3 days
    ULus LogoULus LogoWhisperFlowWhisperFlowStockedStockedISO 7 IconISO 7 Icon
    1 Frame Material4 Width10 Depth1 Height1 Panel Material1 ISO Class

    • Available ISO Ratings: ISO 7, ISO 8
    Frame Material: Powder-Coated Steel
    Width: 6', 8', 10', 12'
    Depth: 14', 16', 18', 20', 22', 24', 12', 8', 10', 6'
    Height: 8'
    Panel Material: Anti-Static Clear Vinyl
    ISO Class: ISO 7
  2. Custom Softwall Modular Cleanrooms
    Group of 2 products
    6600-PP-08
    From
    Request Quote
    Some ship in 20 - 26 days
    ULus LogoULus LogoWhisperFlowWhisperFlowISO 6 IconISO 6 Icon
    2 Frame Material1 ISO Class

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8
    Frame Material: Powder-Coated Steel, 304 Stainless Steel
    ISO Class: ISO 6
  3. ULus LogoULus LogoWhisperFlowWhisperFlowISO 6 IconISO 6 Icon

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  4. Custom Explosion-Proof Softwall Cleanroom (6600-62)
    Request Quote
    Usually ships in 20 - 26 days
    ULus LogoULus LogoWhisperFlowWhisperFlowExplosion Proof IconExplosion Proof IconISO 6 IconISO 6 Icon

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8
    • Explosion-proof ceiling components, control panel, and softwall strips are ordered separately
    • Quick Disconnect couplings speed up conduit installation
    • Potted fittings in the conduit array isolate each of the components from the rest of the system
    • Static-dissipative PVC strips protect against the risk of electrostatic discharge
    • Powder-coated steel support frame can be mounted on casters for portability
  5. Stocked
    Softwall CleanBooth™ Horizontal Laminar Flow Stations
    Group of 8 products
    1870-PP-04
    From
    As low as $3,689
    Some ship in 1 - 3 days
    CE Mark LogoCE Mark LogoULus LogoULus LogoWhisperFlowWhisperFlowISO 6 IconISO 6 IconStockedStocked
    2 Voltage1 Airflow Direction1 ISO Class4 Max # of FFUs4 Inside Width1 Inside Depth1 Inside Height2 FFU Position

    • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
    • All horizontal laminar flow stations feature ISO 6 rated conditions
    • CleanBooth FFUs can be configured horizontally or vertically
    • Quick Build Product: Components in-stock and ready for shipment in 4 - 6 business days
    • Units ship disassembled to reduce transportation costs and optimize product storage or relocation
    Voltage: 120 V, 220 V
    Airflow Direction: Horizontal
    ISO Class: ISO 6
    Max # of FFUs: 1, 2, 3, 4
    Inside Width: 48.25", 100.5", 72.5", 102"
    Inside Depth: 29.5"
    Inside Height: 71"
    FFU Position: Horizontal, Vertical
  6. Stocked
    Softwall CleanBooth™ Vertical Laminar Flow Stations
    From
    As low as $3,162
    Some ship in 1 - 3 days
    CE Mark LogoCE Mark LogoULus LogoULus LogoWhisperFlowWhisperFlowISO 6 IconISO 6 IconStockedStocked
    2 Voltage1 Airflow Direction1 Model4 ISO Class5 Inside Width4 Inside Depth6 Inside Height

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8
    • Includes HEPA-filtered fan unit(s), LED light, rigid anti-static curtain panel, steel frame and casters
    • Quick Build Product: Components in-stock and ready for shipment in 4 - 6 business days
    • Continuous PVC curtain panel dissipates static charges and encloses work zone from ambient environment
    • Unit ships disassembled to reduce transportation costs and optimize product storage or relocation
    Voltage: 120 V, 220 V
    Airflow Direction: Vertical
    Model: Portable CleanBooth
    ISO Class: ISO 6, ISO 5, ISO 7, ISO 8
    Inside Width: 48.25", 72.5", 49.25", 98.387", 96.25"
    Inside Depth: 28.25", 26.3", 48.25", 49.25"
    Inside Height: 65", 67", 81", 84.2", 70.1", 84.1"
Page 1 of 1

62 products meet your criteria.

per page

Softwall Modular Cleanroom Features and Benefits

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Softwall Cleanroom Instrument Enclosure

Softwall modular cleanrooms create clean, economical equipment enclosures; model shown used to protect particle-sensitive samples and analytical instruments.

Explosion-Proof Softwall Modular Cleanroom

Explosion-Proof Softwall Cleanrooms feature sealed conduit and junction boxes leading to the explosion-proof lights and FFUs, in compliance with NEC code for Class I, Division 1 environments

Portable Particle Containment Room

Containment Room isolates dirty operations inside a lab or cleanroom; reverse-flow HEPA fan/filter units contain dust to allow clean air release.

Softwall Cleanroom Control Panel

The control panel features separate key-switches for blower operation and the Night Service switch, as well as a standard light switch

Cleanroom Softwall Panels and Strip Shields

60-mil softwall strip shields and 40-mil softwall panels comprise the walls of a softwall modular cleanroom; stip shields provide a convenient, low-cost entry.

Seismic Safe Cleanroom Design

Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Stocked Pre-Fabricated Cleanroom Components

Since each pre-engineered cleanroom component is tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.

4,000 Worldwide Cleanrooms

Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Pre-Fabricated Softwall Modular Cleanrooms

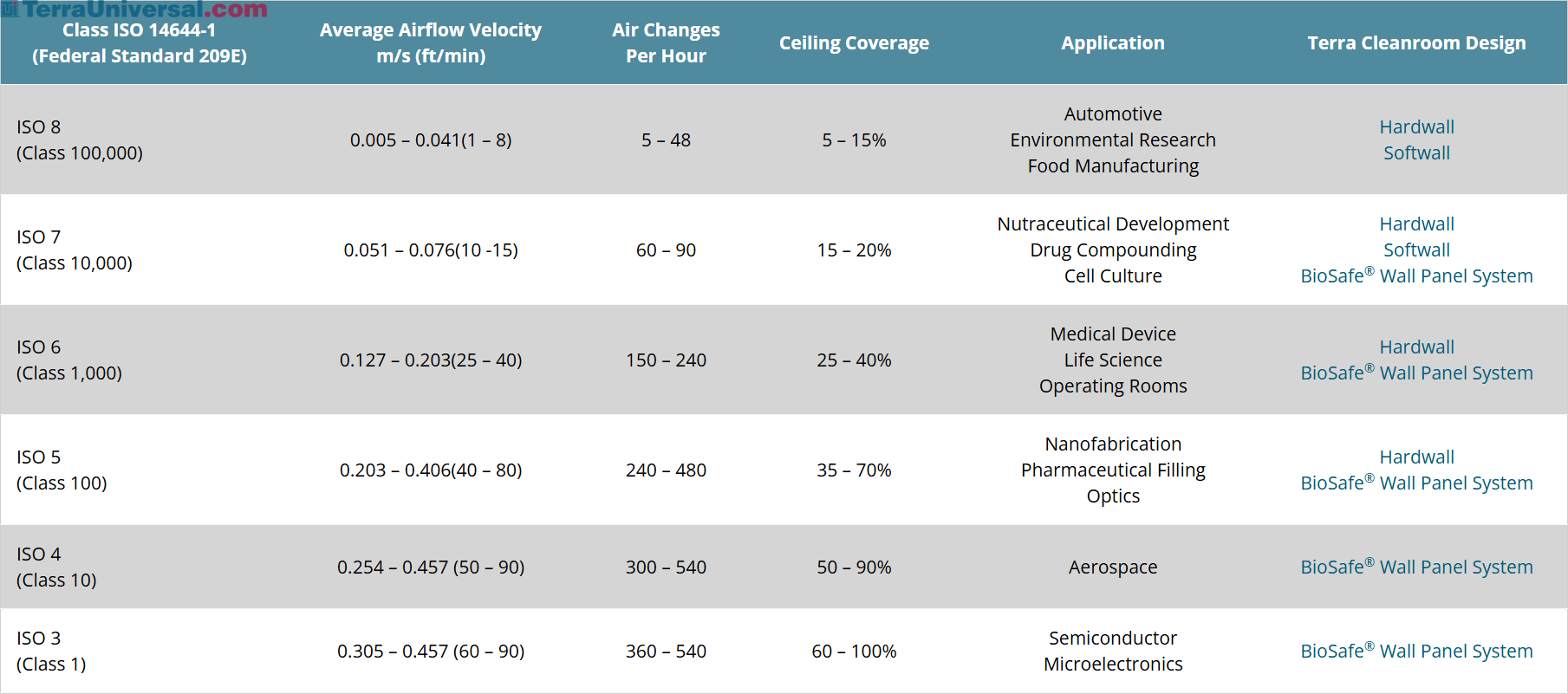

  • Cleanroom ISO Class Chart Cleanroom ISO Class Chart
  • Class 10,000 Clean Room ValuLine Curtain Panel; Clear Polysim Panel, 40 mil, 10'H
  • Softwall Modular Cleanroom Support Frame Heavy-Duty Powder-Coated Steel Frame
  • Portable HEPA Filtration System Portable HEPA Filtration System
  • Softwall Modular Cleanroom with Vinyl Curtains ISO 8 Softwall Modular Cleanroom
  • Softwall Modular Cleanroom Easy Install, Rigid Structure
  • Terra Universal IQ-OQ Process
  • Explosion-Proof Softwall Modular Cleanroom Explosion-Proof Softwall Modular Cleanroom
  • Explosion-Proof Softwall Cleanroom Explosion-Proof Softwall Cleanroom
Portable HEPA Filtration System
