3030-01
Terra Part # 3030-01
Request Quote
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Terra Part # 3030-01
60375
Request Quote
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Product Details
  • Dispensing: 1µl to 10 ml
  • Housing Material: Stainless main deck and painted steel upper arm. Machine's structural components are aluminum
  • Fits in standard hood
  • 1 x 3-axis robotic platform with all encoded stepper drives, single piece 316 stainless instrumend deck on aluminum frame with leveling feet
  • 1 x single position priming trough and tip shuck fixture
  • 1 x tip mandrel for dispoable pipette tips
  • Computer interface R-232 serial cable
  • Add syringe pump: 25uL, 125uL, or 300uL capacity
  • Add Deck Accessory Kit (Portrait or Landscape)

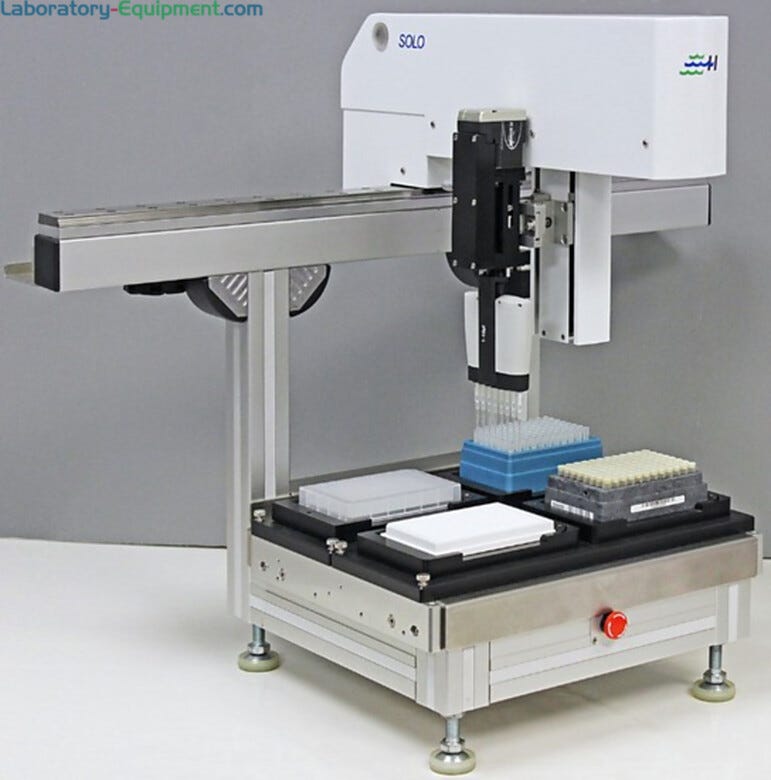

Type: Automated Pipettor

Model: SOLO

Manufactured by: Hudson Robotics

Sample Type: Microplates

Priming Trough Included: No

Configuration: Single Channel

Manufacturer SKU: 800201

Capacity: [xxx]

Unit of Measure: EA

Marks & Listings: CE, CSA

Electrical Specifications: 120 V, 60 Hz

Weight, Product: 50 lb

Dimensions, Product: 22" W x 18" D x 30" H

Weight, Shipping: 65 lb

Dimensions, Shipping: 26" W x 22" D x 34" H

Package Type: Crate

  • COVID-19 Contamination Control Products by Terra Universal

Features and Benefits

Learn More: SOLO Benefits

Additional Features of SOLO Automated Pipettor

The SOLO is capable of handling broad volume capacities and reactions within a sterile environment and the wide range of available pipette channels make the SOLO a scalable automated pipettor that will meet low and high throughput needs of pharmaceutical and clinical research labs.

The SOLO provides quick sample transfers from plate-to-plate, serial dilutions across the plate and easily adapts without any tools to both heads. Use the 12-tip head to finish plate-to-plate transfers 50% faster than the 8-tip head; remove the head and add the 8-position head for easy serial dilutions.

Users who wish to cherry-pick from individual wells can use either the single-tip SOLO or the multi-tip configuration. The SOLO multi-tip (both 8-channel and 12-channel) can work with just 1 tip, several tips, or all the tips without any issues. There is no need to switch to a single-tip pipette head.

The mechanical drive and software controls of the pipette head allow the SOLO to push the boundaries of pipetting performance. With CVs of less than 3% across the entire pipetting range, users can save valuable time and expense by using a single pipette head for both multi-tip and single-tip operations. Small-volume pipette heads are available for working between 0.5 µL and 20 µL.

  • Single-, 8-, and 12-channel pipetting heads are available
  • The 8- and 12-channel SOLO instruments can use only 1 tip without compromising performance, saving valuable time and expense
  • Features email functionality in the software that alerts the user when a run is completed or that an error has occurred
  • Customizable for unique or specialized applications
Liquid Handling Applications for SOLO Automated Pipettor

The SOLO automatic pipettor can be adapted to any research activity that requires the accurate addition, removal, and mixing of liquid samples and reagents – including those containing live cells. The SOLO can be integrated with other automated instruments for seamless process control and flexibility and has many uses in applications involving:

qPCR – The Hudson Robotics SOLO is the ideal pipettor for building the most complex sample set for your qPCR pipeline. Whether you are building a few qPCR reactions from 1.5 mL source tubes or running serial dilutions on thousands of samples per day, there is a SOLO configuration to get the job done.

High-Throughput Cherry Picking – A compact, self-contained system that allows users to obtain assay plates comprised of the actual hits detected in a primary screen using the same compound source plates that provided the primary screen.

Rapid Serial Dilutions – The SOLO adds the required amount of sample to the first column of each row. The Micro10x then adds solvent to the remaining columns and the SOLO then transfers a fixed amount of the mixture from column 1 to column 2, mixes it, and then continues through the remaining columns.

ELISA Assays – The SOLO forms the core element in a very simple, low-cost, yet powerful ELISA preparation workcell with Hudson's Micro10x reagent dispenser and Hudson's new RapidWash plate washer.

The SOLO forms the core element in a very simple, low-cost, yet powerful ELISA preparation workcell with Hudson's Micro10x reagent dispenser and Hudson's new RapidWash plate washer.

Bioreactor Sampling and Feeding – Using a 24-chamber microplate bioreactor vessel with the footprint of a standard microplate, the AutoReact™ system automatically loads samples and feeds cells growing under 24 independent reaction conditions simultaneously.

Automated High-Speed pH Determination – Accurate and reliable method for High Speed pH measurement in microplates with a proprietary technique.

Other applications: DNA extraction, DNA and RNA normalization, microbiome/microbiota research, oligo pooling, oligo purification, gene assembly, synthetic biology, plasmid preparation, colony picking (fungal, yeast, stem cell and bacterial, colony plating, protein binding, protein expression & purification, handling non-standard samples plates.

Other Available Accessories for SOLO Automated Pipettor

LabLinx Plate Stacker
  • Feeds plates on track mounted directly to SOLO deck
  • Up to 4 Stackers per SOLO, 480-plate capacity
  • Easy integration using SoftLinx
  • Multiple plates handled simultaneously
  • Easy combination with SOLOSoft methods
  • Access to any SOLO plate nest
VaryVac Vacuum Filtration Nest
  • Feeds plates on track mounted directly to SOLO deck
  • Up to 4 Stackers per SOLO, 480-plate capacity
  • Easy integration using SoftLinx
  • Multiple plates handled simultaneously
  • Easy combination with SOLOSoft methods
  • Access to any SOLO plate nest
Heating/Cooling Nest
  • Electrical: 100 – 260VAC; 50-60Hz; 0.5W
  • RS-232 interface through SOLOSoft
  • Temp. Range: -10°C to 110°C
  • Logs actual nest temperature during run
  • Easy integration into SOLOSoft pipetting
  • Flexible user options
Shaker Nest
  • Electrical: 115 – 230VAC; 50-60Hz; 3W
  • RS-232 interface through SOLOSoft
  • Shaking Speed: 100 to 2000 RPM
  • Up to 4 independently-controlled shaker nests per SOLO
  • Easy integration into SOLOSoft pipetting methods
  • Control of Shake Speed, Shake Time, Acceleration and Shaking Pattern:
