Terra Part # 9670-01B
$7,672
Usually ships in 35-43 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 9670-01B
51770

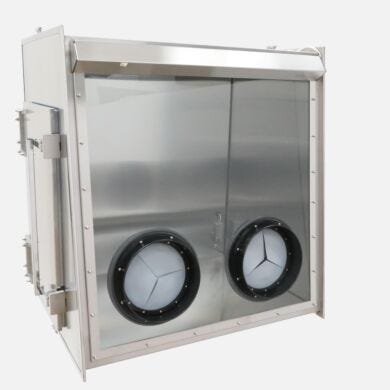

Glovebox; Series 600, 304 Stainless Steel, 37.5" W x 29" D x 39" H, Tempered Glass Window, 120 V
  • Features externally mounted fluorescent illuminator and two 10" ABX plastic ports that provide a wide range of motion
  • Note that gloveboxes do not get side access doors unless ordered as a separate accessory
  • Not an air-tight containment chamber; not suitable for use with biohazards

Material Type: Stainless Steel

Model: Series 600

Number of Glove Ports: 2

Window Material: Tempered Glass

Chamber Material: 304 Stainless Steel

Chamber Width: 37.5"

Chamber Depth: 29"

Chamber Height: 39"

Chamber Dimensions: 37.5" W x 29" D x 39" H

Maximum Working Height: 38.5"

Unit of Measure: EA

Electrical Specifications: 120 V, 0.25 A, 50/60 Hz

Weight, Product: 220 lb

Dimensions, Product: 37.5" W x 29" D x 39" H

Weight, Shipping: 405 lb

Dimensions, Shipping: 44" W x 35" D x 45" H

Package Type: Crate

Buy Accessories
  1. Automatic Relief/Bleed valve in stainless steel. Product details may differ. | 1606-60 displayed
    $402
    Increase Down Increase Up
  2. The self-closing Iris Port Adapter attaches to Terra's 10"-diameter glove port (order port separately) | 1694-54 displayed
    $585
    Increase Down Increase Up
  3. Terra’s products are made of cleanroom compatible, top tier hardware; designed and tested to guarantee the highest quality, durability, and craftsmanship | 1694-53 displayed
    $290
    Increase Down Increase Up
  4. Exterior of 304 stainless steel glove port; 12” diameter round, with neoprene gaskets | 1672-08-2 displayed
    $1,202
    Increase Down Increase Up
  5. Exterior of polypropylene glove port with 9”-diameter round cut out and neoprene gaskets | 1694-55 displayed
    $698
    Increase Down Increase Up
  6. Glovebox Port; PVC, 10" Diameter, Round
    $370
    Increase Down Increase Up
  7. Allow for easy loading of samples or components | 1685-94-300 displayed
    $1,824
    Increase Down Increase Up

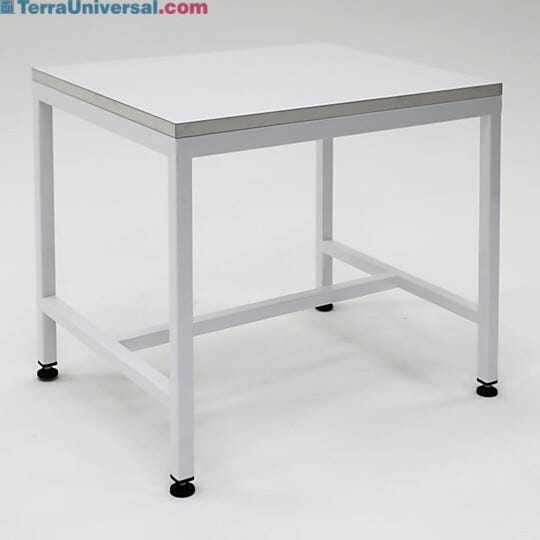

  8. Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes and includes nylon leveling feet; positions chamber 30" above floor | 9670-03 displayed
    $991
    Increase Down Increase Up

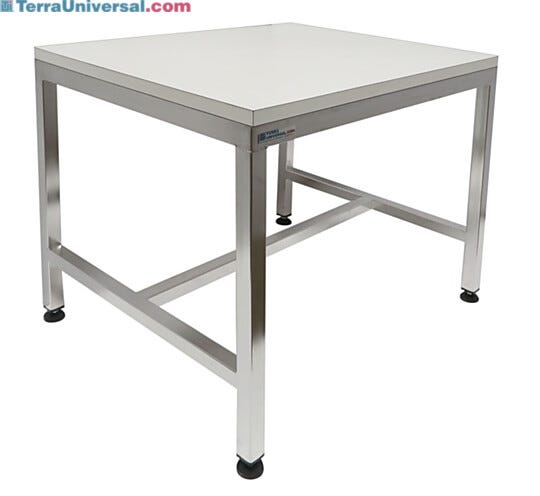

  9. Stainless steel laminate top for series 600 glove box. | 9670-02 displayed
    $2,543
    Increase Down Increase Up
  10. Humidity sensor allows economic set point control | 9500-06 displayed
    $1,538
    Increase Down Increase Up
  11. Terra's Smart® IsoDry® Nitro-Watch™ logs data at user specified intervals: RH, temp, door open/close, purge on/off, and sensor removal/attachment
    $1,903
    Increase Down Increase Up
  12. Monitors and controls dew/frost point | 1401-94 displayed
    $9,359
    Increase Down Increase Up
  13. Humidifier provides inline humidification of nitrogen | 9081-02 displayed
    $3,756
    Increase Down Increase Up
  14. Ideal source for purge gas in moisture- sensitive storage and processing applications | 9082-00 displayed
    Dryex™ 80 Gas Dryer Only 3 left in stock
    $8,878
    Increase Down Increase Up
  15. Designed to provide reliable gas drying without the hassle and expense | 9082-01 displayed
    Dryex™ 10 Gas Dryer Only 4 left in stock
    $4,699
    Increase Down Increase Up
  16. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Only 4 left in stock
    $4,934
    Increase Down Increase Up
  17. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-83 displayed
    $185
    Increase Down Increase Up
  18. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-83 displayed
    $201
    Increase Down Increase Up
  19. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene | 1689-02 displayed
    $236
    Increase Down Increase Up
  20. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  21. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  22. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  23. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1690-91 displayed
    $178
    Increase Down Increase Up
  24. Shown with hand glove portion | 1671-08 displayed
    $554
    Increase Down Increase Up
  25. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-50 displayed
    $382
    Increase Down Increase Up
  26. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-50 displayed
    $362
    Increase Down Increase Up
  27. Glovebox sleeves, dipped in butadyl
    $157
    Increase Down Increase Up
  28. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $675
    Increase Down Increase Up
  29. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $649
    Increase Down Increase Up
  30. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $650
    Increase Down Increase Up
  31. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $22
    Increase Down Increase Up
  32. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $23
    Increase Down Increase Up
  33. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $23
    Increase Down Increase Up
  34. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  35. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  36. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  37. Provides a stream of static-neutralizing ions to protect ESD-sensitive components. | 2005-16A displayed
    $940
    Increase Down Increase Up
  38. Ideal for glovebox isolators and other confined, difficult-to-clean chambers. | 3305-90 displayed
    $544
    Increase Down Increase Up
  39. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    $245
    Increase Down Increase Up
  40.  | 2004-32 displayed
    $259
    Increase Down Increase Up
  41. Small nitrogen generator, 20"W x 12"D x 35.5"H, with compact footprint produces up to 99% pure N2 gas | 2700-12B displayed
    $10,227
    Increase Down Increase Up
  42. Stores 16,382 temperature readings and 16,382 relative humidity measurements. | 9500-10 displayed
    $252
    Increase Down Increase Up
  43. Power cable port protects the isolator environment while allowing for electronic equipment | 2900-70 displayed
    $345
    Increase Down Increase Up
  44. Cordgrip connector plastic .599 inches hole size straight through black | 3305-70 displayed
    $68
    Increase Down Increase Up
  45. Shown: Vacupass installed in the interior wall of a biosafety cabinet | 4642-49 displayed
    $185
    Increase Down Increase Up
  46. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  47. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  48. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  49. Equipment Testing
    Request Quote
    Increase Down Increase Up
  50. Designed to accommodate a variety of sleeve brands and sizes | 1694-52 displayed
    $365
    Increase Down Increase Up
  51. Automatic Relief/Bleed valve in stainless steel. Product details may differ. | 1606-60 displayed
    $402
    Increase Down Increase Up

Gas-Purged Stainless Steel Glove Boxes

  • Glove Box Isolators and Containment Chambers Glove Box Isolators and Containment Chambers
  • Extra-tall gas-purged glove box isolator for biomedical research Extra-Tall Gas-Purged Glove Box Isolator for Biomedical Research
  • Stainless Steel Glove Box Isolator with Safety Glass Window, Iris Ports Stainless Steel Series 600 Glove Box Isolator
Glove Box Isolators and Containment Chambers

Features and Benefits

View Glovebox Dimensions

More Information

Series 600 Glove Box Dimensional Illustration
GloveA in. (mm)D in. (mm)E in. (mm)F in. (mm)H in. (mm)I in. (mm)M in. (mm)N in. (mm)
224 (610)29 (737)12 (305)37.5 (953)39/58 (991/1473)16 (406)12 (305)14 (356)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Removable Side Panel for Stainless Steel Glove Boxes

Removable gasketed side panels allow easy introduction of large process equipment or retrofitting of air locks, access doors, and other accessories in minutes!

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Laboratory Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Many Air Lock Designs!
    Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Side Access Door for Stainless Steel Glove Box Isolator
    Side access doors allow quick transfer of equipment and materials into a stainless steel glove box. Available in many sizes.
  • Glove Box Stand, Powder-Coated Steel
    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Ionizing Module for Glove Boxes
    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • High Caliber Hardware
    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Relative Humidity and Temperature Data Logger
    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals
    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging
    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
