Product Details
  • Provides a clean, controlled environment for a wide range of low-humidity, low-oxygen manufacturing processes in semiconductor, pharmaceutical, and other industries, including resistance seam welding, parts degassing, chemical mixing and temperature/humidity testing
  • Full-view polycarbonate or tempered glass front window allows full view of processing operations, minimizes claustrophobia
  • Removable plastic 10" diameter glove ports accept a wide variety of gloves and can be interchanged to meet specific requirements; integral stainless steel round and oval ports also available
  • Side flanges simplify insertion/removal of large process equipment and allow easy retrofit of optional pass-through oven or air locks
  • Note that glove boxes do not get side access doors or air lock unless ordered as a separate accessory. It is recommended if frequent access is required
  • Optional gas purge controls automatically establish a clean environment and maintain a humidity set point down to 3% RH
  • Terra gloveboxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures; unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals
  • Includes externally-mounted LED illuminator
  • Optional Right or Left Mount Access Doors or Stainless Steel Air Lock
  • Cutouts and sealed interfaces available for microscopes and other equipment
  • Utility ports included for connection to humidity controllers (Dual Purge and NitroWatch system, order separately) and Relief/Bleed Valves; other ports and feed-though available for outlets, electrodes, vacuum fittings and other utilities
  • Other options include HEPA filtration modules, dew point controllers, pass-through oven, tilt-up windows, trace oxygen sensor and other environmental sensors

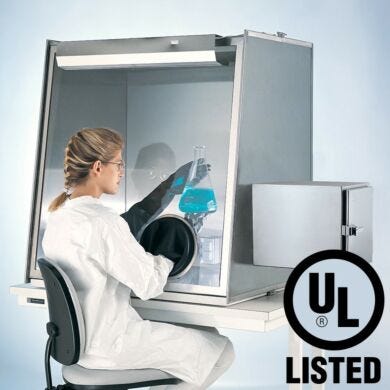

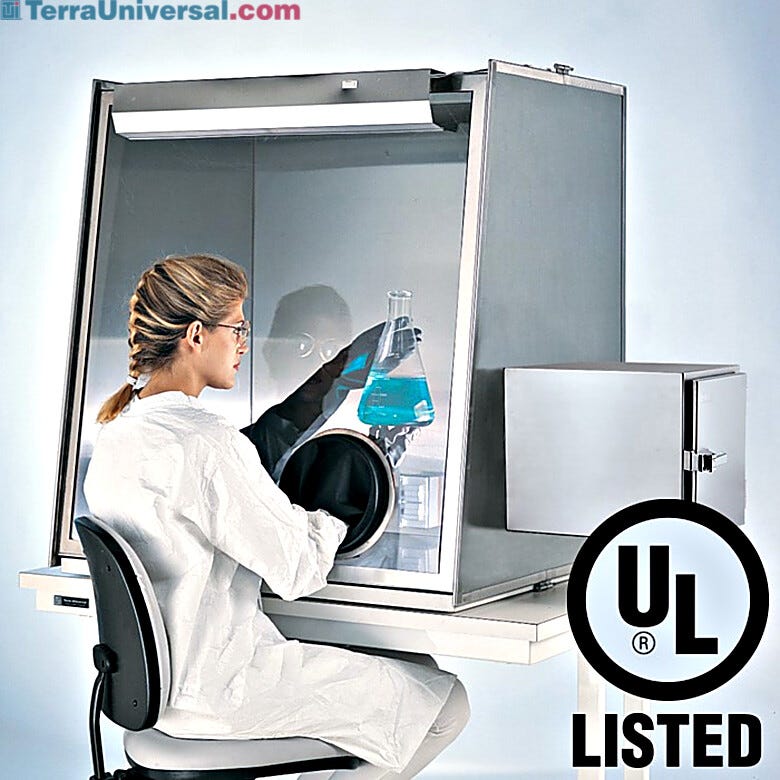

Series 600: Glove Box Isolators
Standard Features
  • A Chamber
    2-port chamber No. 9670-00B with polycarbonate viewing window and 10” (254 mm)-diameter plastic glove ports (tempered safety glass windows also available)
  • B Fluorescent light
    Outside-mounted fluorescent illuminator
  • C Clamps
    Side clamps for linking multiple gloveboxes)
Optional Features
  • 1 Range of Gloves
    Many gloves available, including one-piece neoprene (shown)
  • 2 Stainless steel air lock
    Stainless steel air lock
  • 3 Stand
    Powder-coated steel stand with leveling feet

Not Shown: Range of Options - Options include nitrogen purge controller, automated RH, dew point and oxygen level controls, ionizing module, port caps, and nitrogen generator

Gas-Purged Stainless Steel Glove Boxes

  • Glove Box Isolators and Containment Chambers Glove Box Isolators and Containment Chambers

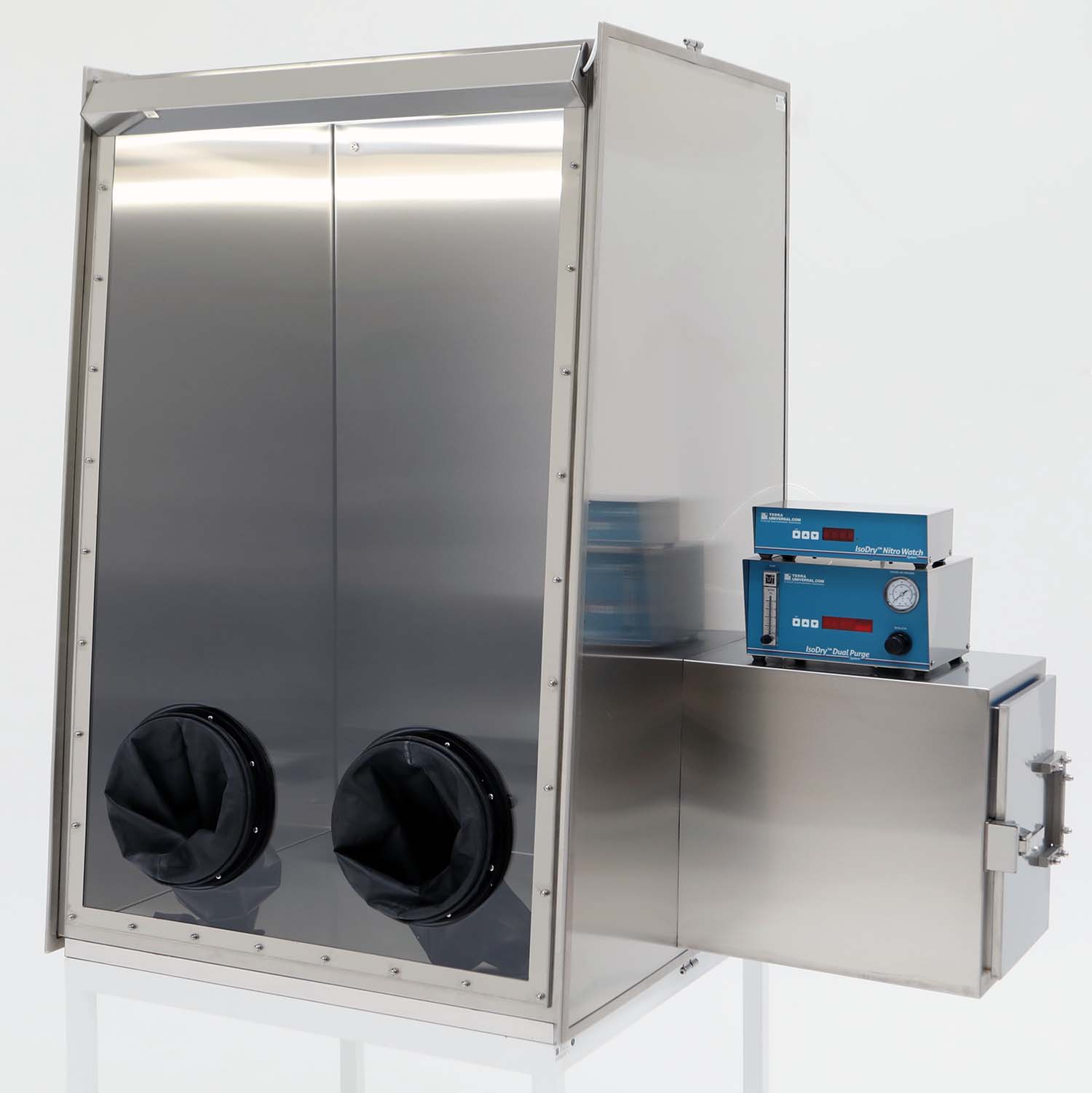

  • Extra-tall gas-purged glove box isolator for biomedical research Extra-Tall Gas-Purged Glove Box Isolator for Biomedical Research
  • Stainless Steel Glove Box Isolator with Safety Glass Window, Iris Ports Stainless Steel Series 600 Glove Box Isolator
  • Extra-Tall Stainless Steel Glovebox for moisture sensitive catalysis work Series 600 Full-View Stainless Steel Glovebox for Moisture Sensitive Catalysis Work
Glove Box Isolators and Containment Chambers
Features & Benefits

Features and Benefits

View Glovebox Dimensions

More Information

Series 600 Glove Box Dimensional Illustration
GloveA in. (mm)D in. (mm)E in. (mm)F in. (mm)H in. (mm)I in. (mm)M in. (mm)N in. (mm)
224 (610)29 (737)12 (305)37.5 (953)39/58 (991/1473)16 (406)12 (305)14 (356)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Removable Side Panel for Stainless Steel Glove Boxes

Removable gasketed side panels allow easy introduction of large process equipment or retrofitting of air locks, access doors, and other accessories in minutes!

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Many Air Lock Designs!

    Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Side Access Door for Stainless Steel Glove Box Isolator

    Side access doors allow quick transfer of equipment and materials into a stainless steel glove box. Available in many sizes.
  • Glove Box Stand, Powder-Coated Steel

    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Ionizing Module for Glove Boxes

    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • Neoprene Accordion Sleeve Assemblies

    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • High Caliber Hardware

    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports

    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Relative Humidity and Temperature Data Logger

    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
