3308-50
Terra Part # 3308-50
$1,476
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available In stock
Accessories related to Terra Part # 3308-50
61559

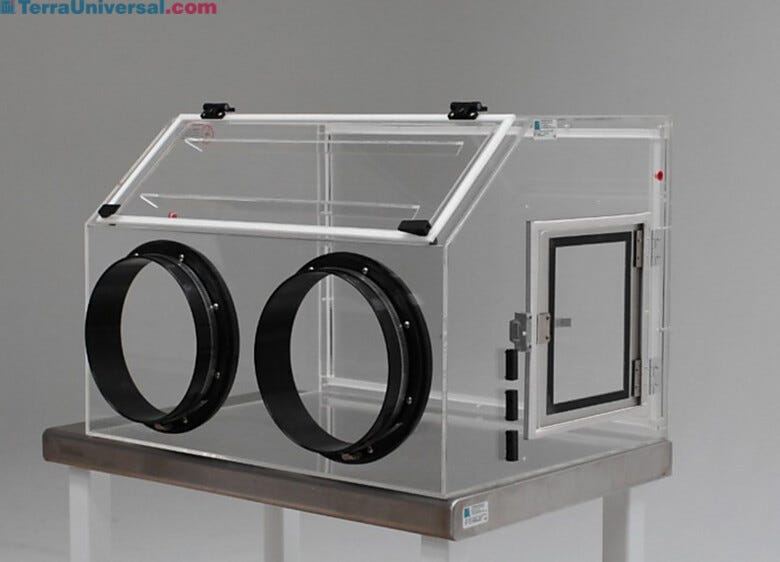

Glovebox; ValuLine Portable, Acrylic, 26" W x 20" D x 18" H, 2 Glove Ports
Product Details
  • Available ISO Ratings: ISO 8
  • A controlled processing glovebox for testing and manufacturing operations
  • Dual gasketed side door and a fully gasketed back permit introduction of small and large equipment
  • Designed for positive-pressure operation, in conjunction with RB valves to relieve overpressure
  • Tilt-up front viewing window with locks
  • Access door include stainless steel door frame, which increases structural rigidity
  • Unique "e" profile nonadhesive elastomer gasket cannot compress or migrate over time
  • Not an air-tight containment chamber; not suitable for use with biohazards
  • Order illuminator separately
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents.  Use only water and mild detergent
  • Pre-configured ValuLine™ gloveboxes are stocked and ready to ship and therefore are not available for customization to chamber size, airlock size, or glove port size

Model: ValuLine Portable

Material Type: Plastic

Number of Glove Ports: 2

Airlock Opening: 10" W x 10" H

Chamber Material: Acrylic

Window Material: Acrylic

Chamber Width: 25.5"

Chamber Depth: 19.5"

Chamber Height: 17.5"

Maximum Working Height: 17.5"

Chamber Dimensions: 25.5" W x 19.5" D x 17.5" H

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: SPCL

Weight, Product: 36 lb

Dimensions, Product: 26" W x 20" D x 18" H

Weight, Shipping: 102 lb

Dimensions, Shipping: 32" W x 26" D x 26" H

Package Type: Crate

Buy Accessories
  1. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    $168
    Increase Down Increase Up
  2. Provide a buffer space for samples or material transfer.  |  1680-78B displayed
    Standard Air Lock; Acrylic, Left/Right-mount Quick Ship+ Available In stock
    $573
    Increase Down Increase Up
  3. Acrylic flow meter, valve-2-20SCFH  |  1600-32 displayed
    $208
    Increase Down Increase Up
  4. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    $4,193
    Increase Down Increase Up
  5. Ideal source for purge gas in moisture- sensitive storage and processing applications  |  9082-00 displayed
    Dryex™ 80 Gas Dryer Quick Ship+ Available Only 3 left in stock
    $7,990
    Increase Down Increase Up
  6. Designed to provide reliable gas drying without the hassle and expense  |  9082-01 displayed
    Dryex™ 10 Gas Dryer Quick Ship+ Available In stock
    $4,231
    Increase Down Increase Up
  7. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Quick Ship+ Available Only 1 left in stock
    $3,553
    Increase Down Increase Up
  8. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $22
    Increase Down Increase Up
  9. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  10. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  11. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 8, 15 mil Quick Ship+ Available In stock
    $2
    Increase Down Increase Up
  12. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 9, 15 mil Quick Ship+ Available In stock
    $2
    Increase Down Increase Up
  13. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    ISO 5 Glovebox Gloves; Nitrile, Size 10, 15 mil Quick Ship+ Available In stock
    $2
    Increase Down Increase Up
  14. Solid stainless steel top with a power-coated steel base and telescoping legs  |  1751-00 displayed
    $1,120
    Increase Down Increase Up
  15. Cleanroom-compliant construction with sealed laminate, powder-coated base  |  1722-00 displayed
    $868
    Increase Down Increase Up
  16. Polypropylene top resists a broad range of chemicals, including most acids. Powder-coated steel base includes telescoping legs  |  1522-00 displayed
    $986
    Increase Down Increase Up
  17. Drawers; 304 SS, Left Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  18. Drawers; 304 SS, Right Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  19. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  20. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  21. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate  |  1704-01 displayed
    Request Quote
    Increase Down Increase Up
  22. Stores 16,382 temperature readings and 16,382 relative humidity measurements.  |  9500-10 displayed
    Data Logger; Relative Humidity/Temperature Quick Ship+ Available In stock
    $290
    Increase Down Increase Up
  23. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    Power-Cord Pass-Through, for All Glove Boxes Quick Ship+ Available In stock
    $310
    Increase Down Increase Up
  24. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $61
    Increase Down Increase Up
  25. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    Vacu-Pass; Cord and Cable Port Kit, 3.5"Dia x 2.875"L Quick Ship+ Available 815 in stock
    $213
    Increase Down Increase Up
  26. Warranty; 2 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  27. Warranty; 3 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  28. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  29. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  30. Equipment Testing
    Request Quote
    Increase Down Increase Up
  31. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  32. Service, ISO 8 Rating Declaration
    Request Quote
    Increase Down Increase Up
  33. One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air  |  1600-60A displayed
    $168
    Increase Down Increase Up

ValuLine™ Portable Plastic Glove Boxes

  • Portable Acrylic Glove Box ISO 8 Portable Acrylic Glovebox
  • Pyramid Mobile and Disposable Glovebox Captair® Pyramid Glovebox
  • Portable Glove Box Portable Glove Box
  • portable nitrogen generator<br/> Different N2 Generator Options to Meet Your Needs

Features and Benefits

View Glovebox Dimensions

More Information

ValuLine Portable Glove Box Dimensional Illustration
A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
12.75 (324) 20 (508) 26 (660) 18 (457) 11.5 (292) 10 (254) 10 (254) 11.75 (298)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Side Access Doors for Plastic Glove Boxes

Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.

Automatic RB (Relief-Bleed) Valve

One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Don't Budge on Your Budget, Save on High-Quality ValuLine Products

Compromising on quality goods with costs can be tiring. Here at Terra, the compromise is over with our wide range of ValuLine products. From cleanrooms to glove boxes, ValuLine products come with a premium quality without sacrificing an affordable price.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.

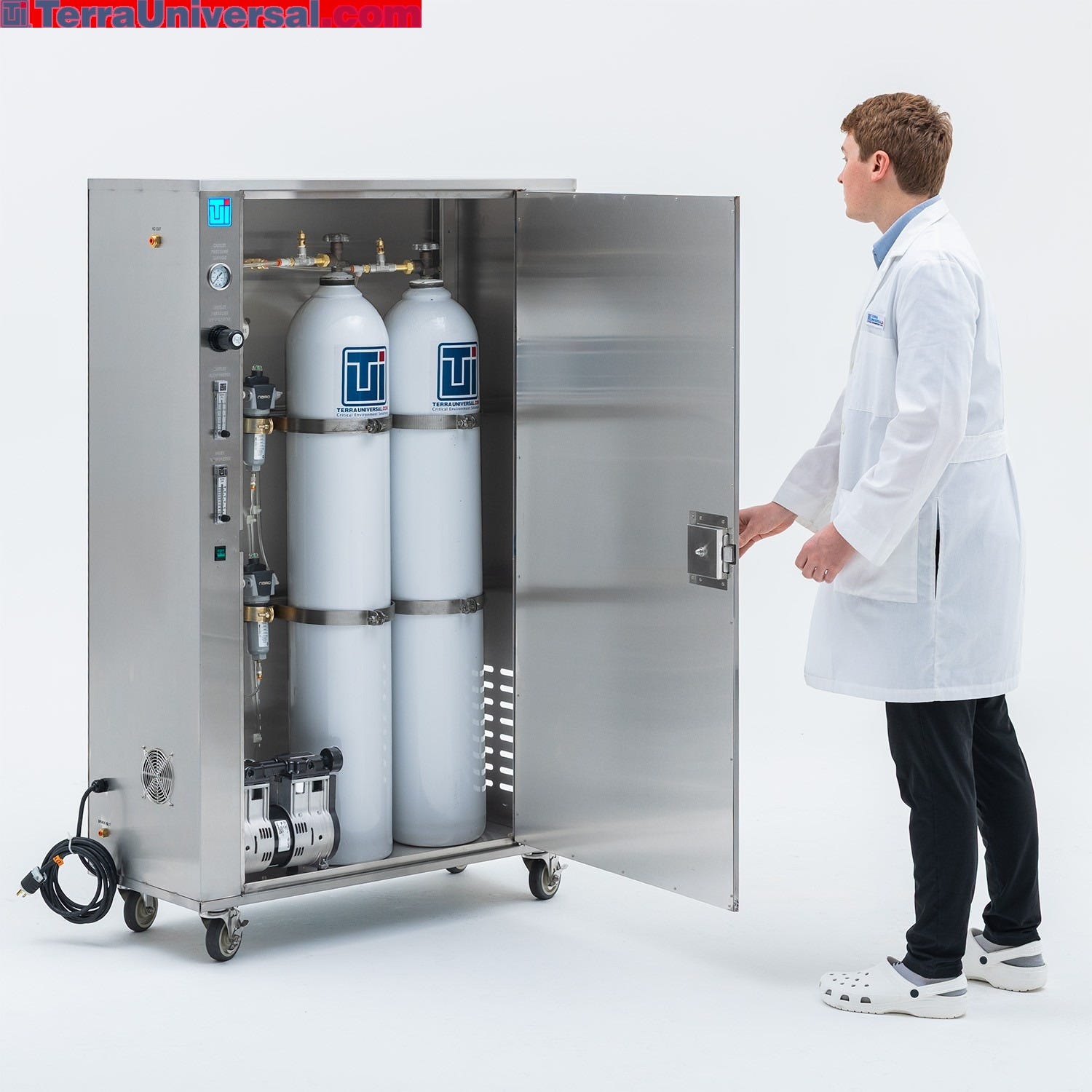

  • Compact Portable N2 Generator for Laboratory Use

    The compact enclosed cabinet reduces noise levels to 60dB measured from 3ft away.
  • Relative Humidity and Temperature Data Logger

    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • Flow Meter Helps Monitor and Control Nitrogen Gas Flow

    A flow meter is a low-cost option suitable for non-critical applications or small desiccators that do not require much inert gas. However, manual control is more prone to human error and not as efficient with the consumption of inert gas, which can lead to damaged products and high operating costs.
  • Sleeve and Glove Assemblies

    Sleeve/glove combinations, available in many materials, allow fast, inexpensive glove replacement without removing sleeves from the glove box port (shown: Hypalon with glove/sleeve connectors).
  • Iris Ports; 1 Each, Silicone, Self-Closing, 8" Dia. Ports

    The self-closing Iris Port Adapter attaches to Terra's 8"-diameter glove ports to allow easy access to parts and processes (order port separately).
  • Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Air Locks Minimize Cross-Contamination

    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
  • Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Stainless Steel Work Surface Improves Safety and Service Life

    Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.
  • Ionizing Module for Glove Boxes

    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
