Terra Part # 5701-93
$3,940
Usually ships in 16-22 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5701-93
60649

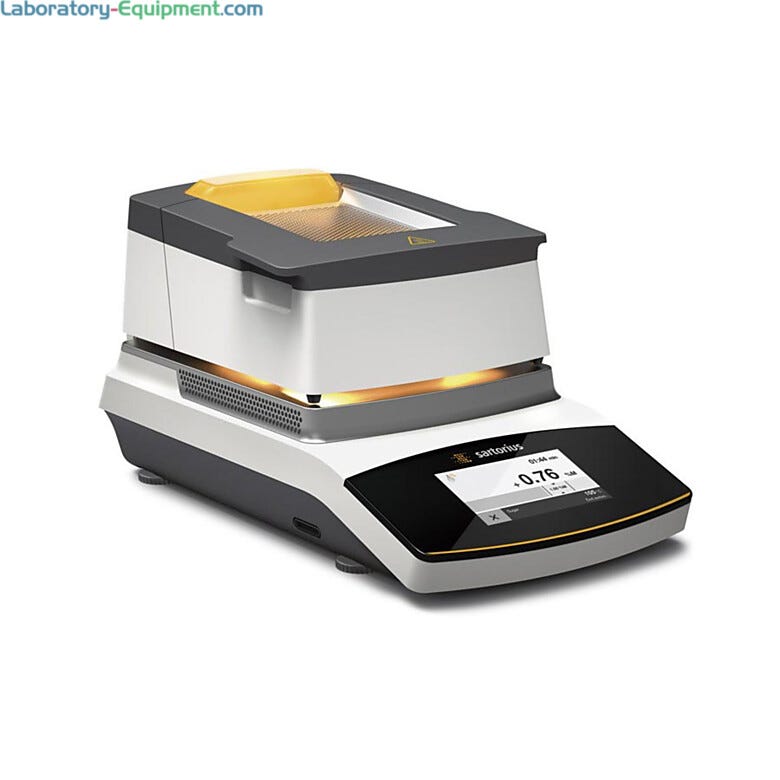

Infrared Moisture Analyzer, 40 - 160° C,Sartorius MA160,200 g, 120 V

• Infrared AURI heating elements (two) for rapid even heating and quick drying of samples

• Memory capacity: store up to 100 different methods

• Method assistant enables development of new methods in 3 quick steps

• Readability: 1 mg, 0.01%; Weighing Capacity: 200 g

• Sample Quantity: 5 – 15 g

• Infrared Heating: AURI heater, 600 W

• Temperature Range: 40°C –160°C, in increments of 1°C

• Repeatability at initial sample weight: 1 g: ±0.2%/5 g: ±0.05%

• Reading Display: Moisture content in % M and % g; dry matter in % S and g; ATRO in % M/S

• Temperature Settings: Standby temperature selectable from 40 to 100°C

• Heating Programs: Standard drying, gentle drying

• Shut Off Parameter: Fully automatic, semi-automatic, manual and with timer settings

• Sample forceps: Easy-to-handle sample dish

• Interface: Mini USB, automatic printer detection, direct transfer to Microsoft(R) programs

• Data Transfer: SD card, method import and export function

• Memory capacity: store up to 100 different methods

• Method assistant enables development of new methods in 3 quick steps

• ReproEasy Pad allows regular verification of functionality for reliable results

• Intuitive, simple operation

• Removable heating module and sample plates are dishwasher safe

Weighing Capacity: 200 g

Temperature Range: 40 - 160° C

Model: Sartorius MA160

Readability: 1 mg

Type: Infrared Moisture Analyzer

Manufacturer SKU: MA160-1US

Unit of Measure: EA

Electrical Specifications: 120 V, 50/60 Hz

Weight, Product: 14 lb

Dimensions, Product: 8.5" W x 15.75" D x 8.25" H

Weight, Shipping: 25 lb

Dimensions, Shipping: 14.5" W x 21.75" D x 14.25" H

Package Type: Box

Buy Accessories
  1. Data Printer with Statistics and time/date functions for all Sartorius balances and scales  |  5702-15 displayed
    Standard Thermal Line Laboratory Printer Stocked Item is in stock and ready for immediate shipping
    $809
    Increase Down Increase Up
  2. Premium GLP laboratory printer
    Premium GLP laboratory printer Stocked Item is in stock and ready for immediate shipping
    $1,262
    Increase Down Increase Up

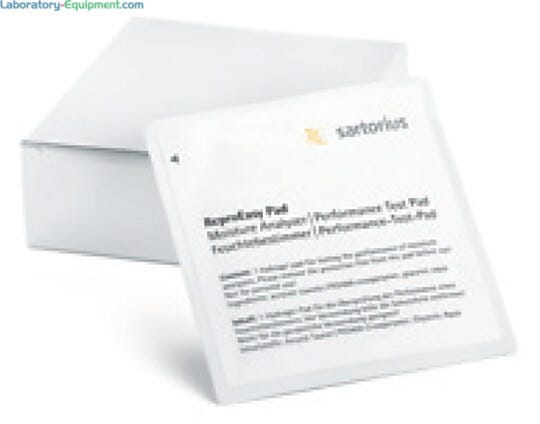

  3. Provides the ability to regularly verify the functionality of the MA37 or MA160 moisture analyzers.  |  5701-97 displayed
    ReproEasy pads, 10 pcs. Stocked Item is in stock and ready for immediate shipping
    $71
    Increase Down Increase Up

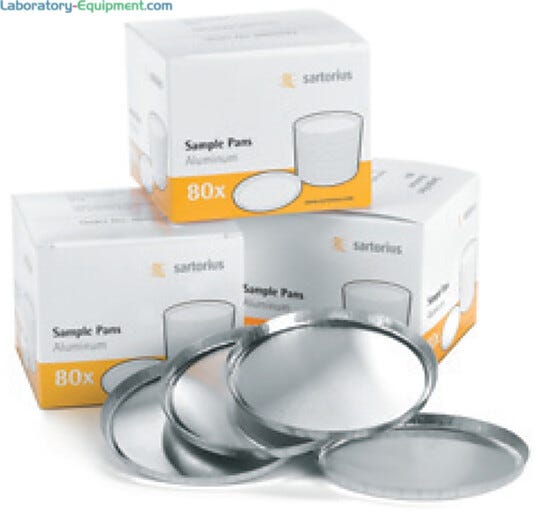

  4. Allows cleanliness of analyzer and provides easy disposal of pans with sample residue.  |  5701-94 displayed
    Disposable sample pans, 80 pcs., aluminum, 90 mm Stocked Item is in stock and ready for immediate shipping
    $55
    Increase Down Increase Up
  5. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Overview and Specifications

More Information

Keeping your MA160 unit working properly is important and it is especially valuable for institutions dealing with regulations and compliance. The integrated performance testing feature ensures that your moisture analyzer is always in top condition. Operators can easily check the performance status of their MA160 with the touch of a button and using the ReproEasy Pad #YHP01MA. A "pass" or "fail" indicator shows the status of the unit.

  • Housing Dimensions WxDxH in. (mm): 8.46 x 15.75 x 8.28 (215 x 400 x 210)
  • Weighing Capacity: 200g
  • Weighing Accuracy: 1 mg
  • Readability: 1 mg, 0.01 %
  • Typical Reproducibility :
    • sample weight ≥1g: ±0.2%
    • sample weight ≥5g: ±0.05%
  • Recommended moisture range: 1 – 99%
  • Electrical: 115V/230V/600W
  • Material: Aluminum sample pans
  • Method Storage: 100 methods
  • Reading Display:
    • Moisture content in % M and % g
    • Dry matter in % S and g
    • ATRO in % M/S
  • Analysis Mode:
    • Fully automatic
    • Semiautomatic mg (1 mg – 50 mg | 5 sec. – 300 sec.)
    • Semiautomatic % (0.1% – 5.0% | 5 sec. – 300 sec.)
    • Timer settings (02:00 – 99.59 min.)
    • Manual
  • Display Mode: % moisture % dry weight g moisture g dry weight ATRO (ratio) in %M/S
  • Memory: Data Storage Automatically stores the last 999 results
  • Temperature Settings: Standby temperature selectable from 40° to 200°C
  • Heating Programs: Standard drying, gentle drying, MA35 mode
  • Shut Off Parameter: Fully automatic, semi-automatic, manual and with timer settings
  • Sample Forceps: Easy-to-handle sample dish
  • Interface: Mini USB, automatic printer detection, direct transfer to Microsoft® programs
  • Display: Touchscreen
  • Data Transfer: SD card, method import and export function
  • Data Interface:
  • RS232C unidirectional
  • ISO/GLP compliant print out GLP-compliant, inalterable standard or user-configurable printout | paper-saving mode for short record
  • Unit Weight: 13.67 lbs. (6.2 kg)

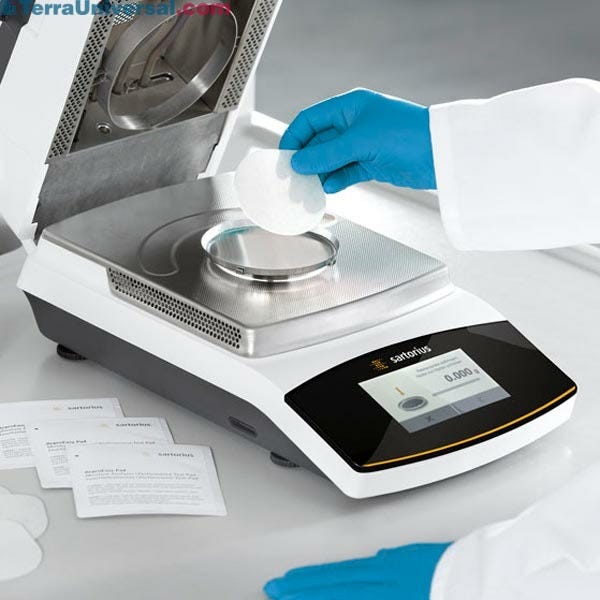

MA160 IR Moisture Analyzer Large Memory Capacity and Method Development

MA160 IR Moisture Analyzer streamlines the work process by allowing users to generate up to 100 new parameters in 3-easy- steps: interview session, method test cycle and release of new method. Stores up to 1000 results

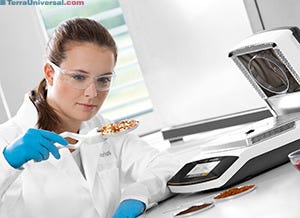

High-Speed Heating for Quicker Analysis

MA160 Moisture Analyzer features two 600w Auri-coated heating elements for thermogravimetric thermal analysis in the high-speed heating and even drying of samples

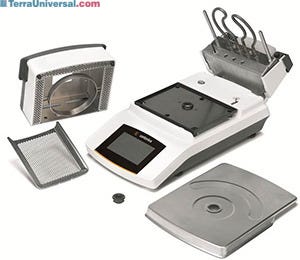

Sartorius MA160 IR Moisture Analyzer shown with disassembled dishwasher safe parts

The sturdy build of the MA160 IR Moisture Analyzer will withstand continued use over time. Unit features a BetterClean design for easy disassembling of dishwasher safe parts.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

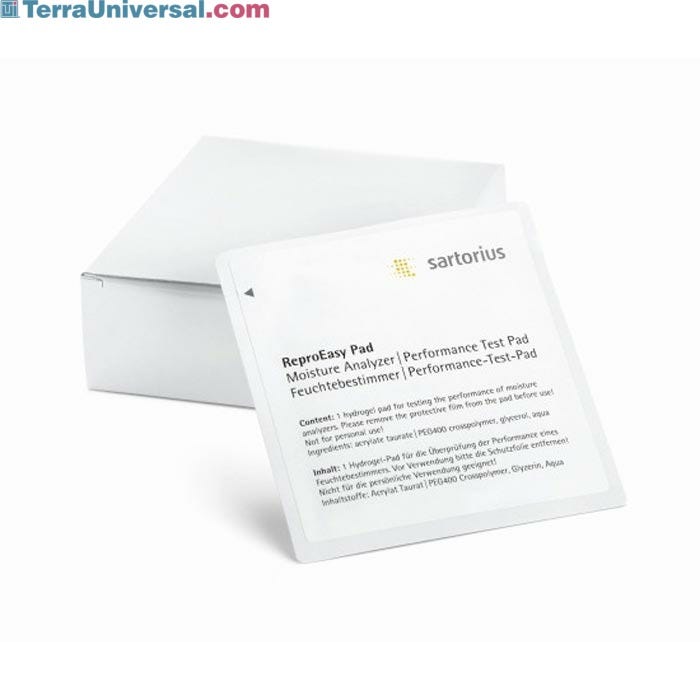

  • ReproEasy Pads for MA160 IR Moisture Analyzer
    ReproEasy Pads are required when using reproTEST function of the MA160 IR Moisture Analyzer; used for performance testing to verify the repeatability of the analyzer.
