115 VPowder-Coated AluminumRXPert3971280Tempered Glass 9082-30 66393 $9,90818-22 Days2
115 VPowder-Coated AluminumRXPert3971281Tempered Glass 9082-31 66396 $10,81818-22 Days3
115 VPowder-Coated AluminumRXPert3971282Tempered Glass 9082-32 66397 $10,44018-22 Days4
115 VPowder-Coated AluminumRXPert3971380Tempered Glass 9082-33 66398 $10,56818-22 Days5
115 VPowder-Coated AluminumRXPert3971381Tempered Glass 9082-34 66399 $11,85218-22 Days6
115 VPowder-Coated AluminumRXPert3971382Tempered Glass 9082-35 66401 $11,34818-22 Days7
115 VPowder-Coated AluminumRXPert3971480Tempered Glass 9082-36 66402 $11,24318-22 Days8
115 VPowder-Coated AluminumRXPert3971481Tempered Glass 9082-37 66403 $12,87618-22 Days9
115 VPowder-Coated AluminumRXPert3971482Tempered Glass 9082-38 66404 $12,20618-22 Days10
Voltage
Frame Material
Model
Manufacturer SKU
Side Panels
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

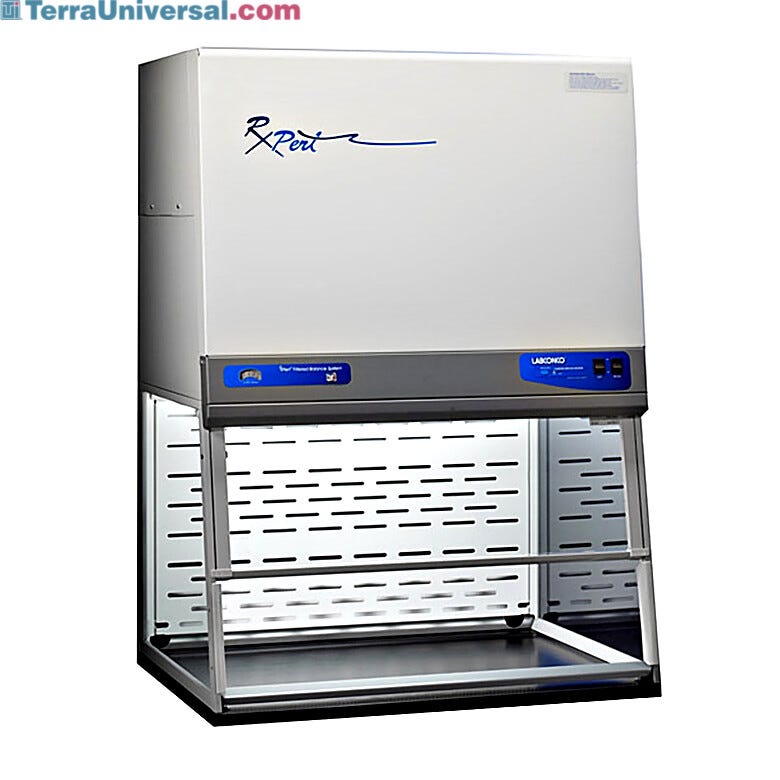

  • Negative-pressure, double-HEPA-filtered fume hood for non-sterile compounding of hazardous drugs
  • Meets USP 800 requirements for non-sterile hazardous compounding
  • Contaminated air passes through both HEPA filters before exhausting back into the room
  • Both HEPA filters can be scanned for leaks and certified without removal from the hood
  • Internal vibration-reducing supports isolate the blower motor from the work surface
  • Clean-Sweep airfoils guide inward airflow to avoid creating turbulence inside the hood
  • Integral Guardian Airflow Monitor includes an audible low-airflow alert
  • Filter backpressure gauge (left side) indicates remaining HEPA filter life
  • Bag-in/bag-out system makes contaminated HEPA filter replacement safer and easier
  • Static-dissipative coatings prevent powder from clinging to the glass and frame
  • 23.4” interior depth accommodates large balances and more equipment
  • Two 1.5” utility ports provided along the bottom of the rear baffle
  • Includes built-in fluorescent lighting (separate switches for blower and lighting)
  • Work surface included on select models

Fume Hoods by Labconco

  • Labconco RXPert Single Filtered Balance Systems Labconco RXPert Single Filtered Balance Systems

Features & Benefits

Features and Benefits

RXPert Balance System Specs

Labconco RXPert Single Filtered Balance Systems


Nominal Width (A)2 ft.3 ft.4 ft.
Weight205 lbs. (93 kg)258 lbs. (117 kg)311 lbs. (141 kg)
Dimensions
(W x D x H)
24.0" x 29.0" x 41.2"
(609.6 x 736.6 x 1046.5 mm)
36.0" x 29.0" x 41.2"
(914.4 x 736.6 x 1046.5 mm)
48.0" x 29.0" x 41.2"
(1219.2 x 736.6 x 1046.5 mm)
Electrical115V, 60Hz115V, 60Hz115V, 60Hz
Exhaust Volume (CFM)85 CFM at 60 FPM130 CFM at 60 FPM175 CFM at 60 FPM
115 CFM at 80 FPM175 CFM at 80 FPM235 CFM at 80 FPM
LightingFluorescentFluorescentFluorescent
Filter SystemHEPA (bag-in/bag-out)HEPA (bag-in/bag-out)HEPA (bag-in/bag-out)
Sash Opening (B)21.6" (549 mm)33.6" (853 mm)45.6" (1158 mm)
ConformanceANSI Z9.5, CAN/CSA C22.2,
Modified ASHRAE 110,
SEFA 1, UL 61010
ANSI Z9.5, CAN/CSA C22.2,
Modified ASHRAE 110,
SEFA 1, UL 61010
ANSI Z9.5, CAN/CSA C22.2, Modified ASHRAE 110, SEFA 1, UL 61010
Warranty2 years from date of shipment or
1 year from date of installation
2 years from date of shipment or
1 year from date of installation
2 years from date of shipment or
1 year from date of installation
Noise Levels and Exhaust at Varying Face Velocities
Nominal Width100 FPM Face Velocity80 FPM Face Velocity60 FPM Face Velocity
Exhaust (CFM)db(A)Exhaust (CFM)db(A)Exhaust (CFM)db(A)
2 ft.14553-5811550-558548-53
3 ft.22058-6117553-5813048-53
4 ft.29062-6623558-6117549-54

Bag-In/Bag-Out HEPA Filter Replacement

The bag-in/bag-out HEPA filter replacement system allows trained personnel to safely remove the dirty filters without risking exposure to harmful contaminants.

Containment Airflow

Negative-pressure airflow prevents contaminated air from escaping the enclosure, providing effective containment of hazardous powders and other particulates.

XPert Nano Enclosure Airflow

Labconco's Airflow Ionizer releases positive and negative ions into the hood that will neutralize static charges on the interior surfaces. Uncontrolled static allows powders and particles to cling to surfaces, creating a contamination hazard.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Corrosive Resistant Remote Blower
    Labconco supplies coated steel blowers designed specifically for connection to Class I containment enclosures, including XPert, RXPert, Protector XVS, and Purifier HEPA Filtered Safety Enclosures. Explosion-proof versions also available
  • Telescoping Base Stand with Fixed Feet
    Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1” increments from 27.5" to 34.5”; used with Labconco BSCs, hoods and enclosures
  • Labconco Balance Vibration Isolator
    Labconco's balance vibration isolators minimize vibration when working with sensitive balances. Each isolator consists of a thick marble slab that rests on four isolator pads and a stainless steel cover that protects the surface.
