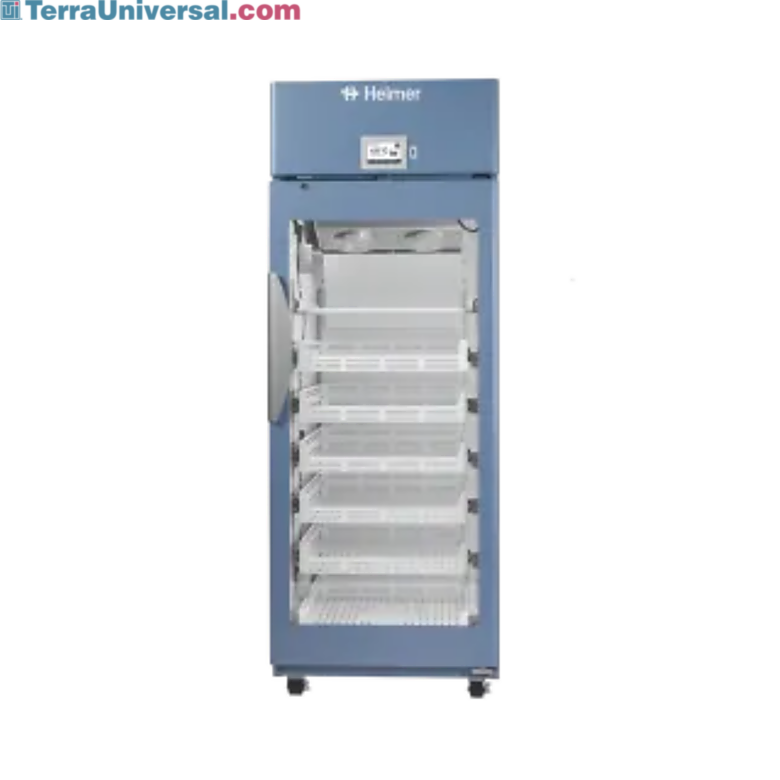

Helmer i.Series iPR120-125-GXC pharmacy refrigerator, 20.2 cu ft medical-grade upright refrigerator | 1623-11 displayed
Refrigerators (4°C),Refrigerators (4°C)

Refrigerator; Upright, Pharmacy, Medical-Grade, 20.2 cu. ft., +2°C to +10°C, i.Series GXC, iPR120-GXC, 115/240 V

Manufacturer SKU: 5125120-1
Manufactured By: Helmer Scientific
Warranty: 7-years compressor / 2-years parts / 1-year labor
  • iPR120-GXC i.Series Medical-Grade Pharmacy Refrigerator stores vaccines and medications in a precise, stable environment
  • ENERGY STAR certified 20.2 cu. ft. model factory pre-set to 5°C; ETL certified to NSF/ANSI 456 Vaccine Storage Standard
  • Features: OptiCool™ technology, i.Center® Plus 5" color touchscreen, advanced monitoring and logging, and sustainable refrigerants
  • Temperature Range: +2°C to +10°C | Set Point: +5°C
  • Includes: 1 adjustable ventilated shelf, 6 pull-out drawers, lockable dual-pane glass door (right-hinge), left sidewall and top access ports

• Manufacturer SKU: 5125120-1

• Capacity: 20.2 cu. ft.

• Configuration: Upright

• Brand: i.Series GXC

• Plug Type: US Plug

• Specialty: Pharmacy

• Type: Refrigerator

• Internal Dimensions: 24.8" W x 24" D x 58.1" H

• Refrigerator Temperature Range: +2°C to +10°C

• Door Swing: Right Hinge

• Set Point Temperature: 5°C

• Unit of Measure: EA

Read more
Energy Star SNAP Compliant
Manufacturer SKU: 5125120-1
Manufactured By: Helmer Scientific
Warranty: 7-years compressor / 2-years parts / 1-year labor
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
1623-11
Terra Part # 1623-11
$6,796
Accessories related to Terra Part # 1623-11
90337
Refrigerator; Upright, Pharmacy, Medical-Grade, 20.2 cu. ft., +2°C to +10°C, i.Series GXC, iPR120-GXC, 115/240 V
View Shopping Cart View Quote Cart
Configure & Add to Cart
Terra Part # 1623-11 $6,796
Configure & Add to Cart
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • iPR120-GXC i.Series Medical-Grade Pharmacy Refrigerator stores vaccines and medications in a precise, stable environment
  • ENERGY STAR certified 20.2 cu. ft. model factory pre-set to 5°C; ETL certified to NSF/ANSI 456 Vaccine Storage Standard
  • Features: OptiCool™ technology, i.Center® Plus 5" color touchscreen, advanced monitoring and logging, and sustainable refrigerants
  • Temperature Range: +2°C to +10°C | Set Point: +5°C
  • Includes: 1 adjustable ventilated shelf, 6 pull-out drawers, lockable dual-pane glass door (right-hinge), left sidewall and top access ports
  • i.Center® Plus User Interface and GXC i.Series Features:
  • 5" color touchscreen display, °C or °F
  • Continuous temperature monitoring with interactive temperature graph
  • Event log records all alarms and door openings, downloadable via USB
  • Temperature log and access log downloadable via USB
  • CSV and PDF data export via USB
  • Password protected settings; PIN access via optional integrated access control
  • Alarms: high/low (fully adjustable), door ajar (fully adjustable), compressor temperature, and power failure
  • Min/max temperature display and reset
  • Connectivity: Ethernet/API, USB, remote alarm contacts
  • Updated cybersecurity protocols for enhanced data protection
  • 20-hour rechargeable battery backup
  • OptiCool™ Technology: variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants optimize temperature uniformity, recovery, and stability for vaccine and medication storage; efficiently manages energy consumption and meets evolving environmental regulations
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Evaporator Type: Direct expansion with forced-air fin and tube
  • Supports sustainability with U.S. EPA SNAP compliant natural refrigerants
  • Refrigerant: R600a, Isobutane
  • Automatic defrost method
  • Cap tube expansion device
  • Additional Features:
  • ETL certified to NSF/ANSI 456 Vaccine Storage Standard
  • 50-65% more energy efficient than traditional medical-grade models
  • ENERGY STAR® certified
  • Coated drawer slides resist harsh chemical cleaners
  • Remote alarm contacts for facility integration
  • Material: Dual-pane glass door, bacteria-resistant powder-coated interior, exterior, and shelves
  • 1 adjustable ventilated shelf and 6 pull-out drawers
  • Power plug: NEMA 5-15 hospital-grade | 115V 60Hz, 10 ft (3.0m)
  • Left sidewall and top access ports
  • 20-hour display and alarm battery backup | Rechargeable 12V, lead acid
  • Certificate of Calibration included, generated with ISO 17025 certified reference thermometer
  • Options and accessories: Contact a Terra Product Specialist for details

• Manufacturer SKU: 5125120-1

• Capacity: 20.2 cu. ft.

• Configuration: Upright

• Brand: i.Series GXC

• Plug Type: US Plug

• Specialty: Pharmacy

• Type: Refrigerator

• Internal Dimensions: 24.8" W x 24" D x 58.1" H

• Refrigerator Temperature Range: +2°C to +10°C

• Door Swing: Right Hinge

• Set Point Temperature: 5°C

• Unit of Measure: EA

• Marks & Listings: UL, CSA

• Electrical Specifications: 115/240 V, 50/60 Hz

• Weight, Product: 412 lb

• Dimensions, Product: 29" W x 28.1" D x 79" H

• Weight, Shipping: 475 lb

Show more
Other products you may find relevant
  1. Workstations & Tables
    Group of 44 products
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Group of 574 products
    Metro Shelving Systems
  4. Carts
    Carts
  5. Brick-and-mortar, ISO 7 cleanroom for high-throughput packaging of medical devices
    Cleanroom, Stick-Built Assembly
    Request Quote
    Usually Ships in 20 - 30 days
  6. Biocontainment laboratories by Germfree offer ISO-rated modules configured in multi-building, multi-level layouts.
    Biocontainment Laboratories by Germfree
    Request Quote
Buy Accessories
  1. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up
  2. Icon to use for TrueBlue™ Delivery and Set-Up by Helmer Scientific | 9999-TrueBlue displayed
    Helmer® Scientific TrueBlue™ Delivery and Set-up
    Request Quote
    Increase Down Increase Up

Features and Benefits

OptiCool Technology

GXC i.Series and Horizon Refrigerators with OptiCool™ deliver optimal temperature uniformity, quiet operation, and energy efficiency with a variable capacity compressor and natural hydrocarbon refrigerants

i.Center® Plus Touchscreen Interface

The i.Center® Plus touchscreen provides continuous temperature monitoring, interactive temperature graphing, event and access logs, password-protected security settings, and CSV/PDF data export via USB
Products similar to this one
  1. Medical-grade GX Horizon Upright Lab Refrigerators in five capacity sizes include ventilated shelves, casters, controller and OptiCool technology
    Group of 2 products
    GX Horizon Upright Laboratory Refrigerators by Helmer Scientific From
    As low as $6,875
    Some ship in 10 - 16 days
  2. Energy-efficient iLR105-GX Lab ADA Undercounter Refrigerator by Helmer Scientific in 5.3 cu. ft. model with Advanced iC3 interface | 6707-17A displayed
    Helmer Scientific iLR105-GX i.Series Medical Grade ADA Undercounter Lab Refrigerator by 5.3 cu. ft., 4°C Setpoint, Solid Door, 115 V, 5112105-1
    $3,841
    Usually Ships in 10 - 16 days
  3. iPR226-GX i.Series Pass Thru Pharma Refrigerator with 3 shelves, 3 drawers and OptiCool meets CDC vaccine storage guidelines and USP 797 cleanroom requirements | 1621-38 displayed
    Group of 2 products
    GX i.Series Pass Thru Pharmacy Refrigerators by Helmer Scientific From
    As low as $10,921
    Some ship in 10 - 16 days
  4. GX i.Series 2-door Pharmacy Refrigerators with OptiCool and i.C3 interface include ventilated shelves (2) and drawers (12); in 44.9, and 56.0 cu ft. models | 6707-44A displayed
    Group of 2 products
    GX i.Series Medical-Grade Upright Pharmacy Refrigerators by Helmer Scientific From
    As low as $9,297
    Some ship in 10 - 16 days

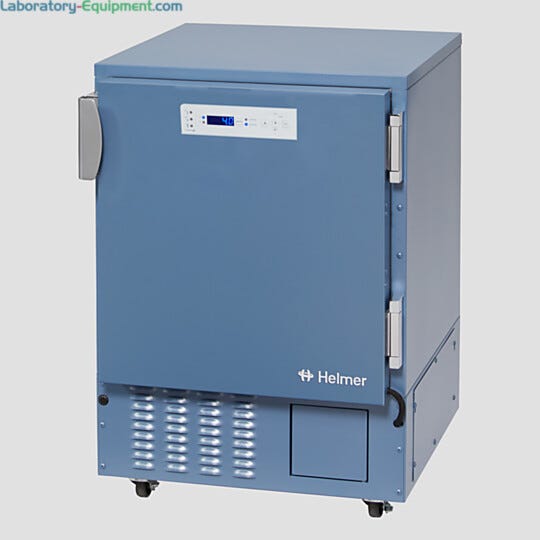

  5. HPR105-GX Horizon Medical-grade ADA-compliant Undercounter Pharmacy Refrigerator with LED digital microprocessor, built-in alarm/monitor and OptiCool; 5.3 cu. f | 6707-32 displayed
    Helmer Horizon Medical-Grade ADA Undercounter Pharmacy Refrigerator 5.30 cu. ft. +2°C to +10°C 5°C Setpoint 115 V 5116105-1
    $3,547
    Usually Ships in 10 - 16 days

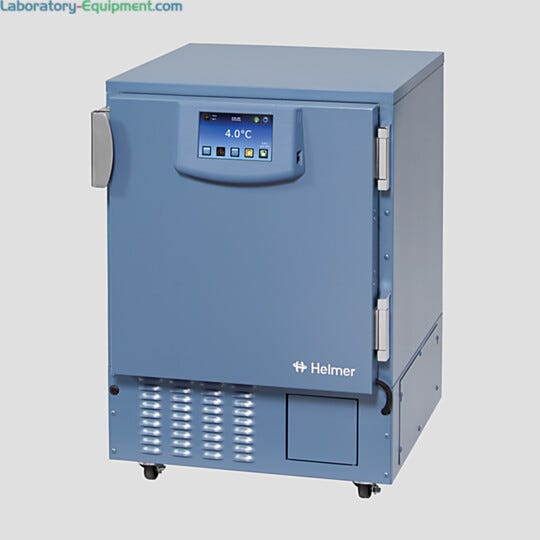

  6. NSF/ANSI 456 certified iPR105-GX i.Series Medical-Grade ADA Undercounter Pharmacy Refrigerator with i.C3 advanced monitoring and OptiCool, 5.3 cu. ft. | 6707-31 displayed
    iPR105-GX i.Series ADA Undercounter Pharmacy Refrigerator by Helmer Scientific, 5.30 cu. ft., 5°C Setpoint, Solid Door, 115 V, 5115105-1
    $4,296
    Usually Ships in 10 - 16 days
  7. GX Horizon 1-Door Pharmacy Refrigerators with OptiCool and digital microprocessor include 1 ventilated shelf and 6 drawers; in 20.2 and 25.5 cu. ft. models | 6707-26A displayed
    Group of 2 products
    GX Horizon Medical-Grade Upright Pharmacy Refrigerators by Helmer Scientific From
    As low as $8,259
    Some ship in 10 - 16 days
  8. Energy-efficient HLR105-GX Lab ADA Undercounter Refrigerator by Helmer Scientific in 5.3 cu. ft. with Horizon controller | 6707-18A displayed
    Helmer Scientific HLR105-GX Horizon Medical Grade ADA Undercounter Lab Refrigerator by 5.3 cu. ft., 4°C Setpoint, Solid Door, 115 V, 5113105-1
    $3,312
    Usually Ships in 10 - 16 days

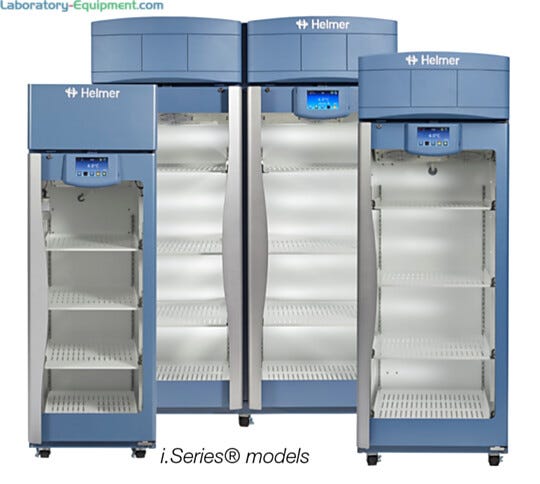

  9. GX i.Series Medical-Grade Upright Laboratory Refrigerators by Helmer Scientific with i.C3 Advanced Monitoring and Control, OptiCool and ventilated shelves
