- Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
- Protects technicians working in radiopharmacy labs and patients in imaging rooms from radiation exposure

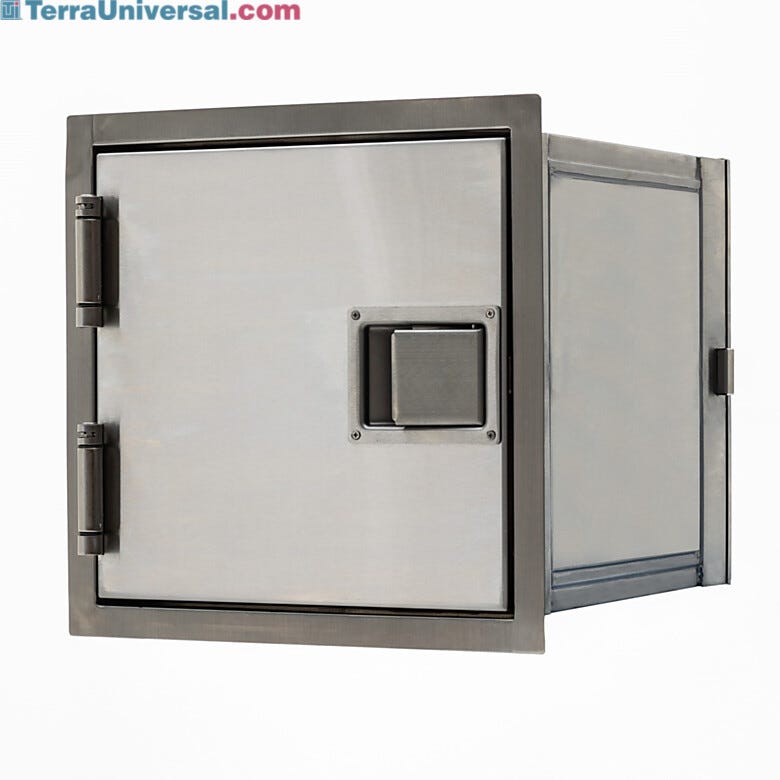

- Doors and walls feature 1/4" QQ-L-201F Certified Grade B lead lining to allow instruments and supplies to pass in and out of the room safely
- Sanitary stainless steel surface minimizes particle shedding and is highly corrosion resistant
- Increased x-ray/gamma protection suitable for nuclear medicine and radiological applications
- Interlock minimizes contamination exposure while materials are transferred to and from cleanroom
• Mounting Position: Flush Wall
• Model: Lead-Lined
• HEPA/ULPA Filtration: No
• Material: 304 or 316L SS
• Continuous-Seam Welds: No
• Concealed Interlock: No
• Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
• Unit of Measure: of 1
The simplicity of this CleanMount clamping system makes removal of the pass-through chamber just as easy as installation. If the wall cut-out framing is properly sealed prior to installation, the pass-through can be quickly removed and replaced without ever having to shut down the cleanroom. Maintain the positive-pressure differential and protect the cleanroom environment by sealing off the "dirty side" with plastic sheeting prior to removal. Loosen the lag bolt so that the pass-through lifts out of the wall without contaminating the room. Once out, the pass-through can be serviced, modified, or even replaced with an upgraded version to accommodate new applications.
Finish cut-out framing to minimize contamination exposure during servicing Terra's quick-mount system installs in under five minutes, regardless of wall thickness and without contamination
Access Clearances
