Terra Part # 3030-25
Request Quote
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3030-25
60457

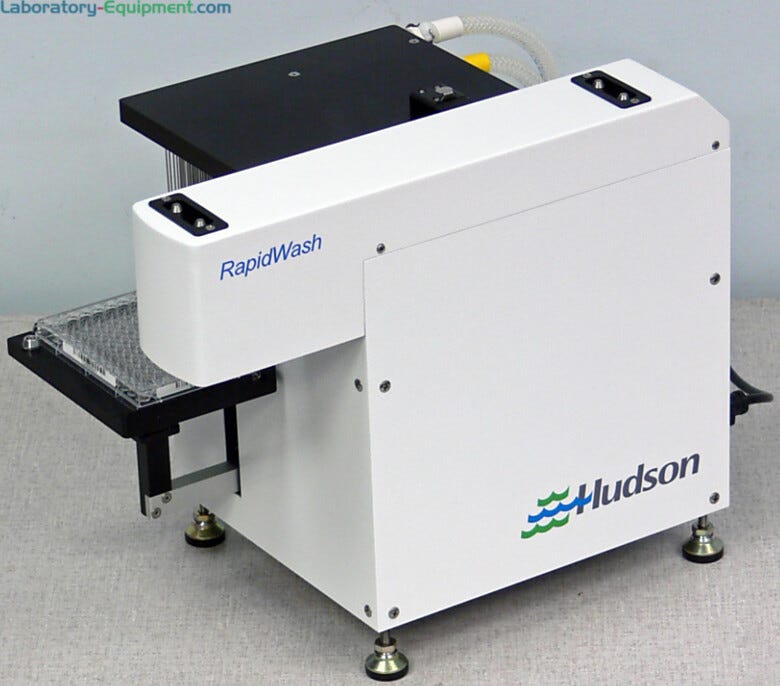

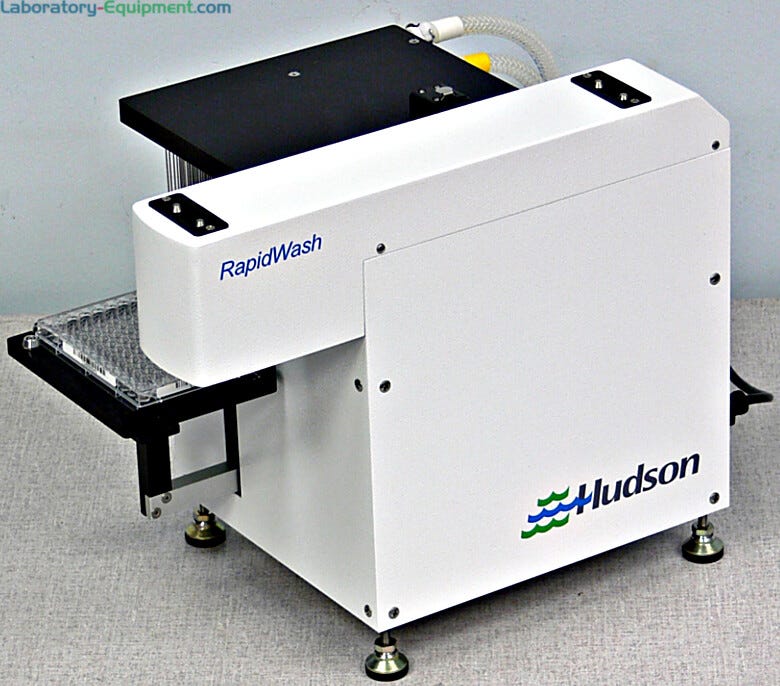

Microplate Washer; RapidWash, Hudson Robotics, 115/220 V

• Dispense Volumes: 5µL and up - below 2% CV; 2-5µL - below 5% CV

• Dispense Pressure: 9 - 15 psi

• Air Supply: 40 - 80 psi; 1 SCFM

• Vacuum: -25 in. Hg (minimum); 1.2 SCFM

• Software Integration

• Electrical Requirements: 115/220VAC, 2A

• Configuration: available in 192-nozzle and 96-nozzle dispense/wash heads


• Includes graphical programming terminal, 192-channel aspirate and dispense manifolds, manual load station, pressurized source vessel, and vacuum waste vessel with level sensors

Type: Microplate Washer

Model: RapidWash

Manufactured by: Hudson Robotics

Sample Type: Microplates

Configuration: Multi Channel

Manufacturer SKU: 520001

Capacity: [xxx]

Unit of Measure: EA

Marks & Listings: CE, CSA

Electrical Specifications: 115/220 V

Weight, Product: 25 lb

Dimensions, Product: 13" W x 11" D x 15" H

Weight, Shipping: 40 lb

Dimensions, Shipping: 19" W x 17" D x 21" H

Package Type: Crate

Buy Accessories
  1. RapidWash automated plate loading mechanism
    Request Quote
    Increase Down Increase Up
  2. SoftLinx Plug-in, for RapidWash
    Request Quote
    Increase Down Increase Up
  3. Hudson RapidWash Integration
    Request Quote
    Increase Down Increase Up
  4. Equipment Testing and Certification
    Request Quote
    Increase Down Increase Up
  5. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Low-Cost ELISA Workstation

Combine Automated RapidWash Microplate Washer with other Hudson Robotic liquid handling systems such as the PlateCrane EX, the Micro10X or the SOLO Robotic Pipettor (shown) for a compact and economical ELISA Workstation

Accepts Deep Well Plates

RapidWash processes both standard and deep-well microplates; users can easily program dispensing and aspiration to match the vessels.

High-Throughput Washer for Standard Plates

The RapidWash quickly processes standard microplate sizes, allowing for integration into High Throughput Screening (HTS) workflows.
