Hydrogen Generators

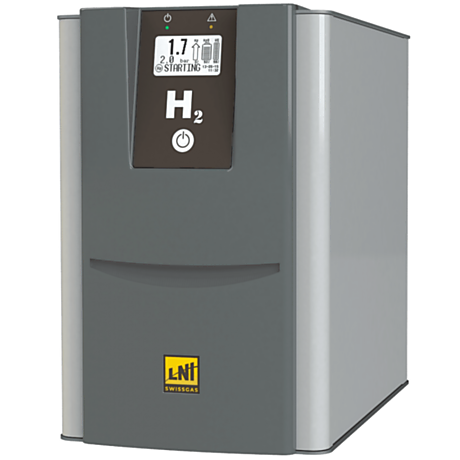

HG Pro PEM Hydrogen Generators by LNI Swissgas
Group of 10 products
7200-PP-06

Request Quote

ISO 8 Icon

2 Voltage10 Model10 Manufacturer SKU1 Certified ISO Grade Design1 Dew Point1 Drying System10 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
HG Pro PEM Hydrogen Gas Generators in 10 flowrate capacities feature a long-life multilayer electrolytic cell with a polymeric membrane
High flowrate up to 1500 cc/min
High pressure 12 bars (174 psi); optional 16 bars (232 psi)
Maintenance-free Pressure Swing Adsorption (PSA) drying system provides continuous operation 24-hours a day
Features a 3-liter internal tank, touchscreen LCD interface, auto refill and a 99.99999% H2 purity
Voltage: 100/240 V, 100-240V
Model: HG PRO 120, HG PRO 180, HG PRO 260, HG PRO 350, HG PRO 500, HG PRO 700, HG PRO 900, HG PRO 1100, HG PRO 1300, HG PRO 1500
Manufacturer SKU: 6920.15.012, 6920.15.018, 6920.15.026, 6920.15.035, 6920.15.050, 6920.15.070, 6920.15.090, 6920.15.105, 6920.15.130, 6920.15.150
Certified ISO Grade Design: ISO 8
Dew Point: -75C°
Drying System: PSA
H2 Flowrate: 120 cc/min, 180 cc/min, 260 cc/min, 350 cc/min, 500 cc/min, 700 cc/min, 900 cc/min, 1100 cc/min, 1300 cc/min, 1500 cc/min
Pressure: 12 bar (174 psi)

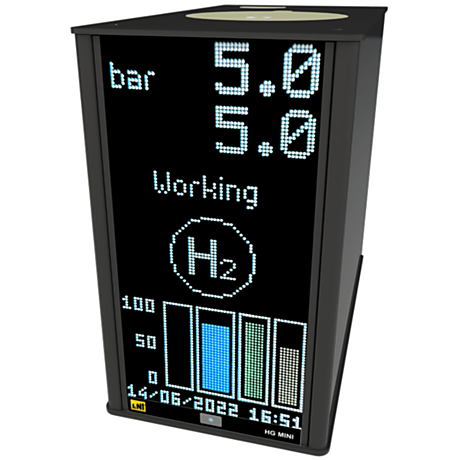

HG Mini PEM Hydrogen Generators by LNI Swissgas
Group of 4 products
7200-PP-01

Request Quote

Some ship in 15 - 20 days
ISO 8 Icon

1 Voltage4 Model3 Manufacturer SKU1 Certified ISO Grade Design2 Dew Point2 Drying System2 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
Compact HG Mini PEM Hydrogen Generators with a patented 1 liter integrated tank eliminate the use of cylinders as a carrier gas
Electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
H2 Flowrate: 150 cc/min; 300 cc/min
Outlet Pressure: up to 10 bar (145 psi)
Drying System: Static Dryer, or Static dryer and Desiccant column
Voltage: 100-240V
Model: HG Mini 150, HG Mini 150 D, HG Mini 300, HG Mini 300 D
Manufacturer SKU: 6920.20.015, 6920.20.015.1, 6920.20.030.1
Certified ISO Grade Design: ISO 8
Dew Point: -30°C, -60°C
Drying System: Static Dryer, Static Dryer and Desiccant System
H2 Flowrate: 150 cc/min, 300 cc/min
Pressure: 10 bars (145 psi)

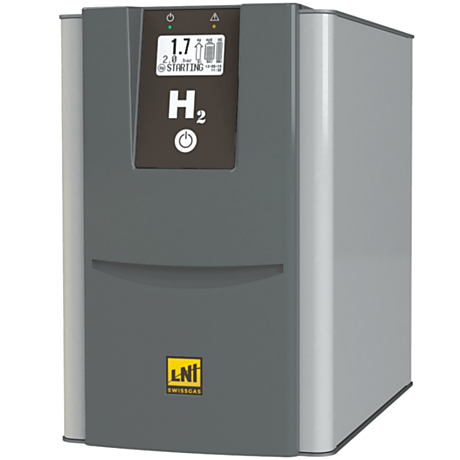

HG Basic PEM Hydrogen Generators by LNI Swissgas
Group of 6 products
7200-PP-02

Request Quote

Some ship in 15 - 20 days
ISO 8 Icon

1 Voltage6 Model6 Manufacturer SKU1 Certified ISO Grade Design2 Dew Point1 Drying System6 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
HG Basic PEM Hydrogen Generators with a flowrate up to 700 cc/min, high pressure up to 10 bar (145 psi) and high purity up to 99.9999%
Long life multilayer electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
Maintenance-free gas generators continuously operate 24 hours a day
Connects up to 20 units in parallel mode using an external control box (sold separately)
Features a static dryer, 3-liter internal tank, a touch-screen LCD interface an on-board CPU, and a 3L internal tank
Voltage: 100-240V
Model: HG BASIC 120, HG BASIC 180, HG BASIC 260, HG BASIC 350, HG BASIC 500, HG BASIC 700
Manufacturer SKU: 6920.10.012, 6920.10.018, 6920.10.026, 6920.10.035, 6920.10.050, 6920.10.070
Certified ISO Grade Design: ISO 8
Dew Point: -20°C, -20C°
Drying System: Static Dryer
H2 Flowrate: 120 cc/min, 180 cc/min, 260 cc/min, 350 cc/min, 500 cc/min, 700 cc/min
Pressure: 10 bars (145 psi)

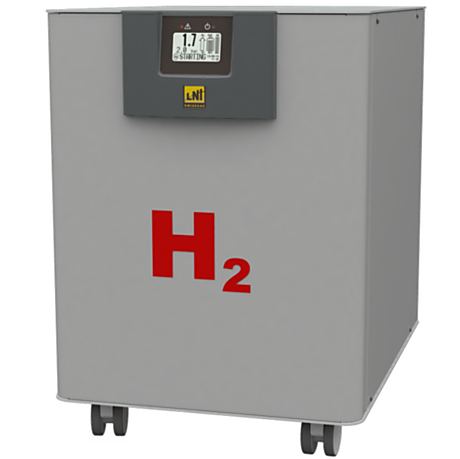

HG Pro M PEM Hydrogen Generators by LNI Swissgas
Group of 2 products
7200-PP-03

Request Quote

Some ship in 20 - 30 days
ISO 8 Icon

1 Voltage2 Model2 Manufacturer SKU1 Certified ISO Grade Design2 Dew Point1 Drying System1 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
Easy-to-use HG Pro M PEM Hydrogen Generators with a 20-liter internal tank capacity ideal for all GC-FID detectors
Long-life multilayer electrolytic cell with polymeric membrane (PEM) eliminates the need for acid or alkaline solutions
Maintenance-free two-column PSA drying system with automatic regeneration ensures maximum grade of hydrogen purity
High flowrate up to 4000 cc/min and high pressure 12 bar (174 psi); optional 16 bar (232 psi)
High pressure GLS electronically controlled (patented)
Voltage: 180-264 VAC
Model: HG Pro 4M LN, HG Pro 4M
Manufacturer SKU: 6920.30.004.1, 6920.30.004
Certified ISO Grade Design: ISO 8
Dew Point: -80°C, -75°C
Drying System: PSA
H2 Flowrate: 4000 cc/min
Pressure: 12 bar (174 psi)

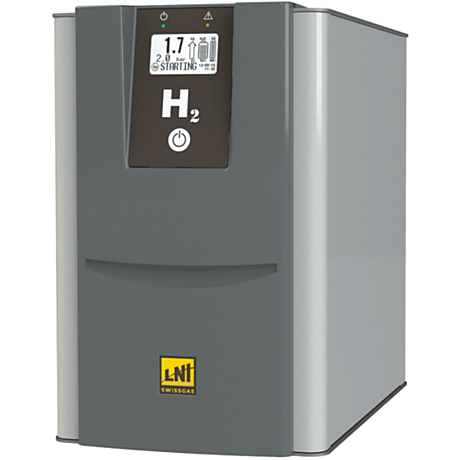

HG Pro LN PEM Hydrogen Generators by LNI Swissgas
Group of 5 products
7200-PP-04

Request Quote

Some ship in 15 - 20 days
ISO 8 Icon

5 Model5 Manufacturer SKU1 Certified ISO Grade Design2 Dew Point1 Drying System1 N2 Content5 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
HG Pro LN PEM Hydrogen Gas Generators with 3L tank and a long-life multilayer PEM cell eliminate the need for acids and alkaline solutions
Flowrate: (700 cc/min, 900 c/min, 1100 cc/min, 1300 cc/min and 1500 cc/min)
N2 content: < 1 ppm
Standard outlet pressure: 12 bars (174 psi); 16 bar (232 psi) optional
Maintenance-free gas drying system (two-column PSA drying system with a continuous operation of 24 hours a day)
Model: HG PRO 700 LN, HG PRO 900 LN, HG PRO 1100 LN, HG PRO 1300 LN, HG PRO 1500 LN
Manufacturer SKU: 6920.15.070.1, 6920.15.090.1, 6920.15.105.1, 6920.15.130.1, 6920.15.150.1
Certified ISO Grade Design: ISO 8
Dew Point: -75C°, -80C°
Drying System: PSA
N2 Content: <1 ppm
H2 Flowrate: 700 cc/min, 900 cc/min, 1100 cc/min, 1300 cc/min, 1500 cc/min
Pressure: 12 bar (174 psi)

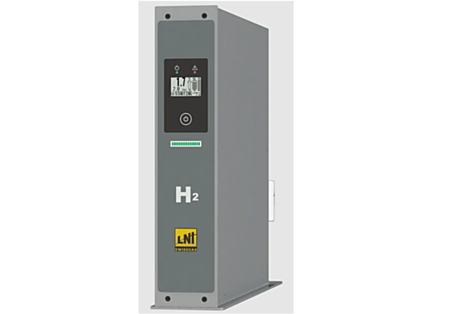

HG ST Basic PEM Hydrogen Generators by LNI Swissgas
Group of 5 products
7200-PP-05

Request Quote

Some ship in 15 - 20 days
ISO 8 Icon

1 Voltage5 Model5 Manufacturer SKU1 Certified ISO Grade Design1 Dew Point1 Drying System5 H2 Flowrate1 Pressure
Save For Later
Available Certified ISO Grade Designs: ISO 8
Compact and quick-to-install HG ST BASIC PEM Hydrogen Gas Generators with PEM technology eliminate the need for acids and alkaline solutions
Flowrates from 120 to 600 cc/min, 10 bar pressure, and a purity up to 99.9999%
Maintenance-free static drying system ensures maximum grade of hydrogen purity
Applications: GC-FID, GC-NPD, GC-FPD, THA
Included: static dryer and a 0.3L internal tank
Voltage: 100-240V
Model: HG ST BASIC 120, HG ST BASIC 160, HG ST BASIC 250, HG ST BASIC 350, HG ST BASIC 600
Manufacturer SKU: 6920.05.012, 6920.05.016, 6920.05.025, 6920.05.035, 6920.05.060
Certified ISO Grade Design: ISO 8
Dew Point: -25C°
Drying System: Static Dryer
H2 Flowrate: 120 cc/min, 160 cc/min, 250 cc/min, 350 cc/min, 600 cc/min
Pressure: 10 bars (145 psi)
