Terra Part # 2641-20A
$2,571
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 2641-20A
60495

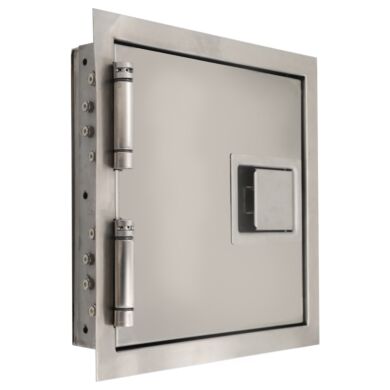

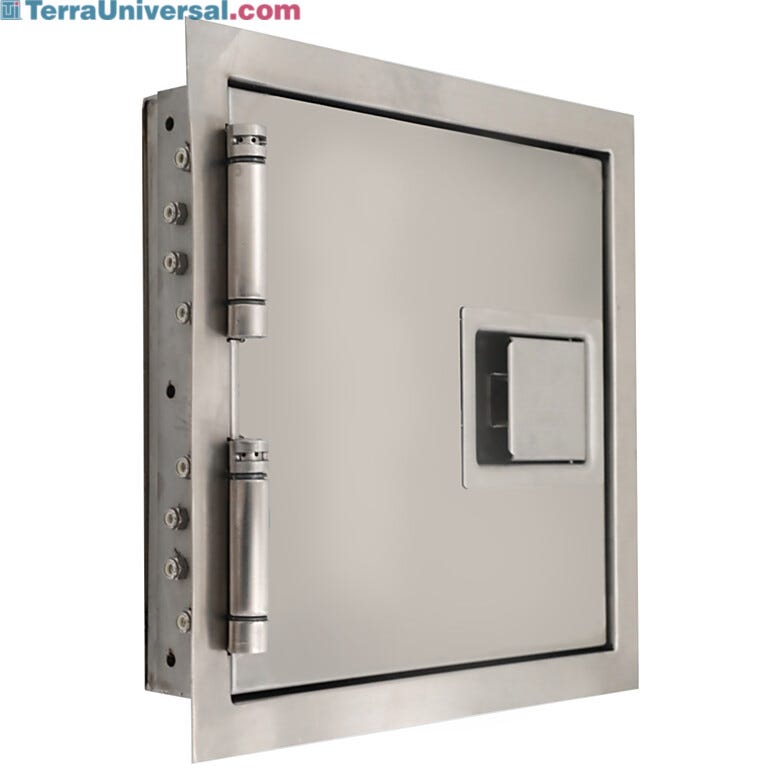

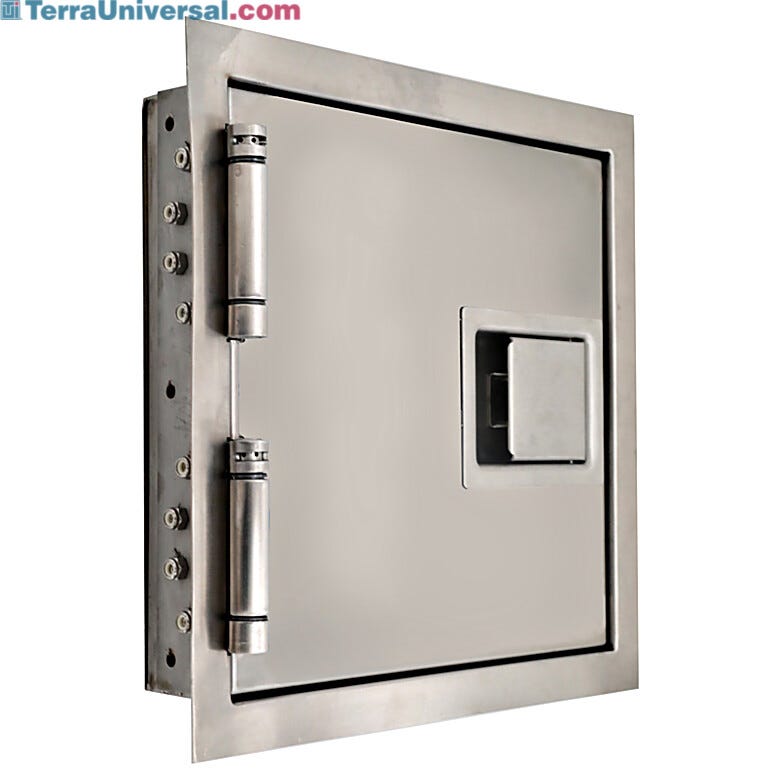

Access Door; Fire-Rated, Insulated, for Pass-Throughs, 14" W x 2.6" D x 14" H, Stainless Steel Frame

• Fire-rated insulated access door carries the UL-10B label for 90-minute fire exposure

• Max. Temperature rise of 250 degrees F after 30 minutes

• 304 stainless steel construction is compatible with most critical environments, including labs and cleanrooms

• Self-closing, self-latching door with internal latch release ensures compatibility with fire requirements

• Fire-rated side features 1-inch mounting flange with easy-clean, smooth stainless steel finish

• Custom door sizing and electrical add-ons, such as UV light or temperature control, invalidates the product's UL listing

• Order opposite-side mounting flange separately

Door Style: Fire-Rated

Frame Material: Stainless Steel

Height: 12"

Mounting Position: Flush Wall

Width: 12"

Electropolished: Optional

Window Material: No Window

Wall Thickness: 2.5"

Unit of Measure: EA

Marks & Listings: CE, UL, ULC, UL 10B Fire Rated

Weight, Product: 14 lb

Dimensions, Product: 14" W x 2.6" D x 14" H

Weight, Shipping: 19 lb

Dimensions, Shipping: 19.5" W x 19.25" D x 7" H

Package Type: Crate

Buy Accessories
  1. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  2. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  3. Electropolish Service
    Request Quote
    Increase Down Increase Up

Features and Benefits

Fire-Rated Pass-Through Glass Window

The wire-free glass-ceramic incorporate a surface-applied, fire-rated film and is impact rated for additional safety. These windows feature a high level of clarity and offer protection from either side.

Spring-Loaded Fire-Rated Passthrough Hinge

Spring-loaded hinges provide the self-closing capability required in a fire-rated wall. Automatic closing doors also simplify operation for operators with hands full.

Insulated Fire-Rated Pass-Through Door

Terra’s fire-rated door meets UL 10B requirements for 90-minute fire exposure, including hose-stream testing. The inside of the door is lined with 2”-thick SuperWool® Plus insulation to reduce heat transfer from elevated room temperatures.

High Caliber Hardware

Don’t be concerned about the quality, durability, and craftsmanship of your latches, ports, glides and hinges. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Electropolish Finish
    Electropolishing increases corrosion resistance, improves ease of cleaning, and provides a smooth and bright finish.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
