Gallery

Vacuum Nitrogen Pass-Through Oven

Pass-through oven provides a convenient, fast way to dry or degas parts before transfer into glove box chamber

Bellows Eyepiece Interface

This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering.

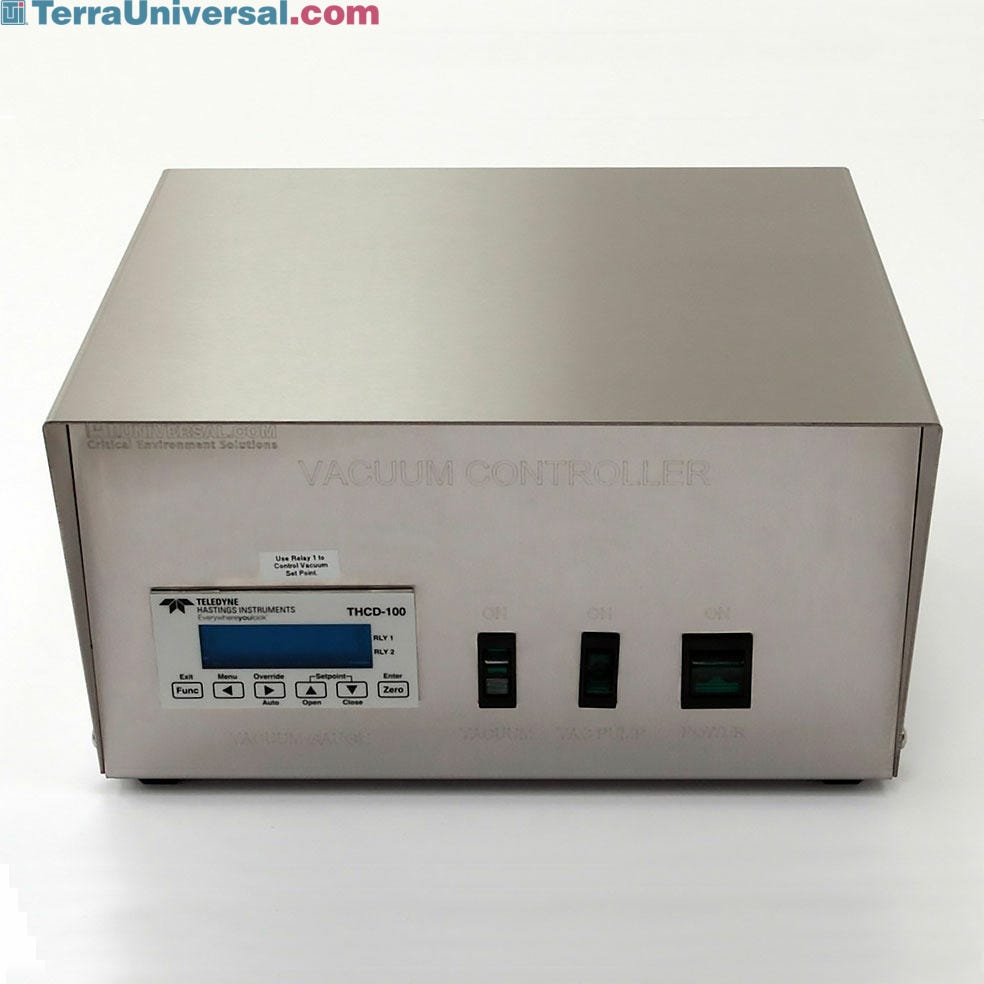

Vacuum Control Module

This automatic Vacuum Control Module is especially important in testing or processing applications that require sustained exposure to a precisely regulated vacuum level it helps extend the service life of your vacuum pump by allowing continuous pump operation.

Custom Series 300 Glove Box Isolator for Stereotactic Radiosurgery

This custom glovebox is used for handling medical-grade Cobalt for Cancer treatment, such as stereotactic radiosurgery. Tilt-up window provides easy access and maneuvering of materials by the operator.

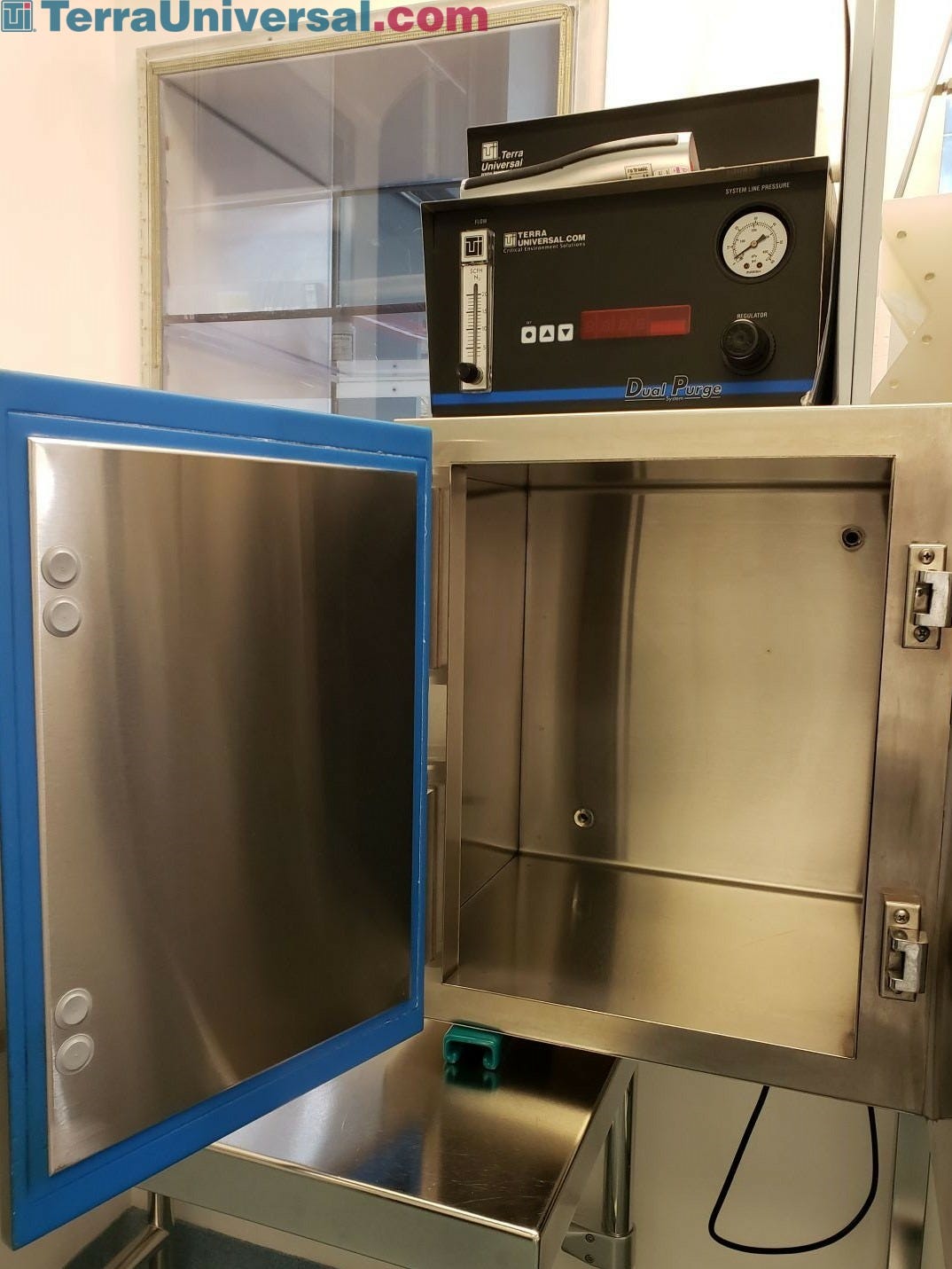

Stainless Steel Airlock for Series 600 Glovebox

This stainless steel airlock provides a transfer space for series 600 glovebox. No lip design maximizes useable space. Stainless steel liftlatches operate without strain to hinges and eliminate corrosion and contamination.

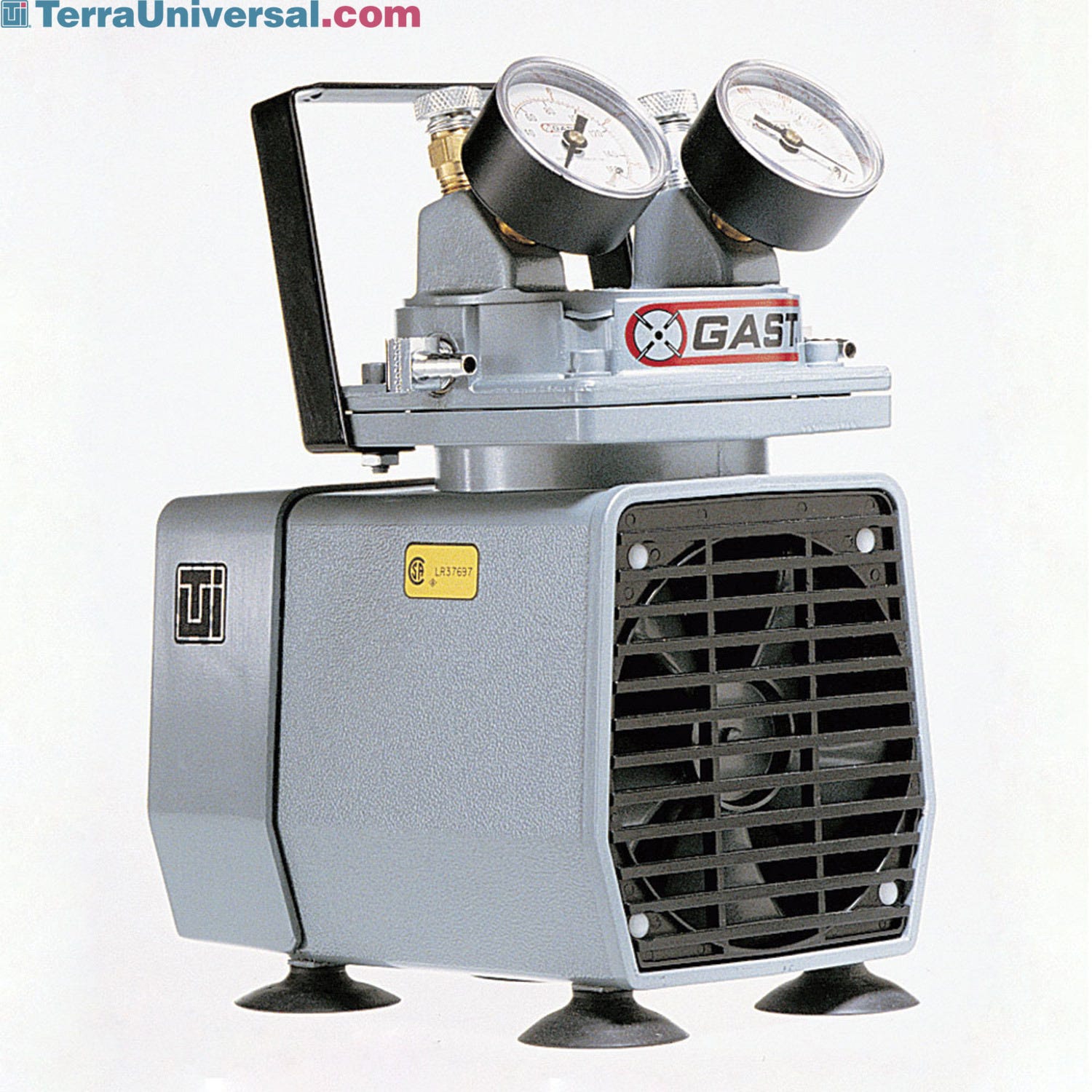

Vacuum Pressure Pump Diaphragm

Oil-free and noiseless operation makes this motor-mounted unit one of the best suited vacuum pumps available for cleanroom environments.

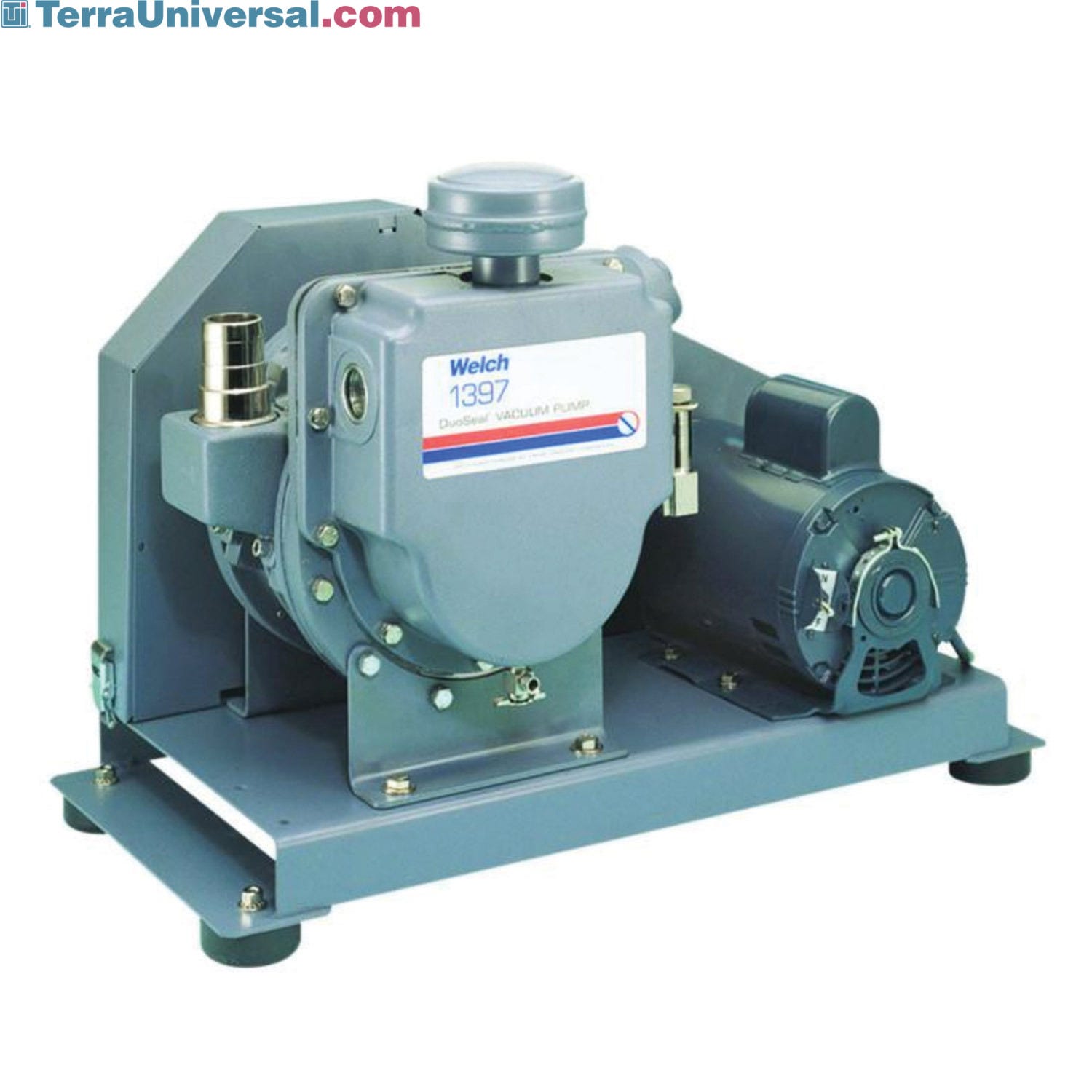

Duo Seal Vacuum Pump

Welch DuoSeal Vacuum Pump has a belt-driven, oil-seal design that extends durability and service life even under harsh operation conditions.

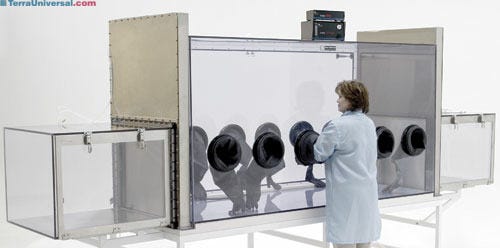

Low Humidity Glovebox with Footswitch-Activated Pneumatic Doors

Low humidity glovebox isolator with footswitch-activated pneumatic doors to simplify transfer of large parts through antechambers

Stainless Steel Filtration Module; for Terra Glove Boxes, Open Loop Operation Only

Ion Bar Kit for Glovebox; 11"

Ion bar kit safely neutralizes charges to protect against electro-static charges. Attaches to inside ceiling of glovebox. Ion bar sold separately.

Ion Bar Kit for Glovebox; 11"

Ion bar kit safely neutralizes charges to protect against electro-static charges. Attaches to inside ceiling of glovebox. Ion bar sold separately.

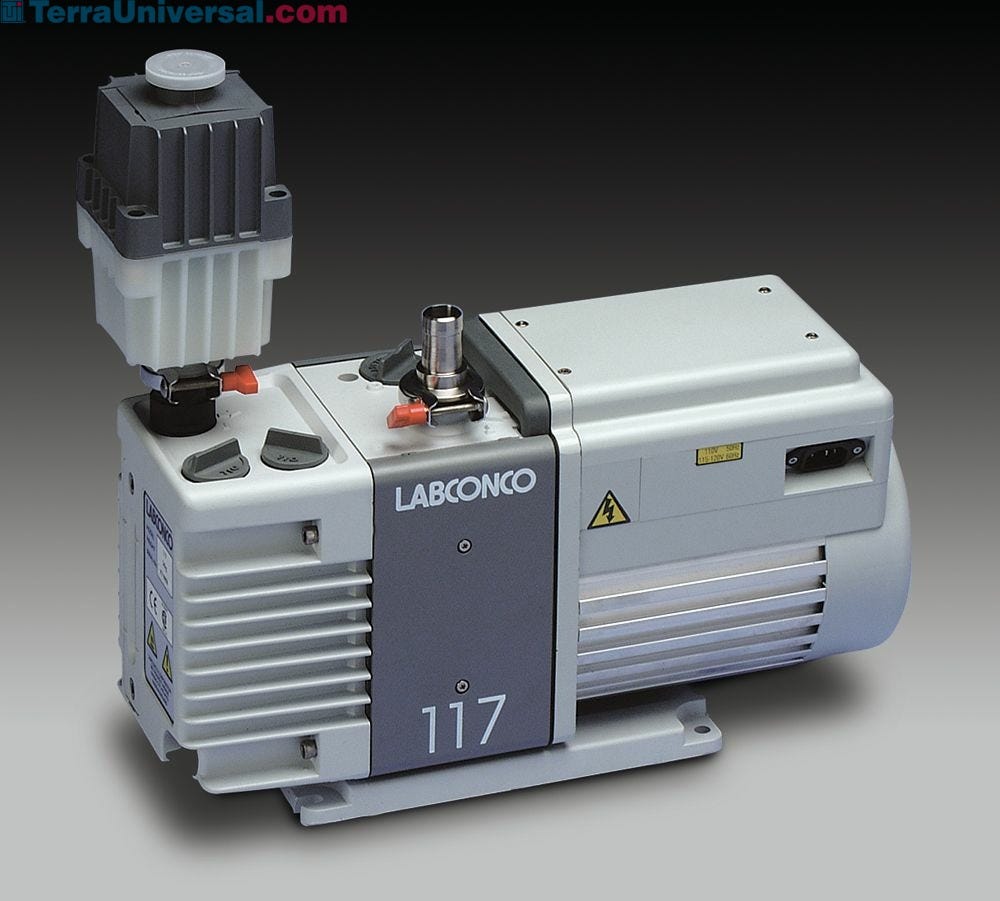

Labconco Rotary Vane Vacuum Pump for FreeZone

Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.

Glove Port, Plastic, for 10"-Diameter Ports

10"-diameter convertible glove ports accept iris port adapters and port covers for versatile use; made of ABS plastic with flange for glove attachment

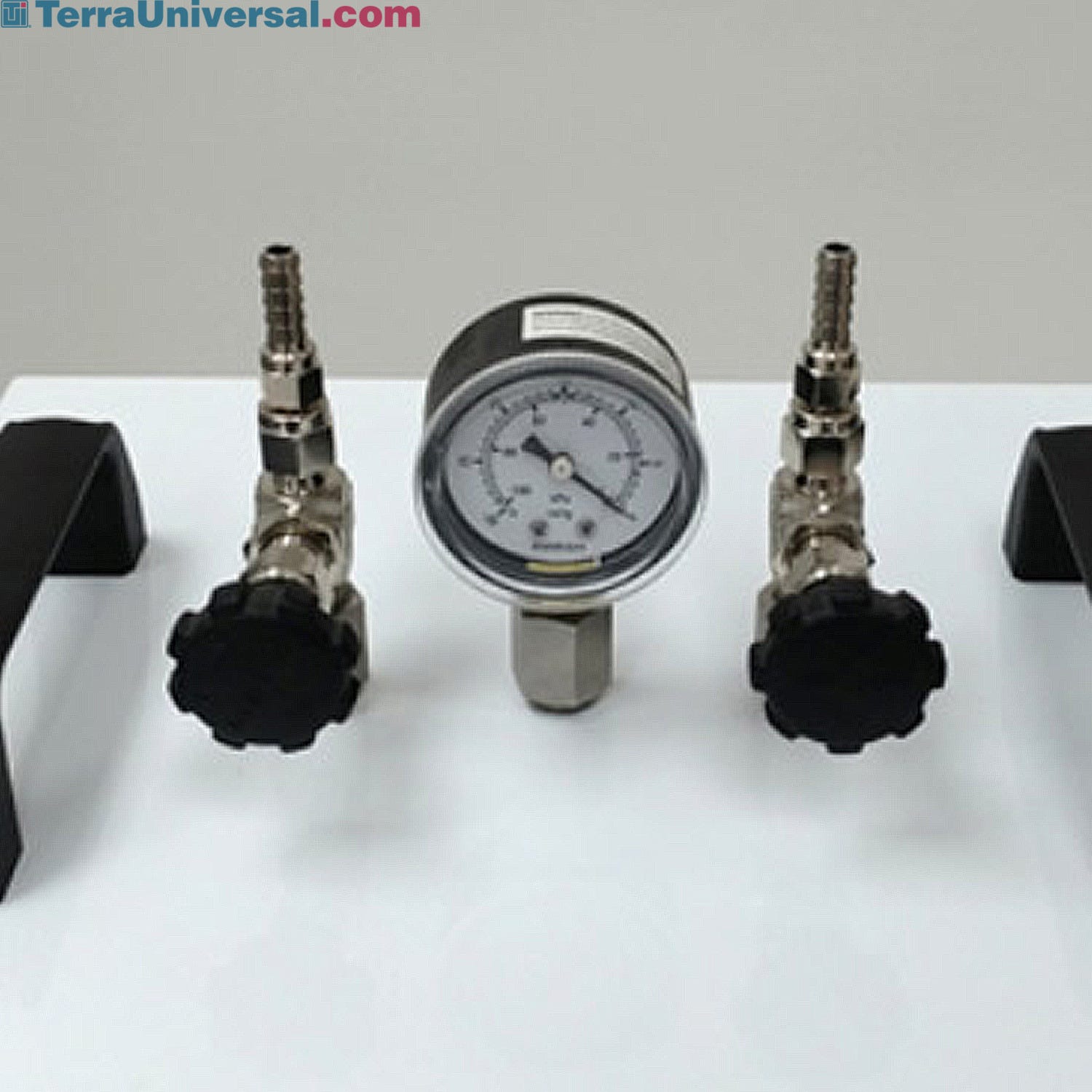

Installed Vacuum Gauge and Metering Valves

Gauges and valves preinstalled on vacuum chambers allow vacuum application, monitoring, bleeding and backfilling (shown mounted on aluminum chamber).

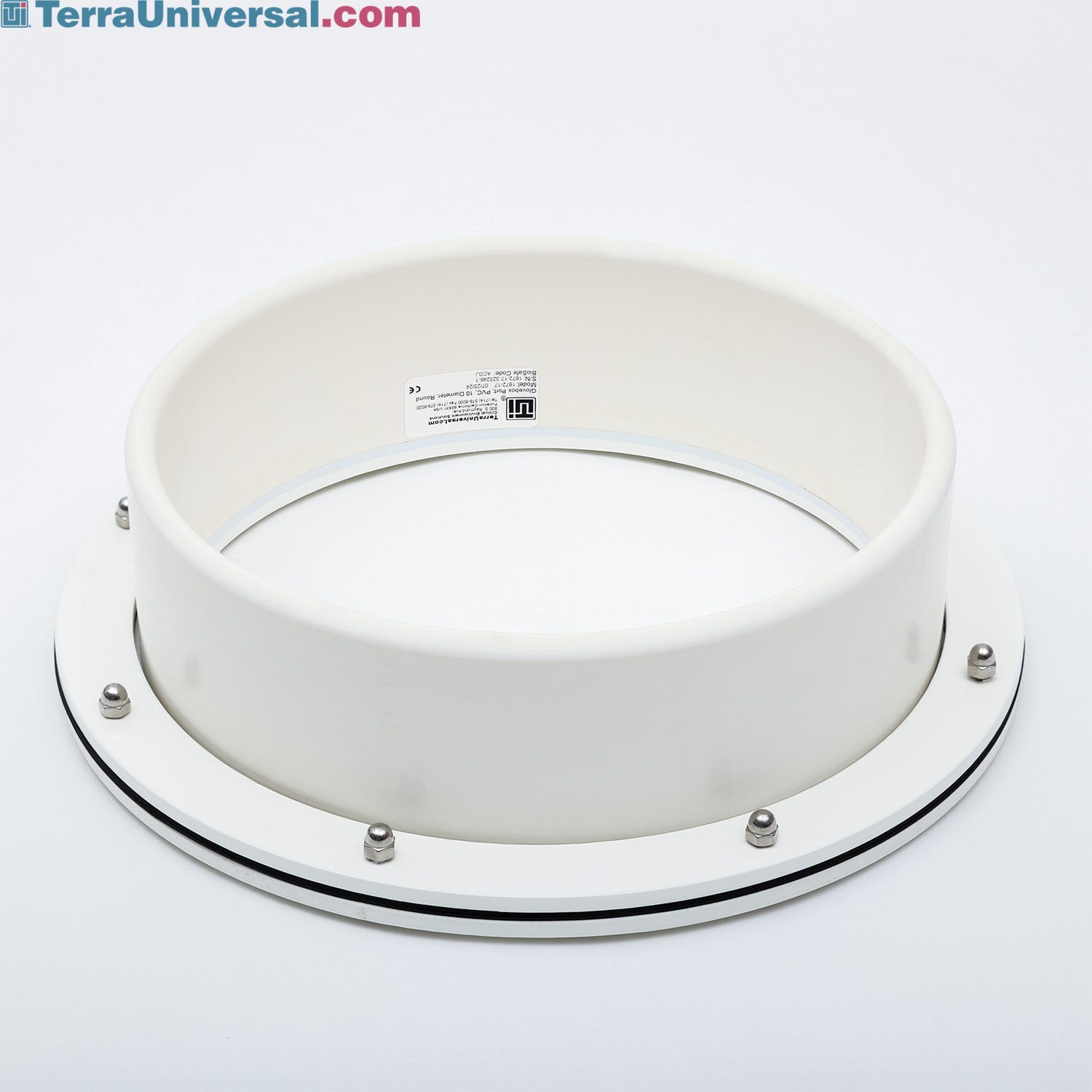

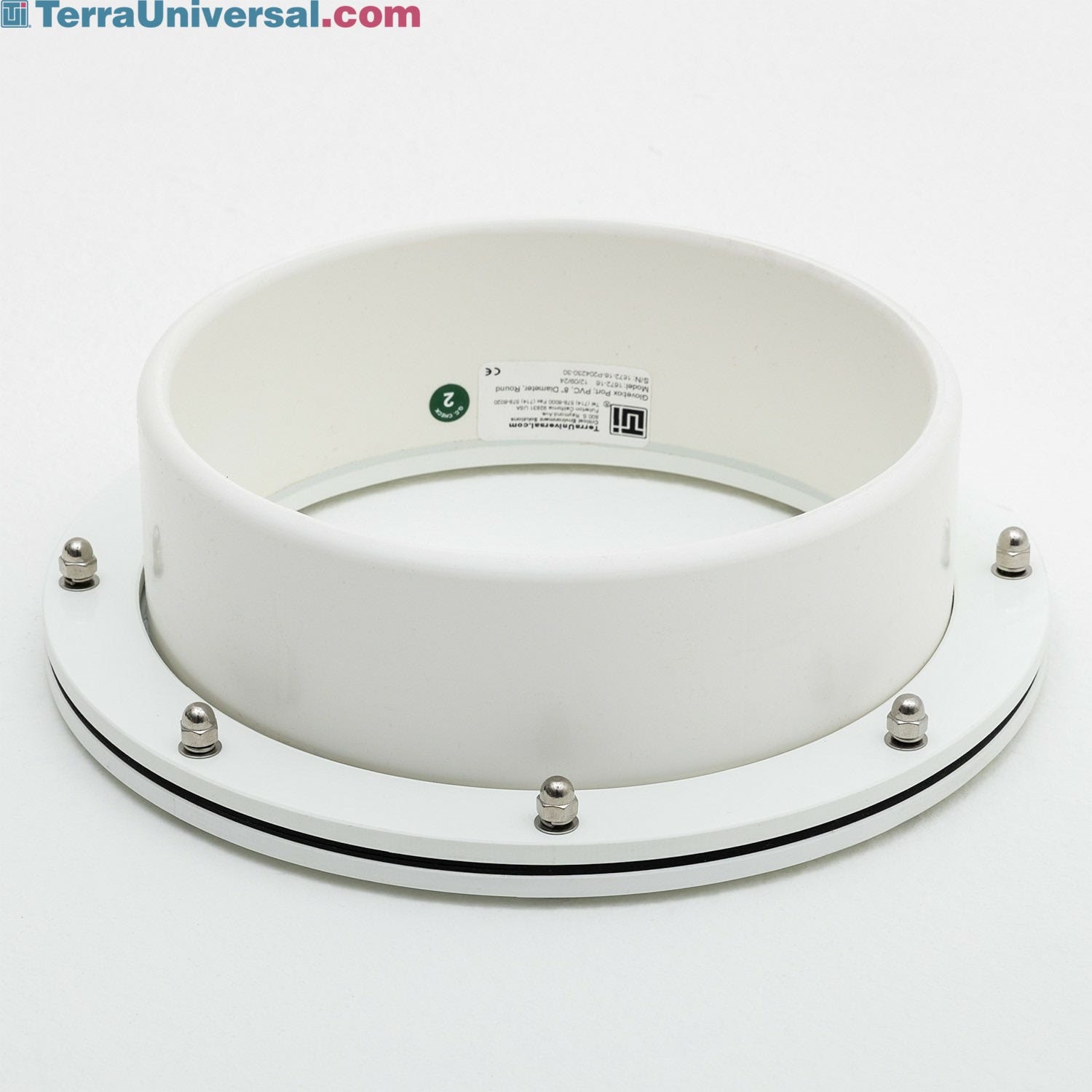

Glovebox Port; PVC, 10" Diameter, Round

The PVC Glovebox Port is a round access point designed for gloveboxes. It features a 10-inch diameter. The port is compatible with ISO 7 and ISO 8 ratings. Gloves are to be ordered separately.

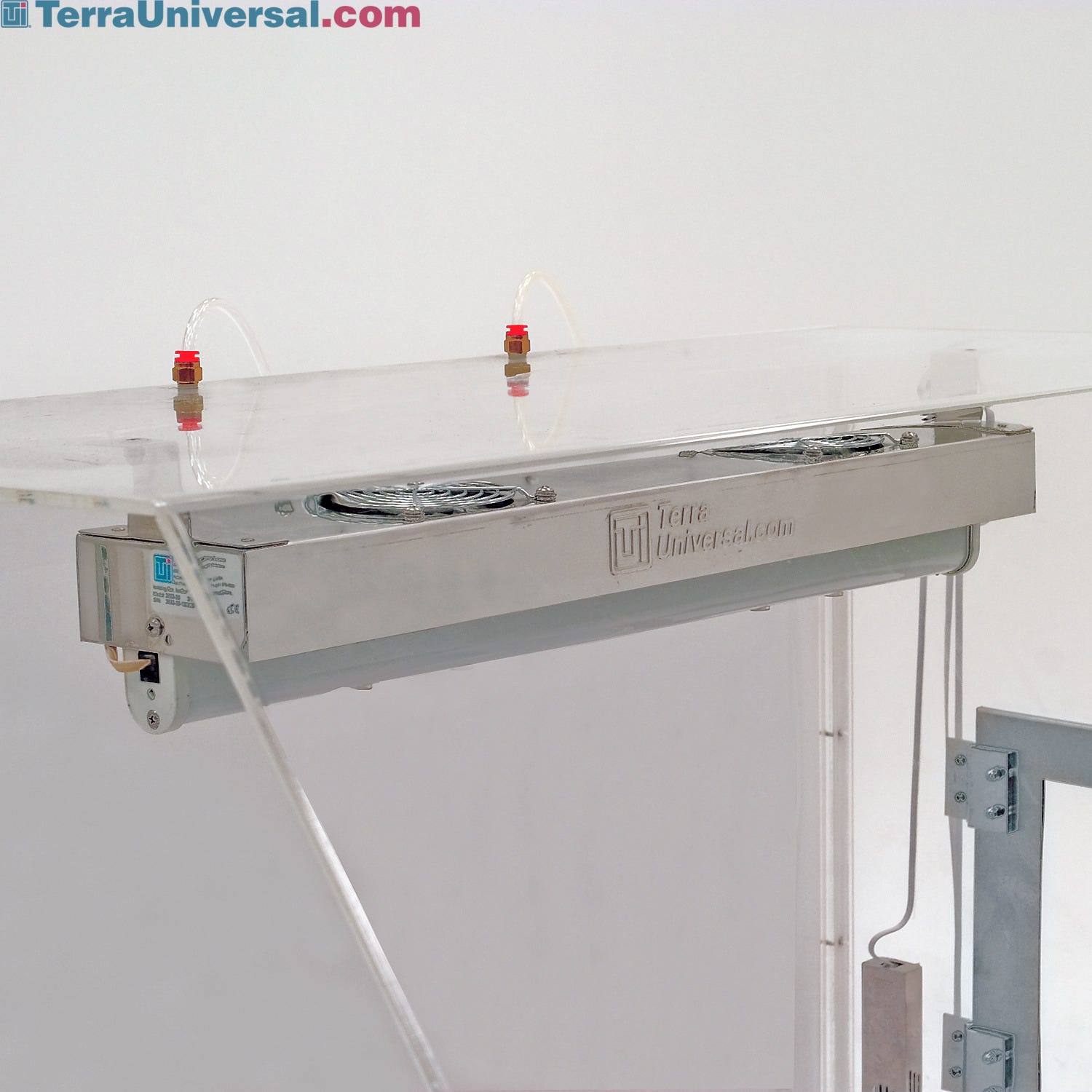

Ionizing Module for Glove Boxes

Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction

Stainless Steel Work Surface Improves Safety and Service Life

Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.

Pneumatic Sliding Door on Backside of Glovebox Isolator

Pneumatic vertical sliding door on the back side of a glovebox isolator; allows easy hands-free access and transfer

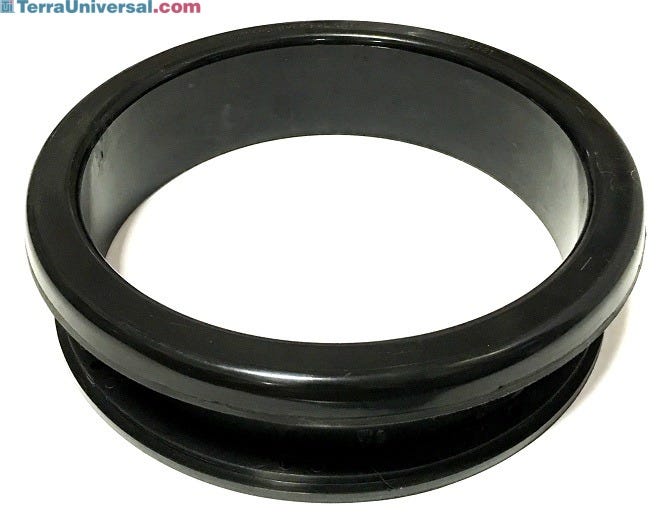

Glove port ring, ABS plastic, 8/9" dia, 10-32 threaded brass insert, TPE over mold

Glove port, plastic, 8/9" dia, 10-32 treaded brass insert, TPE over mold, with retainer ring, black.

Pass-Through Vacuum/Nitrogen Oven

Dries and degasses parts at temperature to 300°C before transfer into a stainless steel glove box (right/left-mounting available).

Cordgrip, connector, Plastic; 0.599" Hole Size, Straight-Thru, Black.

Nut included 0.181"-0.312" cable diameter range

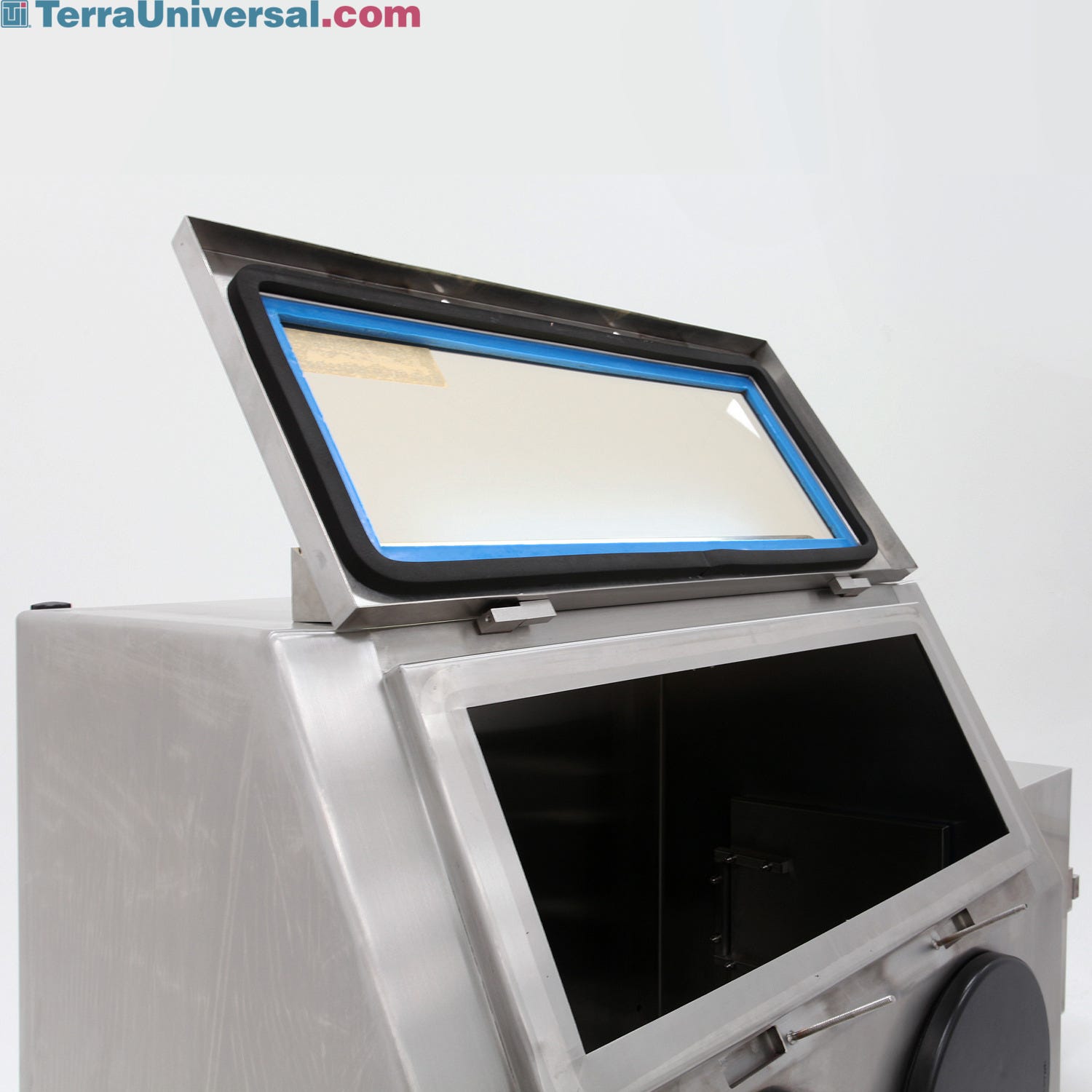

Tilt-Up Access Window

Tilt-up front window allows transfer of large equipment into the Negative Pressure Glove Box; elastomer gasket provides a tight seal.

Air Lock Provides Convenient Access

Optional air locks (single- and double-wall) maintain integrity of the controlled environment during parts transfer

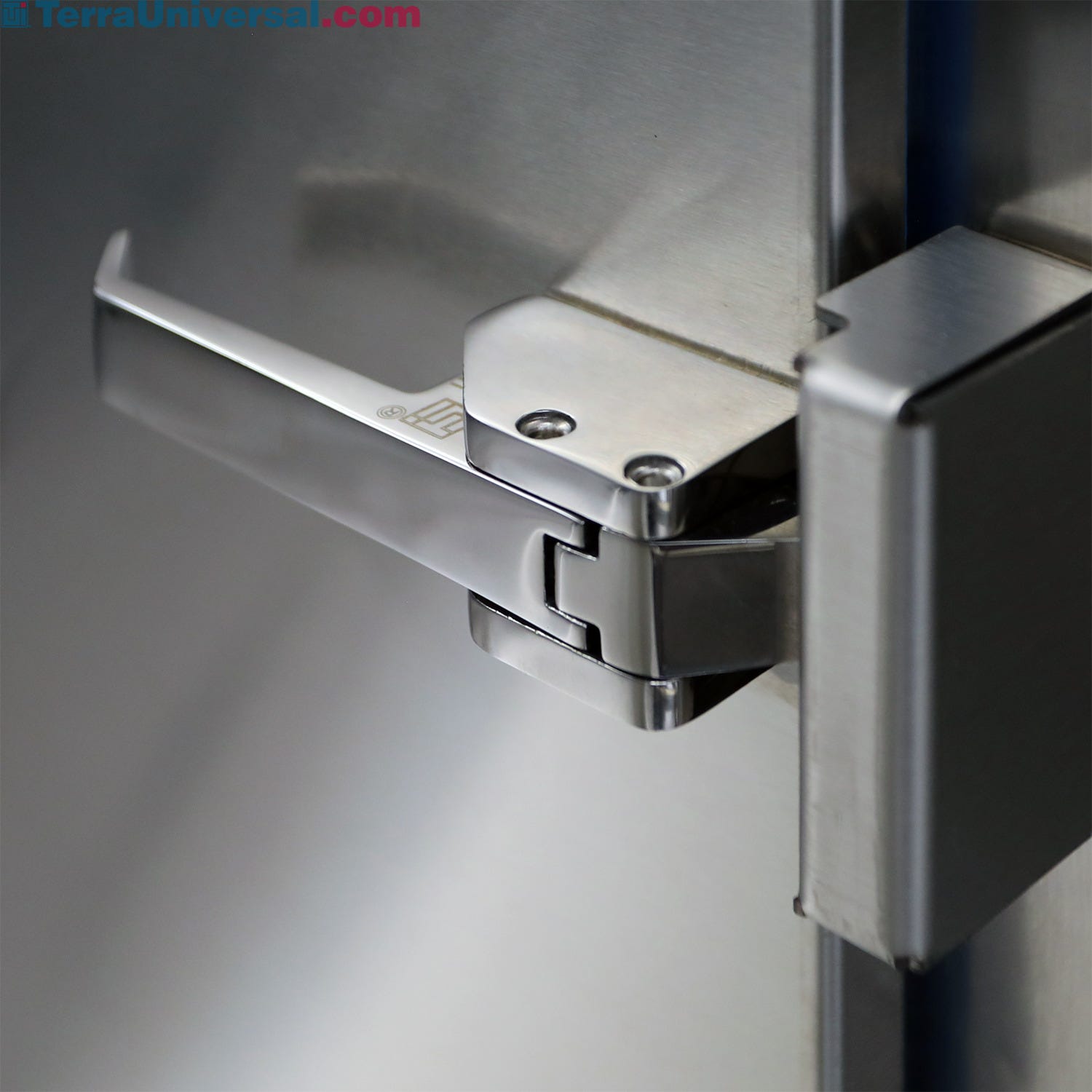

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Programmable Temperature Set-Points

Push-button microprocessor control panel on the motor housing programs temperature set-points up to 100°F (37.8°C).

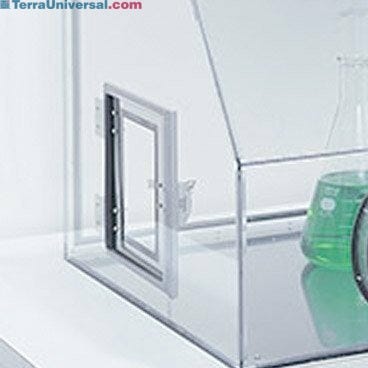

Side Access Doors for Plastic Glove Boxes

Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.

Filtration Module; 304SS, for Terra Glove Boxes, Open or Closed Loop Operation

Constant-Temperature Control System

Refrigeration system maintains constant temperature down between 120°C and -5°C, with PLC-based program cycling (shown installed on insulated glove box).
