Gallery

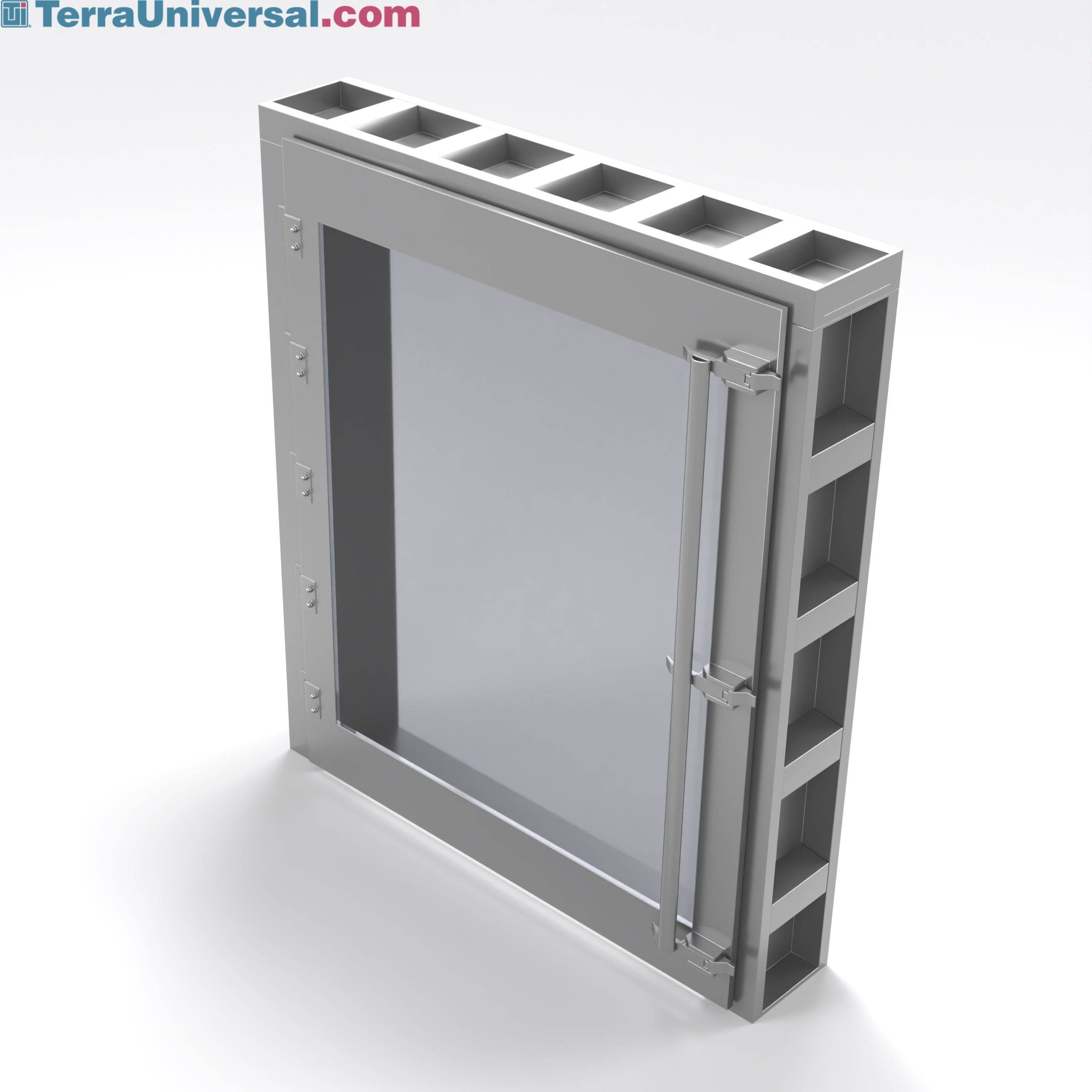

Leak-Rated Pass-Through Convenience Window

A built-in tempered glass window provides clear visibility into the pass-through chamber without compromising cleanroom integrity. Durable tempered construction ensures the window holds up to the demands of daily cleanroom use.

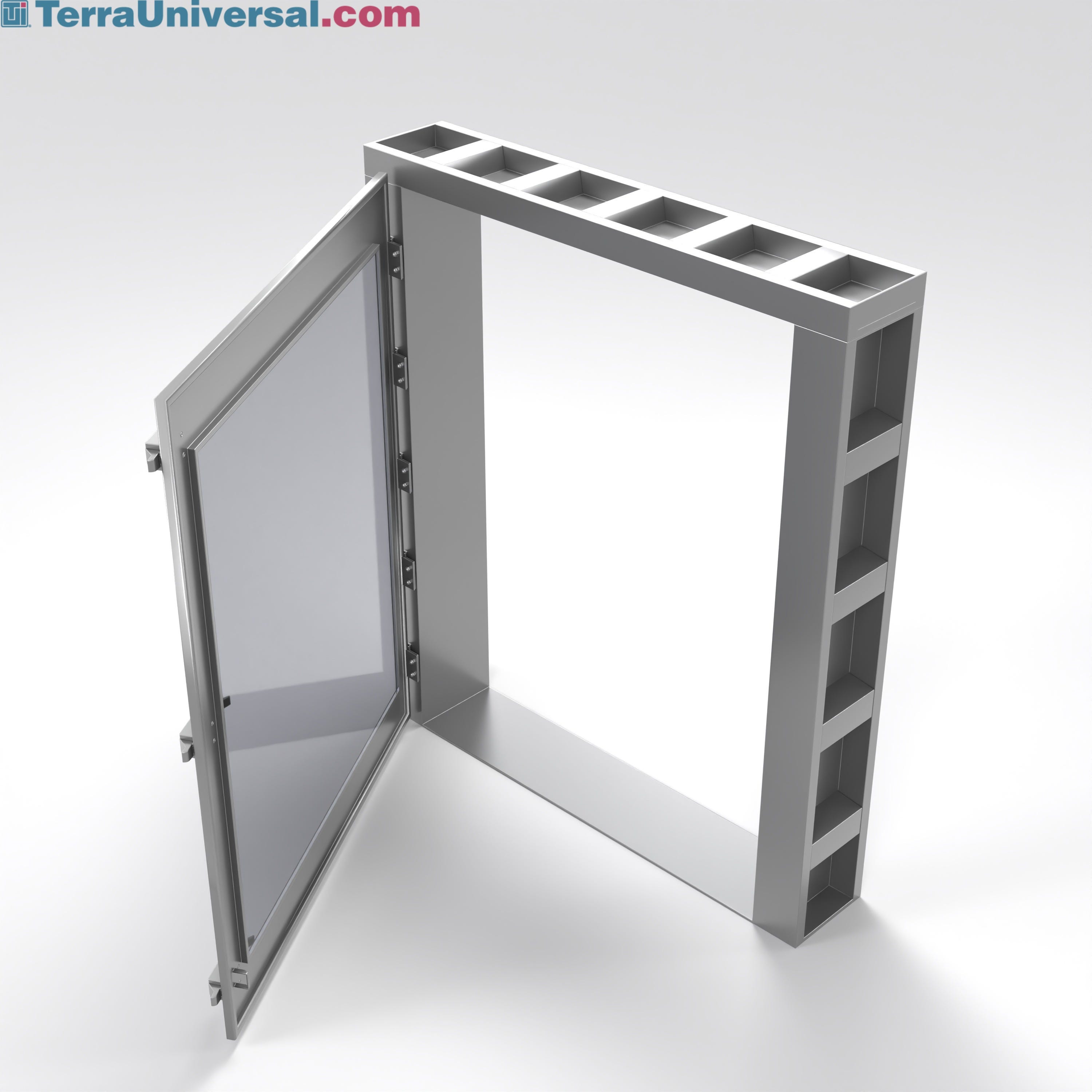

Leak-Rated Pass-Through Convenience Window

UL leak-rated doors are supported by welded stainless steel "lift-off" hinges that deliver a rigid, reliable connection between the door, frame, and chamber. When maintenance demands it, doors detach effortlessly from the hinges for thorough cleaning, decontamination, or simple replacement.

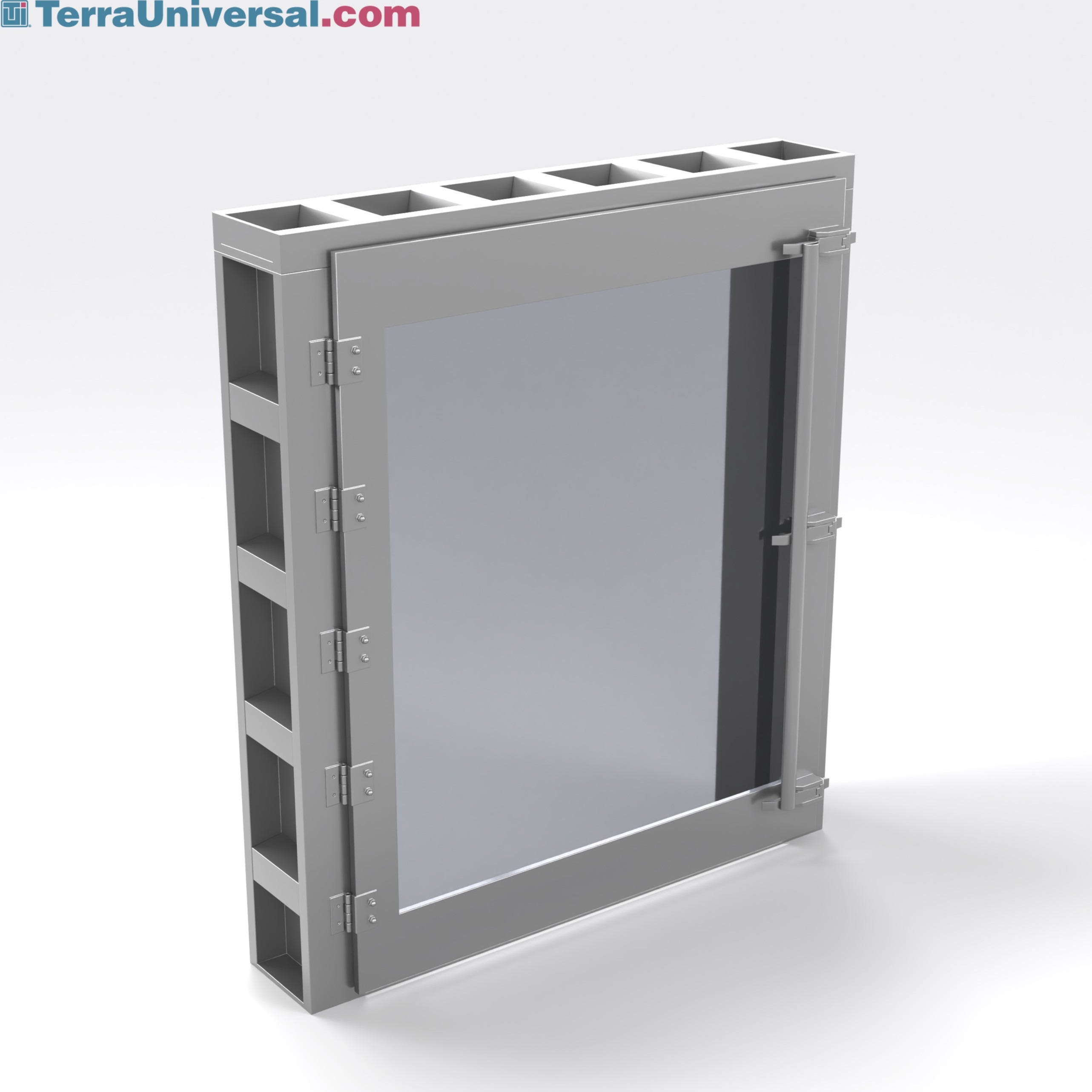

Leak-Rated Pass-Through Convenience Window

Precision-fit, the leak-rate pass-through window delivers a tight, reliable seal that supports cleanroom pressure control and contamination prevention. Reinforced 304 or 316 stainless steel frames provide the corrosion resistance needed to extend the pass-through chamber's service life.

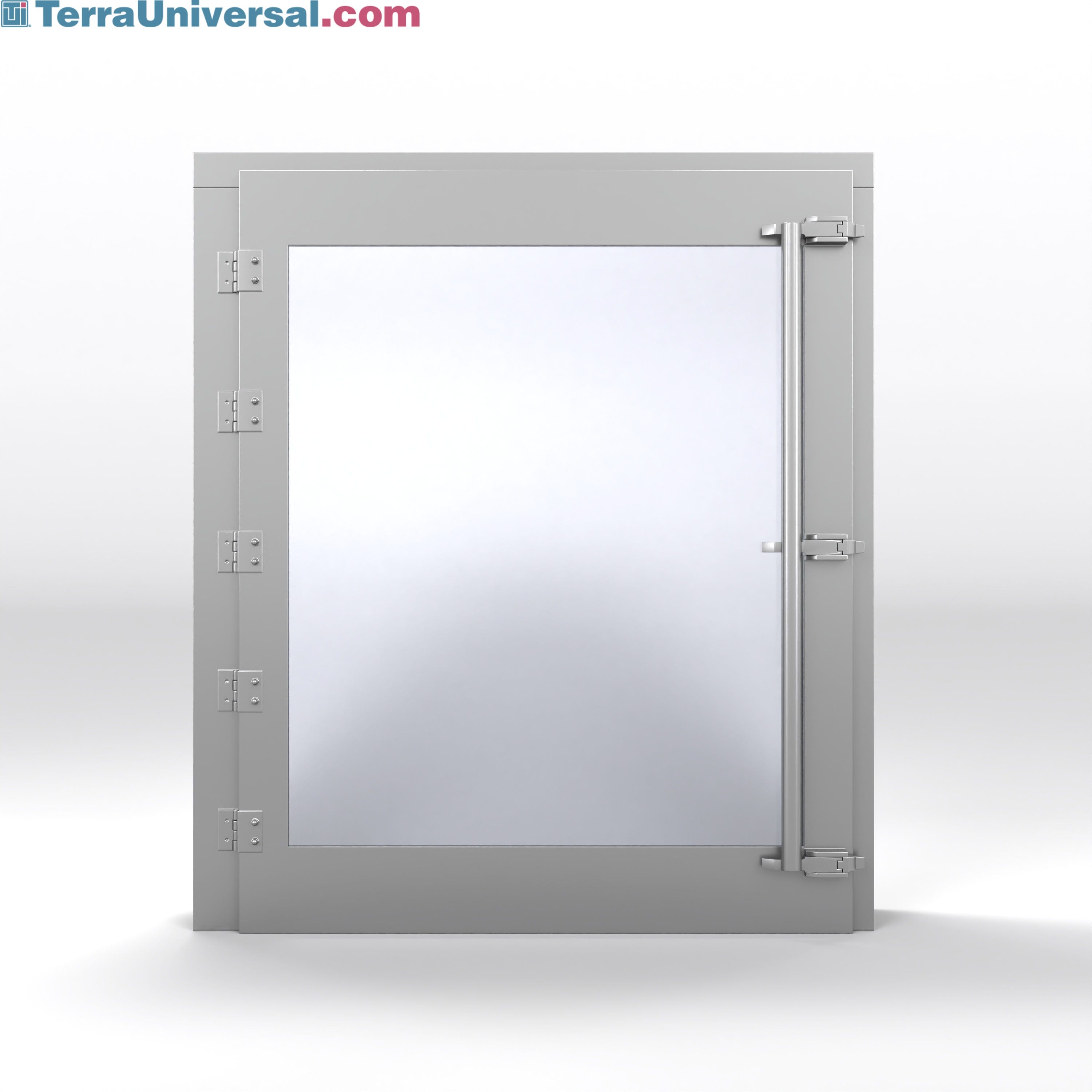

Leak-Rated Pass-Through Convenience Window

Engineered to UL leak-rated standards, this pass-through window maintains a secure seal that supports cleanroom pressure differentials. Reliable pressure containment helps protect product integrity and process consistency across applications.

Convenience Window Installed in Hospital Sterile Surgical Room

A convenience window provides an easy way to pass tools and materials between rooms of similar ambient requirements, like sterile surgical rooms in a hospital. Vertical sliding design is ideal for walls with limited horizontal clearance.

Horizontal Sliding Convenience Window Pass-Through for Transferring Tools to Emergency Room

This convenience window pass-through is used for transferring tools from an imaging room to an operating room. Convenient sliding door is ideal for when strict environment control is not required. Polypropylene pass-through frame is chemical resistant and can be easily cleaned.

Vertical Sliding Pass Through Window with Shelf

Vertical sliding convenience pass through window features a chemical-resistant 304 stainless steel frame and counterweighted door for smooth, effortless open and closing.

Pass Through Window

Pass-Through Windows

Iris Ports and Talk-Through for COVID-19 Test Booth

Self-sealing iris ports and talk-through attached to this COVID-19 testing booth window effectively protect personnel against potential airborne contaminants during testing. Minimizes exposure while keeping communication clear and audible.

Vertical Sliding Pass Through with Convenience Window used for Cell Therapy Research

This stainless steel vertical sliding convenience window pass-through is used for cell therapy research. Vertical slide tracks are ideal for facilities with high ceilings. Static-dissipative PVC window prevents particle accumulation and offers great transparency.

Vertical Sliding Pass-Through Convenience Window for Surgical Room

This vertical sliding pass-through convenience pass-through is used in a surgical room. Counter-weighted system holds door open for smooth, safe, and reliable operation. Static-dissipative PVC window prevents particle accumulation while offering clear view of the opposing side.

Horizontal Sliding Convenience Window with Shelf

Pass-through window, made of 0.75"-thick tempered glass, slides in a white polypropylene track; 12" shelf allows access to materials from either side.

Pass Through Windows and Chambers

Pass-throughs allow transfer of small items into sensitive burn center rooms with restricted access or higher sanitization standards without increasing foot traffic.

Vertical Sliding Convenience Window with Shelf

Vertical sliding convenience pass through window is designed for tight spaces. The counterweighted door is easy to lift open and won’t fall shut if it is left open.

Fire-Rated Pass-through Viewing Window

Fire-Rated Pass-Through Doors feature a UL 10B fire-rated door, mounted flush with the wall surface; shown this a 10" x 10" wire-free window.

Stainless Steel Double Swing Door with Reinforced Shelf

Double tempered glass windows are mounted with a reinforced stainless steel shelf for strength and cleanliness.

Pass-Through Convenience Window Double Swing Door

Pass-through window with tempered glass doors shelf included on one side.

Pass-Through Convenience Window Wall Mount Double Swing Door

Double swing convenience window with shelf provides ease of transfers between rooms without strict environmental controls.

Door, Pass-Through Access; EP 304 SS, Fire-Rated, 24''W x 2.6''D x 48''H, Insulated

Fire Rated Access Door Only

Self-closing stainless steel fire-rated doors carry the UL 10B label for 90-minute fire exposure (suitable for installation in a 2-hour fire wall)

Pass-Through Window for Pharmaceutical

This Pass-through window is used for item transfer between rooms where strict environmental control is not required. Window frame accommodates walls up to 4.875"thick.

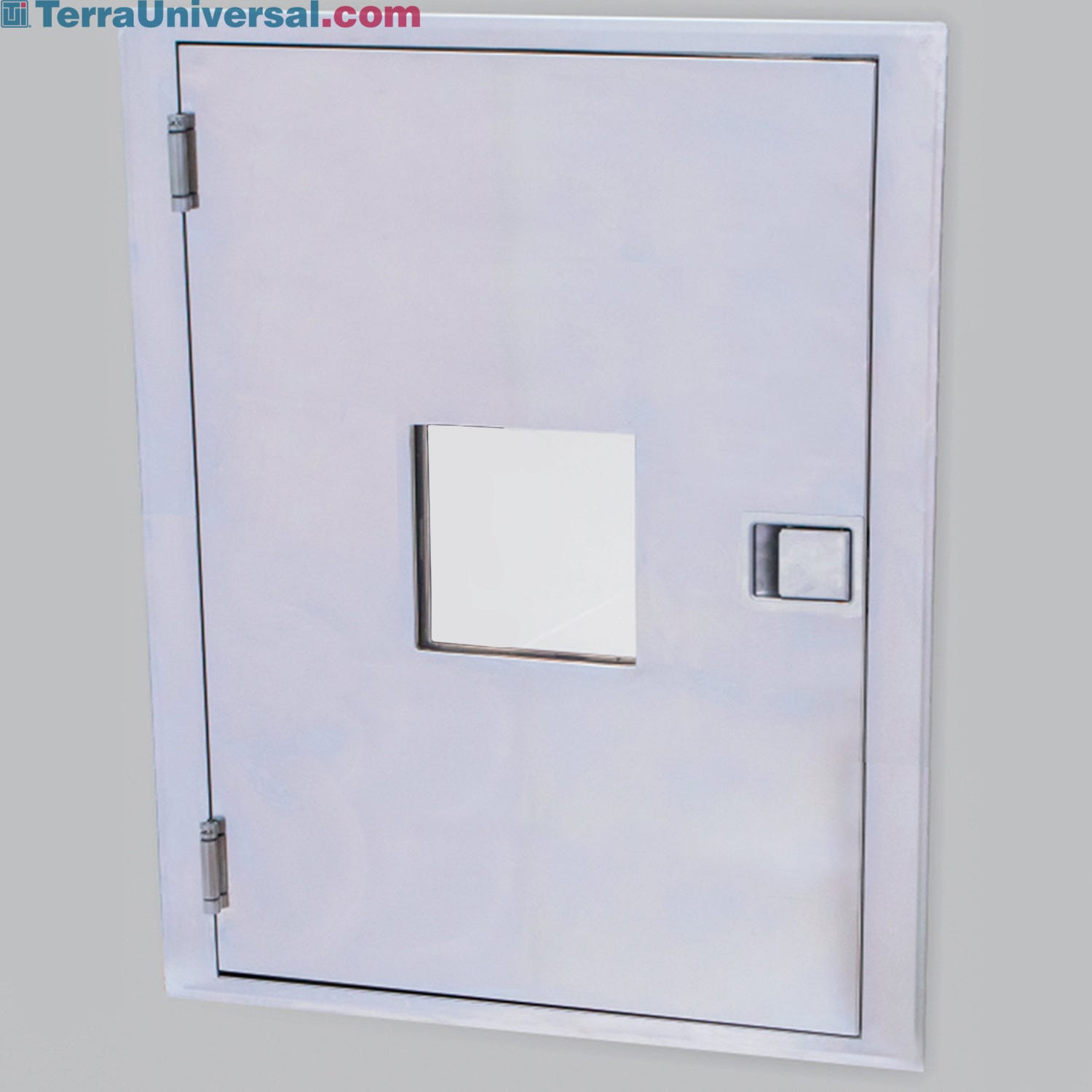

Insulated Fire-Rated Pass-Through Door

Terra’s fire-rated door meets UL 10B requirements for 90-minute fire exposure, including hose-stream testing. The inside of the door is lined with 2"-thick SuperWool® Plus insulation to reduce heat transfer from elevated room temperatures.

Fire-Rated Pass-Through Access Door, 18''W x 2.6''D x 24''H Insulated

Fire-Rated Pass-Through Door, 18"W x 2.6"D x 24"H, carries the UL 10B label for installation in a fire-rated cleanroom or laboratory wall

General-Use Stainless Steel Pass-Through for Sample Transfer

This general-use pass-through chamber sits between a patient room and a laboratory for sample transferring. Doors are UL leak-rated for tight seal to maintain cleanroom air pressure gradients. The static-dissipative PVC widnows protect against static charges and particle attraction.

Custom Pass-Through: Open Vertical & Horizontal Windows, 26"W x 58"H

Open view of custom pass-through revealing interior chambers. Vertical top window and horizontal bottom window in open position. 304 stainless steel construction with SDPVC windows prevents particle accumulation. 26"W x 58"H unit designed for 14" thick walls.

Custom Pass-Through: Closed Vertical & Horizontal Windows, 26"W x 58"H

Custom pass-through with dual sliding window design. Closed view showcases sleek 304 stainless steel frame and SDPVC windows. Upper vertical and lower horizontal sliding mechanisms visible. 26"W x 58"H dimensions suitable for 14" walls in cleanrooms.

Door, Pass-Through Access; EP 304 SS, Fire-Rated, 36''W x 2.6''D x 36''H, Insulated

Fire-Rated Access Doors

Self-closing, fire-rated stainless steel convenience doors are rated for 1.5 hours according to UL-10B.

Convenient Pass-Through Swing Door Windows

Convenient pass-through windows tempered glass or polycarbonate swing door. 304 Stainless Steel, flush mounted for transferring of materials in labs, pharmacies, medical offices and manufacturing facilities.
