Cleanroom passthrough with smart control system reduces foot traffic, improve cleanliness, safety, productivity and much more. Hidden electronic interlock allows only one door to open at a time to prevent cross-contamination.
Infrared beams detect objects placed inside the transfer chamber and connect to a remote alarm located up to 200 feet away from the pass through chamber. The crossed red lines depict the non-visible trigger lines between the IR transmitters and receivers.
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
SKU: 2635-10B-2-316
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab
SKU: 6705-72-316
Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab
This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.
Smart® Pass-Thru Pharmacy Refrigerator for USP797 Sterile Pharmaceutical Cleanroom
SKU: 2635-13B-2-316-R
Smart® Pass-Thru Pharmacy Refrigerator for USP797 Sterile Pharmaceutical Cleanroom
Terra’s pass-thru refrigerator helps meet USP 797 requirements for sterile pharmaceutical cleanrooms. Refrigeration meets pharmaceutical storage standards to ensure safe and dependable storage of active pharmaceutical ingredients. Electronic interlocking doors allow only one door to open at a time. The built-in shelf-rack system is fully-removable for complete sterilization.
Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients
SKU: 2635-10B-2-316
Refrigerated Smart® Passthrough with 90 Degree Corner to Transfer Active Pharmaceutical Ingredients
Refrigerated Smart® passhthrough chamber with 90 degree corner for transferring active pharmaceutical ingredients into a cleanroom. The refrigeration system is mounted above the passthrough. The double-wall, insulated chamber boosts thermal efficiency. Electronic interlocking doors allow only one door to open at a time.

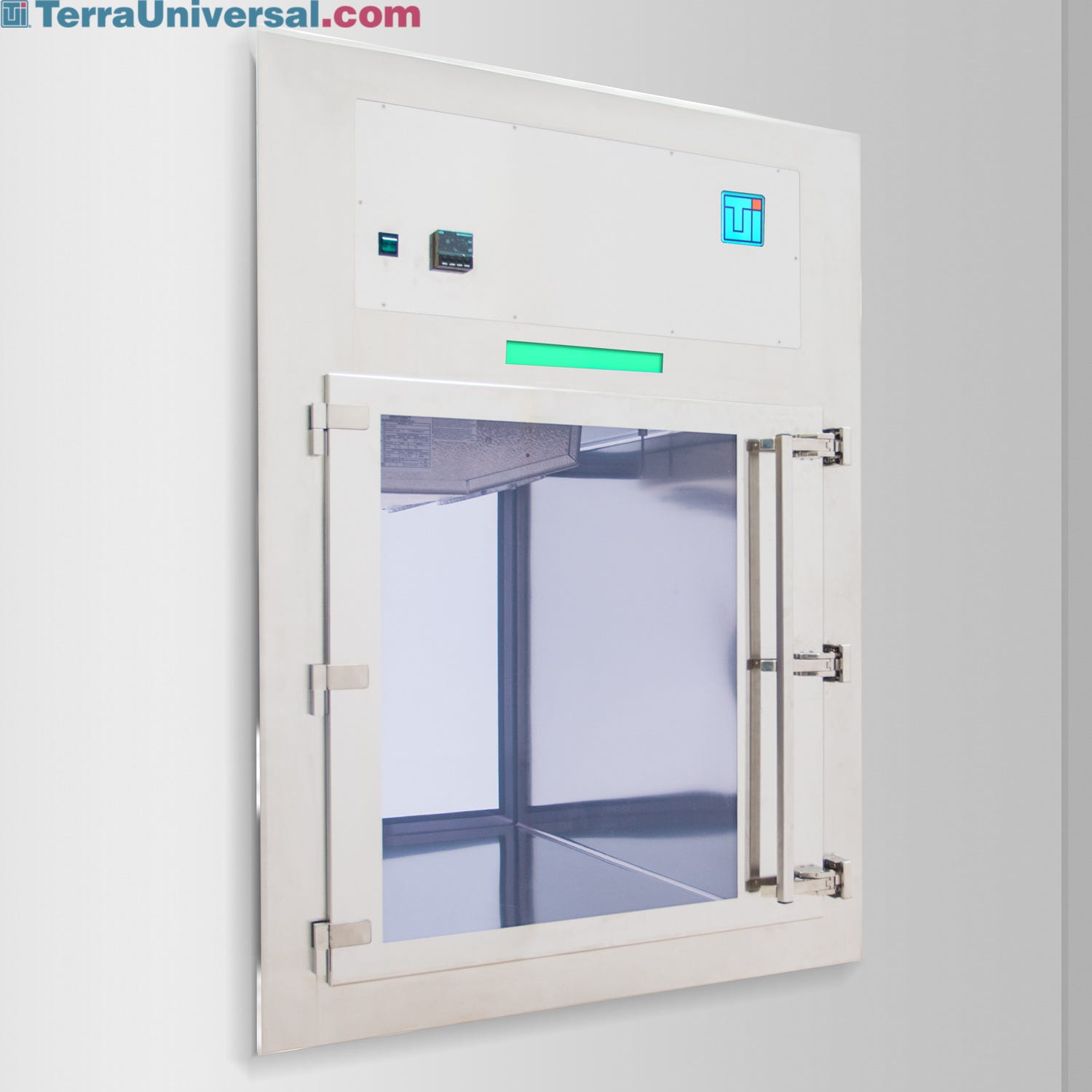

Provide a stable temperature down to 5°C to preserve sensitive samples awaiting transfer to lab or cleanroom; includes door interlock with door status alerts ("dirty" side of wall shown).
ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration
SKU: 6705-72-316
ISO 5 Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration
Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.
Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.
Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.
The Refrigerated Smart Pass-Through offers set-point temperature control down to 5°C. All electronic components on the Smart Pass-through share a power source.

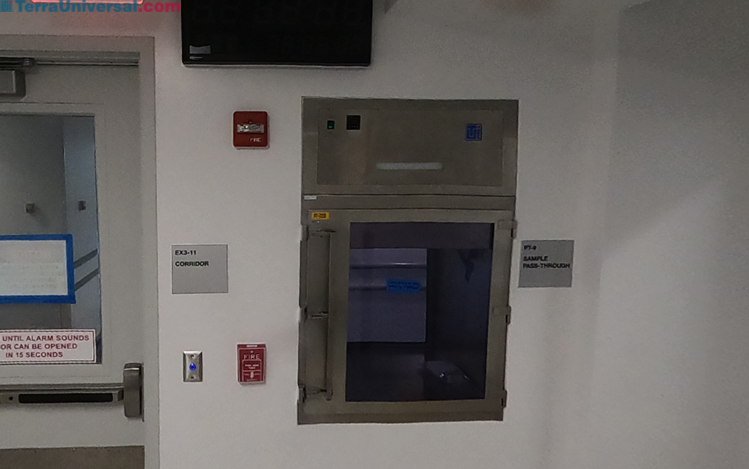

Smart® Refrigerated Pass-Through for Cancer Research
SKU: 2635-10B-2-316-R
Smart® Refrigerated Pass-Through for Cancer Research
This stainless steel refrigerated pass-through is used for cancer research. Programmable refrigeration controls allow automatic temperature cycles. Smart® Control interlock system provides visual and audible door status alerts.
Ideal for pharmacy and medical applications, this door is activated by a touchless sensor pad to minimize contamination during sample transfer. Its quiet, low-energy, ADA-compliant electromechanical actuator is installed entirely outside the transfer chamber to simplify cleaning and prevent particle influx. Tested for over a million operations. Typical installation is on “clean” side.

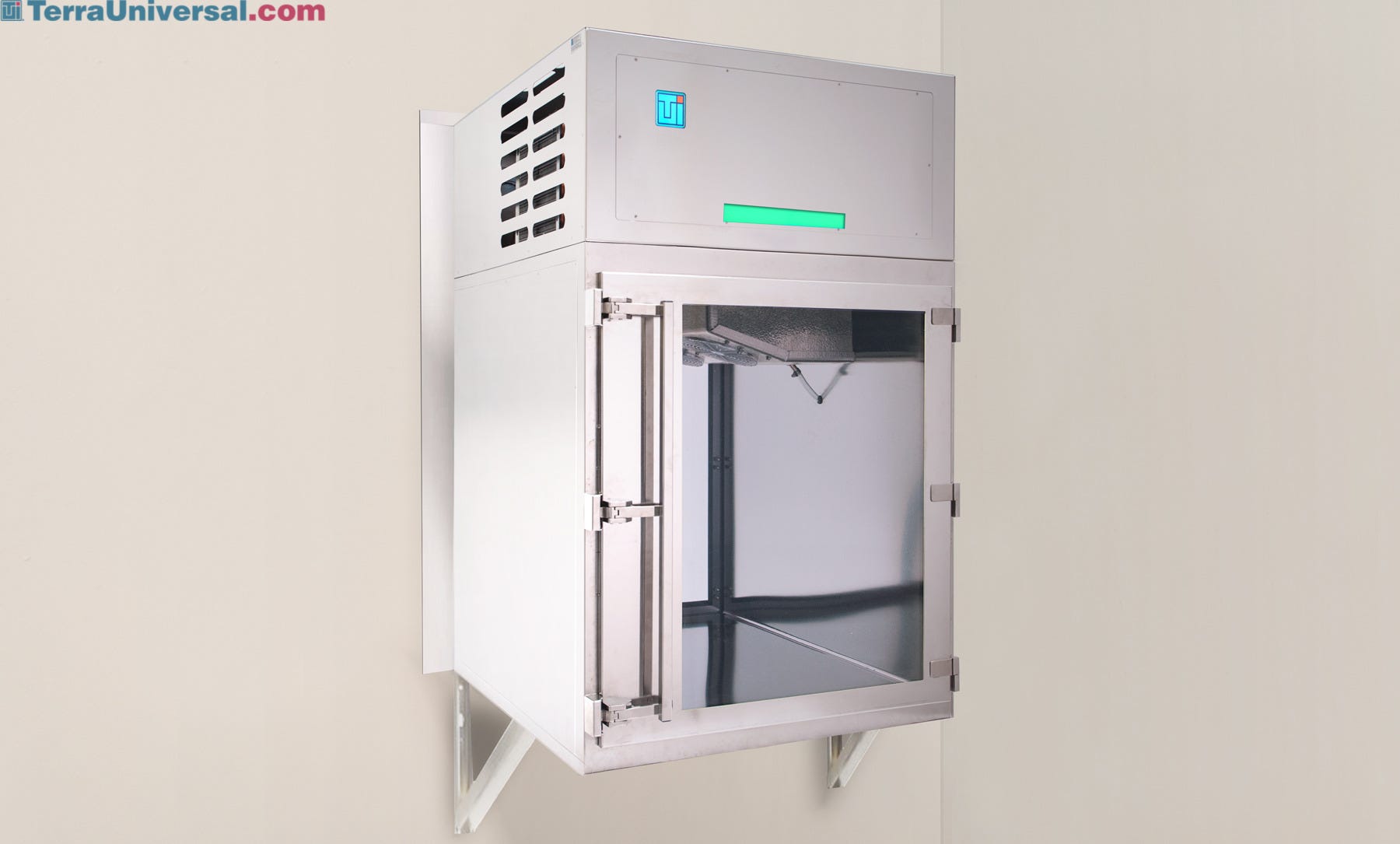

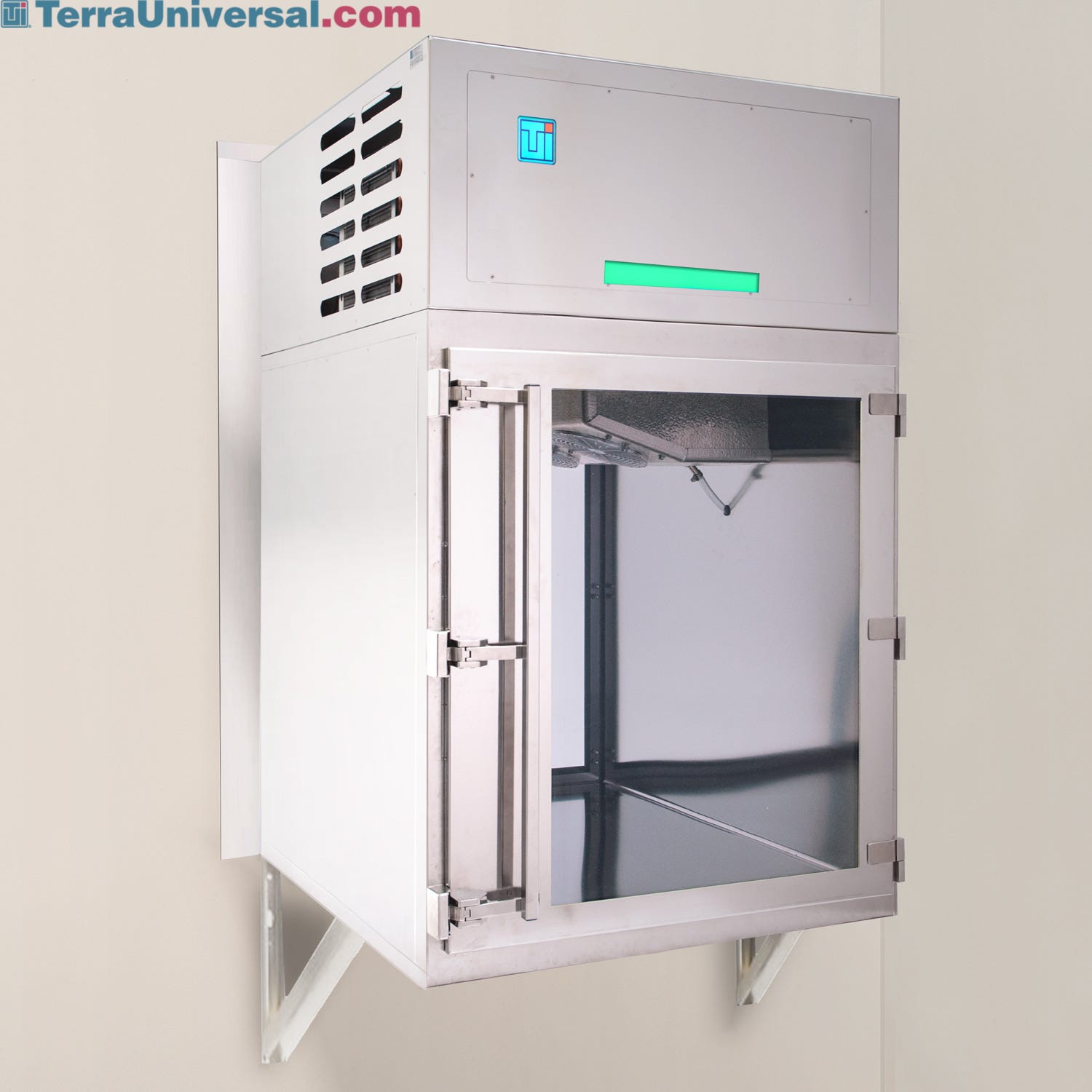

Refrigerated Smart Pass-Through™ Chamber provides a stable temperature down to 5°C to preserve sensitive materials awiting transfer; CleanMount™ installation system mounts flush to wall in a few minutes (flush-mount "clean" side shown).
Access Control System provides secure pass-through operation and event log reporting, with remote monitor/control of optional access readers (fingerprint, keycard, iris or entry pad).
The Refrigerated Smart Pass-Through offers set-point temperature control down to 5°C. All electronic components on the Smart Pass-through share a power source.
