1784-14A
Terra Part # 1784-14A
$3,371
Usually ships in 14-16 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available Only 4 left in stock
Accessories related to Terra Part # 1784-14A
82832
Shoe Cleaner; Motorized Brush, Built-In Vacuum, HEPA Filtered, 120 V, 9A
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Terra's motorized shoe cleaner minimizes cross-contamination in cleanroom and laboratory environments
  • Automatic shoe cleaner provides fast, effective cleaning with a time-proven design
  • Simply pull the handle and multiple nylon brushes automatically scrub footwear
  • Built-in vacuum system with HEPA filtration capture particles and contaminants
  • Redesign features a quiet longer lasting cleaning system, with all the same replaceable parts (filters, dust bags, brushes)
  • Powerful Cleaning:
  • (5) non-abrasive nylon brushes thoroughly clean the top, bottom, and sides of shoes: (2) rotary side brushes (2) rotary bottom brushes (1) stationary top brush.
  • Two-Stage HEPA Filtration Vacuum System:
  • Powerful vacuum motor draws particles and contaminants from brushes into a HEPA vacuum dust bag. Airflow then exhausts through a HEPA filter rated 99.97% efficient @ 0.3 micron particles.
  • Adjustable Motor Speed:
  • Variable speed control allows adjustment of spinning brushes for various types of footwear.
  • The motor and other particle-generating components are sealed inside the unit to ensure optimal cleanliness.
  • Ergonomic Handrail:
  • Waist high stainless steel handrail provides safe and convenient ON/OFF operation. Ergonomic handrail is height adjustable to prevent uncomfortable reach or back bending.
  • Clean and Durable Powder Coat Finish:
  • Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic.
  • LED Status Indicator provides a visual confirmation shoecleaner is powered on and operational.
  • Easy Maintenance:
  • All replacement parts (brushes, filters, dust bags, belts) are cross-compatible with cat# 1784-14
  • NOTE:
  • Shoe cleaner is intended for indoor applications. It is not designed for outdoor or heavy industrial use in the presence of mud or water.

Cleaning Application: Shoe Cleaner

Type: Motorized Brush

Configuration: Built-In Vacuum

Certified ISO Grade™ Design: ISO 7

Unit of Measure: EA

Electrical Specifications: 120 V, 9 A, 1 Ph, 50/60 Hz

Buy Accessories
  1. Remove hazardous particulates from shoes and wheels with floor-covering sticky mats or automatic contamination-control mats to help protect harvests from the sp
    Tacky Mat; Blue, Antibacterial, 18" x 36" Ships Free Free shipping in contiguous USA In stock
    $33
    Increase Down Increase Up
  2. The Cleanline sticky mats are pivotal for entering any clean area which is a fast and reliable way to clean shoe soles.
    Tacky Mat; Blue, Antibacterial, 24" x 36" Ships Free Free shipping in contiguous USA In stock
    $41
    Increase Down Increase Up
  3. Motorized shoe cleaner dust bags  |  1784-01A displayed
    Dust Bags; HEPA Cloth, for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Quick Ship+ Available 129 in stock
    $59
    Increase Down Increase Up
  4. Motorized Shoe Cleaner Vacuum Filter  |  1784-02 displayed
    Vacuum Prefilter; for Motorized Shoe Cleaner, 3m Ships Free Free shipping in contiguous USA Quick Ship+ Available 629 in stock
    $32
    Increase Down Increase Up
  5. Brush; Stationary, Nylon, for Motorized Shoe Cleaner
    Brush; Stationary, Nylon, for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Quick Ship+ Available 78 in stock
    $89
    Increase Down Increase Up

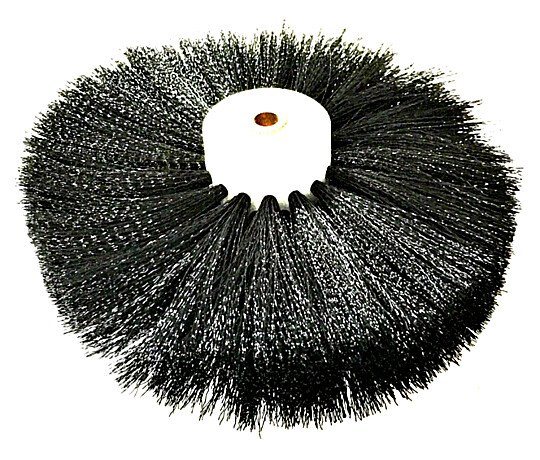

  6. Shoe cleaner rotary fiber brush  |  1784-06 displayed
    Brush; Rotary, Top Cylinder. for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Quick Ship+ Available 97 in stock
    $299
    Increase Down Increase Up

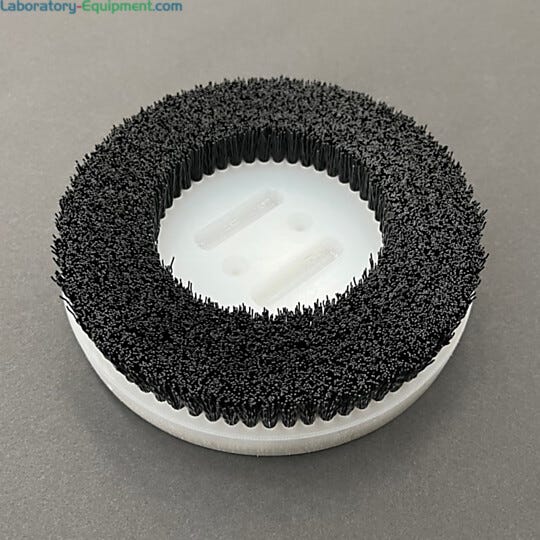

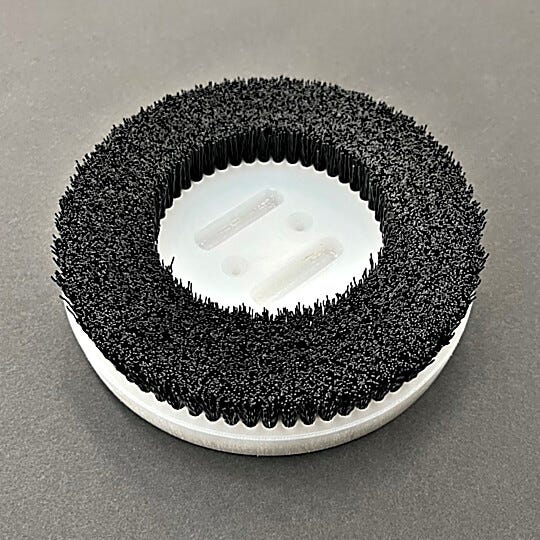

  7. Brush; Rotary. Bottom Disc, for Motorized Shoe Cleaner 1884-14  |  1884-07 displayed
    Brush; Rotary. Bottom Disc, for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Only 2 left in stock
    $342
    Increase Down Increase Up

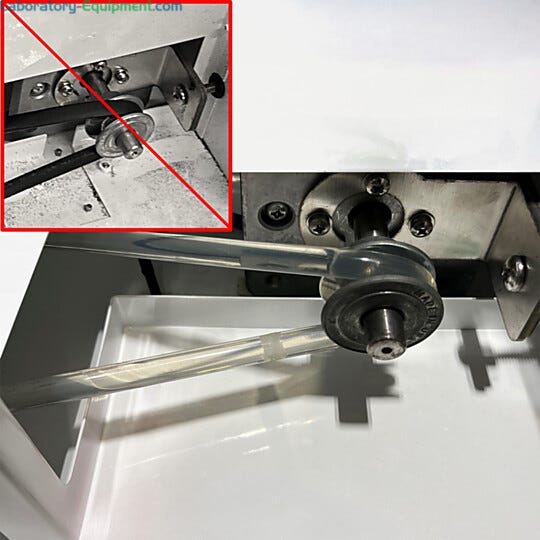

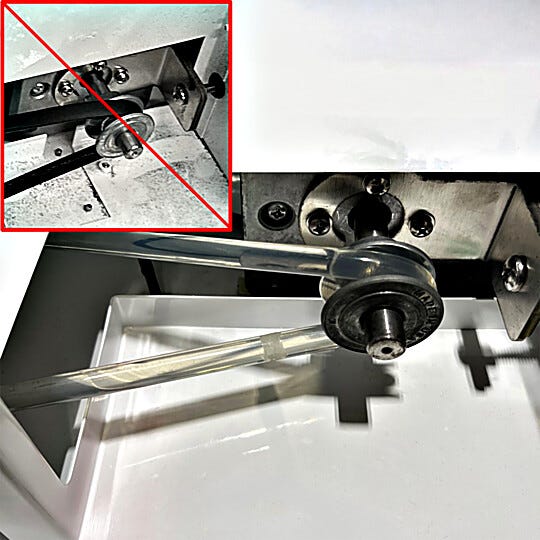

  8. V-belts, for Motorized Shoe Cleaner
    V-belts, for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Quick Ship+ Available 188 in stock
    $39
    Increase Down Increase Up

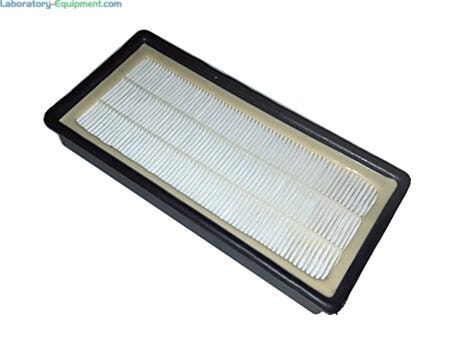

  9. Shoe Cleaner Filter  |  1784-13 displayed
    HEPA Replacement Filter for Motorized Shoe Cleaner Ships Free Free shipping in contiguous USA Quick Ship+ Available 110 in stock
    $99
    Increase Down Increase Up
  10. Service, ISO Grade™ Certificate, ISO 7
    Request Quote
    Increase Down Increase Up

Shoe Cleaners & Sticky Mats

  • Automatic Shoe Cleaner, Smoke Test Watch Terra's Video of an Automatic Shoe Cleaner Smoke Test
  • motorized shoe cleaner operating diagram Motorized Shoe Cleaner Diagram
Automatic Shoe Cleaner, Smoke Test

Features and Benefits

Learn More: Motorized Shoe Cleaner

Motorized Shoe Cleaner

  • Internal vacuum system removes contaminating particles
  • Five internal brushes clean deep into seams, welts
  • 90 CFM (152.9 m³/hr), 1.5" I.D. x 1.75" O.D. (38 mm x 44 mm)
  • 0-1000 RPM
  • Waist-high handle allows convenient on/off operation
  • Controls allow adjustable rotational speeds
  • Model without internal vacuum system available for connection to in-house vacuum facility

This rugged, easy-to-operate automated shoe cleaner employs a time-proven design that ensures fast, effective shoe cleaning in cleanrooms, changing rooms, and other environmentally controlled areas.

Internal Vacuum System, Multiple Brushes Ensure Fast, Effective Cleaning

It is available with its own internal vacuum system and disposable paper bags for collection and removal of contaminants; no cumbersome vacuum cleaner or other external accessories are required. Simply plug it into any standard 110V outlet and installation is complete. An internal control allows an industrial engineer or supervisor to easily adjust the rotational speed of the brushes to suit any type of footwear. Operation is controlled by a simple press of the handle.

The Motorized Shoe Cleaner has five internal brushes for thorough cleaning of all shoe surfaces. The flexible nylon upper brush and two pairs of tough fiber rotational side brushes are arranged to reach deep into the seams, welts, and cracks, and to clean every part of the shoe—the sole, upper, behind the heel, and the sole/heel junction.

Clean, Rugged Construction

The housing of the shoe cleaner is made of thermo-formed plastic that resists dents and will not shed particles. The on/off handle is chrome plated. The motor and other particle-generating components are sealed inside the unit to ensure optimal cleanliness. HEPA filter included, providing advanced filtration and a much quiter operation

Motorized Shoe Cleaner

Comes with one dust bag installed and two spares: one-year warranty. Shoe cleaner is not designed for outdoor or heavy industrial use in the presence of mud or water. Such exposure invalidates the one-year warranty.

Motorized Shoe Cleaner Diagram

Terra's motorized shoe cleaner features two-stage HEPA filtration. The vacuum motor pulls dust and debris through a HEPA dust bag, and then pushes air through a final HEPA exit filter.

Shoe Cleaner Motorized Brush

Motorized brush is double-layered to ensure thorough footwear cleaning. Brush speed is adjustable to fit your application.

Replaceable HEPA Filter for Motorized Shoe Cleaner

Shoe cleaner features external HEPA filter for easy replacement.

Motorized Shoe Cleaner with HEPA Filter

The motorized shoe cleaner has five internal brushed to thoroughly clean shoe surfaces
