120/240 V CO2 1.6 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 SureTherm H3565-45 <6 cubic feet 2824-69 77969 $5,257 3-5 Days 2
Ships Free Free shipping in contiguous USA
120/240 V CO2 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 SureTherm H3565-180 6 to 12 cubic feet 2824-70 77970 $6,350 3-5 Days 3
120/240 V CO2 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 SureTherm H3565-180HD 6 to 12 cubic feet 2824-71 77971 $7,938 3-5 Days 4
120/240 V CO2 6.35 cu. ft. Ambient +5°C to 60°C Direct Heat Dual beam IR CO2 SureTherm H3565-180HDO2 6 to 12 cubic feet 2824-72 77972 $10,918 3-5 Days 5
Voltage
Type
Capacity
Temperature Range
Convection Type
Sensor Type
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

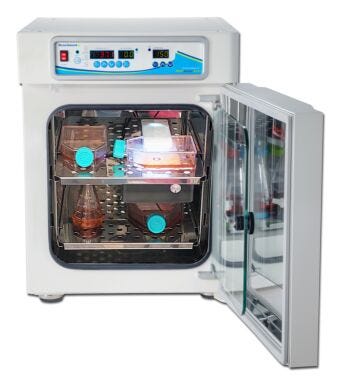

  • Provides precise temperature and CO2 control
  • Heat distribution system combines six sided heating with a low speed internal fan
  • Uniform air circulation throughout the chamber protects environment with minimal temperature fluctuations within 0.1°C
  • Seamless Design for easy cleaning with stainless steel rounded chamber
  • Models available in 45 Liter and 180 Liter chamber capacity (see specified model features below)
  • Dual Beam IR Sensor: Infrared CO2 sensor provides accurate measurements and control over the CO2 density
  • IncuViewâ„¢ LCI (live cell imaging): first of its kind technology that uses an internal microscope that connects wirelessly to the large external integrated display for real-time cell viewing; cells can also be monitored remotely through WiFi enabled device.
  • Cell viewing requires optional IncuView Integrated Microscope shelf (sold separately).
  • Microprocessor provides advance monitoring and control for temperature and CO2 percentage, with alarm alerts feature in the event of deviation.
  • Temperature Range: Ambient 5° to 60°C
  • Temperature Accuracy: ±0.1°C
  • Temperature Uniformity: ± 0.4°C
  • Temperature Stability: 0.1°C
  • Temperature Increments: 0.1°C
  • CO2 Range:0 to 20%
  • CO2 Increment: 0.1%
  • CO2 Accuracy: ± 0.1%
  • Model H3565-45 (45 liter capacity)
  • Chamber Dimensions:13.2" W x 14.2" D x 15.4" H (33.5 x 36.1 x 39.2 cm)
  • Exterior Dimensions: 16.5" W x 18.3" D x 21.8" H (42 x 46.5 x 55.3 cm)
  • Weight: 77 lbs (35kg)
  • Power Consumption: 300W
  • Model H3565-180 (180 liter capacity)
  • Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)
  • Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)
  • Weight: 172lbs (78kg)
  • Power Consumption: 420W
  • Model H3565-180HD (180 liter capacity)
  • Feature high heat decontamination cycle that exposes the chamber to 125°C for 8 hours to eliminate the risk of unhealthy cells.
  • Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)
  • Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)
  • Weight: 172lbs (78kg)
  • Power Consumption: 700W
  • Model H3565-180HDO2 (180 liter capacity)
  • Features unique 6 Compartments design with a split inner glass door for easy sample access that eliminates opening the entire door, reducing the risk of sample contamination.
  • High Heat Decontamination cycle that exposes the chamber to 125°C for 8 hours to eliminate the risk of unhealthy cells.
  • Chamber Dimensions: 18.7" W x 20.8" D x 28" H (47.3 x 52.8 x 71 cm)
  • Exterior Dimensions: 22" W x 26.2" D x 37.2" H (56 x 66.5 x 94.5 cm)
  • Weight: 172lbs (78kg)
  • Power Consumption: 700W
  • O2 range:0.5 to 20%
  • O2 Accuracy: ±0.3%

  • SureTherm CO2 Incubators by Benchmark Scientific SureTherm CO2 Incubators by Benchmark Scientific
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.

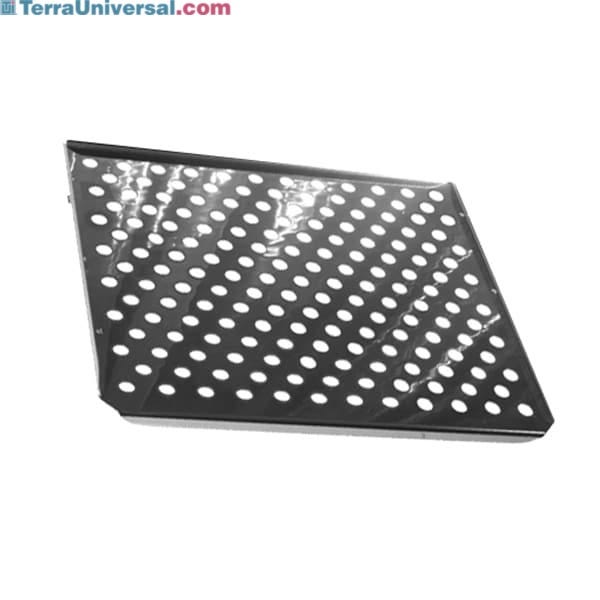

  • Stainless Steel Incubator Shelf

    Additional shelf for 45 liter and 180 liter SureTherm CO2 incubators.

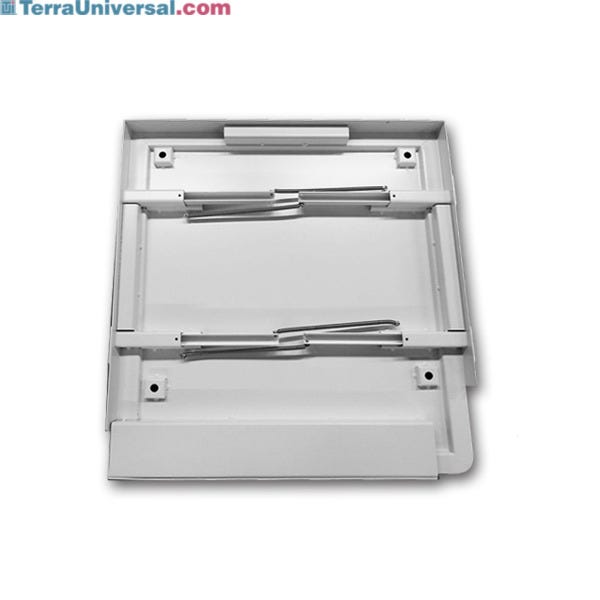

  • SureTherm Incubators Stacking Kits

    Stacking Kits available for both 45 liter and 180 liter incubators.
  • H2300 Regulator by Benchmark Scientific

    Optional regulators, required for connecting CO2 or O2 source
