Select Product
Freezer Temperature Range

Capacity Range

Terra Part # Price Ships in
-40° to -90°C 12 to 18 cubic feet 6707-93 77859 $13,127 20-25 Days 2
-40° to -90°C >24 cubic feet 6707-95 77861 $14,460 20-25 Days 3
-40° to -90°C 12 to 18 cubic feet 6707-94 77860 $13,127 20-25 Days 4
-40° to -90°C >24 cubic feet 6707-96 77862 $14,460 20-25 Days 5
Freezer Temperature Range
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Energy efficient ULT Freezers ensure safe sample storage; suited for COVID-19 va    ccine storage
  • Available in 16.46 cu. ft. and 24.7 cu. ft. capacities
  • Suitable for labs storing samples and materials at -86°C setpoint
  • Long-term storage of biological, medical and chemical samples at ultra-low temperatures
  • Environmentally-friendly refrigerants R-290 and R-170
  • Interior with four compartments provide temperature stability during sample retrieval
  • Freezer racks per compartment: 4 (16.48 cu. ft.); 6 (24.7 cu. ft.)
  • Permitted load: 441 lbs.
  • Includes: 3 stainless steel shelves and 12 shelf holders with screws, DIN plug, two spacers for rear wall distance and operating manual
  • Maximum shelf capacity: 13 (all models)
  • Range of temperature controller: -90 °C to -40 °C
  • Setting range: -86 °C to 20 °C
  • Lowest energy consumption in its class
  • Material: rust-proof,  stainless steel interior
  • Zero-voltage alarm contact for in-house alarm system
  • Cryobox (50 mm) capacity: 352 (16.46 cu. ft.); 528 (24.7 cu. ft.)
  • Features: Powerful cascade compressor cooling unit, efficient thermal insulation with vacuum insulation panels, door gasket reduces ice buildup, ergonomic door handle, detachable stainless steel inner doors, operating hours counter, Ethernet interface, internal data logger, measure valued read via USB, 2 access ports, Ø 28 mm, rear
  • Environment-specific data:
  • Average heat dissipation at setpoint -80 °C and ambient temperature = 21 °C [W]: 330 (16.48 cu. ft.).; 340 (24.7 cu. ft.)
  • Energy consumption at setpoint -80 °C and ambient temperature = 21 °C [kWh/d]: 7.9 (16.46 cu. ft.); 8.1 (24.7 cu. ft.)
  • Sound-pressure level [dB(A)]: 47
  • Performance data temperature:
  • Cooling down time from 22 °C to -80 °C [min]: 360(16.48 cu. ft.); 450     (24.7 cu. ft.)
  • Temperature fluctuation at -80 °C [± K]: 1.5
  • Temperature variation at -80 °C [± K]: 2.5
  • Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]: 230 (16.48 cu. ft.); 250 (24.7 cu. ft.)

Ultra-Low Freezers (-80°C)

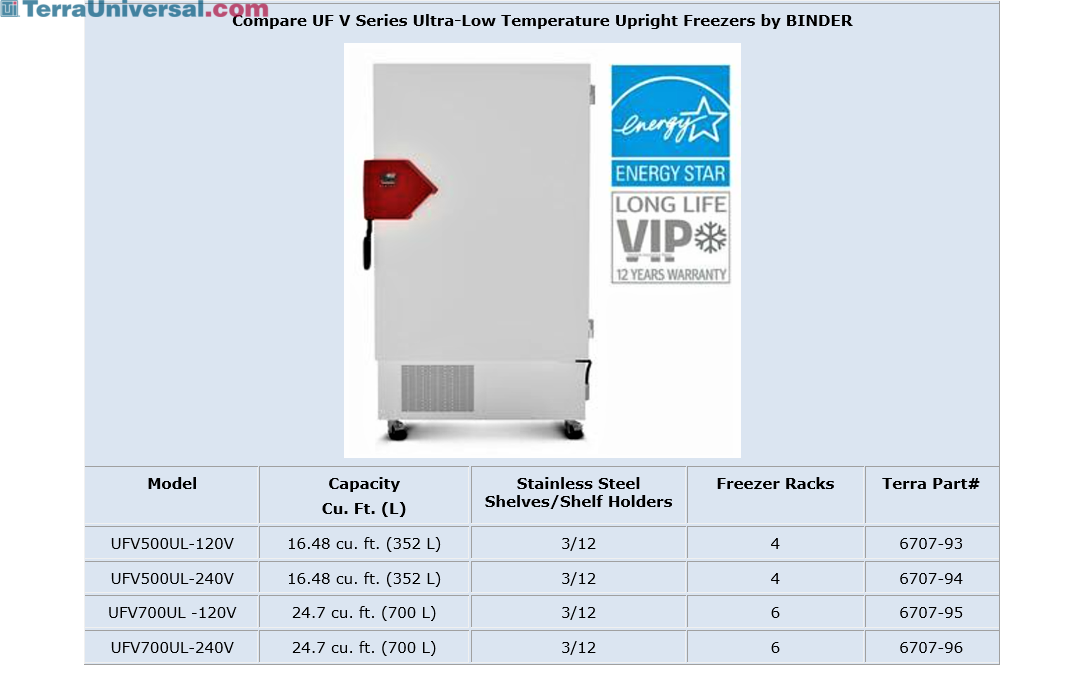

  • Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER Comparison chart for UF V Series Ultra-Low Temperature Upright Freezers by BINDER

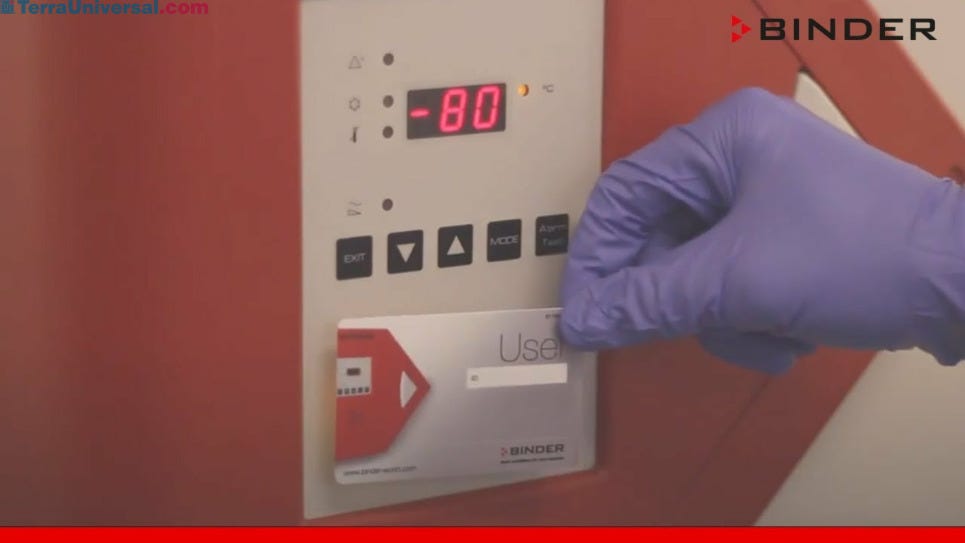

  • BINDER UFV ULT Freezer Case Study Video UFV ULT Freezer Case Study Video
BINDER UFV ULT Freezer Case Study Video
Features & Benefits

Features and Benefits

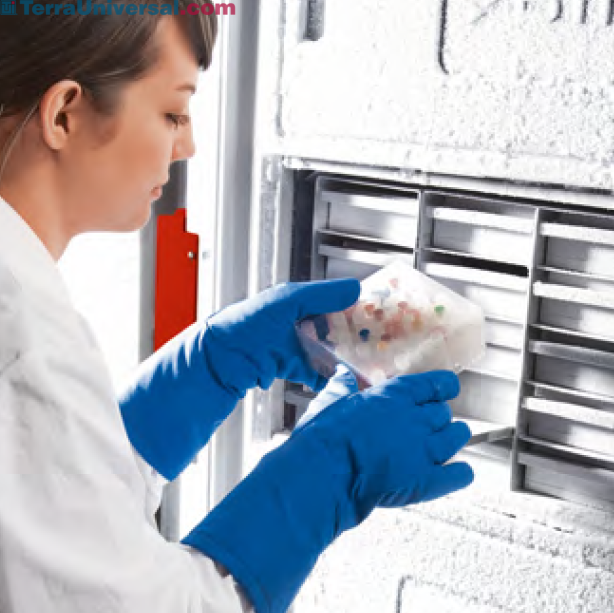

Suited for Vaccine Storage

-86°C temperature setpoint, efficient thermal insulation and low energy consumption deliver an excellent solution for coronavirus vaccine storage

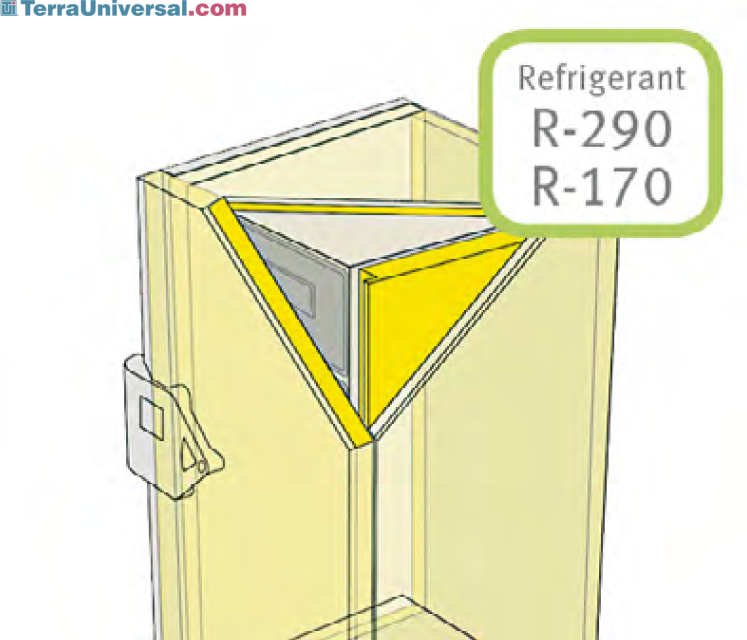

Climate-Neutral Refrigerants

State-of-the-art cooling technology and large vacuum-based thermal insulation deliver environmentally-friendly and energy efficient models

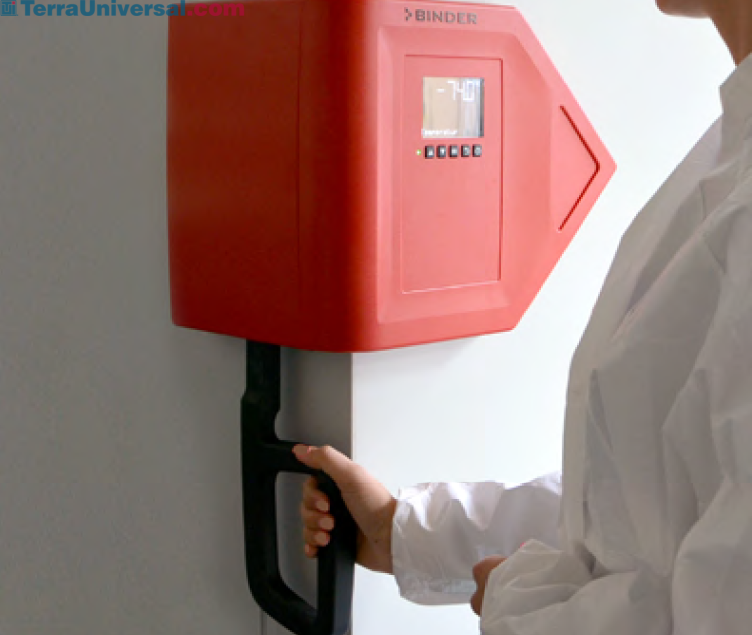

Ergonomic Door Handle

Enables easy door opening and retrieval of samples manually or at the touch of a button

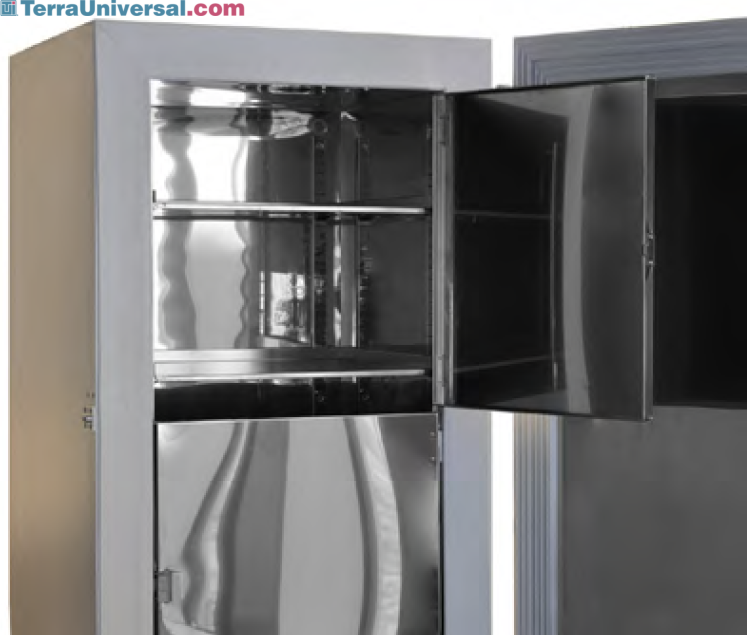

Stainless Steel Interior

Models are constructed with rust-proof stainless steel interiors and include three stainless steel shelves

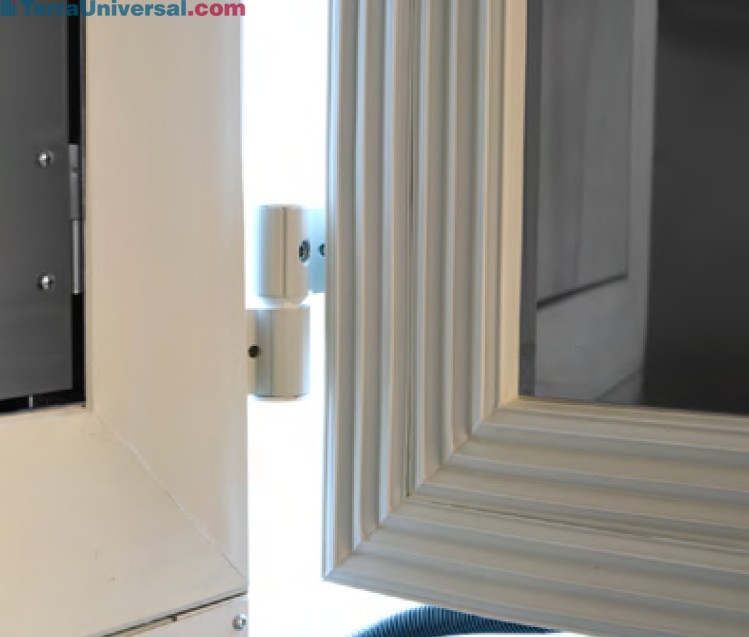

Minimum Ice Build-Up

Innovative door gasket minimizes ice build-up on the door frame

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
