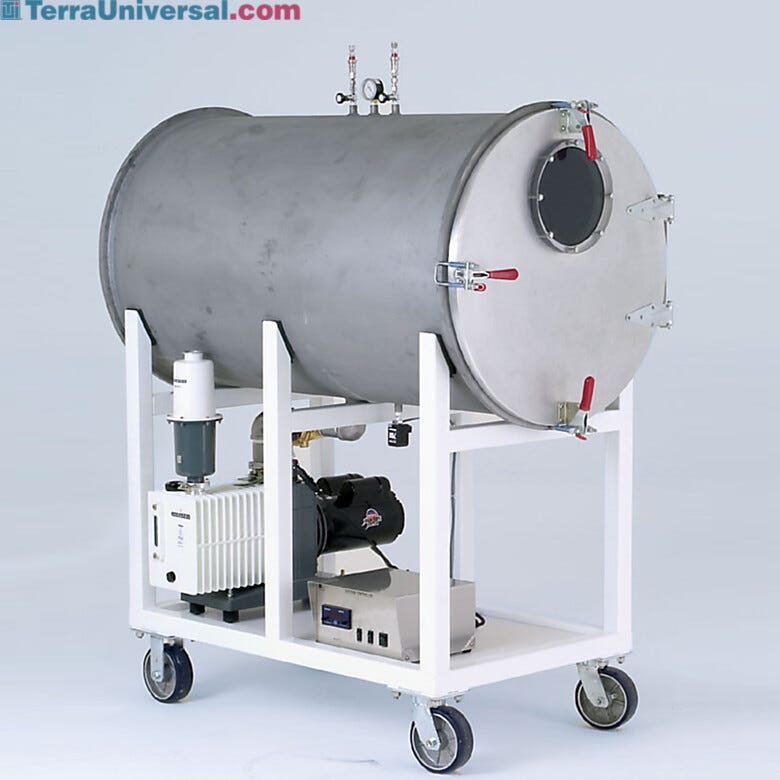

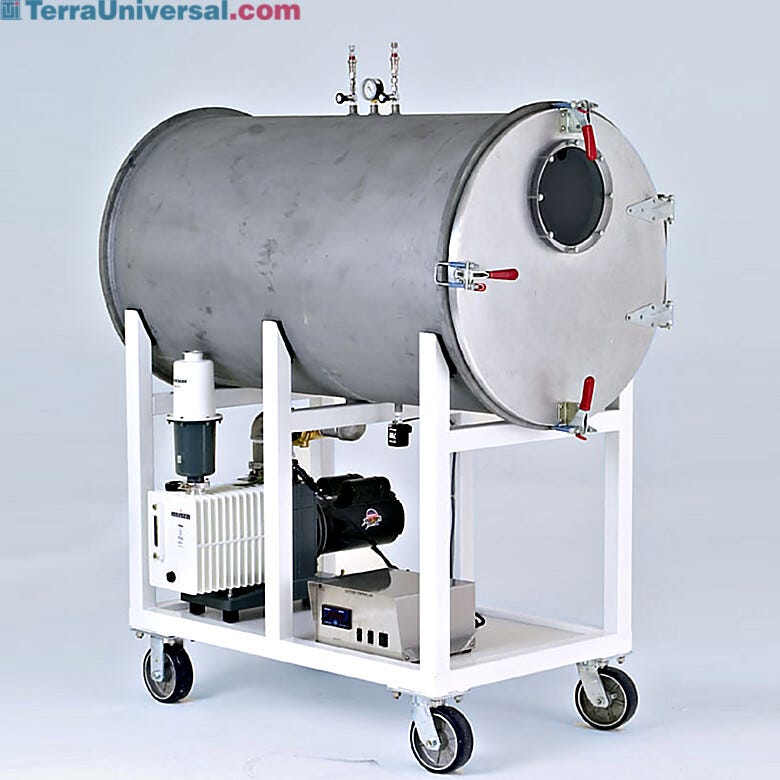

High-Capacity Vacuum Chamber includes piping, fittings and solenoid valve
Vacuum Chambers

Vacuum Chamber; High Capacity, Stainless Steel, 27" W x 48" D x 23.44" H ID

Custom-configured product: Please request quote. Terra will contact you for requirements.
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Includes piping, fittings and solenoid valve for vacuum pump connection
  • Thick powder-coated 304 stainless steel with thick aluminum door
  • Window constructed of inch-thick polycarbonate, 8.57" in diameter
  • Maximum Vacuum: 29.9" Hg
  • Internal 18" wide shelf supports loads up to 75 pounds

• Type: High Capacity

• Material: Stainless Steel

• Width: 28"

• Depth: 48"

• Height: 28"

• Maximum Vacuum: 29.9" Hg

• Chamber Dimensions: 27" W x 48" D x 23.44" H

• Chamber Width: 27"

• Chamber Depth: 48"

• Chamber Height: 24"

• Unit of Measure: EA

Read more
ISO 5 Icon
Terra Part #: 3404-03
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3404-03
Terra Part # 3404-03
Request Quote
Usually ships in 30-40 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3404-03
40597
Vacuum Chamber; High Capacity, Stainless Steel, 27" W x 48" D x 23.44" H ID
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Includes piping, fittings and solenoid valve for vacuum pump connection
  • Thick powder-coated 304 stainless steel with thick aluminum door
  • Window constructed of inch-thick polycarbonate, 8.57" in diameter
  • Maximum Vacuum: 29.9" Hg
  • Internal 18" wide shelf supports loads up to 75 pounds
  • Optional powder-coated steel stand with casters for easy chamber relocation
  • Large capacity chamber provides ample processing space for degassing large assemblies
Show more

• Type: High Capacity

• Material: Stainless Steel

• Width: 28"

• Depth: 48"

• Height: 28"

• Maximum Vacuum: 29.9" Hg

• Chamber Dimensions: 27" W x 48" D x 23.44" H

• Chamber Width: 27"

• Chamber Depth: 48"

• Chamber Height: 24"

• Unit of Measure: EA

• Electrical Specifications: None

• Weight, Product: 350 lb

• Dimensions, Product: 31" W x 53" D x 37" H

• Weight, Shipping: 420 lb

• Dimensions, Shipping: 37" W x 59" D x 43" H

• Package Type: Crate

Download Manual

Show more
