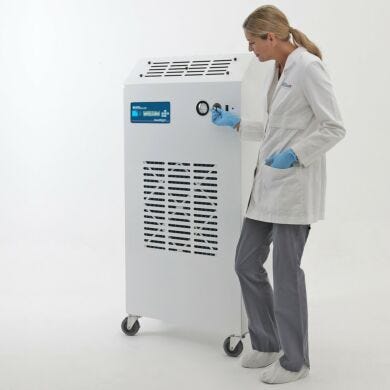

Mobile Medical Grade Air Filter System with optional CleanWatch Environment Monitoring included | 6601-66A displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

WhisperFlow® Portable HEPA Filtration System, High Capacity

  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • HEPA filters help capture many bacteria and viruses that cause respiratory infections
  • Portable isolation room filtration system suitable for negative pressure or recirculation
  • Medical grade air filtration system quickly converts any room to a negative pressure isolation room
  • Mobile, self-contained, high capacity air purifier with small footprint easily rolls between rooms
  • Compatible with the CleanWatch environmental control module to track RH, temperature, pressure, and particle counts

• Material: Powder-Coated Steel

• Filter: HEPA

• Motor Type: Electronically Commutated (EC)

• Motor HP: 1/3 hp

• Special Application: Base Unit

• Speed Control: Variable Speed Control

• Blower Type: Forward Curved

• Pre-Filter: MERV 7

• Battery Powered: No

• UV Lamp: N/A

• Certified ISO Grade Design: ISO 6

• ISO Rated Air Cleanliness: ISO 5

• Watts @ max CFM: 350 W

• Watts @ 630 CFM: 180 W

• Sound (dB.) @ 630 CFM: 43 dB

• Unit of Measure: EA

Read more
Latest model - What's new
  • CleanWatch Environmental Control Compatibility
Stocked WhisperFlow ISO 5 Icon Quick Ship +
Terra Part #: 6601-66A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6601-66A
Terra Part # 6601-66A
$1,815
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 6601-66A
87945
WhisperFlow® Portable HEPA Filtration System, High Capacity
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Quick Ship+ Available In stock soon
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

QtyUnit Price*%
1$1,815-
2 $1,706 6%
41 $1,670 8%

* If multiple discounts apply, max discount will be applied in cart

Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • HEPA filters help capture many bacteria and viruses that cause respiratory infections
  • Portable isolation room filtration system suitable for negative pressure or recirculation
  • Medical grade air filtration system quickly converts any room to a negative pressure isolation room
  • Mobile, self-contained, high capacity air purifier with small footprint easily rolls between rooms
  • Compatible with the CleanWatch environmental control module to track RH, temperature, pressure, and particle counts
  • Performance Data and Submittals
  • In addition to wearing face masks and staying at least six feet away from other people, good air circulation and ventilation inside buildings will reduce the spread of harmful contaminants in aerosols.
  • Medical grade air filter system is ideal for clinics, waiting rooms, hospital emergency rooms, schools, court houses, and other confined areas without access to open windows for outdoor air circulation.
  • High-capacity design features a large 2' x 4' HEPA filter, allows longer operation with fewer filter replacements.
  • Mobile filtration system features powerful blower to supply a Clean Air Delivery Rate (CADR) of 800 CFM to minimize the spread of airborne diseases.
  • One way to measure ventilation is to determine how often the air in a space is completely replaced. This is called Air Changes per Hour (ACH). In a 900 sq.ft. (30-foot by 30-foot by 9-foot high) room with 25 people in it, the air can be replaced roughly every 10 minutes, which equals an ACH of 6. Higher ACH lowers the risk of disease spreading through the air.
  • Mobile hospital air purification system easily configures for recirculation or negative pressure:
  • For recirculation: room air and airborne contaminants are drawn through intake grille at the bottom, and purified air is discharged from the exhaust grille at the top to generate a sweeping, low-to high air circulation pattern to optimize clean breathing zone for patient and staff.
  • For negative pressure: simply connect flexible ducting to the top exhaust to direct exhaust through a window or wall. The system creates a negative pressure environment isolation room, suitable for use with patients known or suspected of having infectious diseases.
  • For positive pressure: connect the ducted top exhaust to the cleanroom to feed in ISO 5 air. Suitable for applications with not enough height clearance to mount FFUs on the ceiling of a room.
  • Quiet, low vibration HEPA filter system; only 43 dBA measured 30 in. from unit minimizes distracting background noises.
  • High Efficiency Particulate Air (HEPA) filter: 99.99% efficient at 0.3µm particle diameter
  • Uses a lightweight, forward-curved fan powered by a 120V 60Hz motor
  • Variable speed dial simplifies air balancing
  • Filters are leak tested in accordance with IEST standards and meet UL 900
  • Select the CleanWatch environmental monitoring system option in system builder for more precise control
  • Includes 10ft medical grade power cable
  • All filter sales are final; returns for this item cannot be accepted

• Material: Powder-Coated Steel

• Filter: HEPA

• Motor Type: Electronically Commutated (EC)

• Motor HP: 1/3 hp

• Special Application: Base Unit

• Speed Control: Variable Speed Control

• Blower Type: Forward Curved

• Pre-Filter: MERV 7

• Battery Powered: No

• UV Lamp: N/A

• Certified ISO Grade Design: ISO 6

• ISO Rated Air Cleanliness: ISO 5

• Watts @ max CFM: 350 W

• Watts @ 630 CFM: 180 W

• Sound (dB.) @ 630 CFM: 43 dB

• Unit of Measure: EA

• Electrical Specifications: 120 V, 3.8 A, 440 W, 1 Ph, 50/60 Hz

• Weight, Product: 150 lb

• Dimensions, Product: 28.5" W x 18" D x 59.5" H

• Weight, Shipping: 190 lb

• Dimensions, Shipping: 34" W x 24" D x 66" H

• Package Type: Palletized

Show more
Other products you may find relevant
  1. 2'W x 4'D LED panel mounted in Terra Universal Cleanroom | 3800-41 displayed
    Group of 7 products
    LED Light Panels From
    As low as $132
    Some ship in 1 - 3 days
  2. Cleanroom control panel provides centralized control and monitoring of cleanroom functions; status indicator LED blinks when FFU filters need replacement | 6600-23A-NS displayed
    Group of 4 products
    Standard Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $4,136
    Some ship in 5 - 7 days
  3. Cleanroom control panel with built-in Tier 4 touchscreen console; datalogging (pressure/temp/RH) and FFU control for up to 16 rooms, 200 FFUs | 6607-04 displayed
    Group of 8 products
    Smart® Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $5,323
    Some ship in 1 - 3 days
  4. Holds fan filter units secure in rigid ceilings without a T-bar grid. | 6604-00 displayed
    Group of 3 products
    Fan Filter Unit Mounting Frames From
    As low as $319
    Some ship in 0 - 2 days
  5. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer | 2625-54B-SS displayed
    Group of 2 products
    Filter Replacement Alarm System for Fan Filter Units From
    As low as $748
    Some ship in 1 - 3 days
  6. Provides efficient disinfection of cleanrooms and laboratories | 3800-26 displayed
    Germicidal UV Illuminator; for Modular Cleanrooms, Universal, 120 V
    $2,816
    Usually Ships in 1 - 3 days
  7. fixture contains four UV light tubes for fluorescence detection | 3800-27 displayed
    Fluorescent Detection UV Illuminator; for Modular Cleanrooms, Universal
    $573
    Usually Ships in 5 - 7 days
  8. 2' x 4' Cleanroom LED Panel Light with emergency backup battery and battery test switch | 3800-47 displayed
    Group of 2 products
    Cleanroom LED Light Panel with Built-In Emergency Battery From
    As low as $1,047
    Some ship in 2 - 4 days
  9. Wall-mount canopy fume hood provides 1200 CFM exhust fume ventilation with 4 blower speeds | 5015-14 displayed
    Group of 12 products
    Wall-Mount Canopy Fume Hoods From
    As low as $1,671
    Some ship in 1 - 3 days
  10. Ion bar kit safely neutralizes charges to protect against electro-static charges. Attaches to inside ceiling of glovebox. Ion bar sold separately. | 2005-92 displayed
    Group of 4 products
    Ionizing Bars From
    As low as $548
    Some ship in 1 - 3 days
  11. Automatically detects sensor fault | 5401-32A displayed
    Combustible Gas Leak Detector With Alarm, 120 V
    $350
    Usually Ships in 5 - 7 days
  12. 2' x 2' Cleanroom LED light panel with emergency battery back-up in case of power failure | 3800-48 displayed
    LED Light Panel with Built-In Emergency Battery, 2' x 2', Cleanroom-Grade
    $1,047
    Usually Ships in 2 - 4 days
  13. ISO Rated FFU Testing and Certification; Flow Rate and Filter integrity
    ISO Rated FFU Testing and Certification; Flow Rate and Filter integrity
    Request Quote
  14. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer | 2625-54B-SS displayed
    Filter Replacement Alarm System; for Fan Filter Unit, Audible & Visible Alert, Manual Override, Stainless Steel, 120 V
    $748
    Usually Ships in 1 - 3 days
  15. | 6703-81 displayed
    Group of 9 products
    Cleanroom Ceiling Panels and Tiles From
    As low as $21
    Some ship in 0 - 2 days
Buy Accessories

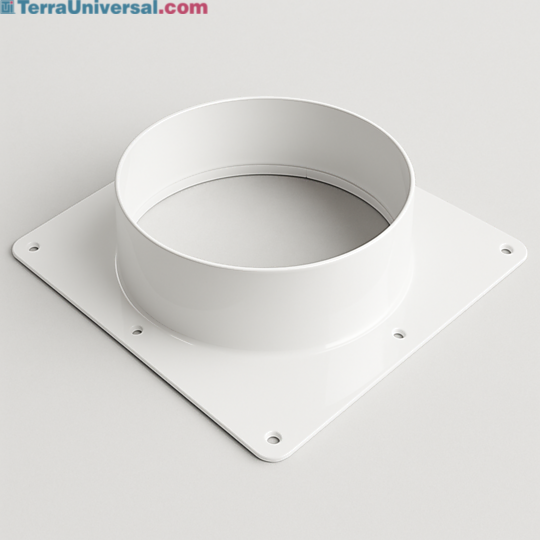

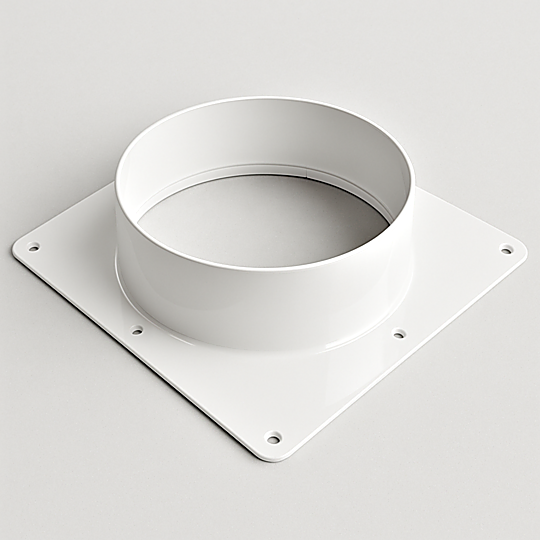

  1. Duct Flange Adapter for WhisperFlow® Portable HEPA Filtration System | 6601-67 displayed
