Select Product

Chamber Width

Chamber Depth

Chamber Height

Terra Part #PriceShips in
7" 7" 7.7" 5235-38 60427 $2,84073-79 Days2
8" 8" 8.5" 5235-32 60421 $3,12243-49 Days3
10" 10" 8.5" 5235-39 60428 $3,64173-79 Days4
29.375" 23.375" 16.75" 1590-60 6261 $13,57043-49 Days5
30" 30" 40" 1590-70 42865 $36,68443-49 Days6
35" 35" 35.5" 1590-68 42867 $37,82243-49 Days7
11" 10" 8.5" 5235-30 60419 $3,7851-3 Days8
Stocked
12" 12" 6.5" 5235-31 60420 $3,78743-49 Days9
15" 9" 10.5" 5235-33 60422 $4,60343-49 Days10
16" 16" 12.5" 5235-34 60423 $7,62443-49 Days11
11" 10" 11.5" 5235-35 60424 $4,34443-49 Days12
14" 8" 9.5" 5235-36 60425 $5,31973-79 Days13
11" 11" 5.5" 5235-37 60426 $3,32873-79 Days14
15" 15" 11.5" 5235-40 60429 $6,58673-79 Days15
11" 8" 10.5" 5235-41 60430 $3,76673-79 Days16
Chamber Width
Chamber Depth
Chamber Height
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Provide an optimal environment for vacuum testing and processing to one atmosphere 29.9" Hg

• All chambers include two preinstalled metering valves and a 0 - 30" Hg vacuum gauge

• Benchtop units as small as 9" x 9" x 9.5"

• Floor-standing units as large as 37" x 37" x 37.5"

• Aluminum resists Spor-Klenz and alcohol-based sterilants

• Benchtop sizes ideal for degassing samples and materials, and transporting items sensitive to moisture

• Larger chambers can be used for processing large components and assemblies

• Durable powder-coated aluminum construction ensures a long service life under heavy service

• 1"-thick aluminum walls sustain maximum vacuum pressure without warping

• Optional castered stand built from powder-coated steel (supports chamber and pump)

• Call to discuss custom sizes and applications, including installation of cable feed-throughs

Vacuum Chambers

  • Powder-Coated Aluminum Vacuum Chamber with Model Powder-Coated Aluminum Vacuum Chamber
  • Powder-Coated Vacuum Chamber with Model Powder-Coated Aluminum Vacuum Chamber

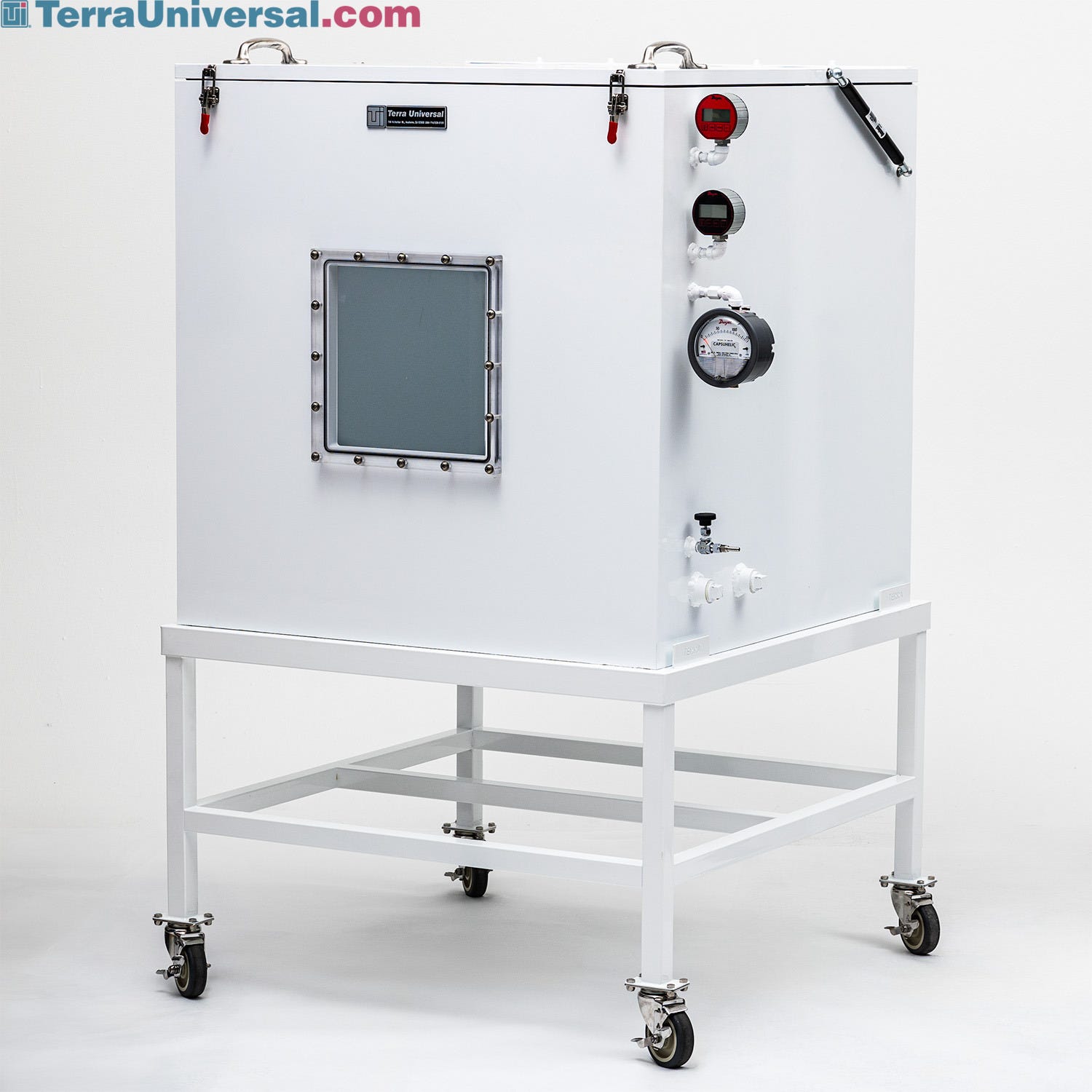

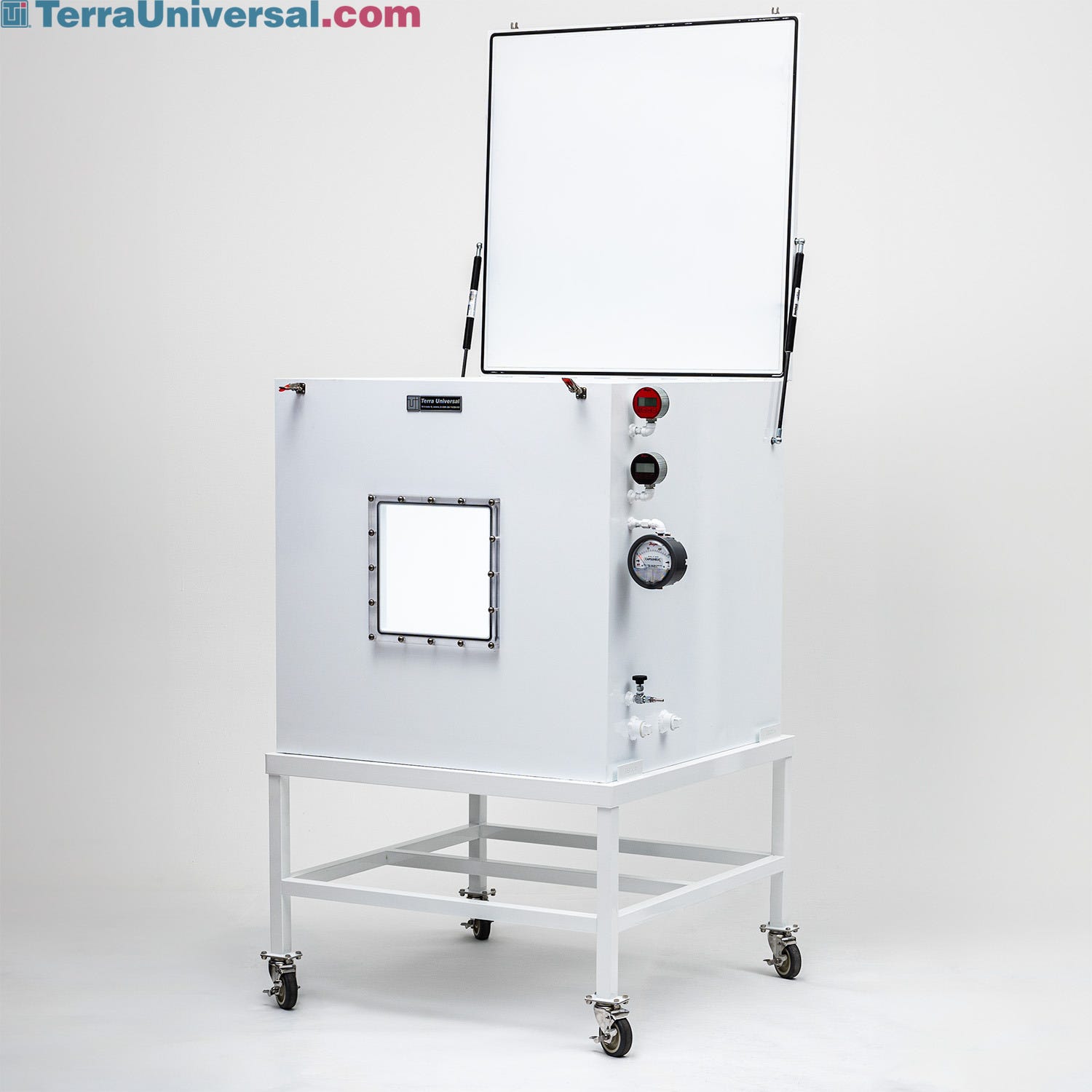

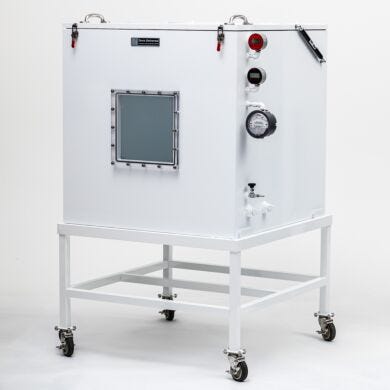

  • Aluminum Vacuum Chamber Powder-Coated Aluminum Vacuum Chamber
  • Terra Universal Vacuum Chamber Overview

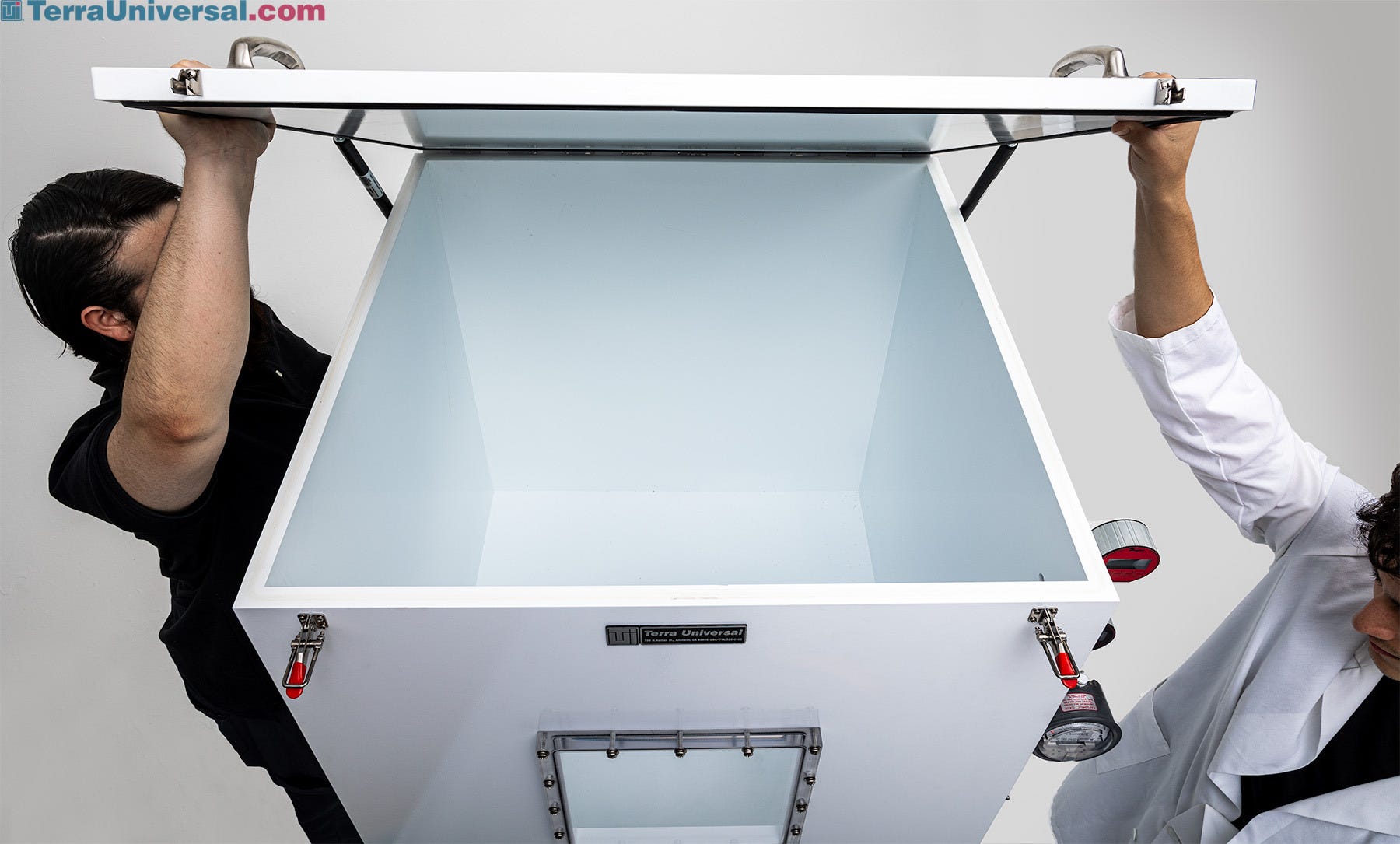

Powder-Coated Aluminum Vacuum Chamber with Model

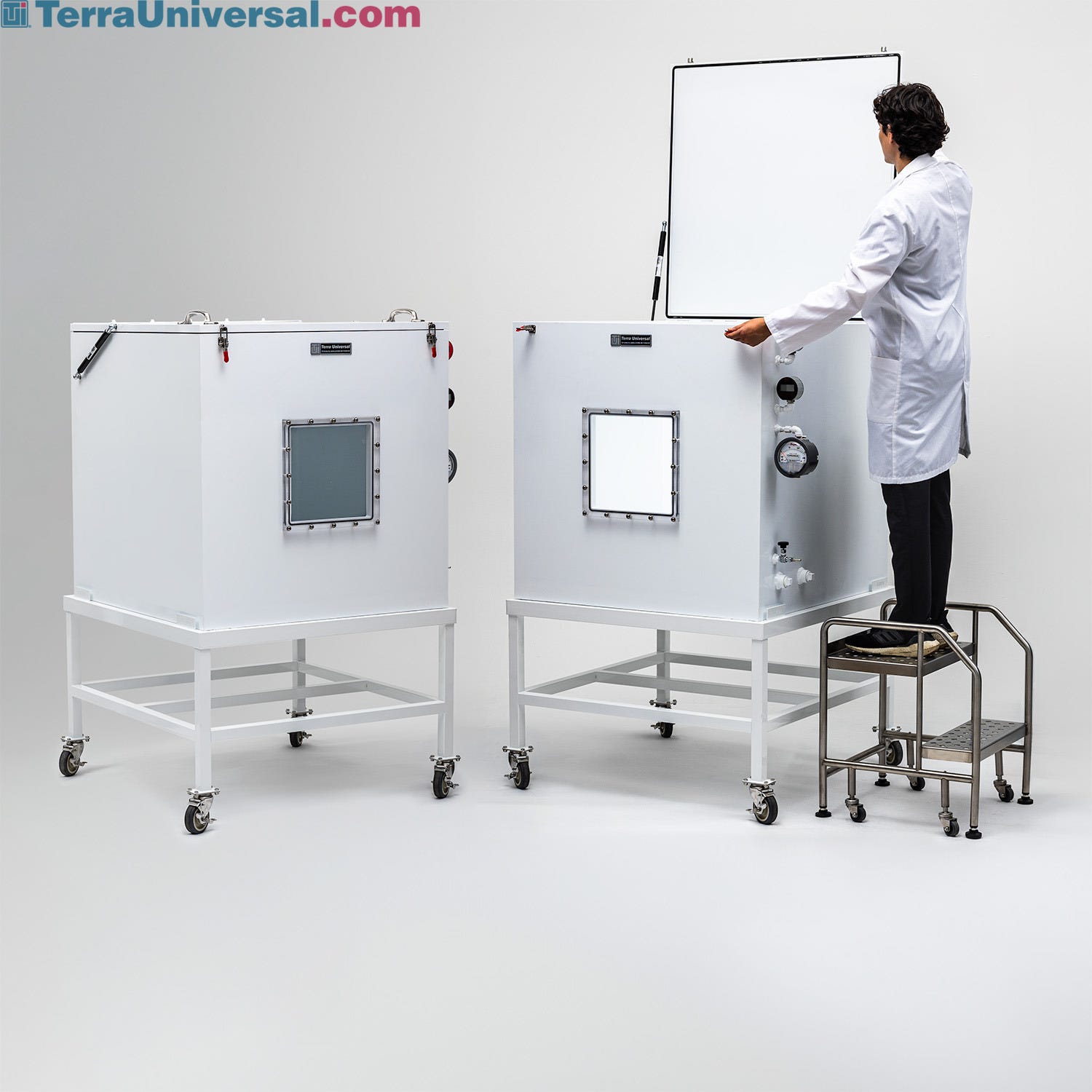

Powder-Coated Vacuum Chamber with Model

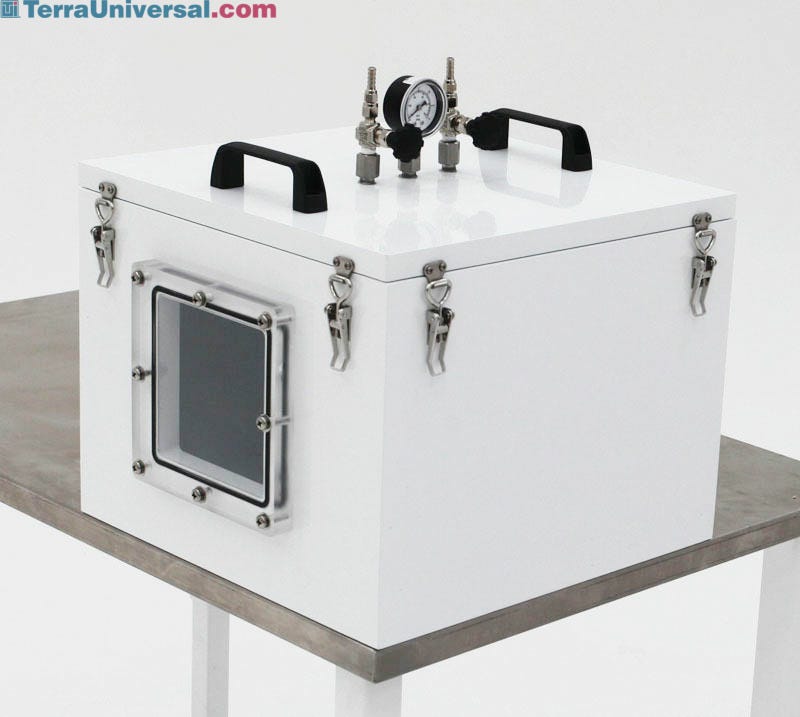

Aluminum Vacuum Chamber

Features & Benefits

Features and Benefits

Powder-Coated Aluminum Vacuum Chamber Walls

One-inch-thick, powder-coated aluminum walls ensure chamber cleanliness and integrity while subject to vacuum up to 29.9”Hg.

Installed Vacuum Gauge and Metering Valves

Gauges and valves preinstalled on vacuum chambers allow vacuum application, monitoring, bleeding and backfilling (shown mounted on aluminum chamber).

Powder-Coated Aluminum Vacuum Chamber Gauge and Metering Valves Inlaid O-Ring

O-ring rests in a precision-routed channel for an optimal seal that prevents leakage.

Viewing Window for Vacuum Chamber

A sealed, 1”-thick acrylic window affords a view of the chamber’s contents.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Vacuum Chamber on Electric Height Adjusting Table

Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

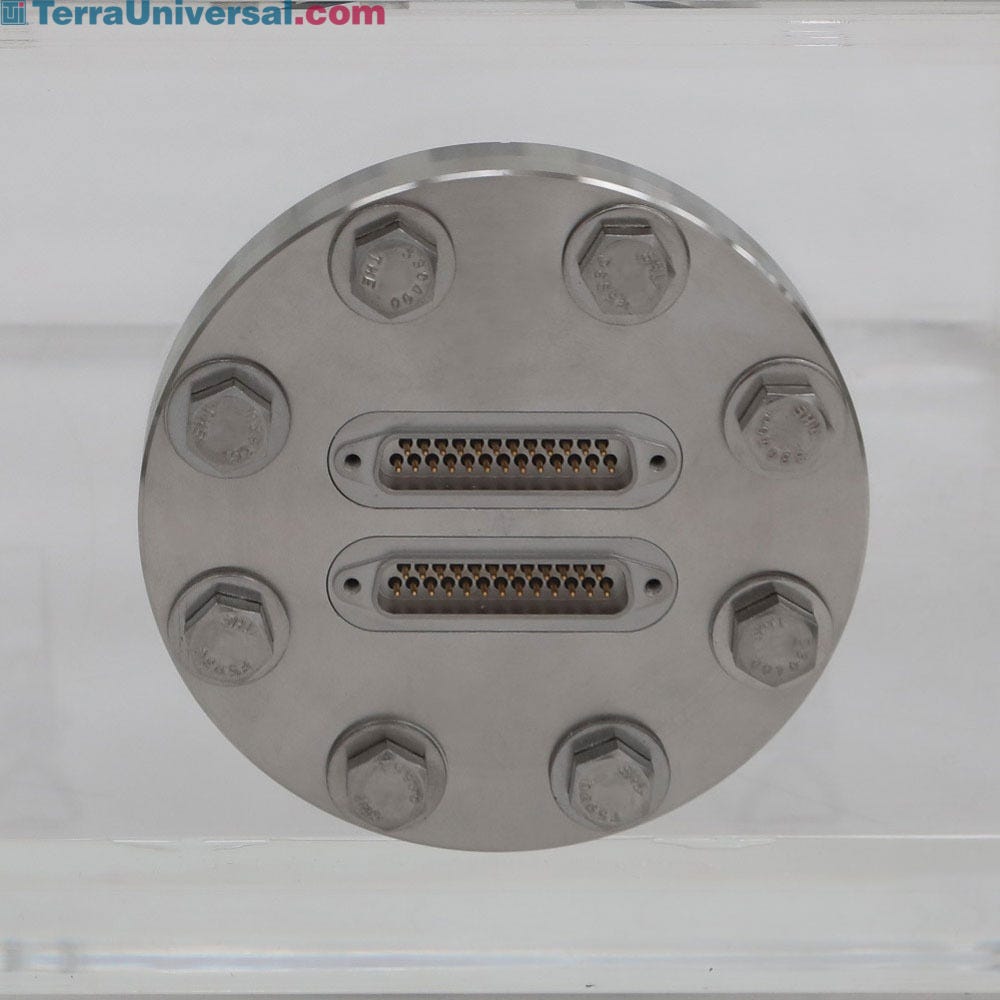

  • Multi-pin Feedthrough
    Optional 25-pin connector can be used to monitor conditions within the vacuum chamber.
  • Coaxial SMA Feedthrough
    Double-ended, 50-ohm connectors allow small electronics to operate within the chamber.
  • Optional Vacuum Relief Valve
    Adjustable pressure relief valve limits vacuum levels within the chamber, allowing pressure to be maintained at user-configured point. (NOTE: Vacuum pump must remain in operation to maintain desired vacuum level).
  • Welch Rotary Vane Vacuum Pump
    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging
    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
