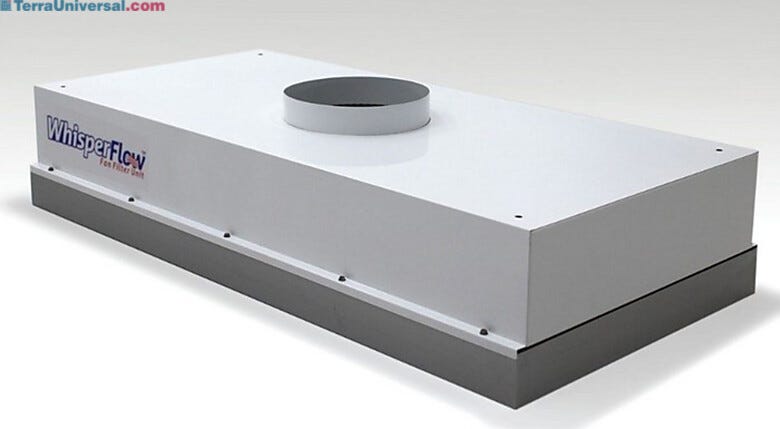

Ducted terminal diffuser provides uniform flow of HEPA-filtered air to an enclosure (requires remote air handler) | 6601-24-HD displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

Laminar Flow Diffuser; WhisperFlow®, 2'x4', Activated Carbon, 12" Duct Collar

Terra Part #: 6601-24-CD
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Suitable for industries requiring frequent use of solvents and volatile organic compounds (VOCs)
  • Honeycomb activated carbon-equipped laminar flow housing specialized for containing odorous contaminants
  • Economical filter unit includes internal baffling and diffuser panel for quiet, uniform air flow
  • Gas-phase filtration absorbs gaseous material at the molecular level too small for HEPA filters to capture
  • Filter adsorbs up to 7.5lb (3.4kg) of VOCs including fumes, odors, and other pollutants.

• Type: Ducted

• Material: Powder-Coated Steel

• Filter Replacement Access: Top Side

• Size: 2'x4'

• Filter Frame Material: 304 Stainless Steel

• Filter: Activated Carbon

• Motor Type: None

• Airflow: Positive Pressure

• Special Application: Vapor-Removal & Sanitizing

• FFU Type: Ducted

• Pre-Filter: None

• Certified ISO Grade Design: ISO 6

• Voltage: None

• Unit of Measure: EA

Read more
Stocked WhisperFlow ISO 6 Icon
WhisperFlow
Terra Part #: 6601-24-CD
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6601-24-CD
Terra Part # 6601-24-CD
$581
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Accessories related to Terra Part # 6601-24-CD
88245
Laminar Flow Diffuser; WhisperFlow®, 2'x4', Activated Carbon, 12" Duct Collar
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Only 4 left in stock
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Posts
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Suitable for industries requiring frequent use of solvents and volatile organic compounds (VOCs)
  • Honeycomb activated carbon-equipped laminar flow housing specialized for containing odorous contaminants
  • Economical filter unit includes internal baffling and diffuser panel for quiet, uniform air flow
  • Gas-phase filtration absorbs gaseous material at the molecular level too small for HEPA filters to capture
  • Filter adsorbs up to 7.5lb (3.4kg) of VOCs including fumes, odors, and other pollutants.
  • Activated carbon filters capture common odor-causing substances including ammonia, hydrogen sulfide, ozone
  • Includes 12"-diameter x 2"H collar for connection to air supply; Airflow performance depends on flow of supplied air handler
  • 1/4-20 UNC threaded inserts in top corners, accommodate eyebolts to facilitate installation using suspended guy wires (order eyebolt package separately)
  • Includes FDA-approved silicone sealant (specify acrylic urethane or other Required sealant type when FFU is ordered)
  • Purchase optional Challenge Port Kit separately
  • Activated Honeycomb Carbon:
  • Provides effective odor control and particle filtration in critical environments.
  • Made from high-quality, virgin coconut shell for superior pore size distribution and maximum adsorption capacity.
  • Effectively removes volatile organic compounds (VOCs) like carbon tetrachloride, trichloroethane, and ethylbenzene.
  • Designed for high performance and low particulate shedding, these bonded carbon panels eliminate the need for downstream filters, unlike loose-fill carbon trays or disposable honeycomb filters.
  • Suited for HVAC systems in critical environments.
  • NOTE:
  • Customer must determine if filter leak testing is required for their application. This unit is not leak rated. If a leak test is required, units leak-tested to meet ISO 14644-3 are optionally available.
  • All filter sales are final; returns cannot be accepted due to the sensitive nature of HEPA filters. Leak tested filters may qualify for limited replacement if a defect is identified upon delivery.

• Type: Ducted

• Material: Powder-Coated Steel

• Filter Replacement Access: Top Side

• Size: 2'x4'

• Filter Frame Material: 304 Stainless Steel

• Filter: Activated Carbon

• Motor Type: None

• Airflow: Positive Pressure

• Special Application: Vapor-Removal & Sanitizing

• FFU Type: Ducted

• Pre-Filter: None

• Certified ISO Grade Design: ISO 6

• Voltage: None

• Unit of Measure: EA

• Electrical Specifications: None

• Weight, Product: 71 lb

• Dimensions, Product: 23.63" W x 47.63" D x 11.17" H

• Weight, Shipping: 91 lb

• Dimensions, Shipping: 53" W x 53" D x 20" H

• Package Type: Palletized

Show more
Related Articles
  1. Commercial Indoor HEPA Filter Solutions for Wildfire Smoke and Soot
  2. Medical-Grade HEPA Filter Solutions for Hospitals & Cleanrooms
  3. Droplet vs Aerosols: Evaluating Respiratory Virus Transmission
  4. How Do I Calculate Cleanroom Fan Filter Ceiling Coverage?
  5. IEST vs EN HEPA Fan Filter Differences - Test Methods and Classification Comparison
Other products you may find relevant
  1. 2'W x 4'D LED panel mounted in Terra Universal Cleanroom | 3800-41 displayed
    Group of 7 products
    LED Light Panels From
    As low as $141
    Some ship in 1 - 3 days
  2. Cleanroom control panel provides centralized control and monitoring of cleanroom functions; status indicator LED blinks when FFU filters need replacement | 6600-23A-NS displayed
    Group of 5 products
    Standard Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $4,425
    Some ship in 5 - 7 days
  3. Cleanroom control panel with built-in Tier 4 touchscreen console; datalogging (pressure/temp/RH) and FFU control for up to 16 rooms, 200 FFUs | 6607-04 displayed
    Group of 8 products
    Smart® Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $5,696
    Some ship in 1 - 3 days
  4. Holds fan filter units secure in rigid ceilings without a T-bar grid. | 6604-00 displayed
    Group of 4 products
    Fan Filter Unit Mounting Frames From
    As low as $341
    Some ship in 0 - 2 days
  5. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
    Group of 4 products
    Lighthouse Handheld Airborne Particle Counters by LWS From
    As low as $4,346
    Some ship in 5 - 10 days
  6. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer | 2625-54B-SS displayed
    Group of 3 products
    Filter Replacement Alarm System for Fan Filter Units From
    As low as $799
    Some ship in 1 - 3 days
  7. Provides efficient disinfection of cleanrooms and laboratories | 3800-26 displayed
    Germicidal UV Illuminator; for Modular Cleanrooms, Universal, 120 V
    $3,013
    Usually Ships in 15 - 19 days
  8. fixture contains four UV light tubes for fluorescence detection | 3800-27 displayed
    Fluorescent Detection UV Illuminator; for Modular Cleanrooms, Universal
    $573
    Usually Ships in 5 - 7 days
  9. Be prepared! Don't get left in the dark. Emergency lighting panels give you enough time to get to safety or to work through a minor power interuption. | 3800-47A displayed
    Group of 2 products
    Cleanroom LED Light Panel with Built-In Emergency Battery From
    As low as $1,121
    Some ship in 2 - 4 days
  10. Wall-mount canopy fume hood provides 1200 CFM exhust fume ventilation with 4 blower speeds | 5015-14 displayed
    Group of 12 products
    Wall-Mount Canopy Fume Hoods From
    As low as $1,814
    Some ship in 1 - 3 days
  11. Filter Integrity and Performance Certification
    Filter Integrity and Performance Certification
    Request Quote
  12. | 6703-81 displayed
    Group of 12 products
    Cleanroom Ceiling Panels and Tiles From
    As low as $24
    Some ship in 0 - 2 days
  13. 2' x 2' Cleanroom LED light panel with emergency battery back-up in case of power failure | 3800-48 displayed
    LED Light Panel with Built-In Emergency Battery, 2' x 2', Cleanroom-Grade
    $1,121
    Usually Ships in 2 - 4 days
Buy Accessories

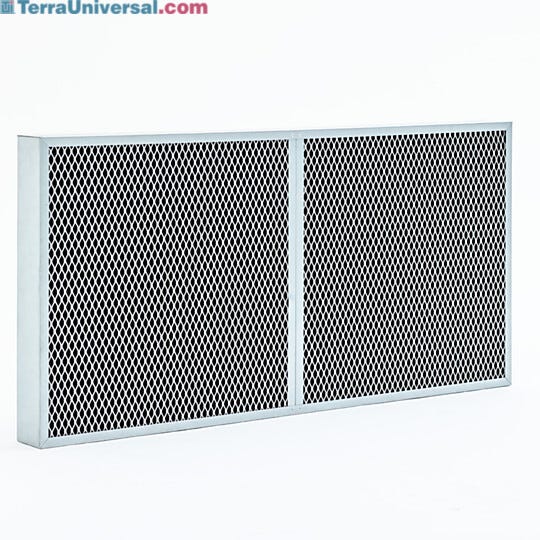

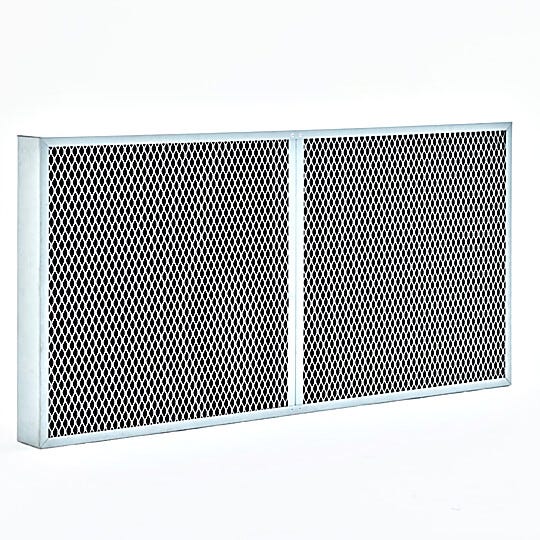

  1. 2x4 foot Fan Filter Unit filter with stainless steel housing and grille containing compressed activated carbon in honeycomb form factor for chemical air scrubbi | 1716-10 displayed
