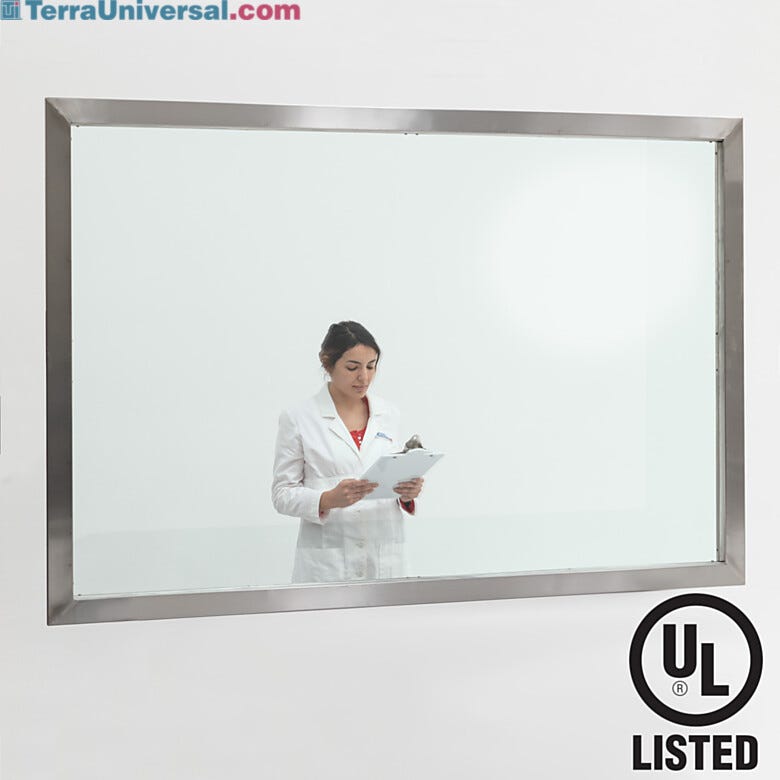

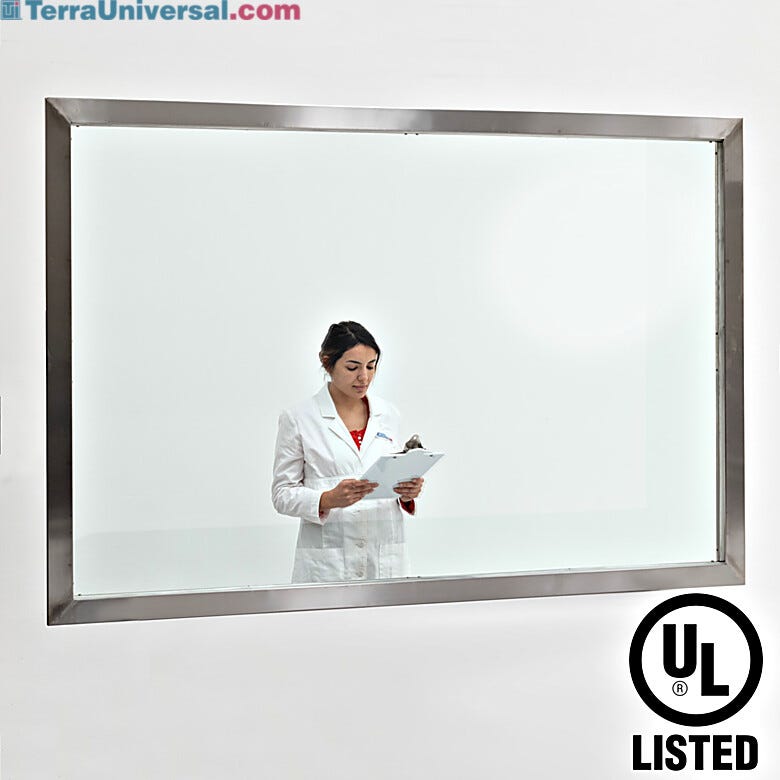

ISO 5, 316L stainless steel-framed window fits flush on cleanroom wall
Fire-Rated Cleanroom Windows,Doors & Windows for Cleanrooms,Windows for Architects,Windows,Windows,Windows,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions

Fire-Rated Cleanroom Window; CleanMount™, Single Pane, 45 Minute Rating, 316L Stainless Steel

Custom-configured product: Please request quote. Terra will contact you for requirements.
  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Fire-rated windows protect personnel, equipment, and facility by maintaining the integrity of the fire-rated wall
  • Tested and Certified to ANSI/UL 9 (positive pressure) for 45-minute fire exposure
  • Easy-mount frame is seamless on flush side without crevices where particles and contaminants can accumulate
  • Medical-grade, USP-compliant 316L stainless steel, compatible with all areas of hospitals and aseptic environments
  • Max Frame Size: 75-3/4"W x 51-7/8"H x 2"Thick

• Fire-Rating: 45 Min.

• Frame Material: 316L Stainless Steel

• Pane Thickness: 0.875"

• Window Type: Single Pane

• Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8

• Certified ISO Grade Design: ISO 5

• Unit of Measure: EA

Read more
Fire Rated Icon ISO 5 Icon
Terra Part #: 6612-02-SS
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6612-02-SS
Terra Part # 6612-02-SS
Request Quote
Usually ships in 45-51 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6612-02-SS
81644
Fire-Rated Cleanroom Window; CleanMount™, Single Pane, 45 Minute Rating, 316L Stainless Steel
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Fire-rated windows protect personnel, equipment, and facility by maintaining the integrity of the fire-rated wall
  • Tested and Certified to ANSI/UL 9 (positive pressure) for 45-minute fire exposure
  • Easy-mount frame is seamless on flush side without crevices where particles and contaminants can accumulate
  • Medical-grade, USP-compliant 316L stainless steel, compatible with all areas of hospitals and aseptic environments
  • •  Max Frame Size: 75-3/4"W x 51-7/8"H x 2"Thick
  • Flush-mount fire-rated window and frame assembly, intended for 45 min. rating, tested in accordance with UL 9 Fire Tests, UL File GVTV.R39784.
  • Designed for quick, easy installation in a variety of wall materials and thicknesses.
  • Clean and Durable 316L Stainless Steel Frame:
  • Meets ISO 5 classification on the flush-mount side and ISO 6 classification on the back side.
  • Easy-to-sterilize 316L stainless steel window frame with continuous seam welds for sterile bio-pharma applications
  • All-316L stainless steel surfaces with enhanced corrosion resistance stand up to harsher cleaning agents and withstand degradation from bleach-based disinfectants.
  • Frame size:
  • Max. Overall Dimensions: 75-3/4 in. x 51-7/8 in.
  • Max. Area: 3,929 sq.in.
  • Max. Wall Cut-Out: 76-3/4 in. x 52-7/8 in.
  • Glass Size:
  • Max. Exposed Area: 3,302 sq.in.
  • Max. Exposed Width: 70-5/8"
  • Max. Exposed Height: 46-3/4"
  • Fire-Rated Glazing: Pilkington PyroStop 60-101, single glazing (multi-laminate), nominal 7/8" thick, 10.86 lb/ft2
  • NOTE:
  • Glass glazing ships separately and must be installed into frame by customer.
  • Due to widely varying building codes, it is the responsibility of the architect/owner and installer to ensure the window assembly, glazing material, and other hardware complies with all applicable local building codes and laws.
  • Window assembly may be installed in steel stud/gypsum board, masonry or concrete assemblies having a minimum of 1 hr fire rating. The 1 hr fire rated steel stud/gypsum board wall assembly is to be constructed in accordance with UL Wall Design No. U419 as described in UL’s ProductiQ.  The wall assembly should be minimum No. 20 steel studs (structural steel), minimum 3-5/8 in. wide, spaced maximum 16 in. OC and faced with a single layer of nominal 5/8 in. thick Type X (Classified for Fire Resistance) gypsum board.
  • UL burn test video
Show more

• Fire-Rating: 45 Min.

• Frame Material: 316L Stainless Steel

• Pane Thickness: 0.875"

• Window Type: Single Pane

• Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8

• Certified ISO Grade Design: ISO 5

• Unit of Measure: EA

• Marks & Listings: UL

Download Manual

Show more
Other products you may find relevant
  1. Shown is a side-by-side comparison of framed and frameless BioSafe windows. The frameless design is mounted flush with the existing wall. | 6603-19-1602 displayed
    Group of 12 products
    Cleanroom Windows From
    Request Quote
    Some ship in 4 - 6 days
  2. Left-hand swing stainless steel door with partial view tempered glass window | 6602-79A-L displayed
    Group of 21 products
    Pre-Hung Manual Swing doors, BioSafe®, CleanSeam™ 304 or 316 Stainless Steel From
    As low as $3,767
    Some ship in 0 - 2 days

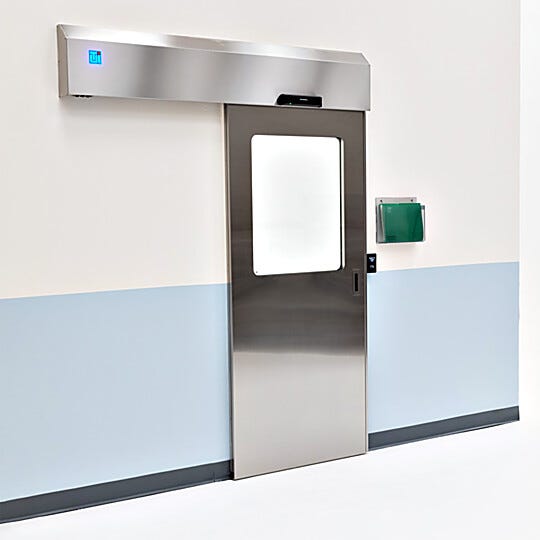

  3. Partial view stainless steel automatic sliding door with touchless motion door pad | 5556-13-LS displayed
    Group of 16 products
    External Mount Automatic Sliding Doors, Stainless Steel From
    As low as $7,574
    Some ship in 10 - 15 days
  4. Left hand reverse stainless steel door with full view tempered glass window | 1999-87A-L displayed
    Group of 6 products
    Pre-Hung Automatic Swing Doors, BioSafe®, CleanSeam™ 304 or 316 Stainless Steel From
    As low as $7,321
    Some ship in 1 - 3 days
Buy Accessories
  1. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  2. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  3. Service, ISO Grade™ Certificate, ISO 5
    Service, ISO Grade™ Certificate, ISO 5
    Request Quote
    Increase Down Increase Up

Fire-Rated Cleanroom Windows

  • Fire-rated cleanroom window burn test Watch Terra's Video of a Fire-Rated Cleanroom Window Burn Test
  • BioSafe cleanroom window Terra Universal's Biosafe® Windows
  • Easy installation of framed window Framed Single Windows
  • BioSafe flush-mount frameless double window installed in laboratory BioSafe Flush-Mount Frameless Double Window
  • Double-Sided Flush-Mount Frameless Window Double-Sided Flush-Mount Frameless Window
  • BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
  • Cleanroom Barrier Wall with Tempered Glass Windows
  • Tempered Glass Window For Clean Room Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom
Fire-rated cleanroom window burn test
This video demonstrates a burn test for Terra's UL-listed fire-rated cleanroom window. | 6612-02-SS displayed Watch Terra's Video of a Fire-Rated Cleanroom Window Burn Test This video demonstrates a burn test for Terra's UL-listed fire-rated cleanroom window. Fire-rated windows save lives and protect property by maintaining the integrity of the fire-rated wall.
BioSafe cleanroom window
Terra's BioSafe windows are configurable to any wall thickness, easy to install and disinfect Terra Universal's Biosafe® Windows Terra Universal's BioSafe® windows are quick to install, easy to disinfect and configurable to any wall material or thickness.
Easy installation of framed window
Easy installation of framed window Framed Single Windows Step by step process on how to install a single framed window
BioSafe flush-mount frameless double window installed in laboratory
Flush-mount BioSafe® frameless design 84” x 40” double tempered glass window BioSafe Flush-Mount Frameless Double Window Unique BioSafe® frameless design seals flush against walls, eliminating surfaces that collect dust.
Double-Sided Flush-Mount Frameless Window
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect Double-Sided Flush-Mount Frameless Window BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect; 48” x 44” double glass shown.
BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices that collect dust. Installed in retail pharmacy.
Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows) | 6602-59 displayed Cleanroom Barrier Wall with Tempered Glass Windows Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows)
Tempered Glass Window For Clean Room
Attractive frameless windows clean easily and add visibility to BioSafe® cleanrooms. | 6603-15 displayed Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom BioSafe® modular steel cleanrooms are available with dual-sided, flush-mount tempered glass viewing windows.

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Products similar to this one
  1. Fire-rated pass-through chamber, 24"W x 26.5"D x 24"H, is designed for installation in a fire-rated cleanroom or laboratory wall | 1993-73A displayed
    Group of 5 products
    General-Use Fire-Rated Pass-Through Chambers From
    As low as $7,060
    Some ship in 1 - 3 days
  2. Fire-Rated CleanMount® Pass-Through Chamber; EP 304 or 316 SS, 24"W x 24"D x 24"H, double walled with window and concealed door interlock | 2638-75B-2-316-FR displayed
    Group of 5 products
    CleanMount® CleanSeam™ Fire-Rated Pass-Through Chambers From
    As low as $24,317
    Some ship in 1 - 3 days
  3. Smart Pass-through door rated with UL 10B for 90 minutes | 2635-10B-2-316-FR displayed
    Group of 5 products
    Smart® CleanMount® Fire-Rated Pass-Through Chambers From
    As low as $24,759
    Some ship in 1 - 3 days
  4. Fire-rated pass-through chamber, 24"W x 26.5"D x 24"H, is designed for installation in a fire-rated cleanroom or laboratory wall | 1993-73A displayed
    Group of 9 products
    CleanSeam™ Fire-Rated Pass-Through Chambers From
    As low as $8,210
    Some ship in 1 - 3 days
  5. Vertical flow of recirculating ULPA-filtered air from the ceiling protects materials during transfer and stops particles from landing on sensitive parts | 6705-72 displayed
    Group of 4 products
    Smart® CleanMount® Fire-Rated Pass-Throughs with Recirculating HEPA/ULPA Filtration From
    As low as $22,276
    Some ship in 1 - 3 days

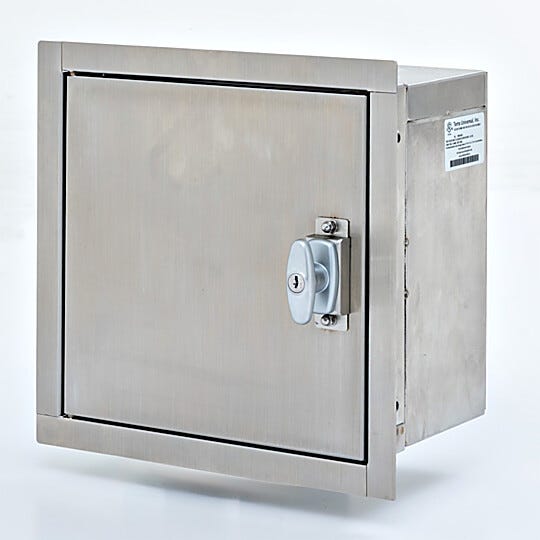

  6. Fire-rated door on stainless-steel ValuLine pass-through chamber. | 2634-72A displayed
