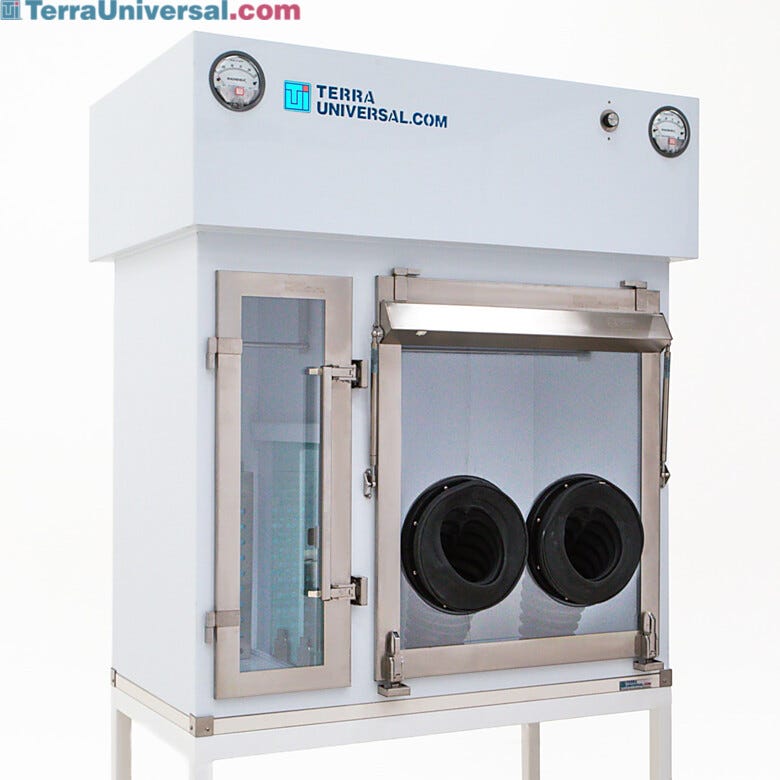

BioSafe® Compounding Aseptic Isolator meets USP-797 requirements; shown with optional neoprene gloves and stand. | 2900-58B displayed

Sterile Compounding Laminar Flow Glove Box Isolators

Glovebox; USP 797 BioSafe®, Polypropylene, 49.5" W x 30" D x 54" H, 2 Glove Ports, 120 V

ISO Rating: ISO 5, ISO 6, ISO 7, ISO 8
Stainless Steel LiftLatches don't strain hinges and eliminates corrosion with plated hardware

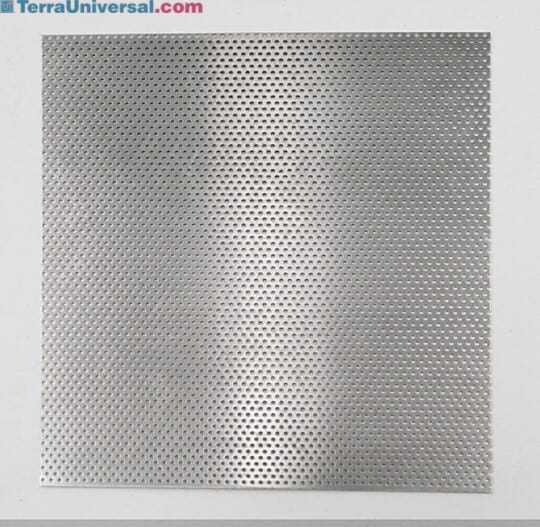

Perforated rear baffle plates separate the exit filters from the compounding zone without disrupting laminar flow
Glove Ports: 10" (254 mm) diameter ports that provide a wide range of motion (order desired gloves separately)
IV Rod: 0.25" (6 mm) stainless steel rod mounted 9" (228 mm) from filter face
Includes externally mounted fluorescent illuminator in main chamber

• Model: USP 797 BioSafe®

• Material Type: Plastic

• Number of Glove Ports: 2

• Chamber Material: Polypropylene

• Window Material: Polycarbonate

• Chamber Width: 46"

• Chamber Depth: 22"

• Chamber Height: 38.5"

• Maximum Working Height: 38.5"

• Filter: HEPA

• Light Fixture: Fluorescent Illuminator

• Chamber Dimensions: 46" W x 22" D x 38.5" H

• Unit of Measure: EA

Terra Part #: 2900-58B

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Terra Part # 2900-58B

$5,563

Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part #

Glovebox; USP 797 BioSafe®, Polypropylene, 49.5" W x 30" D x 54" H, 2 Glove Ports, 120 V

View Shopping Cart View Quote Cart

Details & Specs

Manuals & Resources

Sterile Compounding Laminar Flow Glove Box Isolators

USP 797 BioSafe® Compounding Aseptic Isolator

USP 797 BioSafe® Compounding Aseptic Isolators (shown in 304 stainless steel) provide HEPA-filtered, laminar airflow that protects sterile samples | 2900-56B displayed USP 797 BioSafe® Compounding Aseptic Isolator USP 797 BioSafe® Compounding Aseptic Isolators (shown in 304 stainless steel) feature HEPA-filtered, ISO 5 laminar airflow that protects sterile samples, an isolated antechamber, hanger rod and swing-up access door for easy cleaning.

Features and Benefits

Tilt-Up Access Door

Ergonomic LiftLatches and gas struts simplify daily cleaning of the main compounding chamber and transfer of bulky equipment. A one-piece, thermoplastic gasket seals when the panel is closed and latched.

HEPA-Filtered Antechamber

The antechamber provides an intermediary HEPA-filtered space that prevents cross-contamination of the compounding chamber. A sliding glass door provides separation and maintains a pressure gradient.

Rod for Hanging IV Bags in Compound Aseptic Isolator

IV Bag Rod

The main compounding chamber includes a stainless steel IV rod for suspending IV bags at a convenient height during compounding (hooks not included).

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Compounding Aseptic Isolator Sliding Glass Door

Sliding Transfer Door

A 0.5”-thick tempered glass door glides in a polypropylene track between the antechamber and main chamber, maintaining separation and the USP-prescribed pressure gradient when closed.

Heavy-Duty Quick-Release Door Hinges

The tilt-up front panel pivots on stainless steel hinges that allow the entire panel to be easily detached for maintenance or cleaning; simply disconnect the lift-assist gas struts and slide the door off.

Certification Test Ports

Two ports (normally plugged) allow independent verification of the chamber pressures monitored by the Magnehelic gauges, simplifying certification (the “Ambient” reference port always remains open).

External LED Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Sleeve and Glove Assemblies
Sleeve/glove combinations, available in many materials, allow fast, inexpensive glove replacement without removing sleeves from the glove box port (shown: Hypalon with glove/sleeve connectors).
"Sharps" Waste Port
The side or floor mounted waste port offers easy disposal of sharps or other waste. The 6"-diameter port is flush with the interior of the main chamber and has a 3” flange below the surface for connecting waste containers (includes cover).

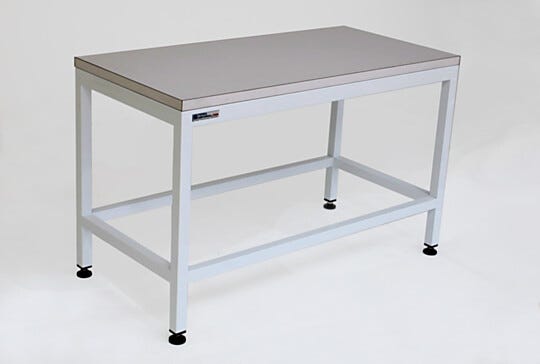

Powder-Coated Steel Stands
Stands are all-welded 2"-square steel tubing with white powder-coated finish and chemical-resistant nylon leveling feet. Raise chamber 30" above floor level. Select optional casters for easy positioning.
