Terra Part # 3800-47A
Usually ships in 2-4 business days

Want it faster ? Read about FasTrak

In stock

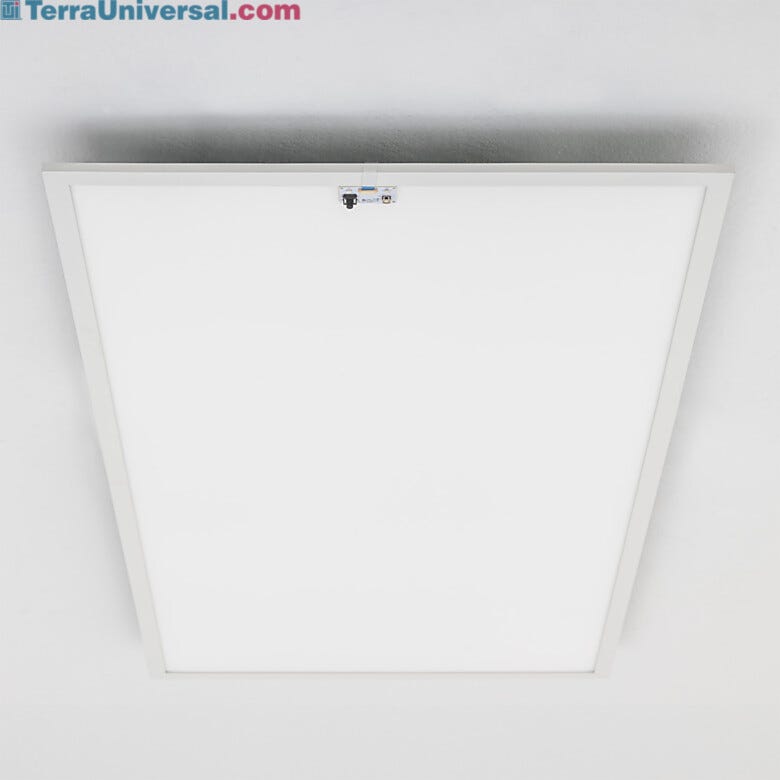

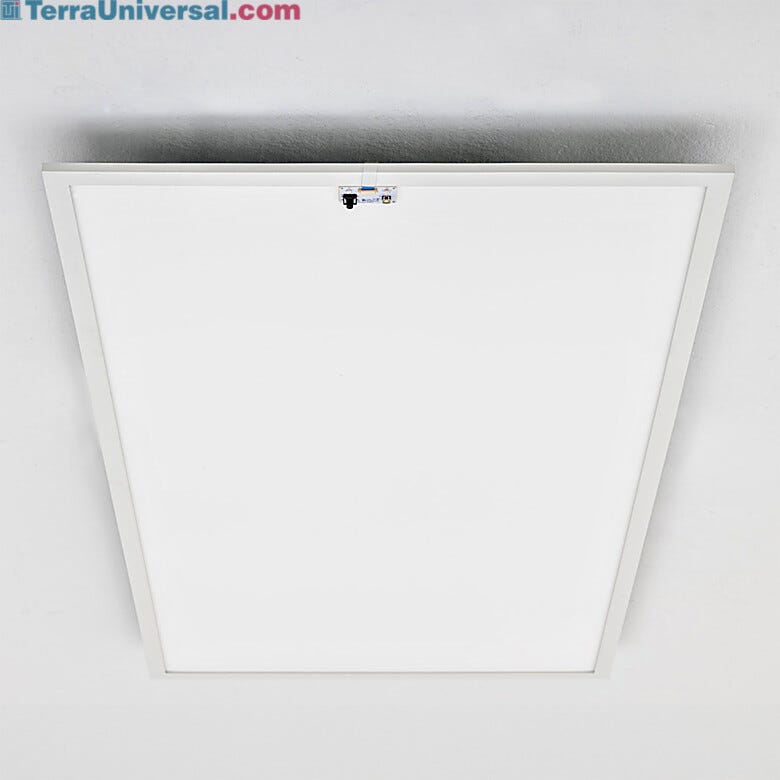

LED light panel is compatible with ISO class 5 through 8 cleanrooms
Terra Part # 3800-47A
Usually ships in 2-4 business days

Want it faster ? Read about FasTrak

In stock
LED light panel is compatible with ISO class 5 through 8 cleanrooms
Product Details
  • Built-in emergency battery helps meet municipal and fire safety requirements that may be required before cleanroom can be approved for operation.
  • Includes UL recognized emergency driver to allow LED fixture to be used for normal and emergency operation.
  • Includes test switch, charge indicator, and timer switch
  • Features a startup indicator light with programmable timer to help let you know when your cleanroom is ready for use after power is restored.
  • Indicator light turns from red to green after timer switch has reached value ( two hour increments) after startup to indicate particle count is within acceptable levels.
  • System is configured for both normal and emergency use
  • When receiving power, the light both operates normally and charges the emergency battery
  • Light requires hard-wired connection to junction box
  • When power is cut off, the battery powers the light
  • Note: Indicator light is intended to help alert operators the cleanroom has been restored to acceptable standards after a minor shut down; it is not a substitute for quality control procedures such as measuring particle counts, checking air handling units, and other environmental monitoring.

Lighting: LED

Panel Size: 2' x 4'

Unit of Measure: EA

Electrical Specifications: 120/277 V, 0.0006 A, 12 W, 50/60 Hz

Dimensions, Product: 24" W x 48" D x 10" H

Features and Benefits

Energy-Efficient Lighting

Energy-efficient LED lighting panels and strips help to lower electrical costs and minimize heat build-up in temperature-controlled environments.

Adjustable Cleanroom LED Light Panels for Perfect Light Balance

Cleanroom LED panels are available with dimmable brightness and adjustable color temperature to achieve the perfect balance of light. LED panels have a longer service life, are more energy efficient, and emit less heat than conventional fluorescent lights.

LED with Emergency Power Supply

For a nominal $200 upgrade, cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
