Visibility and energy efficiency are primary considerations for clean room lighting systems. Lighting levels and color can subtly affect operators, influencing eye fatigue, detail recognition, visual-spatial awareness, mood, and attitudes during operation. Proper lighting is crucial for maintaining cleanroom functionality and must be calibrated to ensure uniformity and balance without being overly bright or disruptive.

Cleanroom Lighting Requirements and Design Considerations

Effective lighting design in cleanrooms is critical to ensure compliance, cleanliness standards, and task efficiency. While cleanroom lighting is rarely considered a critical priority in a cleanroom design, it is arguably one of the most important systems for establishing operating conditions.

General Lighting Requirements for Cleanrooms

Sealed and Flush Fittings: To prevent particle accumulation and contamination, cleanroom light fixtures should be sealed or installed flush with ceilings or walls. These fixtures must be easy to clean and compatible with rigorous cleanroom cleaning protocols. Sealed fittings also help maintain positive pressure and airflow integrity by preventing leaks around the fixtures.

Placement and Airflow Compatibility: In unidirectional (laminar) airflow systems, light placement must be carefully considered to avoid airflow obstructions that generate turbulence. Recessed lighting remains the standard acceptable lighting fixture style in cleanrooms. Improper placement of cleanroom lighting fixtures can create stagnant airflow zones or eddies, increasing contamination risks by disrupting the unidirectional airflow.

Illumination Levels and Uniformity: Lighting intensity must align with the specific tasks performed in the cleanroom. For activities requiring precision, such as assembly of microelectronics or pharmaceutical compounding, high lux levels and uniform lighting are essential. Uniformity ensures consistent illumination across the workspace, reducing shadows and enhancing visibility.

Color Rendering Index (CRI) and Visual Comfort: The Color Rendering Index (CRI) of cleanroom lighting should be tailored to the nature of the tasks. High CRI lighting improves color differentiation, crucial in quality control and inspection processes. Visual comfort is equally important, and glare should be minimized by using diffusers or adjusting the lighting angle to avoid eye strain for personnel working long shifts.

Energy Efficiency and LENI: Cleanroom lighting systems must balance high performance with energy efficiency. The Lighting Energy Numeric Indicator (LENI) is a key metric for assessing the energy consumption of the lighting system, including standby and operational modes. Efficient lighting design incorporates advanced control systems such as dimmers, motion sensors, and daylight harvesting to minimize energy use without compromising cleanliness or functionality.

LED Panel Lights and Fixtures

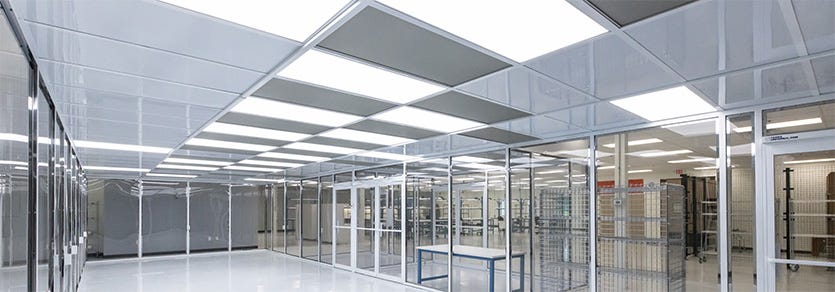

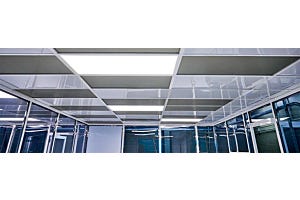

LED panel lights have become a standard for cleanroom settings due to their high efficiency, low maintenance operation, impact resistance, and low levels of heat generation. LED panels offer a wide variety of configuration options and flexible light control solutions, such as variable intensity or adjustable color ranges.

Cleanroom LED lights come in several sizes that are typical of cleanroom ceiling grids, with 2' x 2' and 2' x 4' being common options for cleanroom lighting installations. LED panels can provide ample illumination, typically ranging from 4000 to 4500 lumens (depending on the model) with better efficiency and less heat generation than older fluorescent technology.

Terra’s ISO-rated cleanroom lights produce less heat (reducing cooling costs) and boast significantly longer lifespans than fluorescent bulbs. All stocked LED lights fit in industry-standard 2’ x 2’ or 2’ x 4’ ceiling bays.

Our standard LED panels offer selectable color temperatures (3000K to 6500K) to suit different applications and lighting preferences. LED panels are also available in fixed-color red, amber, or blue tone packages to support specialty application requirements.

Warmer tones (3000K) are suitable for areas where comfort and a relaxed environment are prioritized, such as break rooms or less critical zones. The ability to adjust the lighting to a comfortable level helps reduce eye strain and fatigue.

Cooler tones are ideal for tasks requiring high visual acuity and precision, such as quality control or assembly. Higher color temperatures can improve contrast and visibility, which is critical for precision tasks like inspections, helping to detect defects or contaminants more easily.

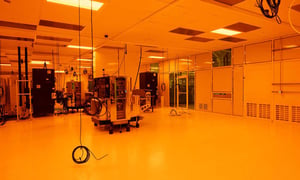

Amber Cleanroom Lighting: Amber LEDs excel in environments where minimizing UV and blue light exposure is critical. These lights protect photosensitive processes by reducing UV-related degradation, making them ideal for semiconductor manufacturing, where they prevent premature hardening of coatings and enhance yield quality. They are equally valuable in biological research and medical applications by safeguarding DNA integrity and reducing unwanted chemical reactions. In pharmaceutical manufacturing and storage, amber LEDs preserve product stability by inhibiting unwanted photochemical reactions.

Blue Cleanroom Lights: Blue LEDs stand out for their high energy efficiency and intense brightness, making them indispensable in applications requiring powerful illumination. Their shorter wavelength is particularly effective in machine vision systems and precision-based tasks like quality control, where clarity and detail are paramount. Blue LEDs are frequently used in inspection systems to identify minute defects and ensure high production standards.

Red Cleanroom Lights: Red lighting is ideal for protecting photosensitive materials in settings that handle photographic films, biological samples, and pharmaceuticals, by minimizing exposure to damaging shorter wavelengths like UV and blue light. Red lighting is particularly effective in preserving the stability of dyes, pigments, and polymers while preventing premature degradation or hardening. In food processing, red light maintains the natural appearance and quality of products, especially for quality control and inspection in meat processing and packaging industries. For optics and imaging systems, red light can reduce light-induced wear and ensure visibility. However, some applications may benefit from alternative low-energy lighting, such as amber or green, depending on the material’s specific sensitivity.

Fan Filter Units with Integrated Lights

Traditional cleanroom setups often require separate installations for lighting and filtration, which can be challenging to install in environments with standard or low ceiling heights.

Fan Filter Units with Integrated Lights offer a more efficient use of available real estate, especially when cleanroom ceiling space is at a premium. These systems integrate Terra's HEPA-filtered fan units (FFUs) and cleanroom rated LED lighting into a unified, low-profile system. These compact designs ensure that even cleanrooms with 9-foot ceilings or less can maintain compliance without sacrificing airflow or illumination. As a result, these systems can eliminate the need for dedicated light fixtures entirely and vastly simplify the installation process of lights and fan filter units.

Clean Room LED Light Strips

Double Stacked LED Light Strips provide 9800 lumens per 16 feet for workspaces requiring intense illumination. The aluminum housing is encased by a cleanable polycarbonate shield that ensures durability and protects against contamination. With a 50,000-hour lifespan and minimal heat output—only 15% of that produced by fluorescent systems—these LED strips are engineered for optimal energy efficiency and adaptable installation. A slim, backlit design and smooth surfaces minimize particle accumulation, making them ideal for particle controlled environments.

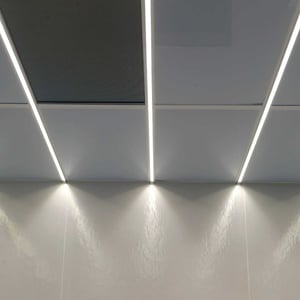

LED strip lights are ideal for supplementary lighting when limited space in the ceiling restricts or limits the installation of recessed lighting. Terra's LED light strips support ISO 3 – 5 spaces, which are installed in an aluminum housing covered by a clear, covered polycarbonate shield.

Technical Standards for Cleanroom Lighting Levels

FC (Foot Candles) Lighting Requirements

In quantitative terms, lighting levels are measurable by evaluating 'foot-candles' (fc), which measures the level of light intensity or illuminance to arrive at the appropriate lighting levels for different areas within cleanroom facilities. One foot-candle is defined as the illuminance on a one-square-foot surface from a uniform source of light.

As a benchmark, 60-80 fc is adequate for most cleanrooms, but the required foot-candle levels vary depending on the specific area and function within the facility. Historically, Federal Standard 209E recommended 100 fc for main cleanroom areas, which is reasonable for visually intensive tasks. 100 fc ratings may be excessive for other applications that are not hyper-visual, especially given the modern emphasis on energy efficiency and environmental sustainability.

Current standards, such as ISO 14644 and guidelines prioritize task-specific lighting, recognizing that areas like inspection zones may require higher illumination levels (e.g., 100-150 fc), while storage or ancillary spaces can function with less. Additionally, advancements in LED technology, such as LED light strips, have enabled facilities to meet these varying requirements while also emphasizing marginal energy efficiency improvements. Beyond lighting intensity, factors like glare reduction, uniform light distribution, and operator feedback surveys should be considered for the final environment.

IP65 Ratings for Cleanroom Lights Explained

IP65-rated lighting fixtures protect against dust and water ingress that could occur during cleanroom decontamination cycles such as washdown and chemical fogging cycles, which may require that the room is rinsed down completely after exposure to stericides and biocides.

IP65 ratings are understood as follows: The "6" rating designates complete dust-tight outcomes and particulate control required in cleanroom environments. The "5" rating provides resistance to water jets, supporting regular cleaning protocols. While this makes IP65-rated lights suitable for many cleanroom applications, they are not universally required for all classifications, as specific cleanroom standards like ISO 14644-1 – it's important to dictate how your decontamination and cleaning cycles will impact the materials specific to your environment. IP65-rated lights are not universally required for all classifications but should be considered for sterile-grade workflows that require annual, bi-annual, or quarterly recertification among frequent decontamination cycles.

Cheat-Codes for Faster Lighting Installation and Simpler Power Connections

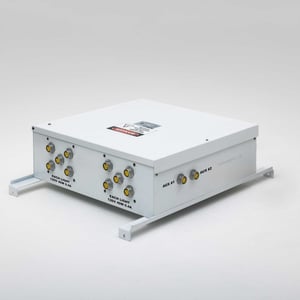

For faster installation and accelerated time to completion, Terra's Power Display Modules (PDMs) provide a streamlined solution for connecting cleanroom lighting systems and fan filter units (FFUs). Unlike traditional hardwired setups, which are labor-intensive and inefficient, PDMs enable quick and reliable connections through 3-pin or 4-pin quick-connect fittings. This system drastically reduces installation time, as licensed electricians are only required to hardwire the Primary, Secondary, Booster, and Duplex PDM modules to a dedicated circuit. Once connected, lights and FFUs can be easily plugged in without additional wiring, simplifying both initial setup and future modifications.

Emergency Backup Lighting for Cleanrooms

Cleanroom lights with built-in emergency batteries have become an increasingly popular solution for ensuring uninterrupted illumination during power outages. Integrated backup batteries allow for maintained illumination in critical areas for a short period, typically 2–4 hours, which provides enough time to conduct emergency procedures, power on backup generators, or remove any contamination-sensitive items from the production floor.

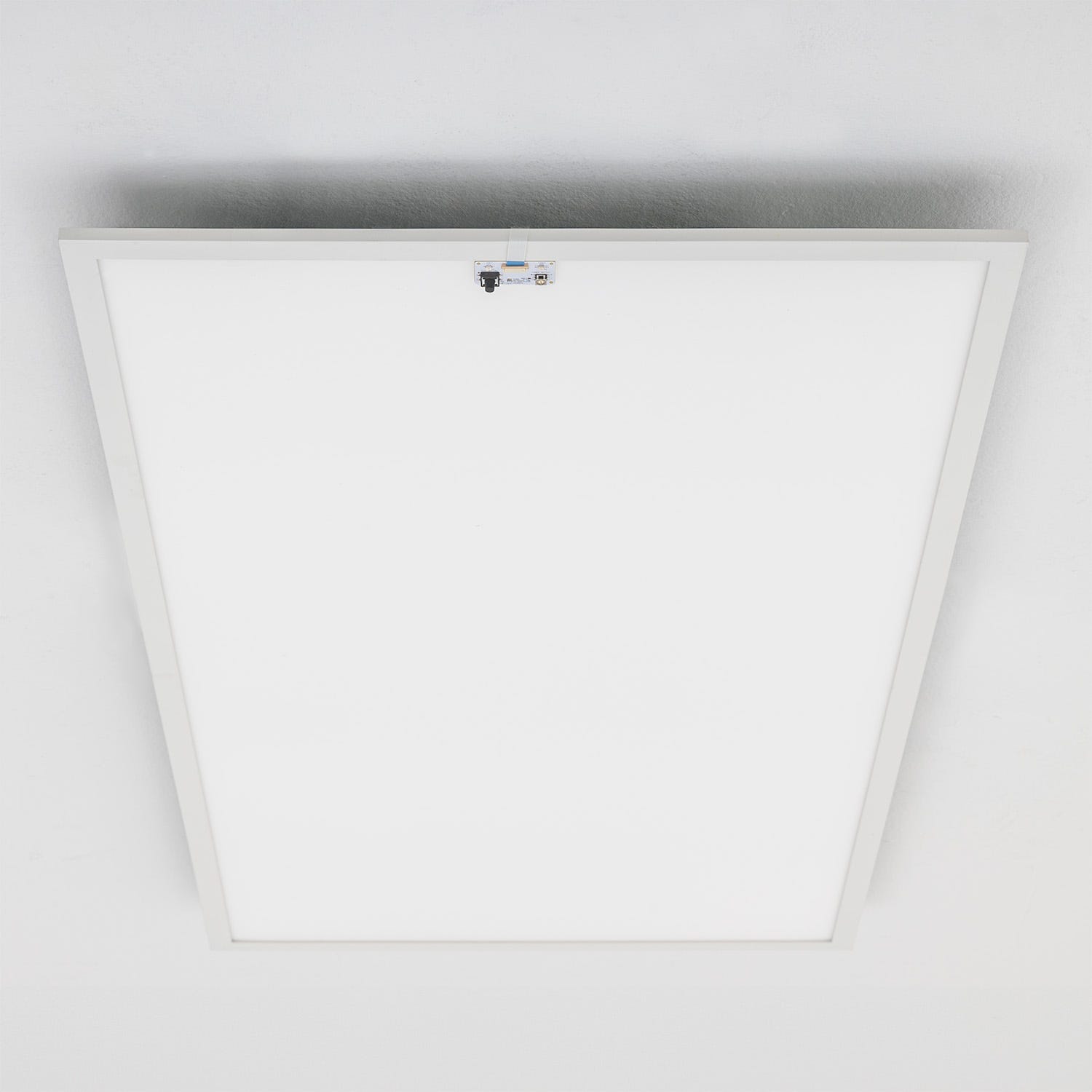

Cleanroom LED panels with built-in emergency batteries illuminate the cleanroom during power outages. The systems include a test switch, battery-charge status indicator, and programmable time indicator light. As a nominal $200 upgrade, all of Terra's cleanroom LED lights can be equipped with emergency backup batteries to ensure continued operation during a power failure.

Timer Boards for Battery-Powered Lights are a control device designed to streamline the testing and operation of emergency lighting systems. It features a test mode that, when activated, dims the emergency light, confirming the fixture is running on battery power. The built-in timer allows users to set a specific duration, during which a red indicator signals the test is in progress. Once the timer completes, the light switches to green, confirming the cycle's completion. This system ensures the proper emergency lighting function while providing clear visual feedback, aiding in routine maintenance and compliance with safety protocols.

Vapor, Dust, and Explosion Proof Cleanroom Illuminators

Terra offers a comprehensive selection of cleanroom illumination lights that are designed for vapor-proof, dust-proof, and/or explosion-proof protection.

Dust-Sealed, Vapor-Proof and Explosion-Proof Illuminators may include several features for contamination prevention and safety enhancement in controlled environments including dust-sealing, vapor-proofing, and explosion-proofing. Fluorescent models provide a reliable, economical choice for facilities prioritizing upfront cost, while LED models offer long-term savings and long-term reliability with little maintenance.

Dust-sealed Illuminators ensure that no particulate matter infiltrates the system, maintaining the integrity of cleanroom air quality in contamination-sensitive industries such as pharmaceuticals and microelectronics.

Vapor-proof illuminators provide an impermeable barrier against moisture, making these fixtures ideal for environments subject to rigorous cleaning protocols or high humidity. For operations involving volatile gases or combustible dust, the explosion-proof capability ensures that internal ignitions are safely contained, preventing catastrophic events.

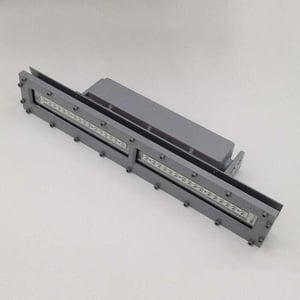

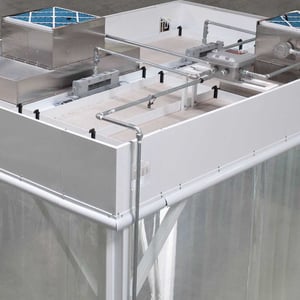

Explosion-proof illuminators are designed for hazardous environments, providing explosion-proof protection. The LED version supports a multi-voltage system, offering superior safety and energy performance, while the fluorescent model serves as a cost-effective option for facilities needing high safety standards without the premium price of LED technology.

Fluorescence Detection UV Illuminators: UV illuminator lighting works by causing certain contaminants, such as biological residues, dust particles, or chemical agents, to fluoresce under UV light. This allows for quick identification of potential contamination points.

Lighting Compliance for Hazardous Rated Labs & Cleanrooms

Explosion-proof illuminators are designed for working in areas at risk of ignition due to flammable fumes or explosive dust. All electrical components are rated compliant for Class I, Division 1, Groups C & D and Class II, Division 1, and Groups F/G for hazardous-rated locations.

Lighting for Class I, Division 1, Groups C & D in Cleanrooms and Laboratories

Environments with flammable gases or vapors present during normal operations include pharmaceutical cleanrooms using solvent-based processes, where alcohols such as ethanol or isopropanol and volatile organic compounds (VOCs) are used for sterilization, cleaning, or production. Solvent recovery systems in sterile product manufacturing are also typical examples.

Biotechnology laboratories may handle flammable carrier gases like hydrogen in gas chromatography or mass spectrometry operations, as well as flammable gases for anaerobic chambers or specialized cultivation processes. Chemical research labs often synthesize or experiment with flammable gases such as acetylene or ethylene, or volatile chemical vapors.

Battery manufacturing cleanrooms used in lithium-ion battery production represent another example, particularly during electrode coating processes involving volatile solvents like N-Methyl-2-pyrrolidone (NMP).

Lighting for Class II, Division 1, Groups F & G in Cleanrooms and Laboratories

Environments with combustible dust present under normal operations include pharmaceutical tablet and powder production cleanrooms, such as those where powdered active pharmaceutical ingredients (APIs) are processed. Dust clouds often form during the milling, sieving, or blending of fine powders in these environments.

Chemical synthesis labs may handle powdered metals or organic substances, such as aluminum dust, used as catalysts or reactants. Advanced material manufacturing cleanrooms producing carbon-based nanomaterials like carbon black or graphene powders used in electronics or filtration technologies are another example. Facilities involved in ceramic or composite material fabrication also fit this classification.

Cleanrooms in food and nutraceutical industries that handle powdered supplements, including protein isolates, vitamins, or botanical extracts, also fall into this category.

Other Cleanroom Lighting Standards Explained

UL-Listed: UL-listed electrical components undergo safety and integrity inspection by a third party, which expedites the permitting and certification process by shoring up inconsistencies in components or assemblies that lead to electrical failures. UL certification involves rigorous testing of electrical components to verify their safety, reliability, and compliance with industry standards including tests for electrical shock hazards, fire risks, and structural integrity.

NEC-compliant: ensures the use of appropriate connectors and houses switching 120/220V power supply.

ETL Listed: ETL (Electrical Testing Laboratories) listing indicates that a product has been independently tested and meets the safety standards recognized in North America. The ETL mark signifies compliance with safety regulations established by organizations like Underwriters Laboratories (UL) or the Canadian Standards Association (CSA). Products carrying this mark ensure safe operation under specified conditions, covering areas such as electrical shock, fire hazards, and mechanical safety.

FCC Compliant: FCC compliance means the product adheres to the standards set by the Federal Communications Commission in the United States. This primarily relates to electronic devices that emit electromagnetic radiation, such as wireless or digital devices. Compliance ensures that the product does not cause harmful interference with other electronic devices and operates within permissible electromagnetic interference (EMI) levels. It confirms that the device is safe for use in environments where multiple electronic systems coexist.

RoHS Compliant: RoHS (Restriction of Hazardous Substances) compliance indicates that a product meets European Union (EU) regulations aimed at reducing hazardous materials in electrical and electronic equipment. Key restricted substances include lead, mercury, cadmium, hexavalent chromium, and certain flame retardants. RoHS compliance ensures that the product minimizes environmental impact and health risks associated with exposure to toxic substances, particularly during manufacturing, usage, and disposal.
