Select Product

Detection Channels

Detection Range

Counting Efficiency

Flow Rate

Manufacturer SKU

Terra Part #PriceShips in
2 Channels0.2 - 2.0 μm50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size0.1 CFMApexR02 1510-48 77827 $3,5785-10 Days2
2 Channels0.3 - 5.0 μm50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size0.1 CFMApexR03 1510-49 77828 $2,6445-10 Days3
2 Channels0.3 - 5.0 μm50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size1 CFMApexR3 1510-46 77825 $3,2795-10 Days4
2 Channels0.5 - 10 μm50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size0.1 CFMApexR05 1510-50 77829 $2,5315-10 Days5
2 Channels0.5 - 10 μm50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size1 CFMApexR5 1510-47 77826 $2,6885-10 Days6
Detection Channels
Detection Range
Counting Efficiency
Flow Rate
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

  • 2-channel laser diode models with 3,000 storage in 0.2, 0.3 and 0.5 um minimum detection sizes
  • Remote access via webserver and concentration limits suitable for ISO 1-8 cleanrooms
  • Enclosure compatible with industry standard decontamination processes and ISO 21501-4 compliance
  • Real-time monitoring system used in GMP regulated industries and VHP room sterilization
  • Transfers particle count data with RS-485 (using MODBUS RTU or ASCII)
  • Applications: GMP regulated industries, VHP room sterilization, bio-decontamination, pharmaceutical production, manufacturing vaccines and other drugs
  • Flow Rate for Apex3 and Apex5: 1 CFM (28.3 LPM), 1/4” inlet and outlet fitting
  • Flow Rate for ApexR02, ApexR03 and ApexR05: 0.1 CFM (2.83 LPM), 1/8” inlet and outlet fitting
  • ApexR3: 0.3, 0.5  μm channel sizes

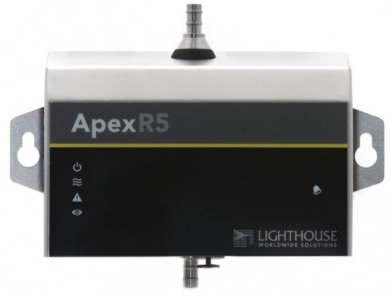

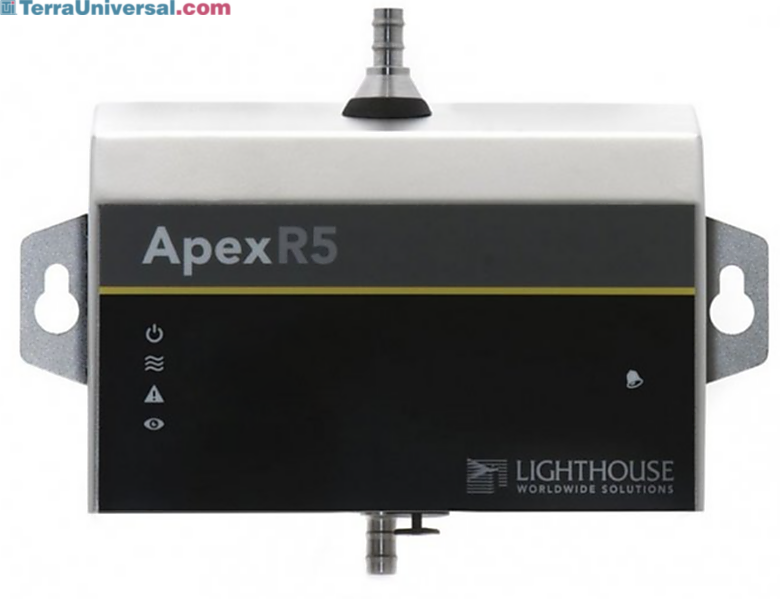

  • ApexR5: 0.5, 5.0 μm channel sizes
  • ApexR02: 0.2, 0.3 μm channel sizes
  • ApexR03: 0.3, 0.5 μm channel sizes
  • ApexR05:  0.5, 5.0 μm channel sizes
  • Self-Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health
  • Provides risk mitigation and environmental compatibility
  • Versatile mounting option when used with an external vacuum source ideal in small environments
  • Feature of all models: Ethernet or Serial communication, 3,000 data storage, validation mode, alarm light, 304 stainless steel enclosure, OLED display, additional channel sizes available
  • Modbus Protocol: TCP or RTU or ASCII
  • External Vacuum Requirements;: Nominal 1.0 CFM 18" (45.72 cm) of Hg
  • Light Source: Laser Diode
  • Calibration: Designed for ISO 21501-4 Compliance
  • Zero Count Level: <1count/5 minutes per ISO 21501-4
  • Counting Efficiency: 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size
  • Concentration Limits 1.0 CFM: 1,000,000 particles/[email protected]% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms
  • Concentration Limits 0.1 CFM: 4,000,000 particles/[email protected]% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms
  • Software: LMS Express, LMS Express RT, LMS Pharma
  • Smart Bracket: Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall
