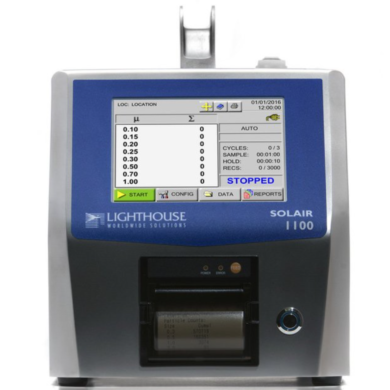

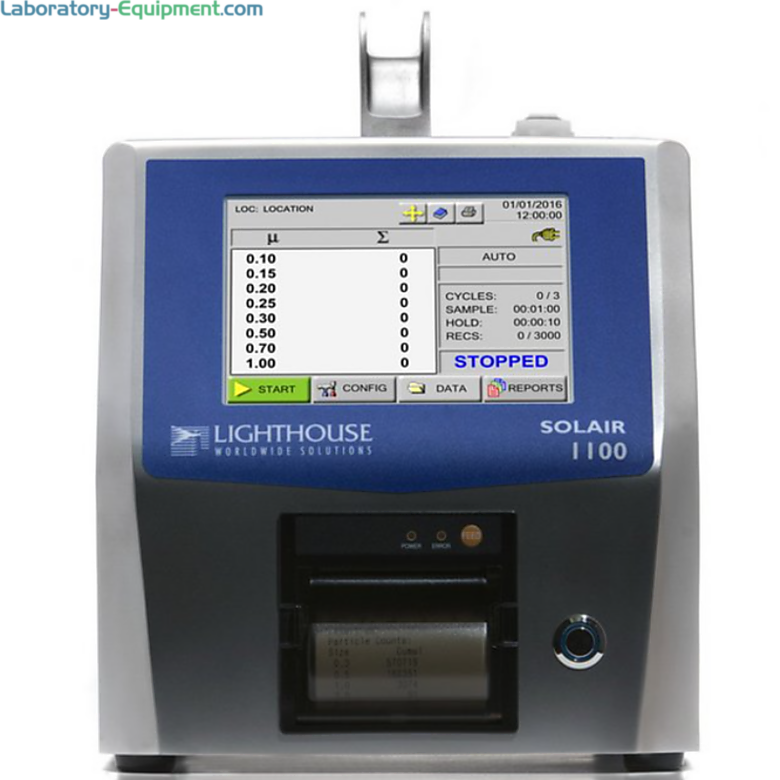

ISO 21501-4 compliant unit with a 0.1 - 1.0 μm sensitivity, a 1.0 CFM (28.3 LPM) flow rate and a Long Life Laser Diode; monitors ISO class 1-7 cleanrooms | 1510-41 displayed
Particle Counters,Particle Counters,Particle Counters
Product Group:
1505-PP-02
1505-PP-02 77817

Solair Airborne Particle Counters by Lighthouse Worldwide Solutions

  • Available ISO Ratings: ISO 7, ISO 8
  • Solair particle counters in 6-ch and 8-ch models for cleanroom particle monitoring
  • Cleanroom certification ISO 21501-4 Compliant on Solair 1100ld, 3100 and 5100 models
  • Pass/fail report wizard for ISO-14644-1, EU GMP Annex 1, and FS-209E report formats
  • Light source: Laser Diode or Extreme Life Laser Diode
  • Size range: from 0.1 um to 100.0 um
Read more
ISO 7 Icon
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Detection Channels

Sort Order:
Detection Range

Sort Order:
Counting Efficiency

Sort Order:
Manufacturer SKU

Sort Order:
ISO Class

Sort Order:

 Terra Part # Price Ships in
6 and 8 Channels 0.3 - 25 µm 50% @ 0.3 µm, 100% > 0.45 µm Solair 3100 ISO 7 1510-42 77819 $10,294 15-20 Days 2
Ships Free Free shipping in contiguous USA
6 and 8 Channels 0.3 - 25 µm 50% @ 0.5 µm, 100% > 0.75 µm Solair 5100 ISO 7 1510-43 77820 $10,294 60-70 Days 3
Ships Free Free shipping in contiguous USA
6 Channels 0.3 - 25 µm 50% @ 0.3 µm, 100% > 0.45 µm Solair 3350 ISO 7 1510-44 77821 $13,888 60-70 Days 4
Ships Free Free shipping in contiguous USA
6 Channels 5 - 100 μm 50% @ 5.0 µm Solair Boulder ISO 7 1510-45 77822 $9,677 60-70 Days 5
Ships Free Free shipping in contiguous USA

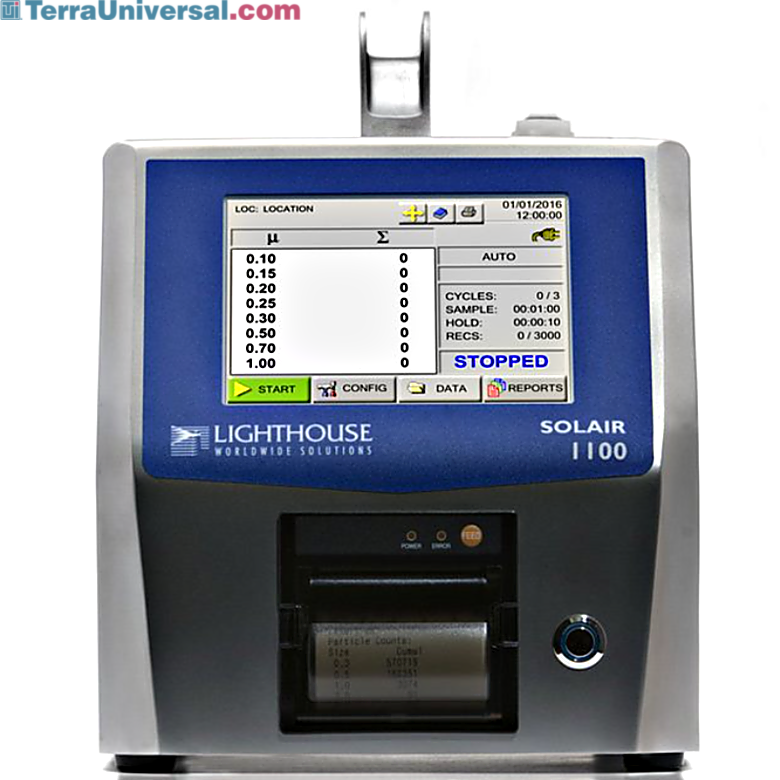

8 Channels 0.1 - 1.0 μm 50% @ 0.1 µm; 100% for particles > 0.15 µm per ISO 21501-4 Solair 1100LD ISO 7 1510-41 77818 $23,984 60-70 Days 6
Ships Free Free shipping in contiguous USA
Detection Channels
Detection Range
Counting Efficiency
Manufacturer SKU
ISO Class
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available ISO Ratings: ISO 7, ISO 8
  • Solair particle counters in 6-ch and 8-ch models for cleanroom particle monitoring
  • Cleanroom certification ISO 21501-4 Compliant on Solair 1100ld, 3100 and 5100 models
  • Pass/fail report wizard for ISO-14644-1, EU GMP Annex 1, and FS-209E report formats
  • •  Light source: Laser Diode or Extreme Life Laser Diode
  • Size range: from 0.1 um to 100.0 um
  • Solair 1100LD model features:  8-channels, sensitivity range from 0.1 - 1.0 μm, a 1.0 CFM (28.3 LPM) flow rate, designed for ISO Class 1 to Class 7 cleanrooms
  • Solair 3100 model features: 6-channels, sensitivity range from 0.3 - 25.0μm, a 1.0 CFM (28.3 LPM) flow rate; designed for ISO classes 1-8 cleanrooms
  • Solair 3350 model features: 6-channels, sensitivity range from 0.3 - 25.0 µm, a 100 LPM flow rate; designed for ISO classes 1-8 cleanrooms
  • Solair 5100 model features: 6-channels, sensitivity range from 0.5 - 25.0μm, a 1.0 CFM (28.3 LPM) flow rate; designed for ISO classes 1-8 cleanrooms
  • Solair Boulder model features: 6-channels, sensitivity range from 5.0 - 100.0 um and a 28.3 LPM flow rate
  • Light source: Long Life Laser Diode (1100LD), Extreme Life Laser Diode Technology with >20-year Mean Time To Failure (MTTF)
  • All models include: Operating Manual on CD; Isokinetic Sample Probe with Tripod and Tubing; Purge Filter; Power Cable and Spare Fuse; LMS XChange and Express Software; Printer; Printer Paper
  • Applications: cleanroom certification, troubleshooting, routine testing, compressed gas testing, HEPA filter scanning, HEPA filter challenge testing, environmental testing
  • Zero Count Level<1 count / 5 minutes (per JIS B 9921) on 3100, 3350, 5100 and Boulder models
  • Flow Rate: 1.0 CFM (28.3 LPM) (1100LD, 3100, 5100); 100 LPM (3350); 28.3 LPM (Boulder)
  • Calibration Meets ISO 21501-4 calibration using NIST traceable PSL spheres, DMA and condensation Particle Counter Security: Integrated alarm buzzer and external alarm connector, alarms on counts, low battery, sensor failure
  • Sample Output
  • 1100LD Model: Internally filtered to 100% @ 0.1 μm, optional HEPA filtration for cooling system exhaust
  • All other models: Internally filtered to HEPA standards (>99.97% @ 0.3 μm)
  • Features on all models: stainless steel enclosure; icon-driven 5.7 - inch (14.47 cm) color TFT touch screen display; USB, Ethernet, RS-485, Secure Data Transfer to and Storage on USB Flash Drive; automatic, manual, beep, concentration, cumulative/differential count modes; rotating buffer (includes particle and environmental data, location and time); Languages English (U.S.), French, German, Italian, Spanish, Chinese, Russian, Japanese, Korean
  • Vacuum Source: Internal closed-loop controlled pump. Allows the use of 3/8" ID sample tubing of up to 12 meters (40 feet) @ 50 & 100L
  • Optional Environmental Sensors(up to 4) temperature/relative humidity, air velocity, differential pressure or others
  • Supporting Software (sold separately): LMS Express, LMS Express RT, LMS Pharma
  • Optional channels available on all Solair Airborne Particle Counter models
Show more

Show more

Particle Counters

  • Solair Airborne Particle Counter Tutorial on Sample Settings by LWS Solair Airborne Particle Counter Tutorial on Sample Settings by LWS
  • Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS
  • Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS Solair Airborne Particle Counter Tutorial on Security Settings by LWS
  • Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS Solair Airborne Particle Counter Tutorial on Training Reports Function by LWS
  • Solair Airborne Particle Counter Tutorial on location function by LWS Solair Airborne Particle Counter Tutorial on Locations Function by LWS
Solair Airborne Particle Counter Tutorial on Sample Settings by LWS
How to configure sample settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Sample Settings by LWS Provides detailed instructions on configuring sample settings on Solair model
Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS
How to configure alarm settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS Provides detailed instructions on configuring alarm settings on touchscreen display on Solair models
Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS
How to configure security settings on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Security Settings by LWS Provides detailed instructions on configuring security and password settings on touchscreen display on Solair models
Solair Airborne Particle Counter Tutorial on Alarm Settings by LWS
Configure training reports for ISO compliance on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Training Reports Function by LWS Provides detailed instructions on steps to configure training reports on Solair models
Solair Airborne Particle Counter Tutorial on location function by LWS
Shows how to configure locations function on Solair Airborne Particle Counter models Solair Airborne Particle Counter Tutorial on Locations Function by LWS Provides detailed instructions on location functions settings on touchscreen display on Solair models
