7019-48
Terra Part # 7019-48
$1,008
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Only 1 left in stock
Accessories related to Terra Part # 7019-48
79031
ValuLine™ Polypropylene Wash Station, 49" W x 26.5" D x 46" H
  • Buy 2 for $907.20 each and save 10%
Product Details
  • Versatile wet cleaning station is ideal for chemical rinsing and other wet chemical processes
  • Self-contained, easy-to-clean utility sink is suitable for commercial and industrial applications
  • Polypropylene utility tub is mold and mildew-resistant; withstands corrosive chemicals
  • Deep and spacious industrial trough sink makes it easy to wash big things
  • Economical free-standing wash station is shipped fully assembled
  • Angled basin helps reduce splashes and improve cleanliness. Ensures chemicals and debris flow freely towards the drain.
  • Extra-tall backsplash contains chemical splashes to protect equipment or walls behind the wash station. Also mitigates splashes on floor to prevent dangerous slips and falls.
  • Heavy-duty 1/2" thick full-polypropylene construction features continuous-seam welds to form a fully-sealed and rigid tub.
  • Polypropylene offers excellent resistance to a wide range of corrosive acids and disinfectants. The opaque white thermoplastic is stain-resistant and holds color.
  • Readily customizable for size, faucets, and more.
  • Includes drain and is compatible with a wide range of faucets to suit your application. Faucet not included.

Type: Cleaning Station

Material: Polypropylene

Work Area Width: 48"

Work Area Depth: 23"

Capacity: 61 gal (8 cu.ft)

ISO Class: ISO 8

Unit of Measure: EA

Weight, Product: 97 lb

Dimensions, Product: 49" W x 26.5" D x 46" H

Weight, Shipping: 147 lb

Dimensions, Shipping: 55" W x 32.5" D x 52" H

Package Type: Crate

Buy Accessories
  1. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $2,008
    Increase Down Increase Up
  2. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $2,237
    Increase Down Increase Up
  3. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $3,321
    Increase Down Increase Up
  4. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  5. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

Wet Stations

  • Custom polypropylene industrial utility sink, 48”W installed next to vertical flow hood Industrial Polypropylene Sink Basin to Rinse Corrosive Chemicals

Features and Benefits

Learn More: Wet Processing Materials
Process Control, Safety, and Consistency
Polypropylene
  • Economical plastic with broad chemical compatibility
  • Ideal for wet processing station panels
  • Loses some chemical resistance at high temperatures
  • Suitable for HF and KOH processes
Quartz
  • The preferred material for ultra-pure applications
  • Provides greater uniformity in heat transfer than plastic baths—ideal for very tight temperature control
  • Suitable for most chemicals (but not HF acid)
  • Hard surfaces won’t scuff, stain, or absorb impurities
PVDF (polyvinyldilene fluoride)
  • Broader range of chemical resistance than polypropylene
  • Suitable for high process temperatures
  • Ideal for HF and BOE processes at high temperatures
PTFE (Teflon®)
  • Resistant to an extremely wide range of chemicals
  • Perfect for KOH and HF acid (which etch quartz)
  • Softer than quartz, so care must be taken to avoid scuffing, staining

Terra’s comprehensive range of constant-temperature baths, etching baths, dump risers, and other processing equipment is ideally suited for the high-purity requirements of the semiconductor industry. Microprocessor controls ensure the integrity of your operations.

The chart below indicates the baths best suited for common semiconductor operations. Once you select the equipment that meets your requirements, a Terra process engineer will help configure a turnkey solution.

Product Application Chart
Commercial or Generic Name Process Chemical Composition Concentration Typical Temperature Recommended Product
Aqua Regia Gold Etchant Hydrochloric Acid (HCl)
Nitric Acid (HNO3)
75%
25%
90° C Series
Buffered Oxide
Etch (BOE)
Etch SiO2 Ammonium Fluoride (NH4F) Aqueous
Hydrofluoric Acid (HF) Aqueous
40% 15-40°C
Ambient
A Series
RCe Series
CP8 Etch Nitric Acid (HNO3)
Hydrofluoric Acid (HF)
  Ambient A Series
Etch (Indium)
Molybdenum Platinum
Nichrome
Etch Hydrochloric Acid (HCl) Aqueous
Nitric Acid (HNO3)
37-38%
70-71%
  QA Series
Metal Etch Etch A,
AlSi Al Si Cu
Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
85-87% 30-60°C QA Series
Nitride Etch Etch Phosphoric Acid (H3PO4)
DI Water (H20)
85-87%
15-13%
150-185°C Nb Series
Organic Stripper Resist Removal PRS-1000
S-43
Lozolin
No Phenol-922
Full strength Room Temperature
120°C
Nb Series
Oxide Resist Strip SiO2 Resist Stripping Sulfuric Acid (H2SO4)
Ammonium Persulfate (NH4S2O2)
95-96% QA Series
Phenolic Stripper Resist Removal J100
Bermar 712D
R-10
  95-100°C C Series
Resist Series (Metalized) Resist Removal Chromic Sulfuric Acid (CrO3+H2SO4)     A Series
R.C.A. Clean Pre-Diffusion Cleans
Quartzware
Step 1: Water
Hydrogen Peroxide (H2O2)
Ammonium Fuoride (NH4CH)
Step 2: DI Water (H2O)
Hydrogen Peroxide (H2O2)
Hydrochloric Acid (HCL)
40% 75-85°C Qa Series
Silicon Etch Etch Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
HydroFuoric Acid (HF)
  Ambient A Series
Sirtl Etch Etch Chromium Trioxide (CrO3)
DI Water (H20)
Hydrofluoric Acid (HF)
  Ambient A Series
Slope Etch Etch Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
  55°C Qa Series
Standard Resist Strip (do not use w/aluminum) SiO2 Resist Strip Sulfuric Acid (H2SO4)
Hydrogen Peroxide (H2O2)
95-96% 110-140°C Qa Series
2:1 Etch Etch DI Water (H2O)
Hydrofuoric Acid (HF)
  Ambient A Series
Wafer Rinsing Rinsing DI Water (H2O) 100% Ambient DR-Series
Particle Trapping Test

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

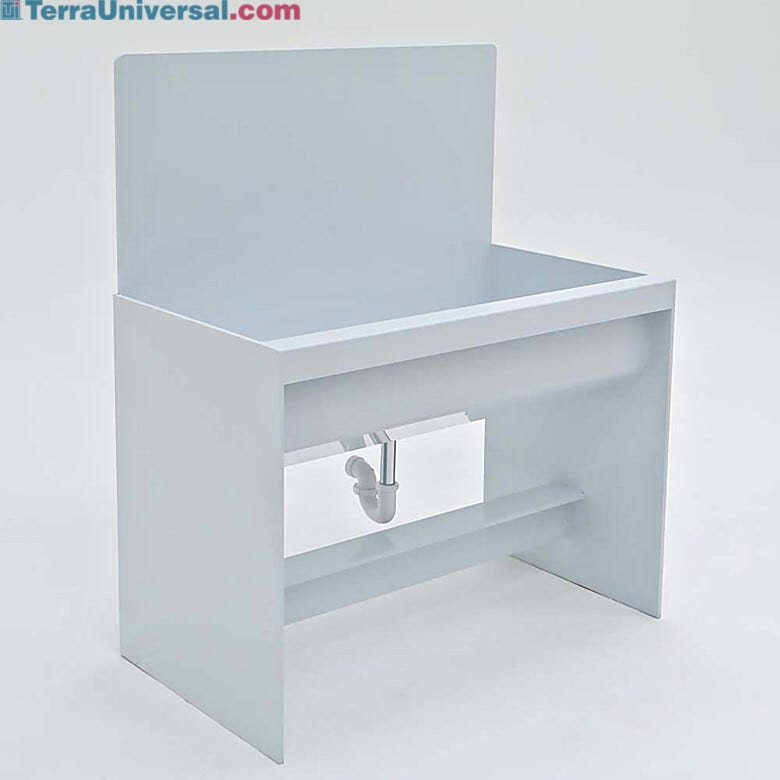

Acid Resistant Polypropylene Wet Cleaning Station

Terra’s ValuLine™ polypropylene wet cleaning station is perfect for chemical rinsing and other wet chemical processes involving corrosive acids.

Spacious Angled Basin Reduces Splashes and Improves Drainage

The angled basin of this polypropylene utility sink reduces splashing and helps corrosive chemicals and debris flow freely towards the drain.
