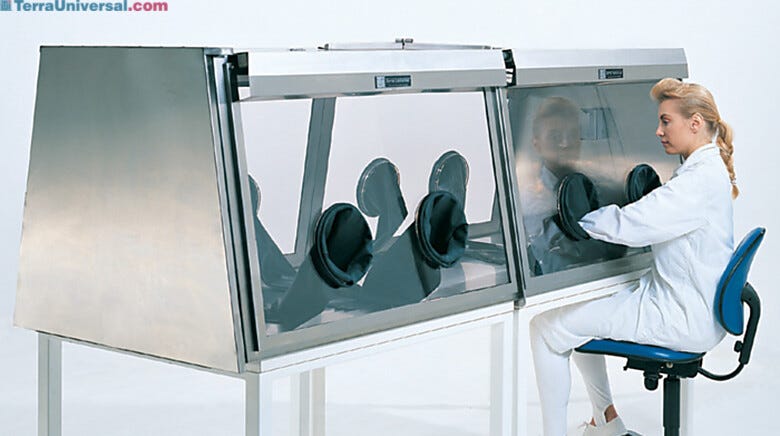

Stainless Steel Full-View Series 500 Glove Boxes provide dual-side access (twin model shown with optional gloves, stand) | 1694-32A displayed
Gas-Purged Stainless Steel Glove Boxes
Product Group:
1694-PP-01
1694-PP-01 71926

Double Side Full-View Stainless Steel Glove Box Isolators

  • Available ISO Rated Designs: ISO 6, ISO 7, ISO 8
Read more
ISO 6 Icon
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Learn More: Terra's FasTrack Program
Select Product
Voltage

Sort Order:
Chamber Material

Sort Order:
Window Material

Sort Order:
Certified ISO Grade Design

Sort Order:
Chamber Width

Sort Order:
Chamber Depth

Sort Order:
Chamber Height

Sort Order:
Model

Sort Order:

 Terra Part # Price Ships in
120 V 304 Stainless Steel Polycarbonate ISO 6 94" 36" 31" Series 500 1694-34A 45608 $7,711 35-41 Days 2
120 V 304 Stainless Steel Polycarbonate ISO 6 47" 36" 31" Series 500 1694-33A 45606 $4,742 35-41 Days 3
120 V 304 Stainless Steel Static-Dissipative PVC ISO 6 94" 36" 31" Series 500 1694-32A 45604 $9,001 35-41 Days 4
Voltage
Chamber Material
Window Material
Certified ISO Grade Design
Chamber Width
Chamber Depth
Chamber Height
Model
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available ISO Rated Designs: ISO 6, ISO 7, ISO 8
  • Combines the full visibility of plastic glove boxes with the strength and processing capabilities of a 304 stainless steel chamber
  • Reduces the claustrophobic sensation that operators often experience when working with a stainless steel chamber
  • Transparent front and back panels feature opposing glove ports for easy manipulation of materials
  • Large chamber size leaves plenty of clearance for bulky process equipment
  • Versatile side flanges allow several units to be connected in series; also permit easy addition of air lock
  • Note that glove boxes do not get side access doors or air lock unless ordered as a separate accessory. It is recommended if frequent access is required
  • Externally-mounted LED illuminator ensures proper illumination without contaminating the internal environment or posing a combustion hazard in the presence of flammable gases
  • Optional gas purge controls automatically establish a clean environment and maintain a humidity set point down to 3% RH
  • Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures; unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals
  • Select from single or dual chamber models with four and eight 10"-diameter glove ports, respectively
  • Front and rear viewing panels constructed of static-dissipative PVC or polycarbonate; end panels made of 304 stainless steel
  • Inlet/outlet ports can also be specified for connection of gas purge and humidity controls
  • Includes externally mounted light fixture
  • System options include ionizing equipment; process gas mixers, analyzers and heaters; and a remote filter/blower module for gas recirculating or exhaust fume purification
Show more

Show more
Series 500: Full-View Glove Box Isolators
Standard Features
  • A Glove Ports
    Each chamber includes opposing 10" (254 mm)-diameter glove ports and fluorescent lights (two chambers pictured above)
Optional Features
  • 1 Range of Glove Options
    Many gloves available, including one-piece neoprene (shown)
  • 2 Powder-coated Stand
    Powder-coated steel stand with leveling feet

Not Shown: Range of Options - Options include air locks, nitrogen purge controller, automated RH, dew point and oxygen level controls, ionizing module, port caps, and nitrogen generator

Gas-Purged Stainless Steel Glove Boxes

  • Double-sided stainless steel glovebox isolator to seal vials of hygroscopic material Series 500 Double-Sided Stainless Steel Glovebox Isolator for Hygroscopic Materials
  • Stainless Steel Glove Box with Dual-Side Chamber Access Twin Stainless Steel Glove Box Isolator, Series 500
  • Glove Box Isolators and Containment Chambers Glove Box Isolators and Containment Chambers
  • Stainless Steel Full-View Glove Box Isolator Stainless Steel Full-View Glove Box Isolator, Series 500

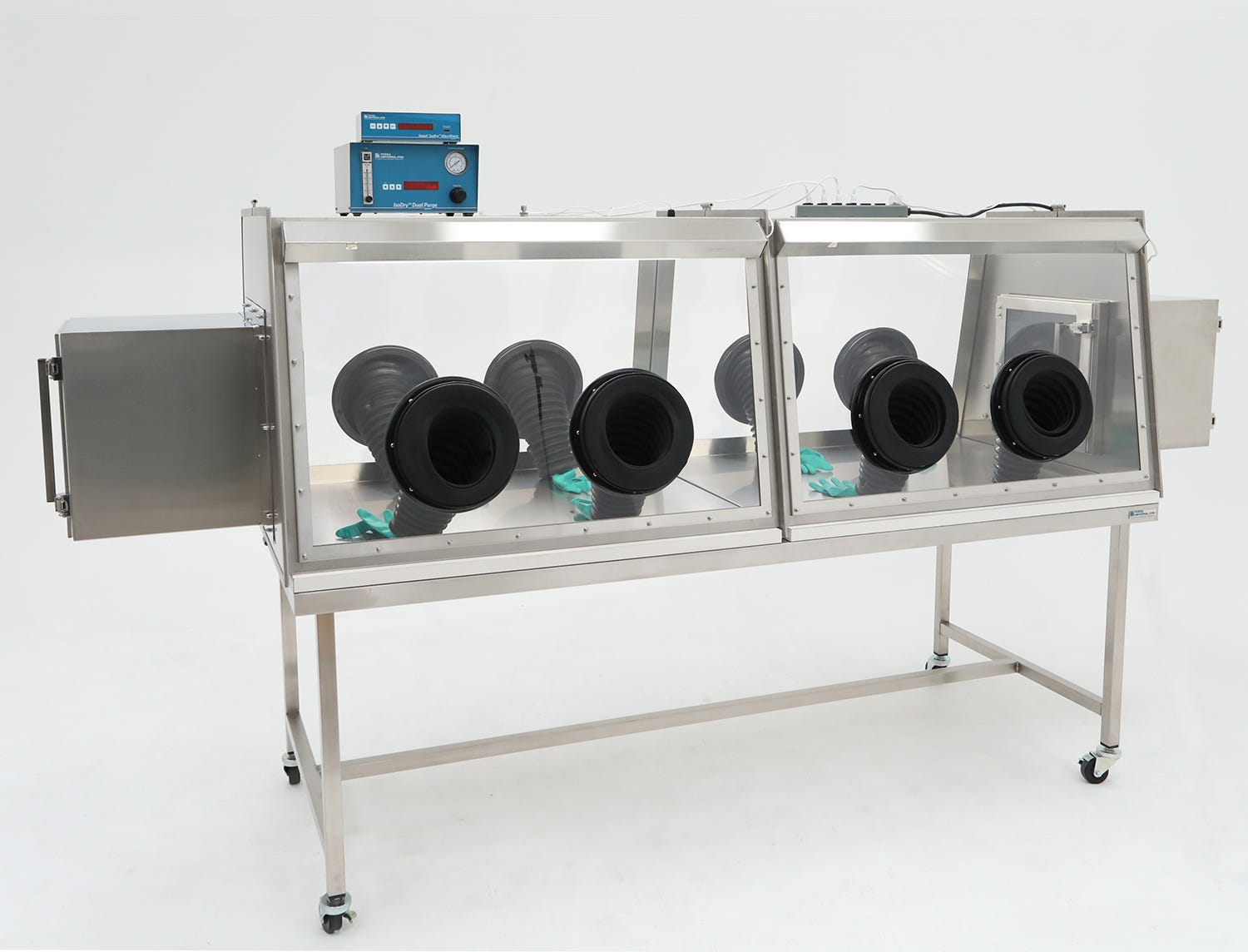

Double-sided stainless steel glovebox isolator to seal vials of hygroscopic material
Series 500 double-sided stainless steel glovebox isolator to seal vials of hygroscopic material; 94”W x 36”D x 31”H | 1694-34A displayed Series 500 Double-Sided Stainless Steel Glovebox Isolator for Hygroscopic Materials Terra’s Series 500 double-sided glovebox isolator with NitroWatch™ system provides an inert nitrogen gas environment for applications such as sealing vials of hygroscopic material. Glove ports on both sides improves throughput.
Stainless Steel Glove Box with Dual-Side Chamber Access
Stainless steel Full-View Series 500 Glove Box provides dual-side access (twin model shown with optional gloves, stand) | 1694-34A displayed Twin Stainless Steel Glove Box Isolator, Series 500 Stainless steel Series 500 Glove Box includes full-view windows and dual-side chamber access; twin model shown includes four pairs of 10" ports and optional stand and gloves.
Glove Box Isolators and Containment Chambers
Glove Box Isolators and Containment Chamber Glove Box Isolators and Containment Chambers Video overview of Terra's nitrogen-purged glove box isolators and containment chambers designed to provide a clean, dry processing environment
Stainless Steel Full-View Glove Box Isolator
Stainless Steel Glove Box Isolator with polycarbonate windows allows full chamber visibility and convenient dual-side access; shown with optional gloves | 1694-33A displayed Stainless Steel Full-View Glove Box Isolator, Series 500 Stainless steel Series 500 Full-View Glove Box with polycarbonate or static-dissipative PVC panels allows dual-side access to chamber. Specify optional gas control to maintain low-humidity and particle levels (shown with optional gloves).
Features & Benefits

Features and Benefits

View Glovebox Dimensions
Print Copy Copied

More Information

Series 500 Glove Box Dimensional Illustration
Glove Ports A in. (mm) D in. (mm) E in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
4 26 (660) 36 (914) 14.75 (375) 48 (1219) 30 (762) 16 (406) 14.75 (375) 12 (305)
8 26 (660) 36 (914) 14.75 (375) 96 (2438) 30 (762) 16 (406) 14.75 (375) 12 (305)

Removable Side Panel for Stainless Steel Glove Boxes

Removable gasketed side panels allow easy introduction of large process equipment, combining gloveboxes, adding air locks, access doors, and other accessories!

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

External LED Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Relative Humidity and Temperature Data Logger

    Relative Humidity and Temperature Data Logger

    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • Stainless steel glove box isolator with side access door

    Side Access Door for Stainless Steel Glove Box Isolator

    Side access doors allow quick transfer of equipment and materials into a stainless steel glove box. Available in many sizes.
  • Removable Glove Port Cover, 10

    High Caliber Hardware

    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter

    Glove Box Iris Port Adapter for 10" Ports

    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Stand for Glove Box Chamber

    Glove Box Stand, Powder-Coated Steel

    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Single-Wall Stainless Steel Glove Box Air Lock

    Stainless Steel Glove Box Air Lock, ValuLine™ Single-Wall, 12"W x 12"D x 12"H

    Right-mount, single-wall ValuLine™ glove box air lock prevents cross-contamination during parts transfer
  • Small, medium, and large laboratory nitrogen generator systems
    Learn More

    Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Double-Wall Stainless Steel Air Lock Attached to Glove Box
    Learn More

    Many Air Lock Designs!

    Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).
  • Neoprene Glove Box Accordion Sleeves with Nitrile Gloves

    Neoprene Accordion Sleeve Assemblies

    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Static-Neutralizing Ionizing Module for Glove Boxes

    Ionizing Module for Glove Boxes

    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • stainless steel glovebox on automatic height adjusting table with N2 generator

    Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Dual Purge and NitroWatch nitrogen control systems maintain low-rh set-point inside a desiccator or glove box
    Learn More

    Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Automatic RH control system with built-in data logging

    Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • csv download icon for data logging humidity control system

    Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
