1530-41-220
Terra Part # 1530-41-220
$26,395

Want it faster ? Read about FasTrak

Terra Part # 1530-41-220
40790
$26,395

Want it faster ? Read about FasTrak

Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Dimensions: 48"W x 30"D x 40"H (1219 x 765 x 1016 mm)
  • Overall dimension w/10"-diameter exhaust flange: 48"W x 43.90"D x 81.373"H (1219 mm x 1115 mm x 2067 mm)
  • Weight: 160 lbs (73 kg)
  • Material: 304 stainless steel with safety glass side and front panels
  • Power: 240VAC/50Hz
  • Excellent for applications with corrosive or flammable liquids
  • Exhaust system allows safe fume venting
  • Split sink beneath perforated work surface drains into reservoirs for safe solvent disposal
  • Hose barb: needle valve (35) x 2 finer flow for liquids or gases
  • Hose barb: ball valve (42) x 2 liquids
  • 1" ( 25 mm ) NPT drains to 1/2" ( 13 mm ) PTFE line to (2) polypropylene carboys
  • Tempered glass w/pivot front side shield w/10" ( 254 mm ) access gap / side windows
  • Dual isolated sinks, 5 gallon (19 L) polypropylene w/carboys, 28"L x 22.8"W x 12"H, (711 mm x 579 mm x 305 mm, ) (wall)
  • Includes tempered glass shield with gas spring cylinders that hold door open or closed
  • 304 SS Fire Sprinkler (requires in-house water source)

Type: Solvent Spray Booth

Material: 304 Stainless Steel

Work Area Width: 48"

Work Area Depth: 30"

Available ISO Ratings: ISO 6, ISO 7, ISO 8

ISO Class: ISO 6

Unit of Measure: EA

Electrical Specifications: 240 V, 3 A, 720 W, 1 Ph, 50 Hz

Weight, Product: 465 lb

Dimensions, Product: 48" W x 43.9" D x 81.373" H

Weight, Shipping: 746 lb

Dimensions, Shipping: 54" W x 50" D x 88" H

Package Type: Crate

Features and Benefits

Learn More: Wet Processing Materials
Process Control, Safety, and Consistency
Polypropylene
  • Economical plastic with broad chemical compatibility
  • Ideal for wet processing station panels
  • Loses some chemical resistance at high temperatures
  • Suitable for HF and KOH processes
Quartz
  • The preferred material for ultra-pure applications
  • Provides greater uniformity in heat transfer than plastic baths—ideal for very tight temperature control
  • Suitable for most chemicals (but not HF acid)
  • Hard surfaces won’t scuff, stain, or absorb impurities
PVDF (polyvinyldilene fluoride)
  • Broader range of chemical resistance than polypropylene
  • Suitable for high process temperatures
  • Ideal for HF and BOE processes at high temperatures
PTFE (Teflon®)
  • Resistant to an extremely wide range of chemicals
  • Perfect for KOH and HF acid (which etch quartz)
  • Softer than quartz, so care must be taken to avoid scuffing, staining

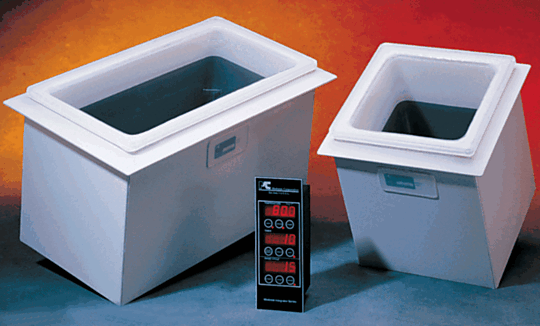

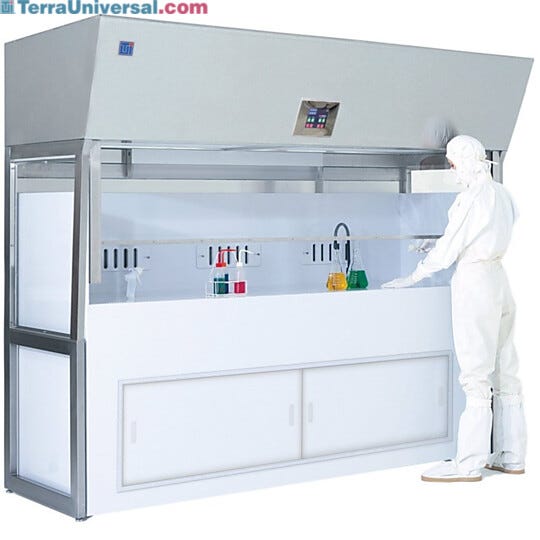

Terra’s comprehensive range of constant-temperature baths, etching baths, dump risers, and other processing equipment is ideally suited for the high-purity requirements of the semiconductor industry. Microprocessor controls ensure the integrity of your operations.

The chart below indicates the baths best suited for common semiconductor operations. Once you select the equipment that meets your requirements, a Terra process engineer will help configure a turnkey solution.

Product Application Chart
Commercial or Generic Name Process Chemical Composition Concentration Typical Temperature Recommended Product
Aqua Regia Gold Etchant Hydrochloric Acid (HCl)
Nitric Acid (HNO3)
75%
25%
90° C Series
Buffered Oxide
Etch (BOE)
Etch SiO2 Ammonium Fluoride (NH4F) Aqueous
Hydrofluoric Acid (HF) Aqueous
40% 15-40°C
Ambient
A Series
RCe Series
CP8 Etch Nitric Acid (HNO3)
Hydrofluoric Acid (HF)
  Ambient A Series
Etch (Indium)
Molybdenum Platinum
Nichrome
Etch Hydrochloric Acid (HCl) Aqueous
Nitric Acid (HNO3)
37-38%
70-71%
  QA Series
Metal Etch Etch A,
AlSi Al Si Cu
Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
85-87% 30-60°C QA Series
Nitride Etch Etch Phosphoric Acid (H3PO4)
DI Water (H20)
85-87%
15-13%
150-185°C Nb Series
Organic Stripper Resist Removal PRS-1000
S-43
Lozolin
No Phenol-922
Full strength Room Temperature
120°C
Nb Series
Oxide Resist Strip SiO2 Resist Stripping Sulfuric Acid (H2SO4)
Ammonium Persulfate (NH4S2O2)
95-96% QA Series
Phenolic Stripper Resist Removal J100
Bermar 712D
R-10
  95-100°C C Series
Resist Series (Metalized) Resist Removal Chromic Sulfuric Acid (CrO3+H2SO4)     A Series
R.C.A. Clean Pre-Diffusion Cleans
Quartzware
Step 1: Water
Hydrogen Peroxide (H2O2)
Ammonium Fuoride (NH4CH)
Step 2: DI Water (H2O)
Hydrogen Peroxide (H2O2)
Hydrochloric Acid (HCL)
40% 75-85°C Qa Series
Silicon Etch Etch Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
HydroFuoric Acid (HF)
  Ambient A Series
Sirtl Etch Etch Chromium Trioxide (CrO3)
DI Water (H20)
Hydrofluoric Acid (HF)
  Ambient A Series
Slope Etch Etch Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
  55°C Qa Series
Standard Resist Strip (do not use w/aluminum) SiO2 Resist Strip Sulfuric Acid (H2SO4)
Hydrogen Peroxide (H2O2)
95-96% 110-140°C Qa Series
2:1 Etch Etch DI Water (H2O)
Hydrofuoric Acid (HF)
  Ambient A Series
Wafer Rinsing Rinsing DI Water (H2O) 100% Ambient DR-Series
Particle Trapping Test

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

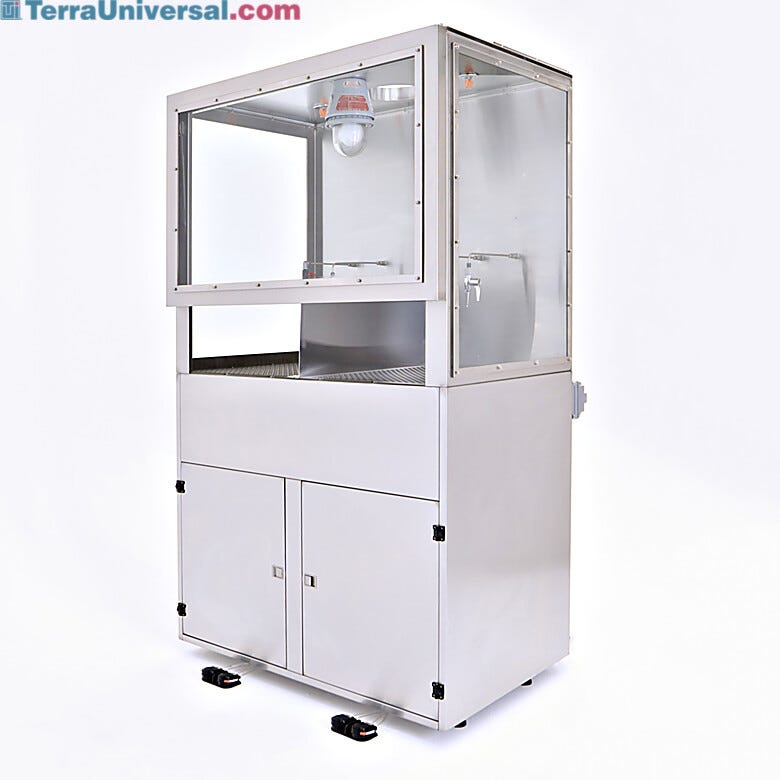

Explosion-Proof Light and Fire Sprinklers

Incandescent illuminator lights up work area and is wired per NEC guidelines. It is appropriate for Class I, II and III, Divisions 1 and 2 applications using ignitable mixtures. Sprinkler heads located above each sink add an extra layer of safety when working with flammable chemicals.

Split Perforated Sink for Two Users

The removable perforated stainless steel surface safely guides liquids to the bottom drain and prevents parts from falling into the sink. The center partition allows for separate operations and minimizes splashing or mixing of chemicals from the adjacent sink.

Gas and Solvent Service Lines

Downward spraying petcock nozzles above each sink deliver liquid solvents for rinsing and nitrogen/air for drying. The nozzles extend outward for extra clearance and point down to facilitate cleaning procedures.

Pneumatic Foot Pedals for Hands-Free Operation

Pneumatic foot pedals installed at the base of the stainless steel solvent cleaning station allow users to safely control flow of solvent and nitrogen gas at each sink. Hands-free operation reduces risk of contamination.

Exhaust Duct Connection For Safe Fume Extraction

Stainless steel solvent station is equipped with exhaust duct to safely carry fumes away from workers. This view from the top also shows plumbing that feeds two fire sprinklers, and encased wiring for the explosion-proof light.

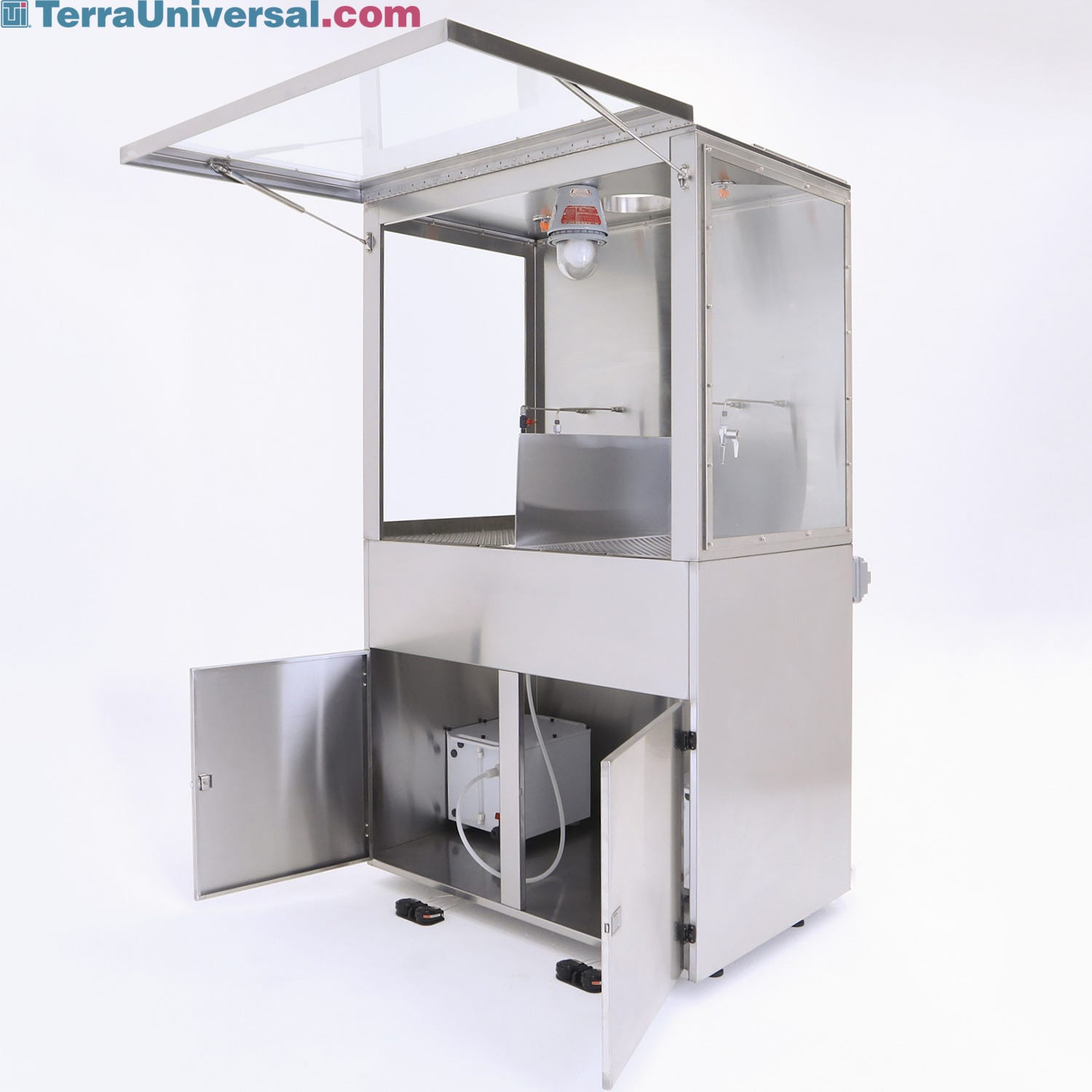

Tilt-Up Front Shield for Easy Access

Gas struts help open and hold up the front shield to simplify cleaning and allow transfer of bulky equipment in this stainless steel solvent station. Removable chemical reservoirs beneath the sink safely store used solvents.

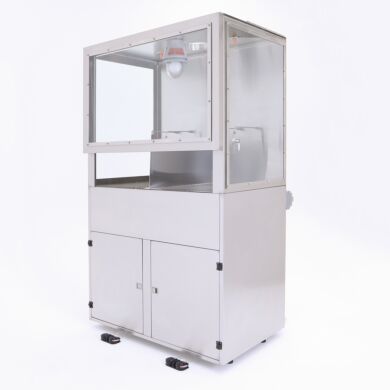

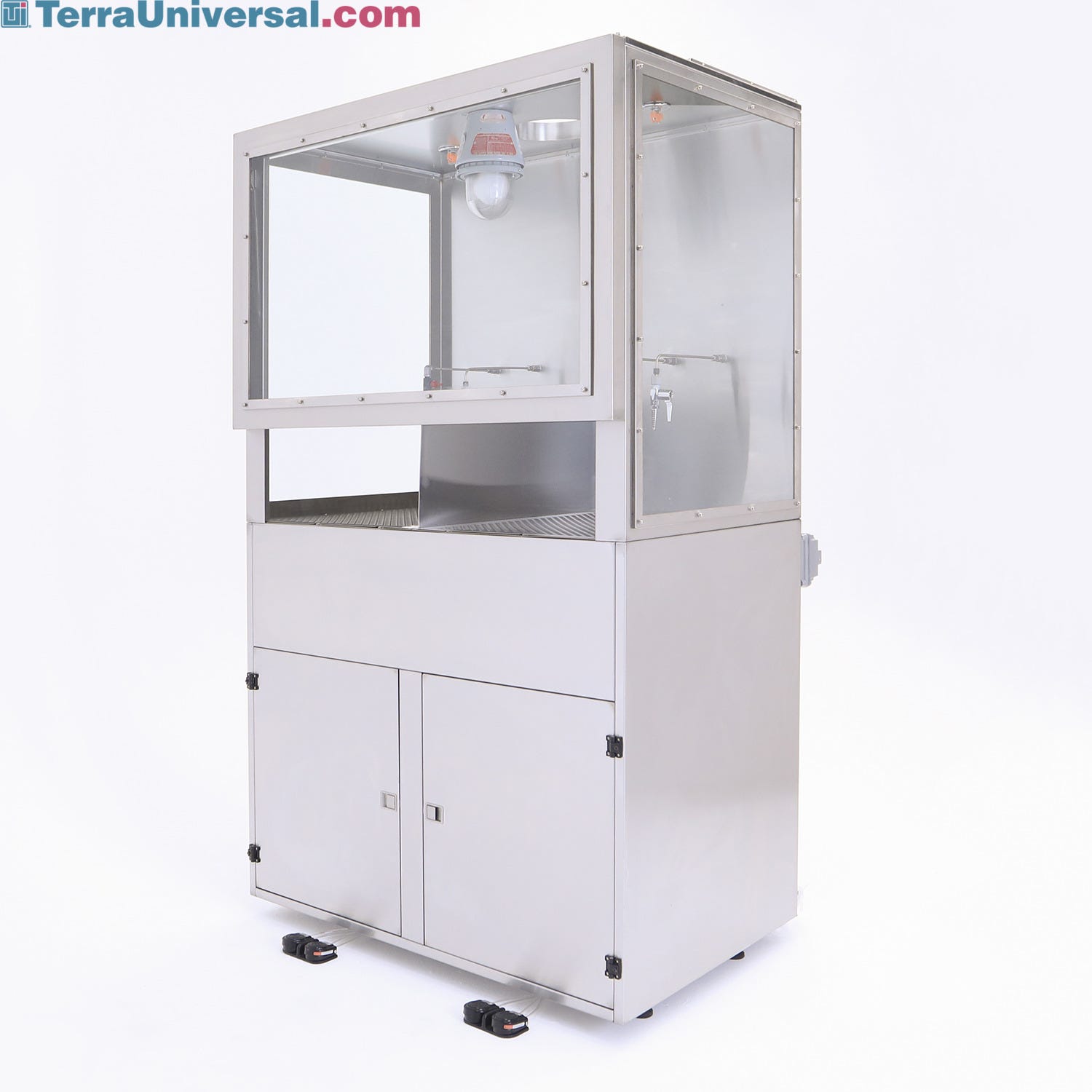

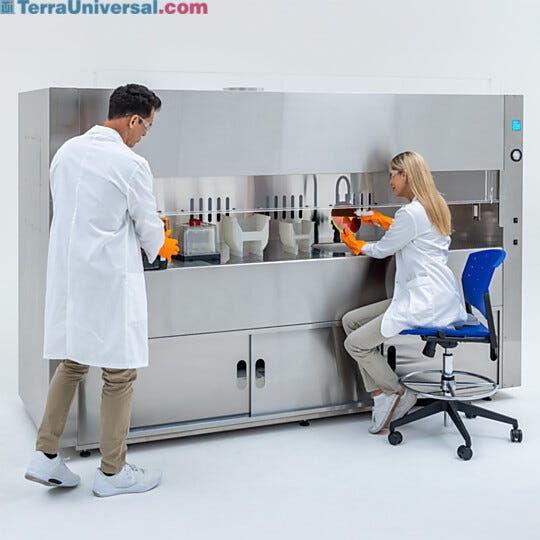

Ideal for Corrosive or Flammable Liquid Applications

Stainless steel wet cleaning stations are ideal for applications involving corrosive or flammable liquids. 304 stainless steel construction resists a wide range of solvents, including lapping oils, alcohol, naphtha and toluene.

Fully Adjustable Solvent and Gas Lines

Gauges and knobs on the rear allow pressure control of air and solvent lines. Quick-connect fittings on the other side feed each line. Additional service lines can be installed. Plumbing is also available in other materials, including Teflon and polypropylene.

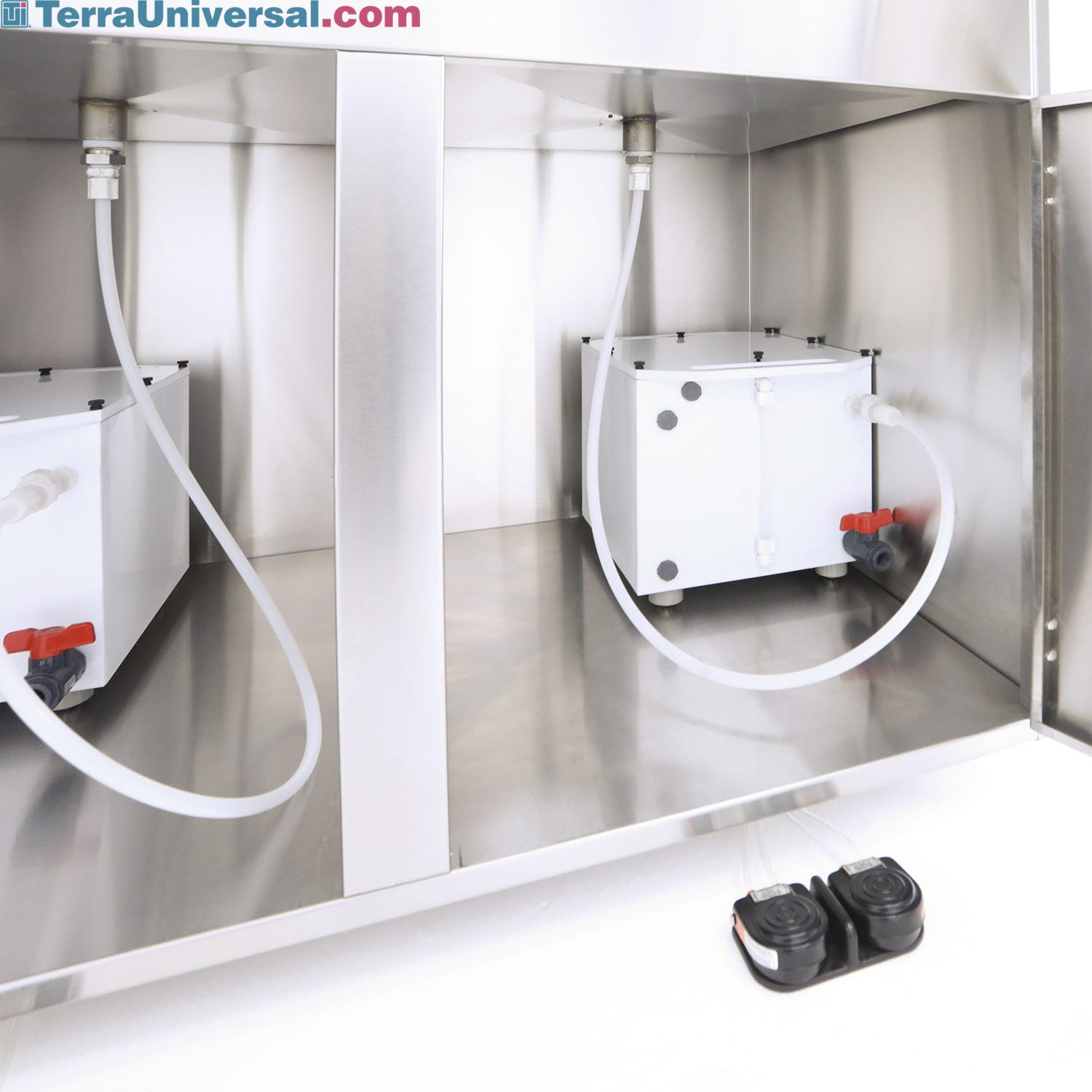

Portable Chemical Reservoirs Safely Contain Drained Solvents

Chemical reservoirs connected to each sink safely contain solvents draining from above. They include a sight glass to monitor liquid level (electronic liquid level sensors available). Casters and quick connect/disconnect fittings simplify removal and emptying.
