Select Product

Voltage

Chamber Material

Window Material

Chamber Width

Chamber Depth

Chamber Height

Terra Part #PriceShips in
120 V PVC PVC 58.5" 23.5" 24.5" 4 3306-65 59614 $5,46520-24 Days2
120 V PVC PVC 34.5" 23.5" 24.5" 2 3306-64 59608 $4,49420-24 Days3
120 V Acrylic Acrylic 58.5" 23.5" 24.5" 4 3306-61 59605 $3,8744-6 Days4
120 V Acrylic Acrylic 34.5" 23.5" 24.5" 2 3306-60 59604 $3,4054-6 Days5
120 V Static Dissipative PVC Static-Dissipative PVC 58.5" 23.5" 24.5" 4 3306-63 59607 $5,4224-6 Days6
120 V Static Dissipative PVC Static-Dissipative PVC 34.5" 23.5" 24.5" 2 3306-62 59606 $3,1374-6 Days7
120 V Polycarbonate Polycarbonate 58.5" 23.5" 24.5" 4 3306-69 59613 $4,8044-6 Days8
120 V Polycarbonate Polycarbonate 34.5" 23.5" 24.5" 2 3306-68 59612 $4,2274-6 Days9
120 V Polypropylene Tempered Glass 58.5" 23.5" 24.5" 4 3306-67 59611 $4,3994-6 Days10
120 V Polypropylene Tempered Glass 34.5" 23.5" 24.5" 2 3306-66 59610 $3,6884-6 Days11
240 V PVC PVC 58.5" 23.5" 24.5" 4 3306-65-220 64446 $5,46520-24 Days12
240 V PVC PVC 34.5" 23.5" 24.5" 2 3306-64-220 64441 $4,49420-24 Days13
240 V Acrylic Acrylic 58.5" 23.5" 24.5" 4 3306-61-220 64438 $3,8744-6 Days14
240 V Acrylic Acrylic 34.5" 23.5" 24.5" 2 3306-60-220 64437 $3,4054-6 Days15
240 V Static Dissipative PVC Static-Dissipative PVC 58.5" 23.5" 24.5" 4 3306-63-220 64440 $5,4224-6 Days16
240 V Static Dissipative PVC Static-Dissipative PVC 34.5" 23.5" 24.5" 2 3306-62-220 64439 $3,1374-6 Days17
240 V Polycarbonate Polycarbonate 58.5" 23.5" 24.5" 4 3306-69-220 64445 $4,8044-6 Days18
240 V Polycarbonate Polycarbonate 34.5" 23.5" 24.5" 2 3306-68-220 64444 $4,2274-6 Days19
240 V Polypropylene Tempered Glass 58.5" 23.5" 24.5" 4 3306-67-220 64443 $4,3994-6 Days20
240 V Polypropylene Tempered Glass 34.5" 23.5" 24.5" 2 3306-66-220 64442 $3,6884-6 Days21
Voltage
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Number of Glove Ports
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• ULPA filtration maintains ISO Class 5 conditions in work area

• Optional air lock reduces contaminant inflow during sample transfer

• Ideal for a wide range of packaging and processing operations sensitive to airborne contaminants, including work with pharmaceutical powders or biological samples

• Gasketed, stainless steel-reinforced side door with LiftLatches and removable rear panel permit introduction of samples and process equipment (air lock optional)

• 45° front slope allows the operator an uninterrupted overview of work in progress

• Economical, lightweight glove boxes include an adjustable filtration module with two operating modes: open-loop setting allow single-pass ULPA filtration; closed-loop filtration continuously scrubs the process environment, removing particles down to .12 microns in diameter

• Closed-loop mode contains sub-micron particles emanating inside the process chamber, protecting the lab or cleanroom from potentially harmful dust or microbes

• Select optional gas controllers to create low humidity, low-oxygen or other environmental conditions

• Not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals

• Wide variety of gloves available

• Select from single or twin operator models with choice of cleanroom-compatible materials: acrylic, static-dissipative PVC, polypropylene or polycarbonate

• Features two (single model) or four (twin model) 10" (254 mm) diameter glove ports that provide a wide range of motion (order gloves separately)

• Inlet filter: Ultra-Low Penetration Air (ULPA) rated 99.999% efficient @ 0.12 micron particles

• Brushless DC motor is designed for quiet, non-contaminating operation

HEPA/ULPA Filtered Glove Box Isolators

  • Twin Dissipative PVC Filtraiton Glovebox with Airlock Twin SDPVC Adjustable-Filtration Glove Box
  • Four-Port Polypropylene Glove Box with Adjustable Filtration Module and Air Lock Adjustable (Open/Closed-Loop) Particle Filtration Glove Box, 4-Port Polypropylene
  • Two-Port Static-Dissipative PVC Glove Box with Adjustable Filtration Module and Air Lock Adjustable (Open/Closed-Loop) Particle Filtration Glove Box, 2-Port SDPVC
  • Acrylic Filtered Glove Box with Adjustable Airflow Control 4 Ports Acrylic Filtered Glove Box with Adjustable Airflow Control 4 Ports

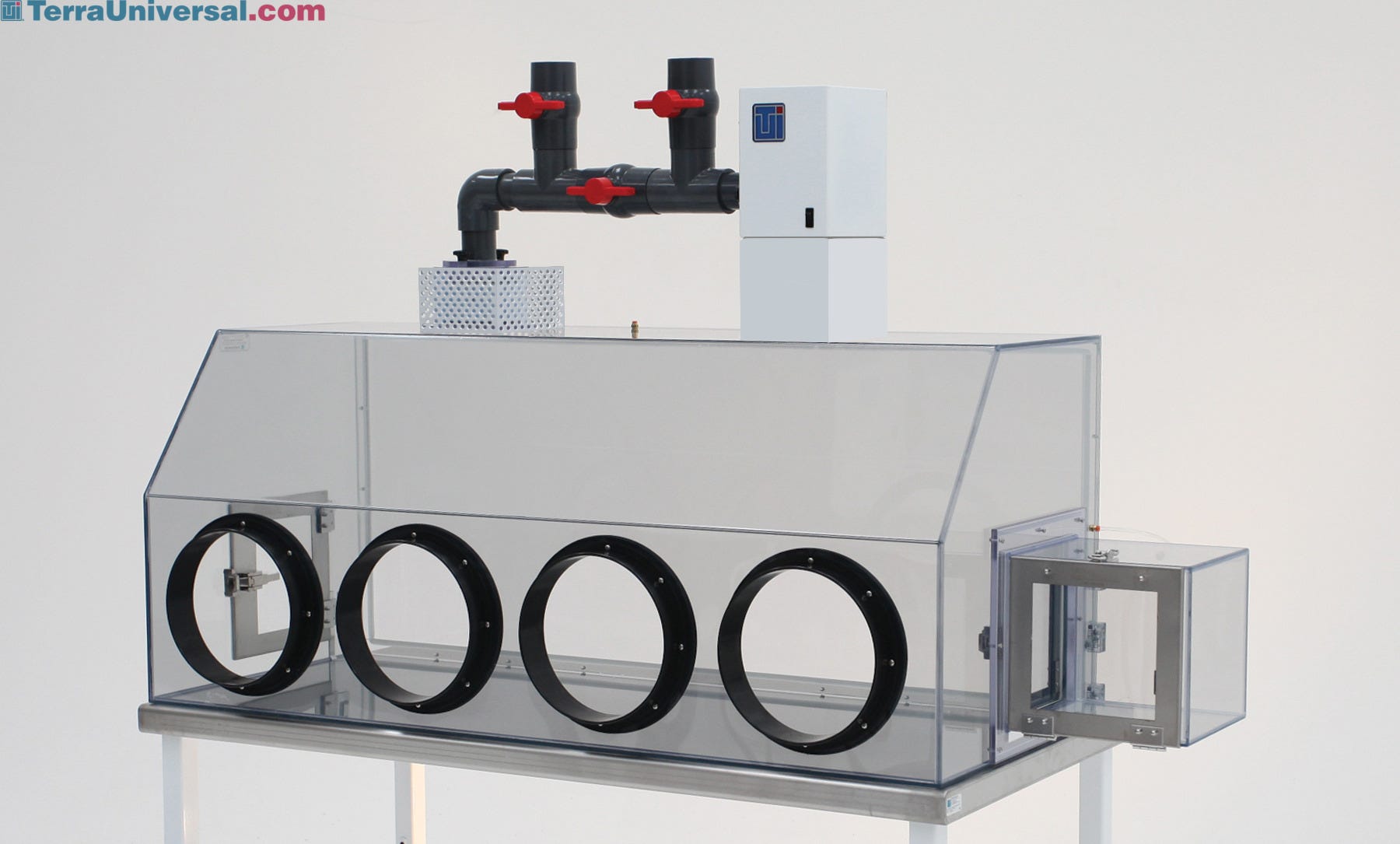

Twin Dissipative PVC Filtraiton Glovebox with Airlock
Four-Port Polypropylene Glove Box with Adjustable Filtration Module and Air Lock
Two-Port Static-Dissipative PVC Glove Box with Adjustable Filtration Module and Air Lock
Acrylic Filtered Glove Box with Adjustable Airflow Control 4 Ports

Features & Benefits

Features and Benefits

Filtered Containment Glove Boxes, Closed Loop

More Information

Type A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
Single 16.75 (425) 24 (610) 35 (889) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
Twin 16.75 (425) 24 (610) 59 (1499) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)

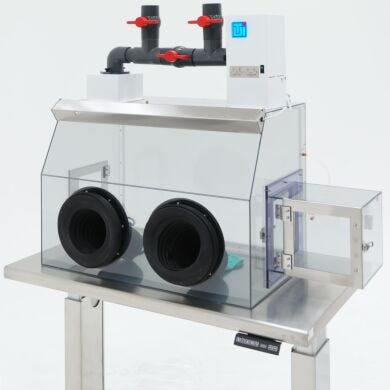

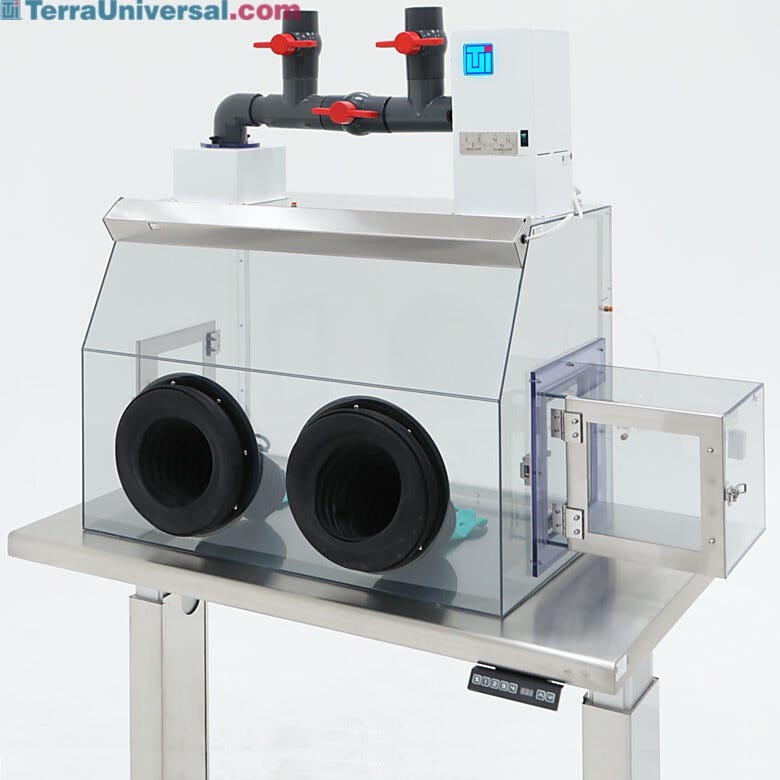

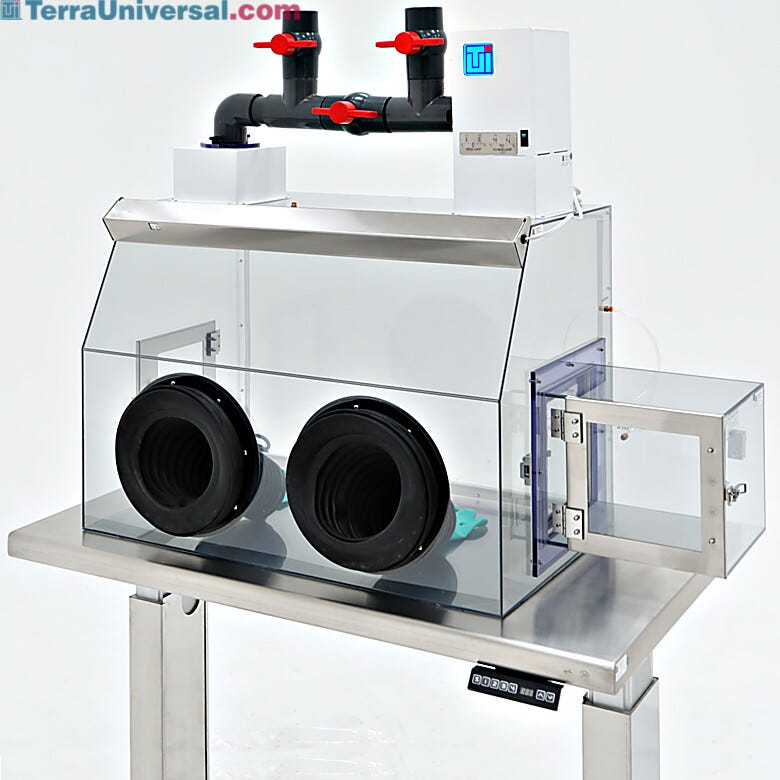

Particle Filtration Glove Box: Adjustable Airflow in Recirculation Mode

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (closed-loop containment setting shown).

Particle FIltration Glove Box: Adjustable Airflow (SIngle-Pass Setting Shown)

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (single-pass setting shown).

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Bellows Eyepiece Interface

This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Air Locks Minimize Cross-Contamination
    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Ionizing Module for Glove Boxes
    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • High Caliber Hardware
    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • UL-Listed Smart® Module for Long-Term Reliability
    The Smart® module is UL-listed and built to the highest standards required by defense and semiconductor industries for long-term reliability. The compact controller includes an LED display and sensor to eliminate the need for external control boxes. Installation is simple, requiring only one gas and one low voltage power connection.
  • Automatic RB (Relief-Bleed) Valve
    One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).
  • Laboratory Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Glove Box Stand, Powder-Coated Steel
    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • 3-inch Diameter Caster Set
    Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
  • Stainless Steel Work Surface Improves Safety and Service Life
    Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.
