4102-74C-HD
Terra Part # 4102-74C-HD
$4,954
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 4102-74C-HD
78487
Double Sided Garment Cabinet; 120 V Filter/Blower; 304 SS, SDPVC Windows, 52" W x 26.5" D x 94" H, Hanger Rod and Shelves, Reinforced Doors
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Cleanroom garment cabinet provides an easy-to-clean and organized storage area for booties and shoes
  • Double sided design allows quick access and re-stocking of supplies from either side
  • Versatile island storage cabinet is perfect for cleanroom gowning areas with limited wall space
  • Built-in HEPA filtration unit protects contamination sensitive garments and materials inside cabinet
  • Cleanroom compliant design includes corrosion resistant, non-particle shedding hardware
  • Double sided cleanroom garment cabinet increases efficiency and minimizes interruptions in high-capacity gowning areas.
  • Can be stationed as an island in central open space when mounting against a wall is unsuitable.
  • Multi-functional storage cabinet is suitable for cleanroom garments, tools, wipes, process equipment, and other contamination-sensitive materials.
  • Versatile adjustable shelving offers improved storage capacity and space efficiency.
  • WhisperFlow® Cleanroom FFU mounted above cabinet provides avg velocity of 90+ FPM, airflow of 640+ CFM at Medium speed. Three speed settings (Low/Medium/High) simplify air balancing.
  • Single pass HEPA-filtration adds another layer of protection against contamination for materials being transferred. The bottom floor of the cabinet is perforated to optimize vertical laminar airflow.
  • See FFU performance data and submittal sheets for additional information.
  • Access doors with 304 stainless steel reinforced frames extend cabinet's service life and provide a tight seal.
  • Santoprene® “e”-shape non-outgassing rubber gasket firmly compresses to eliminate leaks. The one-piece resilient rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.
  • Locking handles feature heavy-duty steel bolts that extend vertically through the door to firmly shut the cabinet and ensure the doors do not accidentally creep open.
  • Double-sided sloped top minimizes particle accumulation and simplifies cleaning. The top is also removable to facilitate transfer through areas with height constraints.
  • Chemical-resistant, static-dissipative PVC windows prevent static-clinging of particulates.
  • Built-in stand includes adjustable stainless steel levelers with slots to anchor into floor.
  • Optional rolling casters create a portable storage solution with hassle-free mobility to help clean under and around the cabinet.
  • Stainless steel construction provides smooth, easy to clean surfaces and stands up to sterilization with harsh biocides, including alcohol.
  • Shelves sold separately

Storage Type: Hanger Rod and Shelves

Material: 304 SS

Depth: 26.5"

Doors: Reinforced

Design: Free Standing Cabinet

Height: 94"

• HEPA Blower

Width: 52"

Window Material: SDPVC

Electropolished: Optional

Unit of Measure: EA

Marks & Listings: UL, ULC

Electrical Specifications: 120 V, 4.8 A, 60 Hz

Weight, Product: 549 lb

Dimensions, Product: 52" W x 26.5" D x 94" H

Weight, Shipping: 841 lb

Dimensions, Shipping: 57" W x 39" D x 98" H

Package Type: Crate

Manuals & Resources
Buy Accessories
  1. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    $590
    Increase Down Increase Up
  2. Ideal for glovebox isolators and other confined, difficult-to-clean chambers.  |  3307-70 displayed
    $578
    Increase Down Increase Up
  3. Suits various weights, floor surfaces, and cleanliness requirements  |  1700-43 displayed
    $1,033
    Increase Down Increase Up
  4. Gowning Room UltraClean Closed Loop Hanger  |  1530-30-2 displayed
    $22
    Increase Down Increase Up
  5. Detachable UltraClean Biosafe Hanger  |  1530-31-2 displayed
    $23
    Increase Down Increase Up

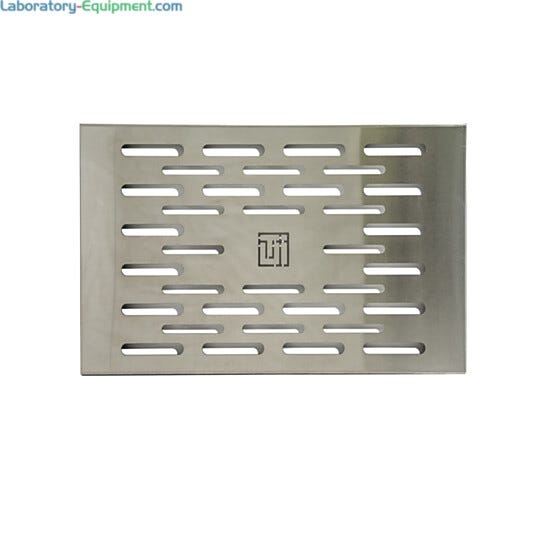

  6. 304 stainless steel perforated shelf for 40” shelf-only garment storage cabinets  |  4101-86B displayed
    $267
    Increase Down Increase Up
  7. Warranty; 2 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up
  8. Warranty; 3 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up
  9. Electropolish Service
    Request Quote
    Increase Down Increase Up
  10. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability  |  9999-316L displayed
    Request Quote
    Increase Down Increase Up
  11. UL Listing Declaration for Desiccator and Storage Cabinets
    Request Quote
    Increase Down Increase Up
  12. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up

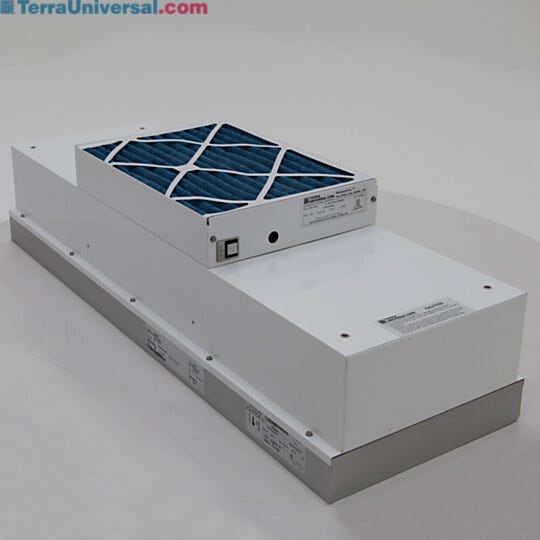

  13. WhisperFlow® Fan Filter Unit for shallow enclosures; baffle system and anodized aluminum diffuser promotes uniform air speed  |  6601-1648-H displayed
    $1,278
    Increase Down Increase Up

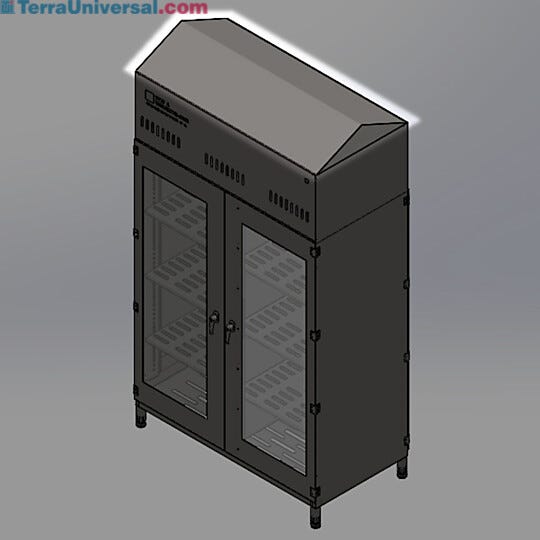

  14. Double sided cleanroom storage cabinet; 304 stainless steel, 2 doors on front, 2 doors on back, locking handled, dual-side sloped top
    $451
    Increase Down Increase Up

HEPA-Filtered Storage Cabinets

  • Cleanroom Gowning Procedures Cleanroom Gowning Protocol
  • COVID-19 Contamination Control Products by Terra Universal
  • Portable stainless steel cleanroom storage cabinet with laminar air flow Portable Cleanroom Storage Cabinet with Laminar Air flow
  • PureFlow Laminar Flow Storage Cart PureFlow™ Laminar Flow Transport Cart, Double Door
  • Stocking, Kitting and Dispensing Cabinet by Terra Universal Stocking, Kitting and Dispensing Cabinet
  • UV Sanitizing Cabinet for nursing home to help sterilize everyday high-contact items UV Sanitizing Cabinet for Nursing Home
  • UV Sanitizer cabinet with hepa filtration for sanitizing PPE UV Sanitizer Cabinet with HEPA Filter for Sanitizing PPE
  • Plastic Cleanroom Storage Cabinets Plastic Cleanroom Storage Cabinets
  • Cleanroom Storage Cabinet, SDPVC Model Cleanroom Storage Cabinet, SDPVC Model
  • Humidity Storage Cabinet Humidity Storage Cabinet
  • Storage Cabinet, Photomask/Reticle Reticle/Photomask Storage Cabinets
Cleanroom Gowning Procedures

Features and Benefits

Learn More: Filter Fan Units Prevent Infection

Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.

Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • SARS-CoV-2: Coronavirus (COVID-19)
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertusis : Whooping cough
  • Mycoplasma pneumoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Clamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii: Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alkaligenes: Opportunistic infections
  • Streptococcus pyogenes: Scarlet fever
  • Mycobacterium Tuberculosis: Tuberculosis

Top-Tier Clients

Terra’s key customers include some of the largest research labs, production facilities and universities in the world

Long-Standing Industry Expertise

For 45 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets. We intimately understand the cGMP, GLP, ISO, ASTM , IEST and OSHA requirements.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Terra's QuickBuild Program

Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
