Product 6601-1648-H
$776
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Designed in the USA

• Includes AC 3-speed blower motor

• Includes FDA-approved silicone sealant

• Internal baffling plates and anodized aluminum diffuser panel provide uniform air speed

• HEPA Filter: 99.99% efficient High-Efficiency Particular Air, rated at particles 0.3µm diameter

• Sound level is approximately 49 dBA, at average air flow velocity of 90 FPM. ( 0.46 m/s)

• Max average flowrate is measured 6" (152 mm) below filter face

• Operating Ratings (High Speed/Medium Speed/Low Speed):

• Average CFM (m^3/hr) 734 (1248) 650 (1105) 632 (1074)

• Air Speed FPM (m/s): 163 (0.83) 144 (0.73) 140 (0.71)

• 1/4" ( 6 mm) -20 threaded holes in top corners accommodate eyebolts to facilitate installation using suspended guy wires (order eye bolt package separately)

• Purchase optional Challenge Port Kit separately

• No power cord included; order cord assembly for stand-alone use in North American 120V

• Wall outlets, or cord for connection to standard Terra cleanroom Power Distribution Module

• 220VAC, 50 Hz units available

• Order Replacement Filter separately

• All filter sales are final; returns of this item cannot be accepted

• Specify acrylic urethane or other required sealant type when FFU is ordered

Dimensions, Product: 48"W x 16"D x 13"H

Marks & Listings: UL, ULC

Size: 16" x 48"

Electrical Specifications: 120 V, 4.8 A, 576 W, 60 Hz

Motor Type: Split Capacitor (AC)

Filter Replacement Access: Top Side

Marks & Listings: UL, ULC

Material: Powder-Coated Steel

Weight, Product: 50 Lbs

Weight, Shipping: 70 lb

Dimensions, Shipping: 52"W x 27"D x 16"H

Package Type: Crate

Unit of Measure: EA

Features and Benefits

Quick-Connect Fittings

FFUs and lights can be easily added as cleanrooms requirements change, or disconnected for maintenance, without the need to run additional power lines or involve an electrician.

Air Flow Uniformity

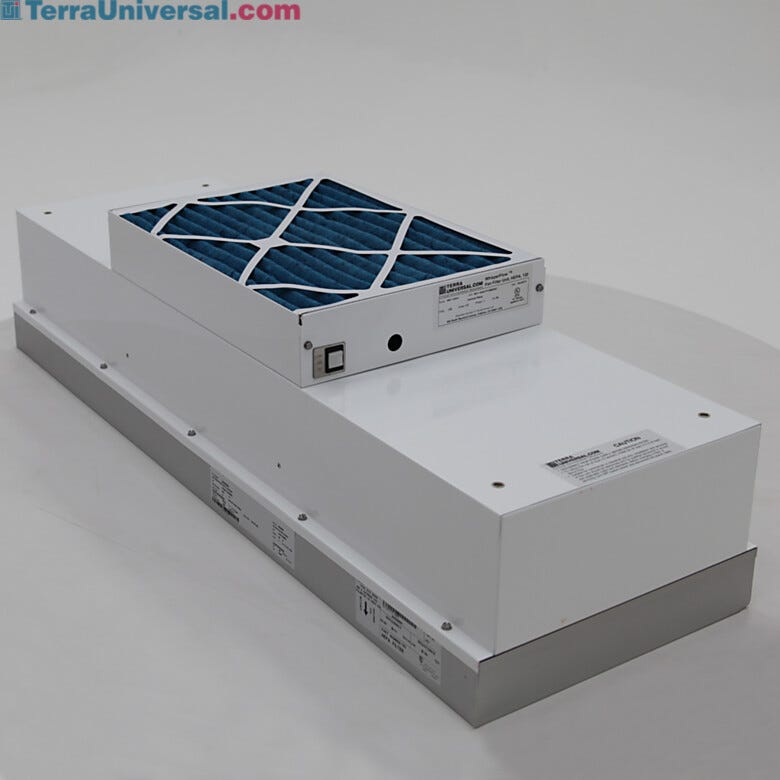

Unique WhisperFlow® FFU baffling system and anodized diffuser plate promote uniform air speed across the filter face.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Cord Adapter, MIN4 PL to 16AWG Power Cord for Terra Fan/Filter Unit
    Four-pin power cord adapter for fan/filter unit allows connection to standard 120VAC/60Hz power receptacle.
  • Filter Replacement Alarm
    The Filter Replacement Alarm monitors filter backpressure and issues an alarm when fitler needs replaced (requires selection of Fan Filter Unit with Challenge Port, order separately).
  • Challenge Port for Fan Filter Unit
    Challenge port for Fan/Filter Units simplifies filter leak testing and connection of Filter Backpressure Alarm (shown with optional pressure gauge; must be ordered with FFU).
