Terra Part # 1505-50
$4,818
Usually ships in 50-70 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1505-50
54150

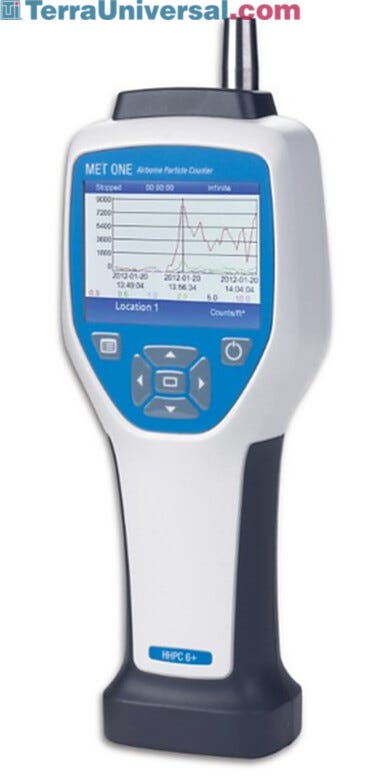

Particle Counter; Handheld, Laser, 6 Channels, 0.3 - 10 µm, MET ONE by Beckman Coulter
  • Detection Range: 0.3 - 10 µm
  • Channel 1 fixed at 0.3um.  Up to 5 additional size channels: 0.5um, 1.0um, 2.0um, 5.0um, 10.0um
  • Flow Rate: 2.83 lpm - Takes ISO 5 / Class 100-compliant 0.3um sample in a minute
  • Data storage capacity: 10,000 / 5,000 records when secure CFR 21 Part 11 compliant files enabled
  • Counting Efficiency: 50% @ 0.3um, 100% for particles > 0.45um (per ISO 21501)
  • Zero Count Level: 1 count / 5 minute (per JIS B9921)
  • Concentration Limits: 10% at 4,000,000 per cubic foot (per ISO 21501)
  • Count Modes: Raw counts, N/CF, N/CM, N/L in Cumulative or Differential mode
  • Battery Duration: Over 10 hours of typical use.  Minimum 5.5 hours continuous sampling.
  • Battery Charging Time: 3.5 Hours; Batter Type: Rechargeable Li-Ion 7.4V 2600 mAh battery, not user-serviceable
  • Power Adapter: External Class III 100-240 VAC, 50-60 Hz, 1.0A input; 12 VDC 2.5A output
  • UI Languages: English and Japanese
  • Ultra-lightweight 1.5 lb.  (0.7 kg.) slim, ergonomic design allows singlehanded operation and effortless monitoring in tight spaces – ideal for HEPA filter leak testing
  • Quickly check or validate ISO 5 (Class 100) or higher clean rooms and controlled environments
  • Easy-to-read high resolution screen, user-configurable display and icon-driven user interface – show only the data you want
  • No software required – connect to PC via a USB cable (included) or use a memory stick (not included) to transfer data – open with Excel; Preview data in display prior to export; Simplify troubleshooting - view data as a function of time in graphical trend mode
  • Optional password control for additional security

Detection Channels: 6 Channels

Detection Range: 0.3 - 10 µm

Counting Efficiency: 50% @ 0.3 µm, 100% > 0.45 µm

Manufacturer SKU: 2089311-01

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 120/240 V, 1 A, 50/60 Hz

Weight, Product: 1.5 lb

Dimensions, Product: 10.7" W x 3.9" D x 2.1" H

Weight, Shipping: 10 lb

Dimensions, Shipping: 12.375" W x 7" D x 5.5" H

Package Type: Box

Buy Accessories
  1.  | 1505-20 displayed
    $348
    Increase Down Increase Up
  2.  | 1505-21 displayed
    $35
    Increase Down Increase Up
  3. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Dedication to Business Ethics

Terra is committed to conducting business according to the highest standard of professional ethics and conduct. To review Terra’s ethics code, please visit: https://www.terrauniversal.com/ethics-policy/

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

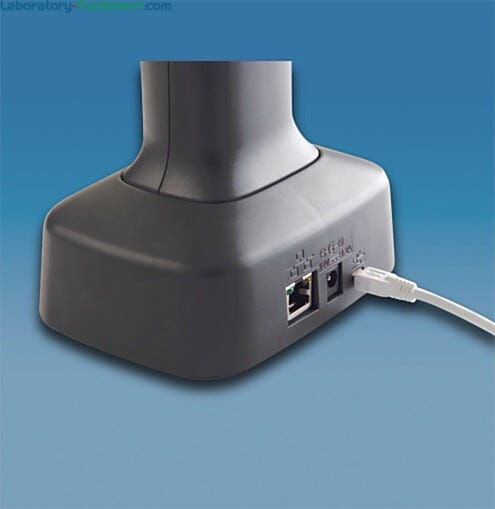

  • Charge and Communications Cradle for HHPC
