1702-70A
Terra Part # 1702-70A
$2,344
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available Only 3 left in stock
Accessories related to Terra Part # 1702-70A
70416

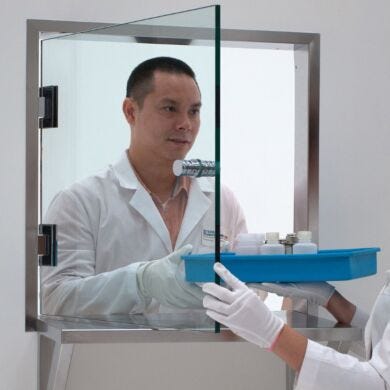

Pass-Through; Convenience Window, Wall Mount, Single Swing Door with Shelf, 4.5" to 5" Thick Walls, 12" W x 12" H, Stainless Steel Frame
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 1/2" tempered glass door swings in or out from both sides. Door stop included.
  • 304 Stainless Steel frame and shelf, with chrome-plated hinges and handles.
  • Ideal for item transfer between rooms where strict environmental control is not required.
  • With door closed, maintains room pressure to within 0.5"WC, even with perimeter air leakage
  • Includes reinforced shelf
  • Specify wall thickness at time of order
  • Standard pass-through designed for walls 4.5" to 5" thick
  • Door stop (for either side of door) included
  • Self-Centering hinges

Door Style: Single Swing

Frame Material: Stainless Steel

Mounting Position: Wall

Height: 12"

Width: 12"

Lockable: Yes

Electropolished: Optional

Window Material: Tempered Glass

Wall Thickness: 4.5" to 5"

Shelf: Shelf

Unit of Measure: EA

Marks & Listings: CE

Weight, Product: 47 lb

Dimensions, Product: 15.1" W x 14.4" D x 23.4" H

Weight, Shipping: 85 lb

Dimensions, Shipping: 20.5" W x 20" D x 21.13" H

Package Type: Crate

Buy Accessories
  1. For 1/2" Thick Glass, installation does not require drilling or notching in the glass
    $535
    Increase Down Increase Up
  2. Service, ISO Grade™ Certificate, ISO 7
    Request Quote
    Increase Down Increase Up
  3. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  4. Electropolish Service
    Request Quote
    Increase Down Increase Up
  5. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability  |  9999-316L displayed
    Request Quote
    Increase Down Increase Up

Pass Through Doors & Windows

  • Swing-Door Convenience Windows Swing-Door Convenience Window
  • Horizontal Sliding Convenience Window with Shelf and Models Horizontal Sliding Convenience Window with Shelf
  • Fire-Rated Passthrough Door Opening with Models ValuLine Fire-Rated Passthrough Door Opening
  • Fixed Transaction Window with Transfer Drawer and Talk-Through Fixed Transaction Window with Transfer Drawer and Talk-Through
  • Transaction Drawer with Window and Talk-Through (Shown from Receipt Side of Wall) Transaction Drawer with Window
  • Convenience Window Transfer Drawer Transfer Drawer (Receiving Side)

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Electropolish Finish

    Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
