- Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Free-standing, fully-integrated turnkey pharmacy compounding cleanroom system with all major components included
- Designed for hazardous and non-hazardous sterile compounding in compliance with USP <797> and <800> requirements
- Series of positive and negative pressure rooms ensure both sterile and hazardous compounding rooms maintain USP standards
- Environmental Control System with touchscreen interface monitors and logs temperature, pressure, and humidity in compliance with USP standards
- BioSafe® wall and ceiling panel system combines high durability with exceptionally smooth surfaces and coved corners for easy sterilization
USP Compounding Cleanrooms,USP Compounding Cleanrooms,USP Compounding Cleanrooms
2899-PP-04
2899-PP-04
Combination USP 797/800 BioSafe® Modular Cleanrooms
Read more
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
USP Compounding Cleanrooms
Combo USP 797 and 800 Cleanroom Installation for Sterile Compounding Compliance- Combination USP 797 and 800 BioSafe Modular Cleanroom Floor Plan
- Watch Terra's Video on Pharmaceutical Air Lock Designs
- Custom USP Stainless Steel BioSafe® Cleanroom for Pharmaceutical Compounding
2899-17-PP
USP Compounding Cleanroom with Polypro Wall Panels and Pass-through
This USP compounding cleanroom features smooth polypropylene wall panels that resist chemical damage and allow easy cleaning, paired with a stainless steel pass-through chamber to minimize contamination during material transfer.
2899-17-PP
ValuLine® 304 Stainless Steel Pedestal Sink in USP Compounding Cleanroom
ValuLine® 304 stainless steel pedestal sink includes hands-free foot-pedal operation to reduce contamination risks in USP compounding cleanrooms. Smooth stainless steel surfaces promote easy disinfection and long-term durability.
2899-17-PP
SS Work Station and Universal Hood in USP Compounding Cleanroom
BioSafe® vertical hood with side panels contains airflow and reduces contamination. Heavy-duty stainless steel workstation supports sterile workflows in compounding cleanrooms.
2899-17-PP
Combo USP 797 and 800 Cleanroom Installation for Sterile Compounding Compliance
Two modular cleanrooms installed side by side to support USP 797 and 800 sterile compounding workflows. Each room maintains distinct environmental controls, allowing facilities to meet regulatory requirements for separate processes.
2899-17-PP
Safety Cabinet Integrated in Cleanroom for Biological Containment
Installed in a cleanroom, this safety cabinet maintains cleanliness and containment through filtered airflow, enabling safe handling of sensitive biological materials.
2899-17-PP
Cleanroom Interior with Safety Cabinet and Stainless Steel Pass-Through
This cleanroom interior features a safety cabinet for personnel and product protection, along with a stainless steel pass-through chamber to maintain sterility during material transfers in USP compounding environments.
34386
Cleanroom Area with Pass-Through, Sink and Environmental Control Panel
As part of the cleanroom, the pass-through, stainless steel sink, and control panel work together to support sterile material handling and maintain environmental controls.
2899-17-PP

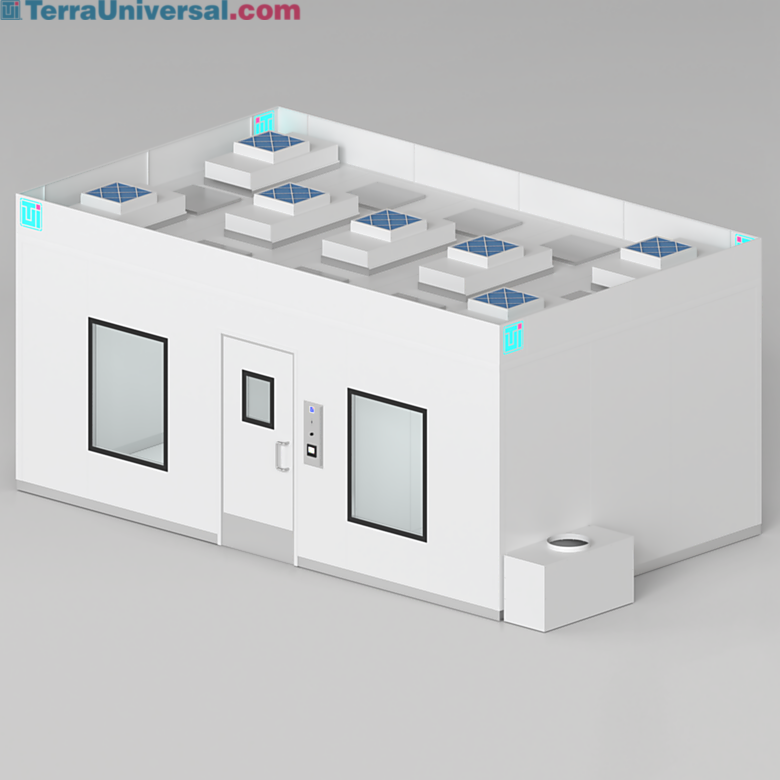

Modular Cleanroom System Installs Easily Within Existing Workspaces
This modular cleanroom system is engineered for seamless integration into existing facilities. Its prefabricated design allows for flexible installation in a variety of workspaces while maintaining cleanroom performance standards.
SKU: 2899-PP-04

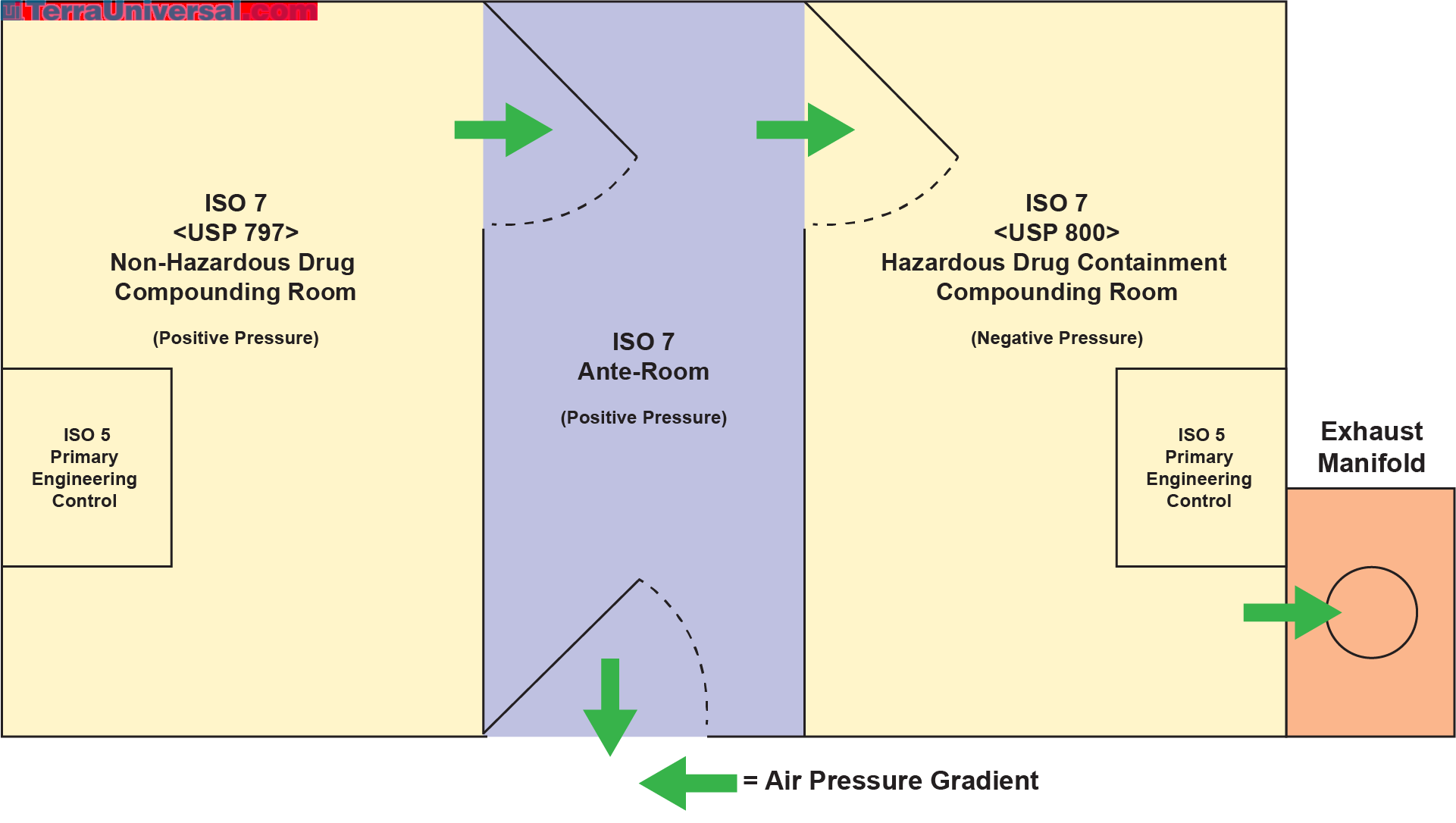

Combination USP 797 and 800 BioSafe Modular Cleanroom Floor Plan
The pressure differentials in the turnkey BioSafe Modular USP 797/800 compounding cleanrooms are configured to cascade from high pressure to low pressure to ensure compliant airflow in both chambers.
The layout of the combination 797/800 compounding cleanrooms with cascading pressure differentials between separated chambers | 2899-PP-04 displayed Combination USP 797 and 800 BioSafe Modular Cleanroom Floor Plan The pressure differentials in the turnkey BioSafe Modular USP 797/800 compounding cleanrooms are configured to cascade from high pressure to low pressure to ensure compliant airflow in both chambers.
Airlocks safeguard cleanrooms, preventing cross contamination during transfers Watch Terra's Video on Pharmaceutical Air Lock Designs Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.
34587
Custom USP Stainless Steel BioSafe® Cleanroom for Pharmaceutical Compounding
This image captures the outer transition area to a cleanroom, equipped with secure stainless steel doors, environmental monitoring systems, and keycard access. The cleanroom's glass windows offer a view into the sterile environment beyond
34100
Stainless Steel Cleanroom Interior with Sink and Workstation
A clean, sterile room with stainless steel surfaces and a sink workstation, used for laboratory or industrial processes.
34101
Stainless Steel Cleanroom with Sliding Door and Window
A quiet, sterile room with stainless steel surfaces and a large sliding door for controlled entry.
34104
Cleanroom Pass-Through Chamber with Open Door
A pass-through chamber located between cleanroom areas, allowing safe material transfer without contaminating sterile spaces
34106
Cleanroom Pass-Through Chamber and Medical Refrigerator
A sterile cleanroom section with a pass-through transfer chamber and refrigerator, likely in a hazardous materials or compounding room
34108
Cleanroom Hazardous Compounding Room with Isolator
A stainless steel cleanroom entryway showing a glovebox isolator, an emergency stop button, and a motion-sensing door control.
304 Stainless Steel BioSafe® Cleanroom Interior – ISO-Compliant Facility
A cleanroom transition area designed for gowning and preparation, featuring stainless steel benches and observation window for controlled access
Cleanroom Entry Door with Window and Control Panel
An airlock or gowning room entry point with a stainless steel door, observation window, and control system for secure access
Features & Benefits
Features and Benefits
Learn More: USP-Compliant Cleanrooms
Print Copy Copied
Affordable customization to unique requirements!
- Terra’s modular designs allow versatile configurations using standard components, whether you need a small compounding enclosure or a multi-suite processing facility (shown: Stainless steel USP 800 multi-room hazardous materials cleanroom with plastic hardwall ISO 8 transition room)
- Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
- Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
- Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
- Stand-alone A/C modules or integration with existing air handling system
- Negative-pressure plenums and exhaust fans accommodate hazardous materials compounding requirements (USP 800)
- Consultation services available to meet USP 797 and 800 and FDA/cGMP requirements
- Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges
Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!
Viewing Window for Modular Cleanroom
Cleanroom viewing windows provide ambient light and offer full visibility of the workspace. Polycarbonate offers chemical resistance, plus the highest durability (250x the impact resistance of glass). Static-Dissipative PVC panels are also chemical resistant and dissipate static charge to prevent particles from clinging to the window.
LED Lights, Fan Filter Units
HEPA fan/filter units (FFUs) exceed ISO 7 requirements for compounding buffer room; energy-efficient LED lights minimize generated heat
Exhaust Containment Plenum
Containment design includes exhaust plenums that route air from vents inside the enclosure to floor- or ceiling-mount fans, protecting the external environment from hazardous materials inside the cleanroom.

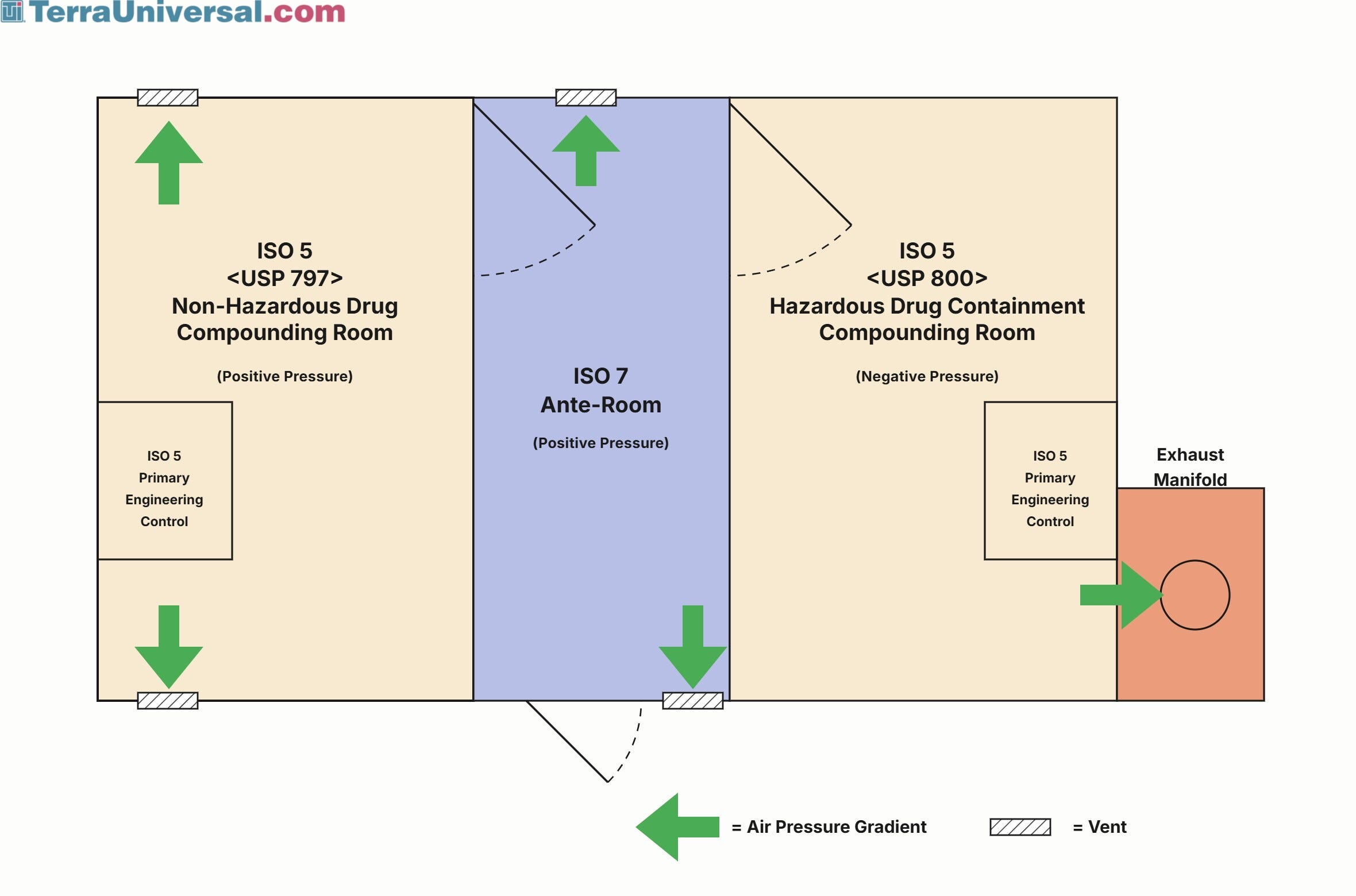

Combination USP 797 and 800 BioSafe Modular Cleanroom Floor Plan
The pressure differentials in the turnkey BioSafe Modular USP 797/800 compounding cleanrooms are configured to cascade from high pressure to low pressure to ensure compliant airflow in both chambers.
BioSafe® Wall Panel System, Wall Panel Vertical Joint Detail
Fully monolithic and seamless connecting wall panel system (not a panel-post system with gaps and ledges).
BioSafe® Wall Panel System, Wall Panel Junctions Plan View
Seamless coved transitions between ceiling, walls, and floors allow for easy cleaning.
BioSafe® Wall Panel System, Wall Panel - Ceiling Panel Junction
Seamless design is compliant with ISO-14644, cGMP, GLP, ASTM and IEST requirements. Coved transitions between ceiling, walls, and floors allow for easy cleaning.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Lighthouse Handheld Airborne Particle Counters
Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environmentsGermicidal UV Lamp Sanitizes Labs, Cleanrooms
UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.-
Bootie Butler Shoe Cover Dispenser
Bootie butler shoe cover dispenser applies shoe covers quickly and conveniently, reinforcing clean garbing protocol and keeping contaminants out of the cleanroom -
Glove and Garb Dispensers
Wall-mounted cleanroom garb and glove dispensers save ante-room space and promote clean garbing protocol. -
Hardwall Cleanroom Hands-Free Sink
Hands-free sink and hand dryer prevents further contamination
