120 V Controller No ISO 7 1681-75 7260 $3,553 1-3 Days 2
Quick Ship+ Only 6 left in stock
240 V Controller No ISO 7 1681-75-220 40791 $3,230 23-29 Days 3
Voltage
Type
Data Logging
ISO Class
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available ISO Ratings: ISO 7, ISO 8
  • Controls pump operation to maintain a preset vacuum level (to 800 torr) in a remote vacuum chamber
  • Especially important in testing or processing applications that require sustained exposure to a precisely regulated vacuum level
  • Extends the service life of your vacuum pump by allowing continuous operation
  • Repeated starts and stops, especially under existing vacuum pressure, can lead to back streaming of pump oil into the vacuum line, resulting in contamination and premature pump failure
  • Eliminates this problem by switching an optional solenoid vacuum valve on and off, which in turn controls vacuum pressure in the processing chamber

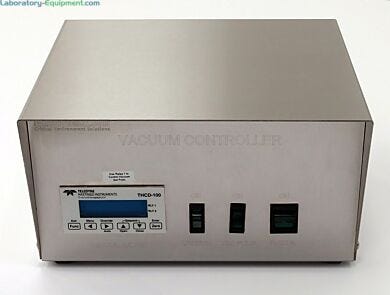

  • Includes a 3-digit LED display mounted in a 304 stainless steel housing, high and low vacuum control relays, and a piezo resistive vacuum tube (price includes mounting of sensor tube in a Terra vacuum chamber)
  • Order the vacuum solenoid for isolation of the vacuum pump from the processing chamber
  • Dimensions: 12" W x 11.25" D x 7" H
  • Weight: 16 pounds
  • Range: 0 - 800 Torr
  • Resolution: 1 Torr
  • Automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber
  • Includes easy-to-read digital vacuum gauge and piezo resistive pressure sensor for outstanding accuracy, stability and repeatability
  • Enhances pump life and efficiency

Vacuum Chambers

  • Vacuum chambers animation Watch Terra's Vacuum Chamber Video
  • Terra Universal Vacuum Chamber Overview
Vacuum chambers animation
Features & Benefits

Features & Benefits

Learn More: Vacuum Chamber Set-Up

More Information

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Global Customer Base

At Terra, we are committed to providing top-tier equipment to customers throughout the world. Over the past 5 years, clients in over 100 countries have purchased equipment from Terra.

Top-Tier Clients

Terra’s key customers include some of the largest research labs, production facilities and universities in the world
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Welch Rotary Vane Vacuum Pump

    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging

    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
